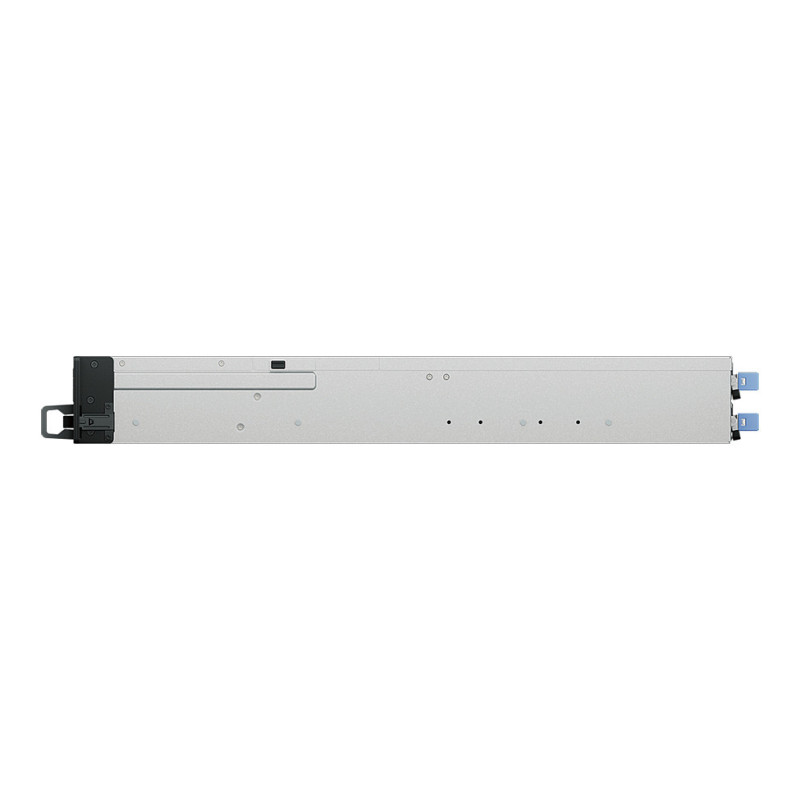

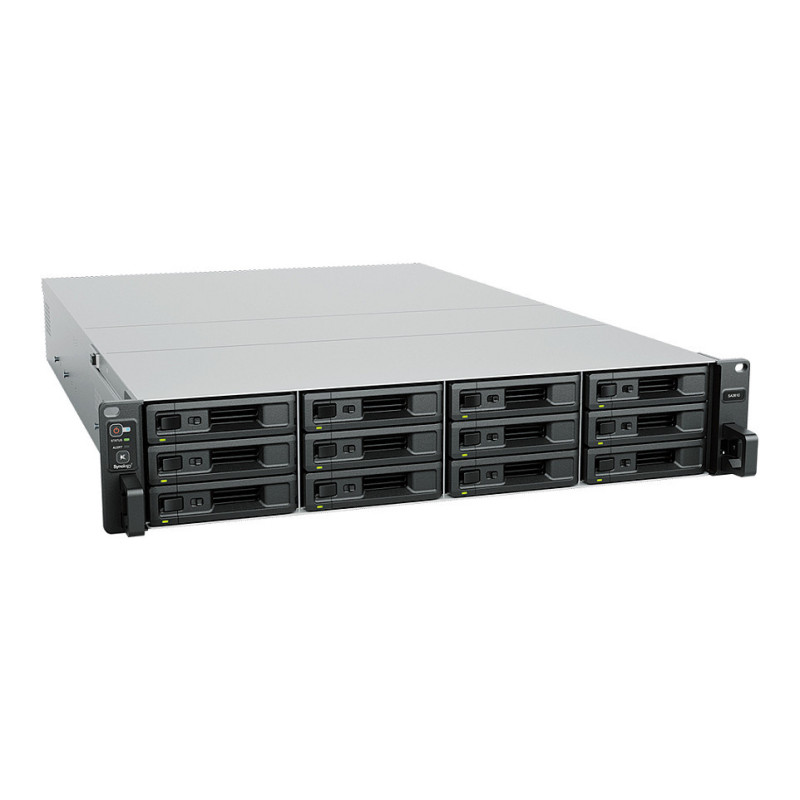

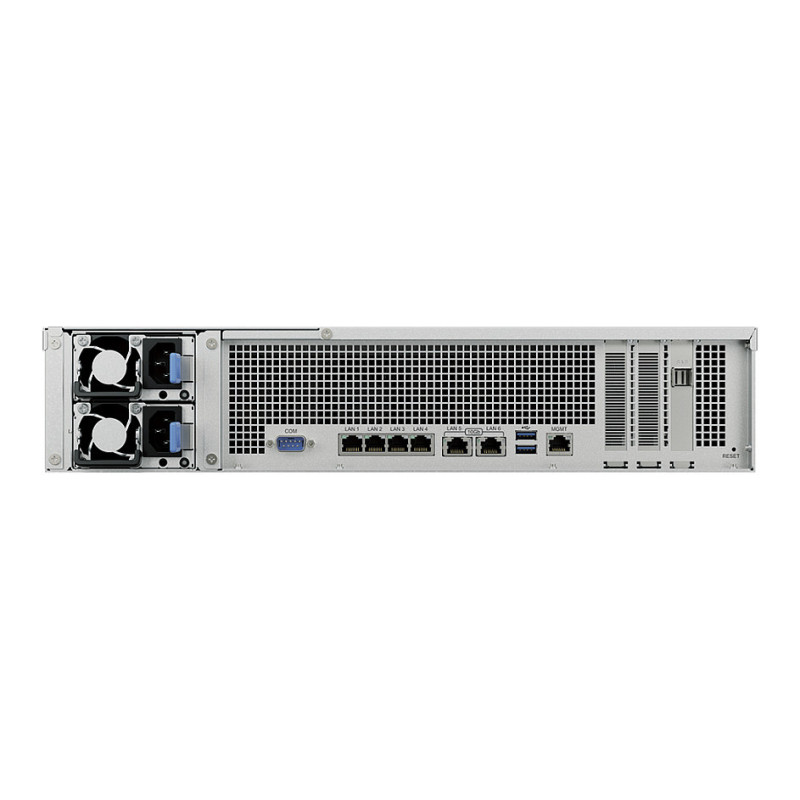

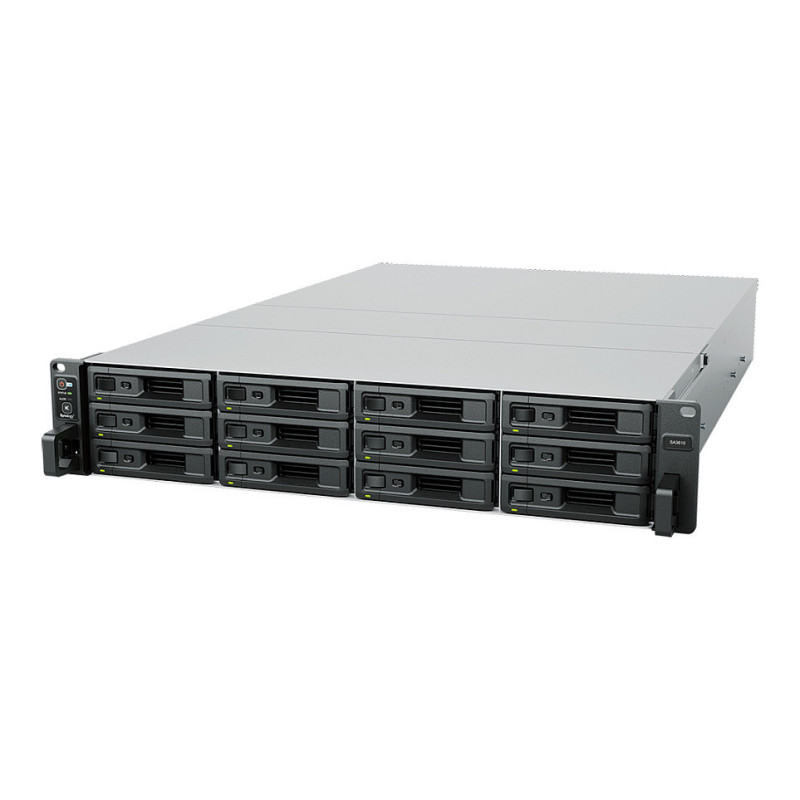

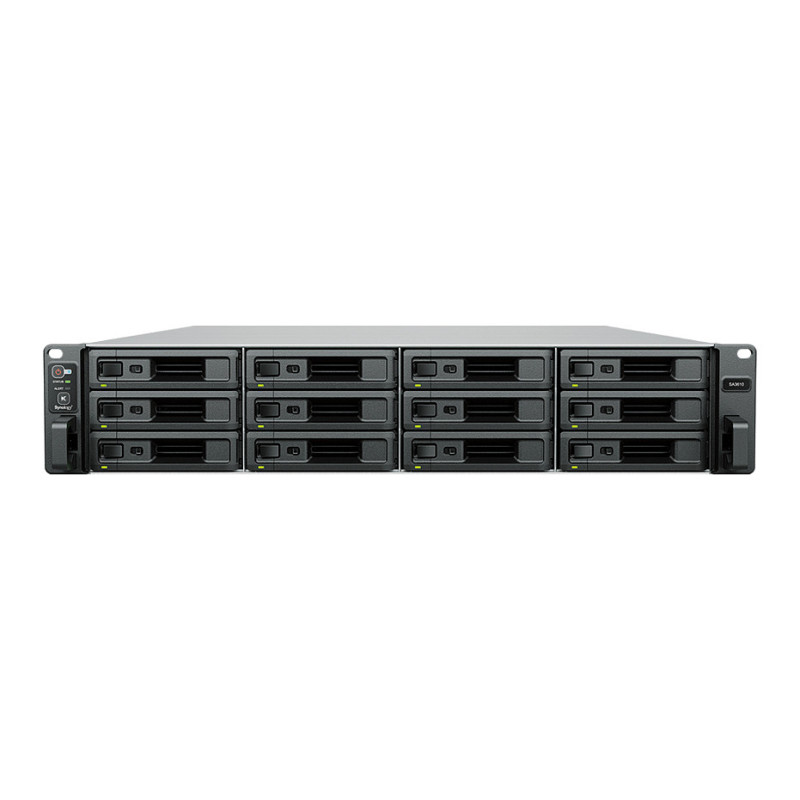

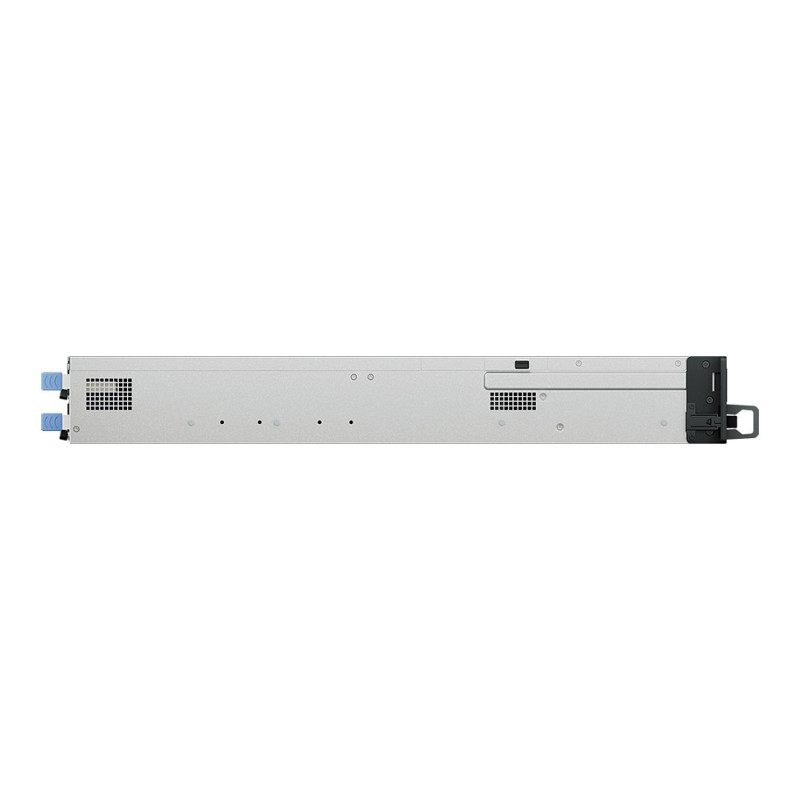

Synology SA SA3610 NAS / storage server

Synology SA SA3610. Type: NAS. Chassis type: Rack (2U). Device class: Small & Medium Business. Processor family: Intel® Xeon®, Processor model: D-1567, Processor frequency: 2.1 GHz. Internal memory: 16 GB, Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: DiskStation Manager

Storage

Supported storage drive interfaces: Serial ATA, Serial Attached SCSI (SAS)
Storage drive sizes supported: 2.5,3.5"
Feature: RAID support
RAID levels: 0, 1, 5, 6, 10, F1, JBOD
Feature: Online RAID migration
Feature: Online RAID expansion
Feature: Hot-swap drive bays
Supported file systems: BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4
Total installed storage capacity: 0 TB
Number of storage drives supported: 12
Installed storage drive type: No
Supported storage drive types: HDD & SSD

Processor

Processor manufacturer: Intel
Processor family: Intel® Xeon®
Processor model: D-1567
Processor frequency: 2.1 GHz
Processor boost frequency: 2.7 GHz
Processor cores: 12
CPU configuration (max): 1
Number of processors supported: 1
Feature: Conflict-Free processor

Memory

Internal memory: 16 GB
Internal memory type: DDR4
Maximum RAM supported: 128 GB
Memory slots: 4
Memory form factor: RDIMM
Feature: ECC

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000,10000 Mbit/s
Ethernet LAN data rate supported (max): 10000 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
Feature: iSCSI support
Feature: Wake-on-LAN ready
Supported network protocols: SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Feature: Link aggregation

Ports & interfaces

Feature: USB port
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Serial ports quantity: 1
Ethernet LAN (RJ-45) ports: 7
PCI Express x8 (Gen 3.x) slots: 2

Design

Chassis type: Rack (2U)
Cooling type: Active
Product colour: Black, Grey
Number of fans: 4 fan(s)
Fan diameter: 8 cm
LED indicators: Yes

Performance

Type: NAS
Device class: Small & Medium Business
Feature: Backup function
Backup features: Cloud, iSCSI LUN
Feature: Buzzer
Feature: Multilingual support
Noise level: 49.8 dB
Feature: Snapshot
Management protocols: SNMP
Security algorithms: AES
Feature: Access Control List (ACL)
Feature: Reset button
Feature: On/off switch
Feature: Built-in UPnP AV media server
Feature: Built-in FTP server
Browser supported: Google Chrome Firefox Microsoft Edge Safari
Feature: System log

Software

Operating system installed: DiskStation Manager

Power

Power supply location: Built-in
Power supply unit (PSU) capacity: 550 W
Number of power supply units: 1
Power consumption (typical): 137.54 W
AC input voltage: 100 - 240 V
AC input frequency: 50 / 60 Hz

Weight & dimensions

Width: 482 mm
Depth: 724 mm
Height: 88 mm
Weight: 14.5 kg

Packaging content

Cables included: AC
Power cables quantity: 1

Processor special features

Feature: Embedded options available
Feature: Enhanced Intel SpeedStep Technology
Feature: Execute Disable Bit
Feature: Idle States
Feature: Intel 64
Feature: Intel Enhanced Halt State
Intel Secure Key Technology version: 1.00
Feature: Intel Trusted Execution Technology
Feature: Intel TSX-NI
Intel TSX-NI version: 1.00
Feature: Intel Virtualization Technology (VT-x)
Feature: Intel Virtualization Technology for Directed I/O (VT-d)
Feature: Intel VT-x with Extended Page Tables (EPT)

Sustainability

Feature: Sustainability compliance

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 5 - 95%

Other features

Compliance certificates: CE, RoHS
Certification: FCCCEBSMIVCCIRCMUKCAEACCCCKCUL
