Synology RackStation SA3200D NAS / storage server

Synology RackStation SA3200D. Type: NAS. Chassis type: Rack (2U). Device class: Small & Medium Business. Processor family: Intel® Xeon® D, Processor model: D-1521, Processor frequency: 2.4 GHz. Internal memory: 8 GB, Internal memory type: DDR4. Operating system installed: DiskStation Manager

Maximize Service Availability, Minimize Downtime

Synology SA3200D features a dual controller architecture to ensure operations and core business functions are not severely impacted by a disaster or unplanned incident that take critical systems offline. The hardware redundancy mechanism leverages controllers, power
supplies, and fans to prevent a single point of failure. Powered by the intuitive and feature-rich
operating system DiskStation Manager (DSM), SA3200D provides comprehensive protection for network, file services, and applications.

Designed with High Availability and Scalability

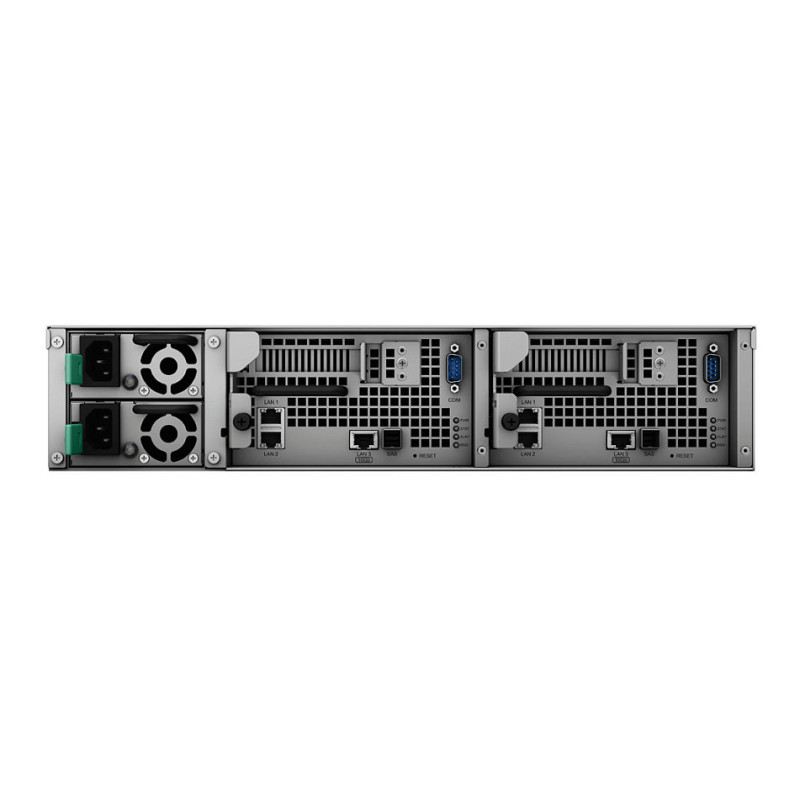

Synology SA3200D is a cost-effective yet highly available data management solution for enterprises, with a competitive priceperformance ratio of $0.05 per gigabyte. Underneath the 2U chassis are dual controller modules in an active-passive architecture, each connected to the other by the reliable, high-speed Non-Transparent Bridge (NTB) with low latency. Service continuity is also backed up by the hardware redundancy mechanism of modularized power supplies and fans to prevent a single point of failure.

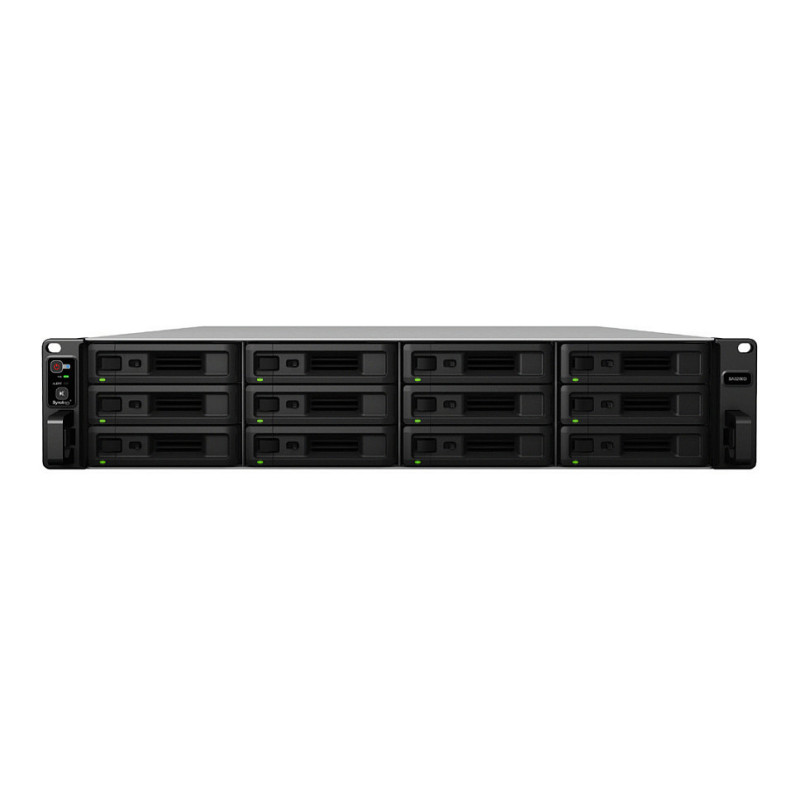

With SA3200D, you can start small and grow in the future. It supports up to 12 x 3.5"/2.5" SAS interface drive slots by default, and the capacity can be further scaled up to 576 TB using two RXD1219sas4 expansion units, with minimal performance impact3. Data replication is not needed for the shared storage design, saving valuable rack space and network bandwidth when compared with two devices using Synology High Availability.

Real-Time Protection with Automatic Failover
With an active-passive design consisting of dual controller modules and the built-in Synology High Availability (SHA) service, SA3200D is built to provide a real-time, system-level protection to maximize service availability. It actively monitors network status and critical file services of CIFS, iSCSI, AFP, FTP, NFS, and Synology Directory Server. Once a controller module or the service is unavailable, the system will fail over automatically within a minute1 to minimize system interruption and ensure service continuity.

Easy to Deploy, Easy to Manage
SA3200D is designed to help IT administrators easily deploy and manage a highly available data management infrastructure. The system features straightforward, wizard-based GUI setup processes that allow you to build up a highly available service environment within minutes. Service status monitoring is made easy and intuitive.

Powered by DiskStation Manager (DSM), an intuitive, user-friendly webbased operating system across Synology hardware platforms, SA3200D provides IT administrators a unified user experience without the need to adapt to different user interfaces and complex configuration settings. With a full suite of software applications supported in the Package Center, you can download and install a variety of packages including backup, data protection, and virtualization.

Built for Your SAN Storage Needs
Synology SA3200D provides a fully certified virtualization solution with VMware® vSphere™, Microsoft® Hyper-V®, Citrix® XenServer™, and OpenStack Cinder. It supports both iSCSI and NFS protocols and integrates with VMware VAAI and Microsoft ODX, allowing IT
administrators to effectively deploy and facilitate storage operations in various virtualization environments. IT administrators can efficiently manage virtualized workloads through built-in DSM features and addon plugins for VMware and Windows environments. Features including
fast clone, NFS v4.1, and thin provisioning delivers more flexibility to accommodate to administration needs.

With no additional license fees required, your virtualized workload can be further protected by a complete suite of data protection applications including Synology Snapshot Replication, Hyper Backup, and Active Backup for Business to cover various protection scenarios.

Virtualize Workloads Flexibly in a Protected Environment
Synology Virtual Machine Manager (VMM) is an intuitive hypervisor software application allowing you to easily set up virtual machines and run various operating systems, including Windows, Linux, and Virtual DSM. By integrating the computing and the storage nodes into
one system, single vendor support experience is achieved to lower the management cost.

With VMM, each virtual machine can be fully protected by a set of disaster recovery features including instant snapshot, replication, clone, and restore, safeguarding your virtual machines without additional cost.

Storage

Supported storage drive interfaces: Serial Attached SCSI (SAS)
Storage drive sizes supported: 2.5,3.5"
Feature: RAID support
RAID levels: 0, 1, 5, 6, 10, JBOD
Feature: Hot-swap drive bays
Supported file systems: BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4
Number of storage drives supported: 12
Installed storage drive type: No
Supported storage drive types: HDD & SSD

Processor

Processor manufacturer: Intel
Processor family: Intel® Xeon® D
Processor model: D-1521
Processor frequency: 2.4 GHz
Processor boost frequency: 2.7 GHz
Processor cores: 4
Processor threads: 8
Processor cache: 6 MB
CPU configuration (max): 1
PCI Express configurations: 1x16, 1x4, 1x8
PCI Express slots version: 2.0, 3.0
Processor code: SR2DF
Processor codename: Broadwell
Processor lithography: 14 nm
Processor operating modes: 64-bit
Processor package size: 37.5 x 37.5 mm
Processor series: Intel Xeon D-1500
Processor socket: BGA 1667
Scalability: 1S
Stepping: V2
Thermal Design Power (TDP): 45 W
On-board graphics card model: Not available
Maximum internal memory supported by processor: 128 GB
Feature: Conflict-Free processor

Memory

Internal memory: 8 GB
Internal memory type: DDR4
Maximum RAM supported: 64 GB
Memory form factor: UDIMM

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000,10000 Mbit/s
Ethernet LAN data rate supported (max): 10000 Mbit/s
Copper ethernet cabling technology: 10GBASE-T
Feature: iSCSI support
Supported network protocols: SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN™, L2TP

Ports & interfaces

Ethernet LAN (RJ-45) ports: 3

Design

Chassis type: Rack (2U)
Cooling type: Active
Product colour: Black, Grey
Number of fans: 2 fan(s)
Fan diameter: 6 cm
Fan diameter 2: 6 cm

Performance

Type: NAS
Device class: Small & Medium Business
Feature: Backup function
Backup features: Cloud, iSCSI LUN
Feature: Multilingual support
Number of users: 16000 user(s)
Feature: Snapshot
Feature: Web-based management
Security algorithms: AES
Feature: Access Control List (ACL)
Feature: Reset button
Feature: On/off switch
Feature: Built-in FTP server
Browser supported: Chrome, Firefox, Edge, Internet Explorer, Safari, Chrome
Feature: Password authentication

Software

Operating system installed: DiskStation Manager

Power

Power supply location: Built-in
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Weight & dimensions

Width: 430.5 mm
Depth: 692 mm
Height: 88 mm
Weight: 19.7 kg

Packaging content

Cables included: AC
Feature: Quick installation guide

Processor special features

Feature: Enhanced Intel SpeedStep Technology
Feature: Execute Disable Bit
Feature: Idle States
Feature: Intel 64
Feature: Intel Enhanced Halt State
Intel Secure Key Technology version: 1.00
Feature: Intel Trusted Execution Technology
Feature: Intel TSX-NI
Intel TSX-NI version: 1.00
Feature: Intel Virtualization Technology (VT-x)
Feature: Intel Virtualization Technology for Directed I/O (VT-d)
Feature: Intel VT-x with Extended Page Tables (EPT)
Feature: Intel® AES New Instructions (Intel® AES-NI)
Feature: Intel® Hyper Threading Technology (Intel® HT Technology)
Feature: Intel® OS Guard
Feature: Intel® Secure Key
Intel® Turbo Boost Technology: 2.0
Maximum number of PCI Express lanes: 32
Feature: Thermal Monitoring Technologies
Feature: UART
Memory types supported by processor: DDR3-SDRAM, DDR4-SDRAM

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -20 - 60 °C
Operating altitude: 0 - 5000 m

Logistics data

Harmonized System (HS) code: 84714100

Other features

Compliance certificates: RoHS
Processor ARK ID: 91202
