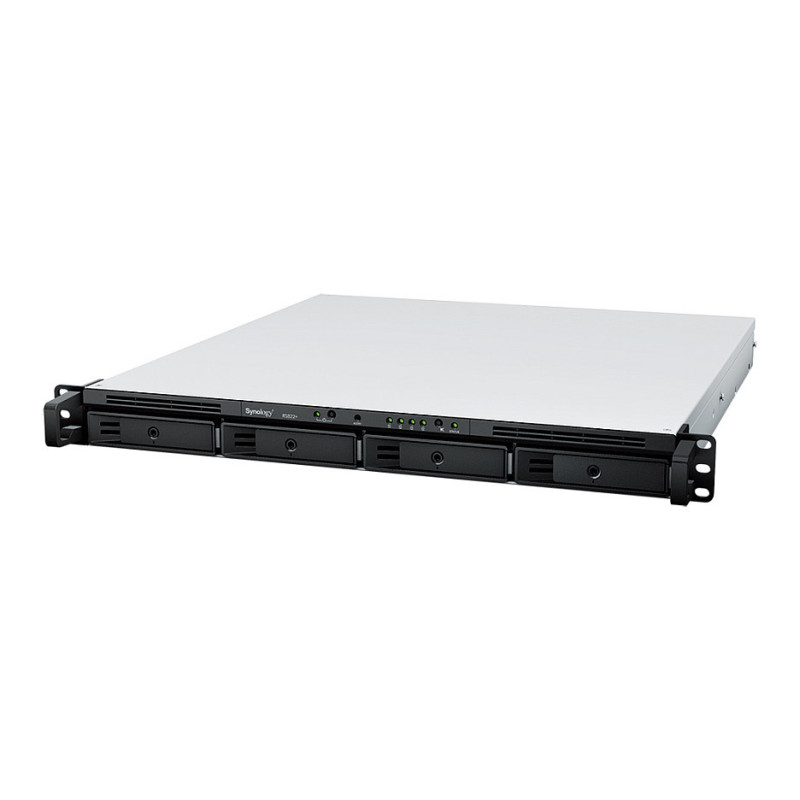

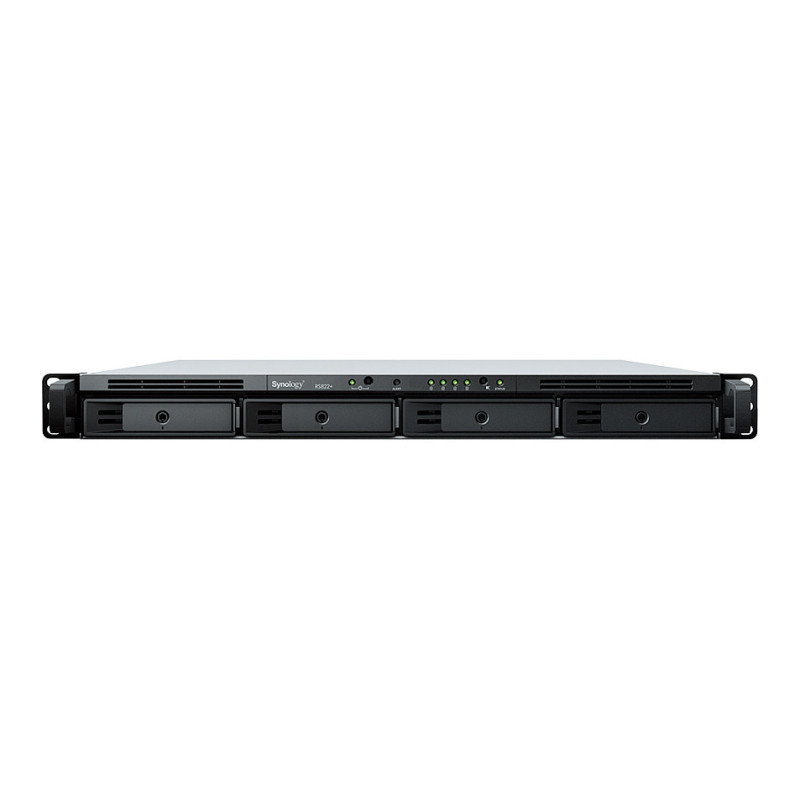

Synology RackStation RS822+ NAS / storage server

Synology RackStation RS822+. Type: NAS. Processor family: Ryzen Embedded, Processor model: V1500B, Processor frequency: 2.2 GHz. Internal memory: 2 GB, Internal memory type: DDR4. Operating system installed: DSM

An all-in-one edge storage solution
The compact 1U 4-bay Synology RackStation RS822+/RS822RP+ with its storage and connectivity expandability coupled with the powerful Synology DiskStation Manager (DSM) operating system is an ideal edge storage solution for branch offices and small and medium-sized businesses.

Built for reliability
RS822+ comes with four Gigabit RJ-45 ports which can be bonded with Link Aggregation to enable automatic network failover and load balancing.

Two RS822+ units can be paired using Synology High Availability to form a reliable active/passive server cluster, maximizing service uptime.

All-in-one data management platform
The RS822+ is designed to support small deployments in tackling common applications such as file management, data backup, and surveillance.

Edge storage for distributed teams
Provide secure and convenient multi-platform file access, sharing, and synchronization across different locations.

Multi-endpoint data protection
Design an effective backup strategy to maximize system availability with a host of native and license-free solutions.

Smart surveillance for small deployments
Leverage flexible deployment options, intuitive management capabilities, and advanced video analytics to secure your premises.

Powered by Synology DSM
Take advantage of a whole host of native productivity, management, and security solutions available on the web-based DSM operating system.

Storage

Supported storage drive interfaces: Serial ATA
Maximum supported storage capacity: 108 TB
Feature: RAID support
RAID levels: 0, 1, 5, 6, 10, JBOD
Feature: Hot-swap drive bays
Supported file systems: BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
Number of storage drives supported: 4
Installed storage drive type: No
Supported storage drive types: HDD & SSD

Processor

Processor manufacturer: AMD
Processor generation: AMD Ryzen Embedded V1000 Series
Processor family: Ryzen Embedded
Processor model: V1500B
Processor frequency: 2.2 GHz
Processor cores: 4
Processor threads: 8
On-board graphics card model: Not available

Memory

Internal memory: 2 GB
Internal memory type: DDR4
Maximum RAM supported: 32 GB
Memory form factor: SO-DIMM

Network

Feature: Wake-on-LAN ready
Supported network protocols: SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN™, L2TP)

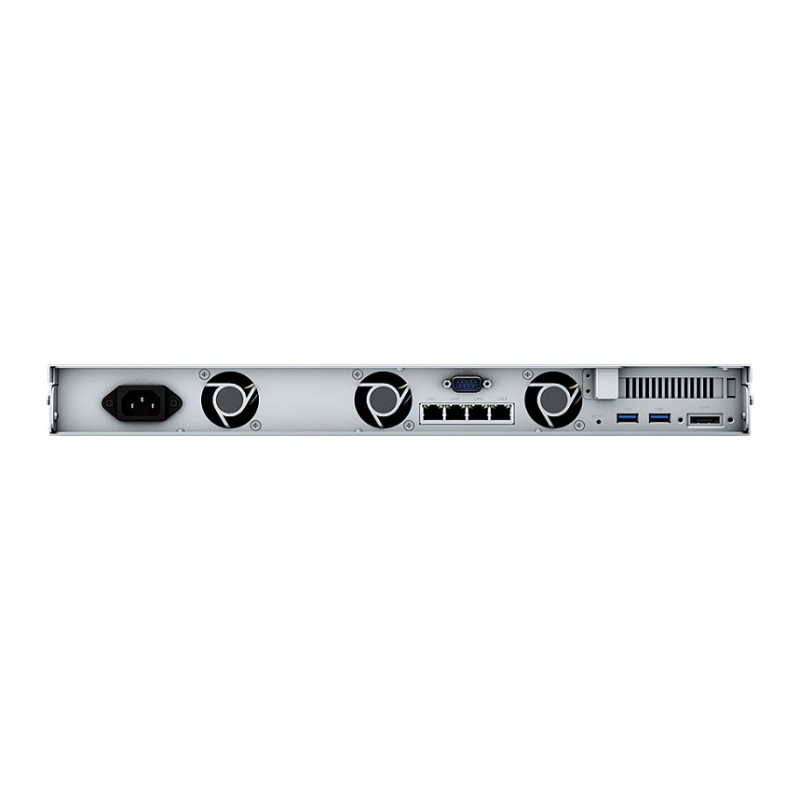

Ports & interfaces

Feature: USB port
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
eSATA ports quantity: 1
Ethernet LAN (RJ-45) ports: 4
PCI Express x8 (Gen 3.x) slots: 1

Design

Number of fans: 3 fan(s)
LED indicators: Alarm, Power, Status

Performance

Type: NAS
Feature: Backup function
Feature: Access Control List (ACL)
Feature: Reset button
Feature: On/off switch

Software

Operating system installed: DSM

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Weight & dimensions

Width: 430.5 mm
Depth: 457.6 mm
Height: 44 mm
Weight: 6.4 kg

Packaging content

Cables included: AC

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Operating relative humidity (H-H): 8 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 5000 m

Other features

Certification: FCCCEBSMIVCCIRCMUKCAEACCCCKCUL
