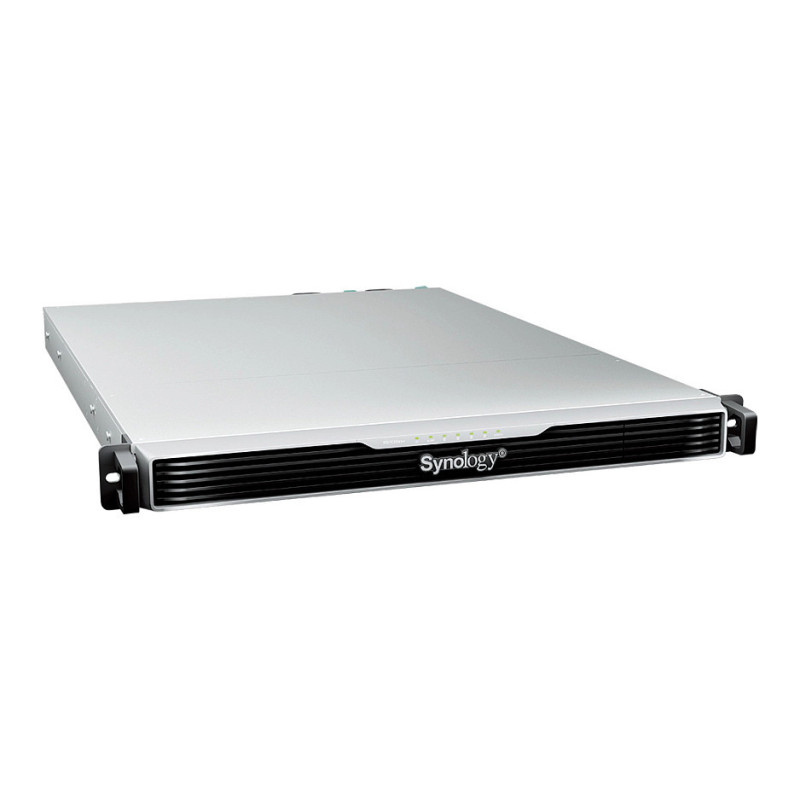

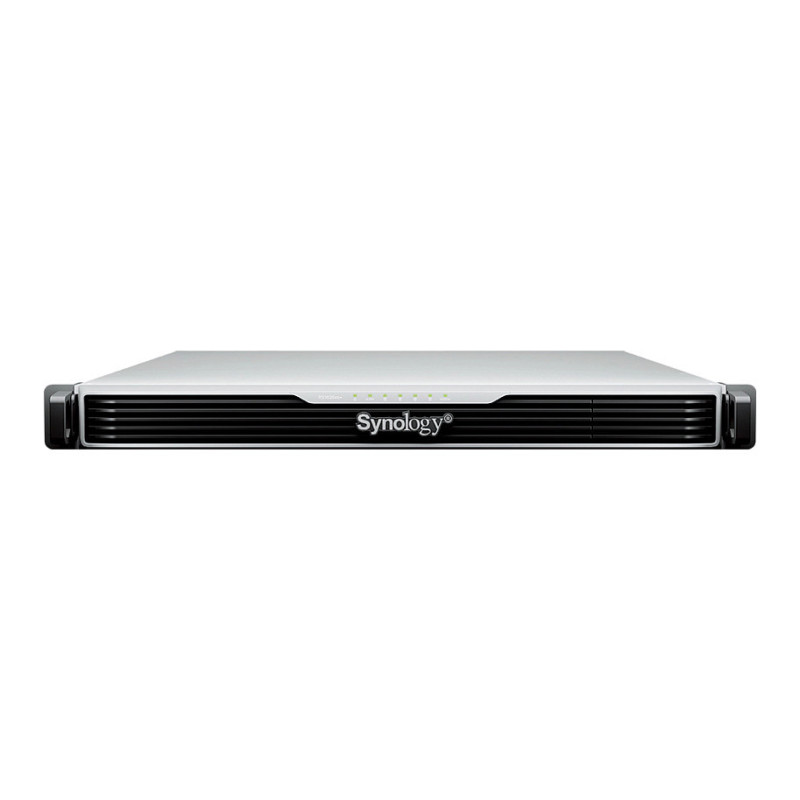

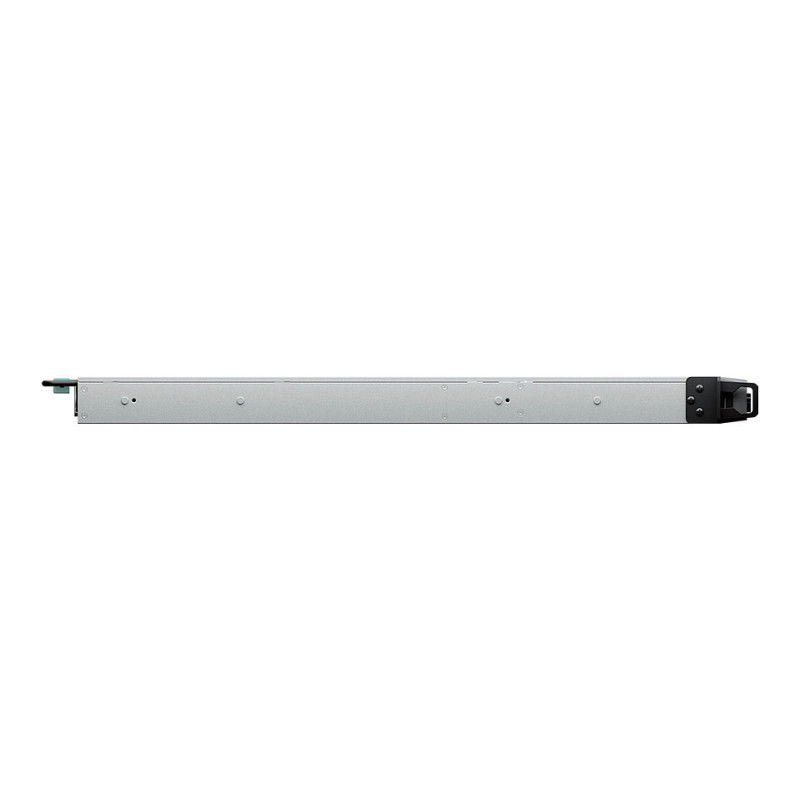

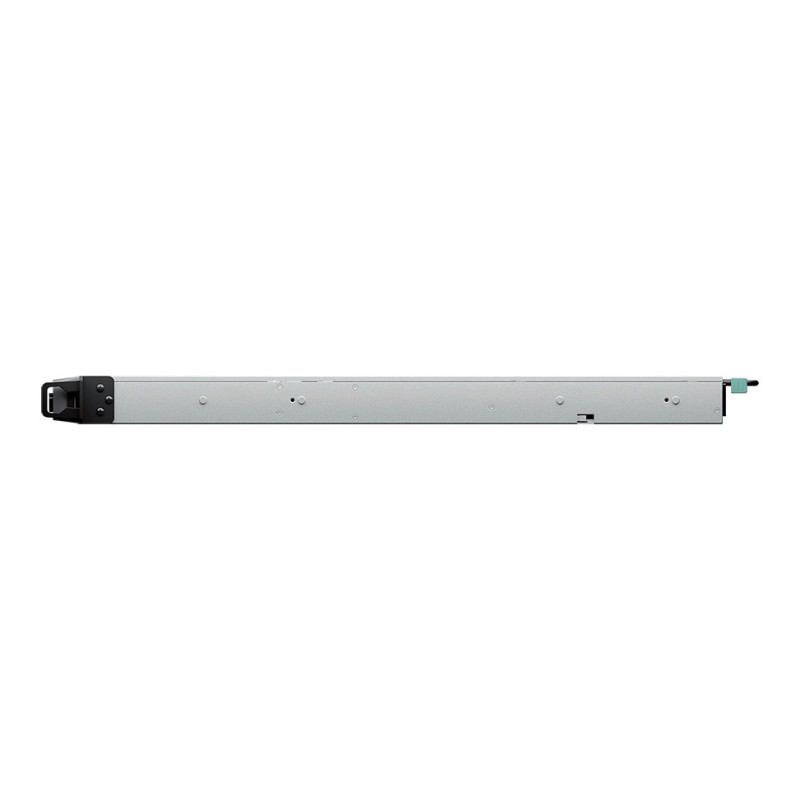

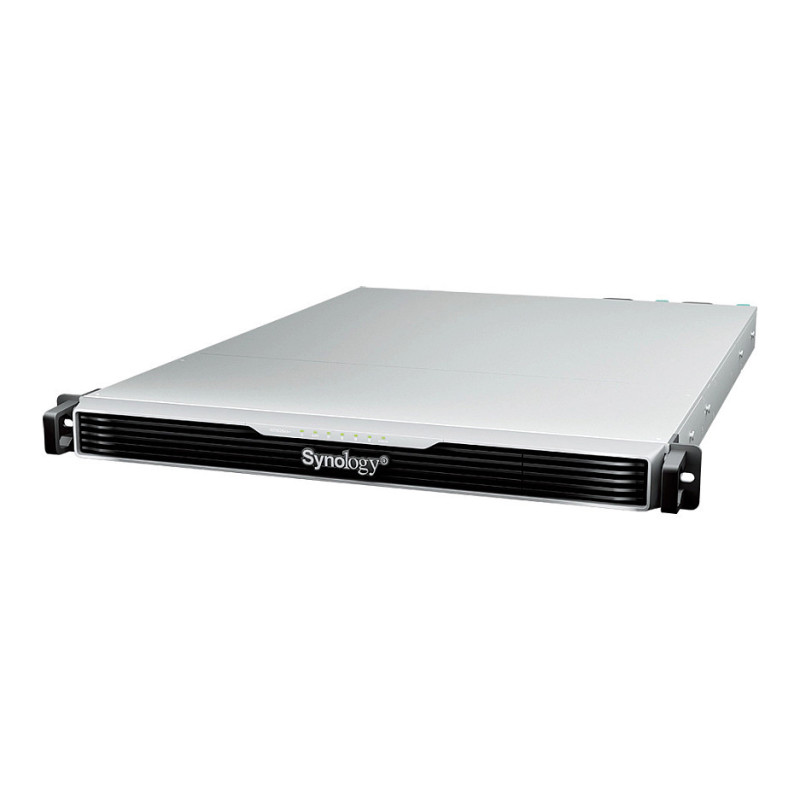

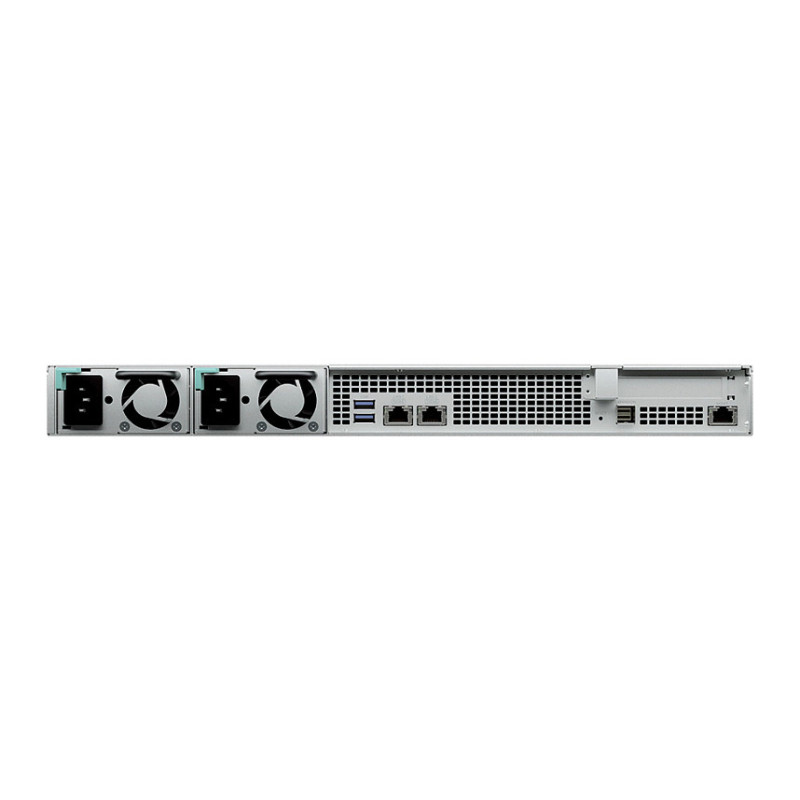

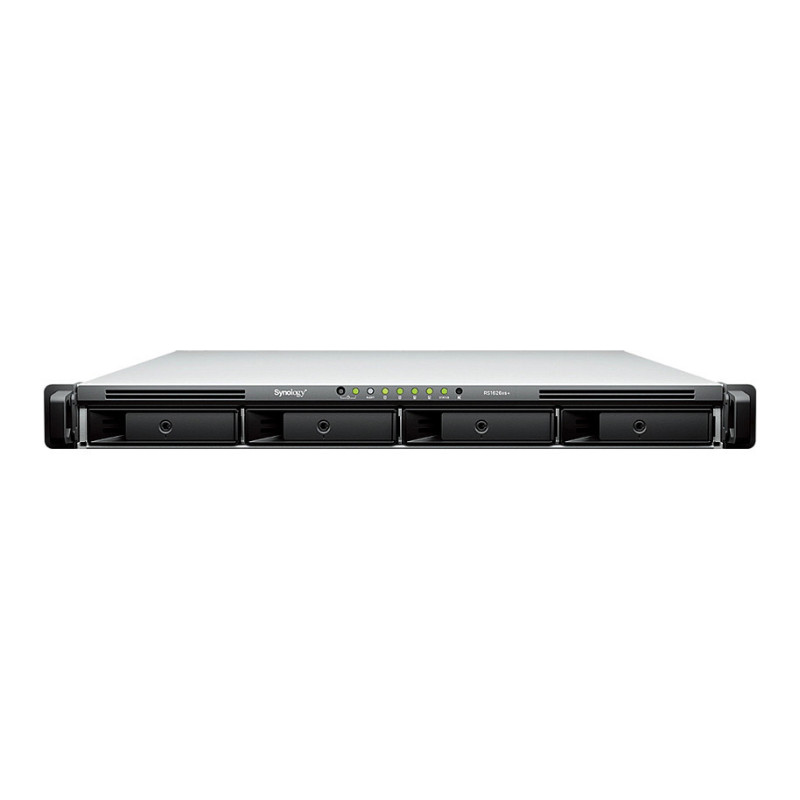

Synology RackStation RS1626XS+ NAS / storage server

Synology RackStation RS1626XS+. Type: NAS. Chassis type: Rack (1U). Device class: Small & Medium Business. Processor family: Intel® Xeon® D, Processor model: D-1726, Processor frequency: 2.9 GHz. Internal memory: 16 GB, Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: DiskStation Manager

High-performance scalable storage for enterprise workloads

Designed for reliability
Redundant power
Redundant power supplies ensure maximum server uptime by preventing single-point power failures.

Failover cluster
Maximize service continuity by pairing two identical units into a Synology High Availability cluster, ensuring automated, minute-level failover in the event of hardware failure.

Network redundancy and load balancing
Built-in 2x 10GbE ports can be bonded with Link Aggregation to enable automatic network failover and load balancing.

Accommodates future expansion
The RS1626xs+ can be flexibly configured to meet evolving needs through faster networking, local SSD cache, or increased storage.

Flexible networking options
Improve I/O performance or add redundancy with optional 10GbE or 25GbE SFP+/SFP28 and 10GbE Ethernet NICs, or Fibre Channel HBAs.

Built-in M.2 slots
Two integrated M.2 slots support NVMe SSD caching to reduce latency and improve IOPS in HDD arrays, without occupying PCIe expansion slots or front drive bays.

Storage expansion
Expand to 16 drive bays with RX1225RP expansion unit.

Automated storage tiering
Synology Tiering automatically moves infrequently accessed data to cost-efficient tiers, balancing performance and capacity to optimize your storage ROI. The RS1626xs+ can be configured as either hot or cold storage, providing the flexibility to complement your existing hardware and infrastructure.

Intuitive storage for on-site and remote teams
Provide secure and convenient cross-platform tile access, sharing, and synchronization across multiple locations.

A secure private cloud solution for enterprise collaboration

A private cloud suite for file sharing
Empower your entire organization with streamlined access, sharing, and syncing of data from any location. Establish granular control over file and folder access and sharing permissions. Maintain a comprehensive audit trail of file activities and track changes to file share settings with detailed records.

Multi-platform support
Access personal and shared data from mobile apps, desktop clients, web browsers, or another Synology system. Any changes you make are automatically synced to other devices as soon as they are connected.

Efficient multi-site synchronization

Cloud-powered multi-site syncing
Empower global workflows with high-speed access to data from anywhere in your network. Our hybrid cloud solution caches frequently used files locally for rapid access, while less frequently accessed data is stored in the cloud, reducing your on-site storage requirements.

NAS-to-NAS synchronization
Automate site-to-site data synchronization for better team workflows. Options for one-way or two-way syncing keeps files and folders up-to-date across every data site.

Sync to public cloud providers
Connect seamlessly to public cloud services including Amazon S3, BackBlaze B2, Dropbox, Google Cloud Storage, Microsoft Azure, and OpenStack Swift. Multiple protocol support, client-side encryption, and customizable sync and bandwidth controls enable efficient storage management across various platforms.

Collaboration in a secure cloud, assisted by AI
Enhance workplace collaboration with Synology Office Suite. Create, edit, and share documents across teams in real time. Host an on-premises mail server to provide web-based email access while maintaining full data ownership.9 Additionally, stay connected through secure one-on-one chats, public channels, encrypted private channels, and group conversations. AI assistance enhances productivity across apps, with support for leading AI providers via API key integration.

Work smarter with AI
An all-in-one private cloud productivity AI solution with smart tools and privacy controls.

Comprehensive backup solutions

Endpoint, VM, and NAS/SAN protection
Securely back up a wide range of systems including Windows, Mac, and Linux endpoints, VMware® and Hyper-V® virtual machines, and Synology servers. Expand protection to physical servers running Windows or Linux, as well as storage solutions such as Nutanix Files, NetApp ONTAP, and Windows Server with VSS (Volume Shadow Copy Service). Built-in deduplication technology optimizes storage efficiency, while multi-versioning capabilities provide flexible restoration options.

Microsoft 365 and Google Workspace
Centralize backups of Microsoft 365 and Google Workspace data to protect cloud data from accidents and simplify compliance with data retention policies. Schedulable backups, flexible file versioning, and block-level deduplication ensure flexibility and storage and bandwidth savings.

Advanced data protection and recovery
Efficient and reliable Synology system backup
Back up entire systems or all data, applications, and configurations to a wide range of storage destinations, including Synology C2 Storage.8 In case of data loss, quickly restore complete systems through bare-metal recovery or retrieve individual files as needed. Advanced features including automated scheduling, granular access controls, end-to-end encryption, data deduplication, and multi-version retention empower you to create the optimal backup plan for your data deployment.

Tamper-proof protection with immutable snapshots
Safeguard critical LUNs and shared folders with automated immutable snapshots backed by custom retention policies. Built-in support for offsite replication further ensures robust business continuity.

Surveillance
Synology Surveillance Station
Protecting your business has never been easier, with centralized management, support for over 17,000 IP camera models, and remote monitoring and playback. Synology's video management system provides all the tools you need for live monitoring, investigation, management, and backup.

Open integration platform for surveillance
Connect third-party hardware, AI analytics, and specialized apps through open APIs. Our platform ensures seamless integration with your existing infrastructure, creating a flexible, future-ready security ecosystem.

Centralized monitoring and management
Monitor and manage your Synology fleet from a central interface, on-prem or in the cloud.

Central Management System
Manage Synology servers from a central console using group policies, task delegation, batch updates, and more.

Active Insight
Monitor your global Synology fleet's performance, backup status, login activity, and more with the power of the cloud.

Performance backed by Synology drives
Designed for Synology systems, Synology drives deliver consistent performance and unmatched reliability for your deployments.

Hard drives designed for Synology
See how Synology hard drives deliver reliability, consistent performance, and simplified system management through deep hardware-software integration.

Synology has you covered
The RS1626xs+ is backed by Synology's five-year limited warranty,11 including technical support and hardware replacement services to maximize your return on investment and ensure continued high-quality performance.

Storage

Storage drive capacity: 0 GB
Storage drive interface: M.2, Serial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported: 2.5,3.5,M.2
Feature: NVMe
Number of M.2 (M & B) slots: 2
Feature: RAID support
RAID levels: F1, JBOD, 0, 1, 5, 6, 10
Feature: Hot-swap drive bays
Supported file systems: ext4, BTRFS, ext3, FAT32, NTFS, HFS+, exFAT
Total installed storage capacity: 0 TB
Number of storage drives supported: 4
Installed storage drive type: No
Supported storage drive types: HDD & SSD
Maximum number of drives (with expansion): 16

Processor

Processor manufacturer: Intel
Processor family: Intel® Xeon® D
Processor model: D-1726
Processor frequency: 2.9 GHz
Processor boost frequency: 3.5 GHz
Processor cores: 6
Processor threads: 12
Processor cache: 10 MB
Number of processors installed: 1
Processor lithography: 10 nm
Thermal Design Power (TDP): 70 W

Memory

Internal memory: 16 GB
Internal memory type: DDR4
Maximum RAM supported: 64 GB
Memory slots: 4
Memory form factor: RDIMM
Feature: ECC

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000,10000 Mbit/s
Ethernet LAN data rate supported (max): 10000 Mbit/s
Feature: iSCSI support
Feature: Wake-on-LAN ready
Feature: Wake-on-WAN ready
Supported network protocols: SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

Ports & interfaces

Feature: USB port
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 3
Remote management port: RJ-45 (Gigabit)
Expansion ports quantity: 1
PCI Express x8 (Gen 4.x) slots: 1

Design

Chassis type: Rack (1U)
Cooling type: Active
Product colour: Black
Number of fans: 4 fan(s)
Fan diameter: 4 cm
Fan diameter 2: 4 cm
LED indicators: Power, Alarm, Status

Performance

Type: NAS
Device class: Small & Medium Business
Feature: Backup function
Noise level: 52.6 dB
Feature: Snapshot
Security algorithms: SSL/TLS, SSH, HTTPS
Feature: Access Control List (ACL)
Feature: Reset button
Browser supported: Chrome, Firefox, Edge, Safari
Share folder: 512

Software

Operating system installed: DiskStation Manager

Power

Power supply unit (PSU) capacity: 250 W
Feature: Redundant power supply (RPS) support
Power consumption (typical): 97.59 W
Power consumption (HDD standby): 56.19 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Number of phases: 1

Weight & dimensions

Width: 481.9 mm
Depth: 668.5 mm
Height: 44 mm
Weight: 9.5 kg

Packaging content

Cables included: Power
Power cables quantity: 2

Features

Product languages: Multi

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Operating relative humidity (H-H): 8 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 5000 m

Other features

Expansion description: Mini-SAS HD
Size (imperial): 48.3 cm (19")
Supported protocols: SMBAFPNFSFTPWebDAVRsync
Doesn't contain: Lead, Mercury, Cadmium
Warranty period: 5 year(s)
Compliance certificates: Federal Communications Commission (FCC), CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS, UL, RoHS
