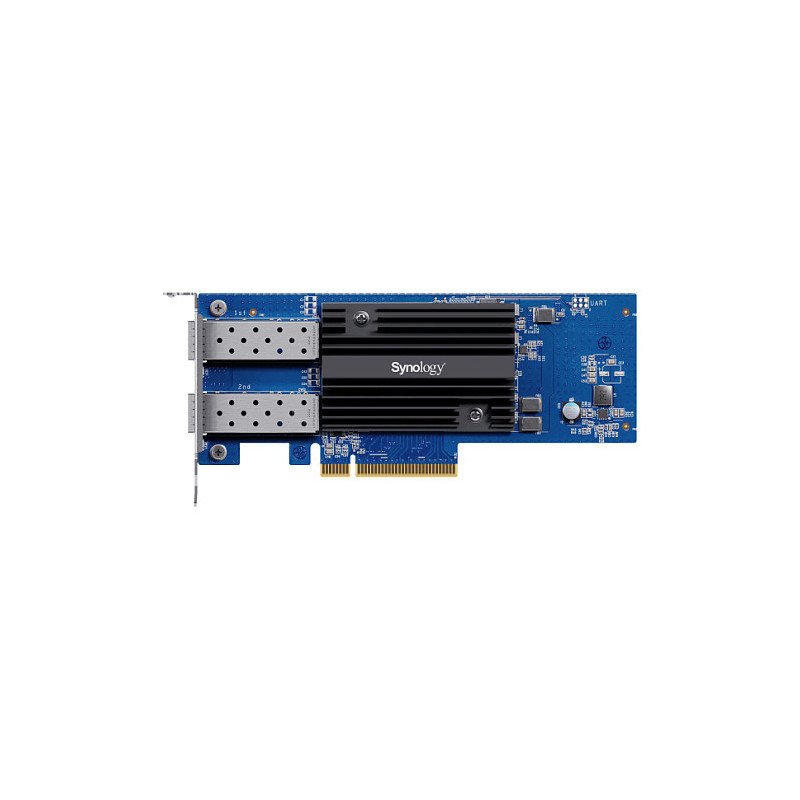

Synology E10G30-F2 network card

Synology E10G30-F2. Internal. Connectivity technology: Wired, Host interface: PCI Express. Maximum data transfer rate: 10000 Mbit/s

Flexible SFP+ options

Support for short-range and long-range transceivers as well as DAC options enables flexible connectivity choices.

Link aggregation

Dual 10GbE ports can be combined into a Link Aggregation Group to boost throughput up to 20 Gb/s, while also providing port failover and load balancing functionality.1

CPU offloading and load balancing

Support for CPU offloading and load balancing technologies enables optimal system performance.

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Fiber ports quantity: 2
Fiber optic connector: SFP+
PCI version: 3.0

Network

Maximum data transfer rate: 10000 Mbit/s
Feature: Link aggregation

Design

Component for: NAS/storage server
Feature: Internal

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 168 mm
Depth: 17.3 mm
Height: 69 mm

Technical details

Warranty period: 5 year(s)
