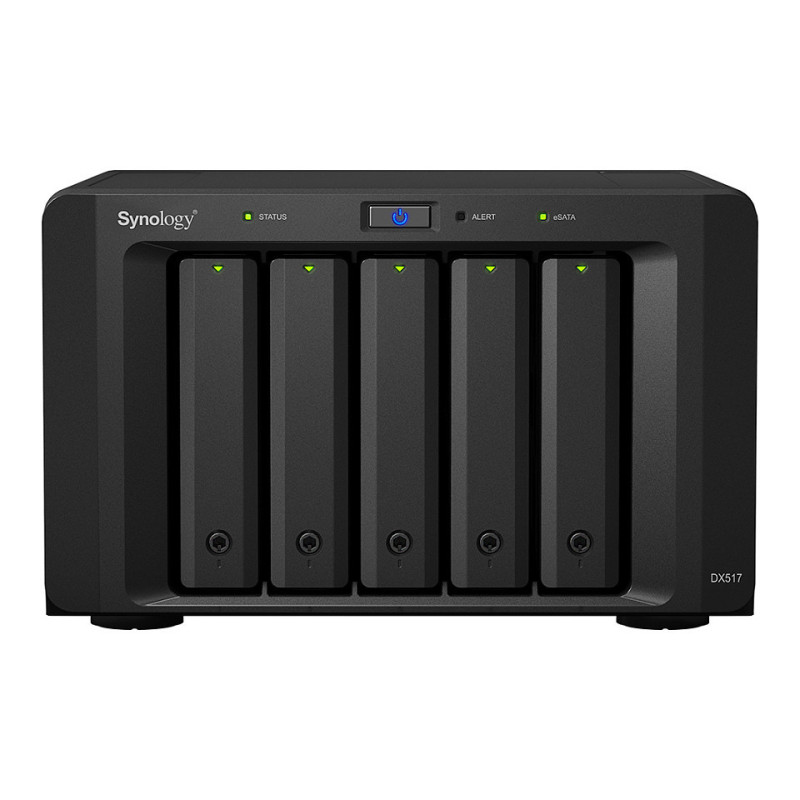

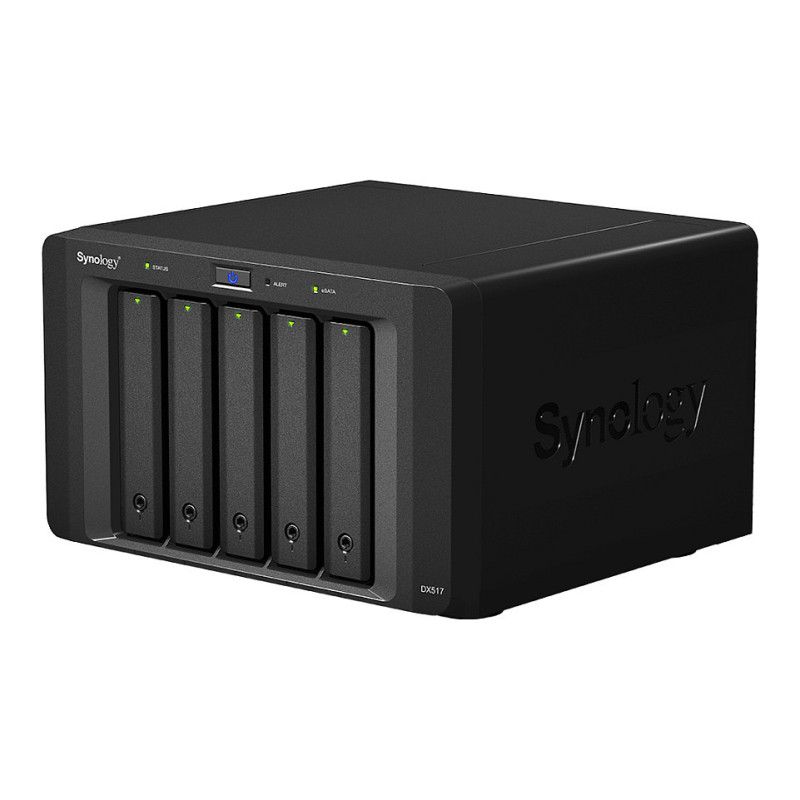

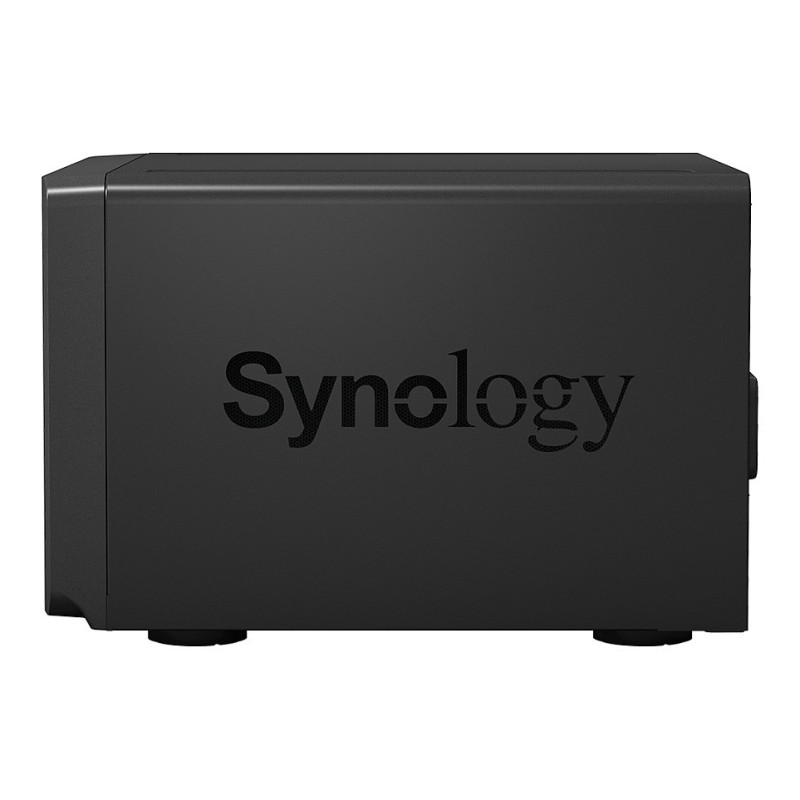

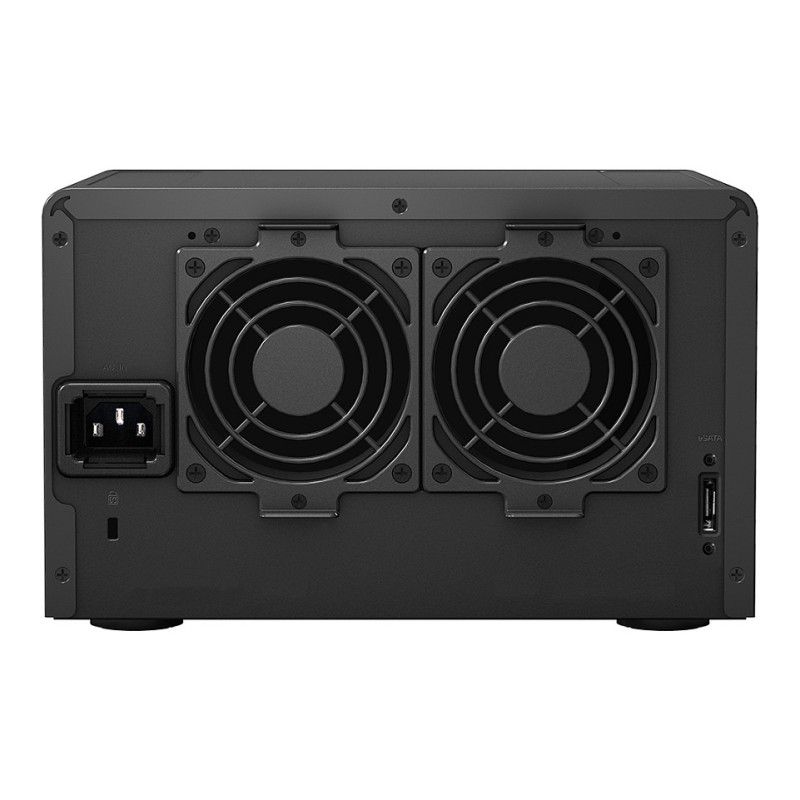

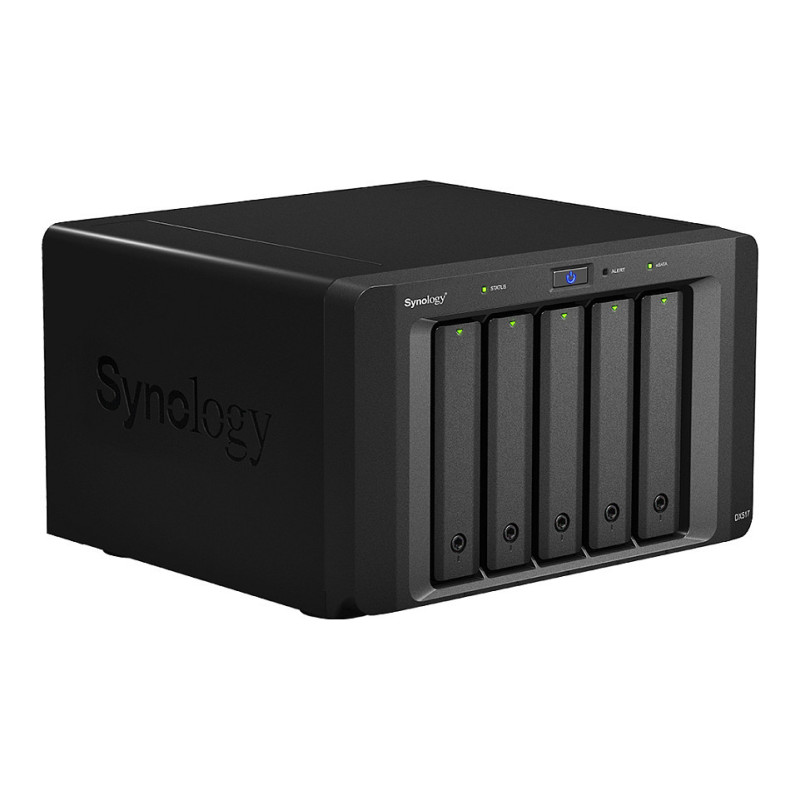

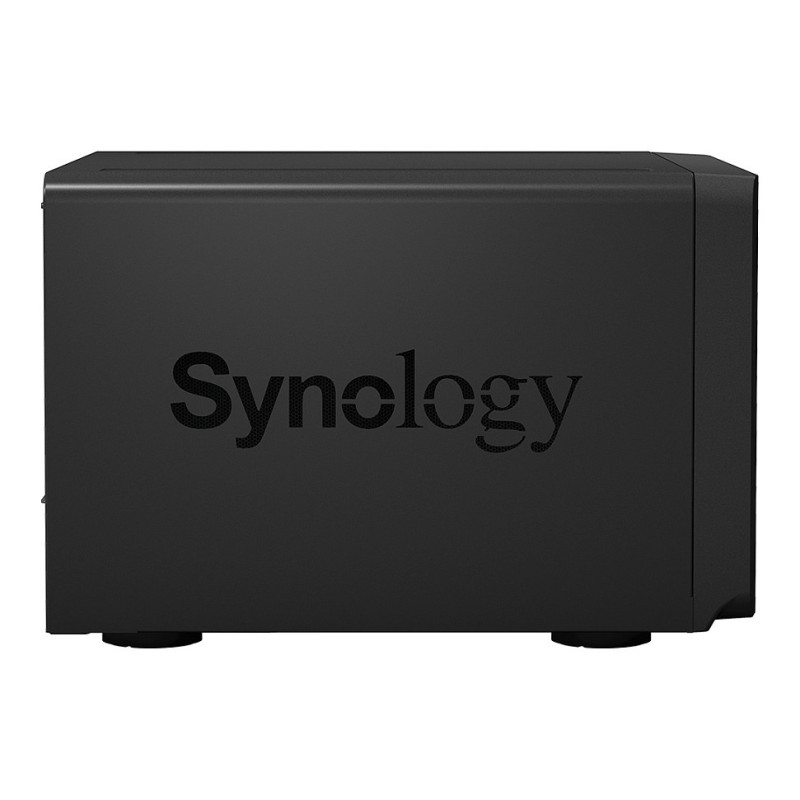

Synology DX517 disk array

Synology DX517. Total installed storage capacity: 0 TB. Chassis type: Desktop, Device class: Small & Medium Business. Number of storage drives supported: 5, Supported storage drive types: HDD & SSD, Supported storage drive interfaces: Serial ATA, Serial ATA II, Serial ATA III, Storage drive sizes supported: 2.5,3.5". Width: 248 mm, Depth: 233 mm, Height: 157 mm, Weight: 3.91 kg. Product colour: Black

Effortless capacity expansion for Synology DiskStation solutions on-the-fly.

5-bay 3.5"/2.5" SATA expansion

Easily add 5 additional drive bays to Synology DiskStation. Supporting both 2.5" and 3.5" SATA drives, DX517 is a flexible solution supporting on-the-fly volume expansion or serving as a local backup destination.

Online volume expansion

Managed from DiskStation Manager on the host NAS, the additional bays in the DX517 are immediately ready to be used once connected. On-the-fly volume expansion ensures that storage and services on the host are not interrupted during volume expansion.

Hot-swappable drive tray design

The hot-swappable drive trays of DX517 allow easy drive installation and replacement without powering down the system. Screwless drive tray design reduces the time needed for system setup.

Dedicated local backup solution

Synology DX517 can be used as a dedicated local backup solution for the Synology DiskStation. When created as a separate volume, the DX517 provides a great backup solution to its local hard disks in case of system failure.

Storage

Installed storage drive type: No
Total installed storage capacity: 0 TB
Supported storage drive types: HDD & SSD
Number of storage drives supported: 5
Maximum supported storage capacity: 80 TB
Supported storage drive interfaces: Serial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported: 2.5,3.5"
Feature: Hot-swap drive bays

Ports & interfaces

eSATA ports quantity: 1

Design

Device class: Small & Medium Business
Chassis type: Desktop
Product colour: Black
LED indicators: Alarm, Power, Status
Number of fans: 2 fan(s)
Noise level: 21.5 dB
Compatible products: Synology DS1817+, DS1517+
Certification: FCC B, CE B, BSMI B

Power

Power supply unit (PSU) capacity: 200 W
Number of power supply units: 1
Power consumption (typical): 29.9 W
AC input voltage: 100-240 V
AC input frequency: 50 - 60 Hz

Weight & dimensions

Width: 248 mm
Depth: 233 mm
Height: 157 mm
Weight: 3.91 kg

Packaging content

Cables included: AC, eSATA

Operational conditions

Operating temperature (T-T): 5 - 40 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -10 - 70 °C
Storage relative humidity (H-H): 5 - 95%

Other features

Compliance certificates: RoHS

Logistics data

Harmonized System (HS) code: 84717020
