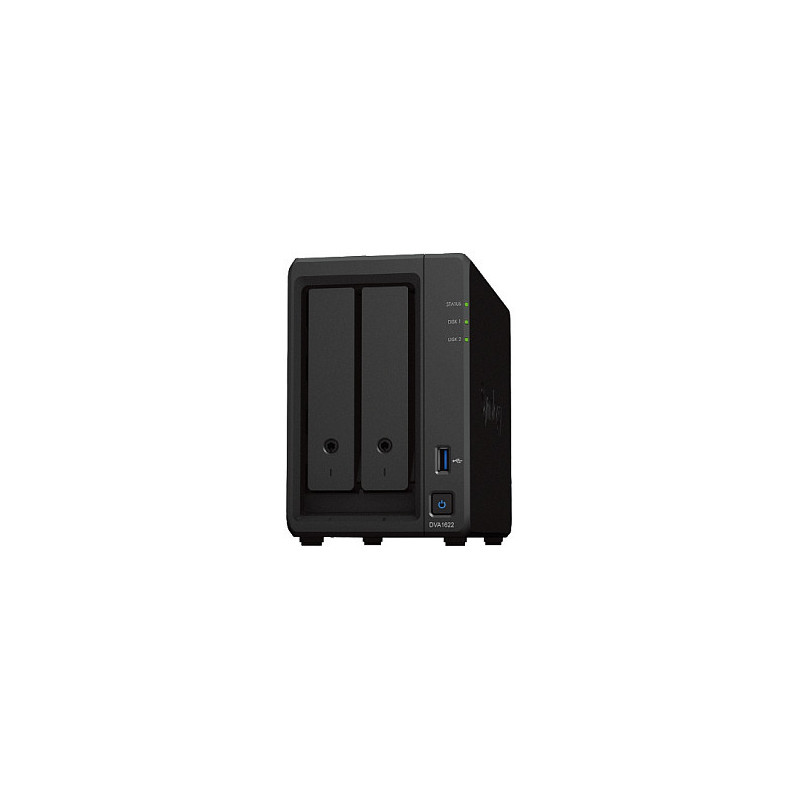

Synology DVA1622 network surveillance server

Synology DVA1622. Processor manufacturer: Intel, Processor family: Intel® Celeron®, Processor model: J4125. Internal memory: 6 GB, Internal memory type: DDR4, Memory layout (slots x size): 1 x 2 + 1 x 4 GB. HDD size: 3.5", HDD interface: SATA, Maximum storage capacity: 108 TB. Ethernet interface type: Gigabit Ethernet. Chassis type: Tower, LED indicators: Status, Number of fans: 1 fan(s)

Synology NVR DVA1622 is a 2-bay desktop recording server that gives home and small business users access to fast, smart, and accurate video surveillance powered by deep learning-based algorithms. Built-in automated event detection helps safeguard properties by detecting people, vehicles, or objects and alerting staff when selfconfigured rules or thresholds are breached.

Complete Surveillance Solution
With Built-in AI Capabilities The DVA1622 makes powerful AI-enabled surveillance available for everyone in a compact solution that includes everything you need to create an efficient surveillance system

Everything You Need in Monitor Center
Quickly view your business or home from all angles, see where and when issues were detected, or spin back time to get to the bottom of things without ever leaving your main overview.

Better Situational Awareness With Maps
Dynamic maps not only help you determine camera and event locations, but also provide instant access to video feeds for more efficient site monitoring

Actionable Insights and Automated Actions
Advanced deep learning-based algorithms built into the DVA1622 convert unstructured video data into business intelligence and security insights, to bolster and automate security.

Powerful Video Management Platform
Powered by Synology Surveillance Station running on Synology DSM, the DVA1622 offers powerful and convenient video recording, management, and analysis capabilities while making deployment of new or existing cameras fast and efficient.

Central Surveillance Management
Monitor, manage, and protect multiple Synology Deep Learning NVR and NAS systems from a single interface as part of a larger surveillance network over multiple sites with Surveillance Station Centralized Management Server (CMS).

Processor

Processor manufacturer: Intel
Processor family: Intel® Celeron®
Processor model: J4125
Processor frequency: 2 GHz
Processor cores: 4
Processor threads: 4
Processor boost frequency: 2.7 GHz

Memory

Internal memory: 6 GB
Internal memory type: DDR4
Memory layout (slots x size): 1 x 2 + 1 x 4 GB

Storage

Number of HDDs supported: 2
HDD size: 3.5"
HDD interface: SATA
Maximum storage capacity: 108 TB
Feature: Lockable drive bays
Feature: RAID support
RAID levels: 0, 1, JBOD
Feature: Hot-swap

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Ethernet interface type: Gigabit Ethernet
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
HDMI ports quantity: 1

Design

Chassis type: Tower
LED indicators: Status
Feature: Reset button
Number of fans: 1 fan(s)

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Weight & dimensions

Width: 106 mm
Depth: 223 mm
Height: 166 mm
Weight: 1.51 kg

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 8 - 80%
