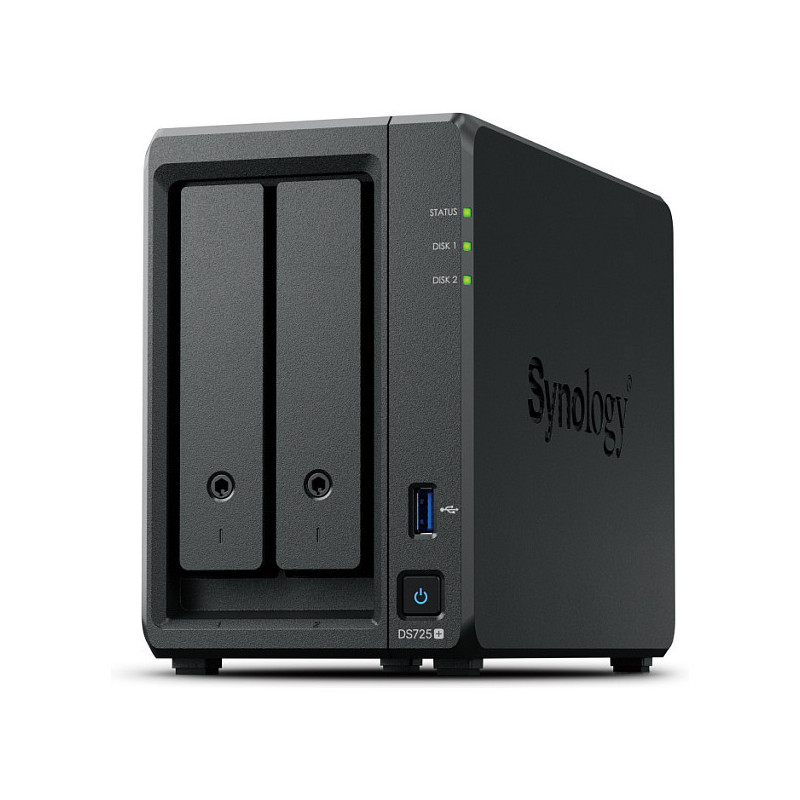

Synology DiskStation DS725+ NAS / storage server

Synology DiskStation DS725+. Type: NAS, Device class: Home & Home Office. Processor family: Ryzen Embedded, Processor model: R1600, Processor frequency: 2.6 GHz. Internal memory: 4 GB, Internal memory type: DDR4. Total installed storage capacity: 0 TB

2.5GbE connectivity and diverse storage options
The DS725+ features built-in 2.5GbE networking and supports both SATA SSDs and HDDs in 2.5"/3.5" internal bays, as well as M.2 NVMe drives via M.2 slots for use as cache.

Storage

Storage drive capacity: 0 GB
Supported storage drive interfaces: M.2, Serial ATA
Storage drive sizes supported: 3.5,M.2,2.5
Maximum supported storage capacity: 140 TB
Number of M.2 (M & B) slots: 2
Feature: RAID support
RAID levels: 0, 1, 5, 6, 10, JBOD
Feature: Hot-swap drive bays
Supported file systems: BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
Total installed storage capacity: 0 TB
Number of storage drives supported: 7
Installed storage drive type: No
Supported storage drive types: HDD & SSD

Processor

Processor manufacturer: AMD
Processor generation: AMD Ryzen Embedded R1000 Series
Processor family: Ryzen Embedded
Processor model: R1600
Processor frequency: 2.6 GHz
Processor boost frequency: 3.1 GHz
Processor cores: 2
Processor threads: 4

Memory

Internal memory: 4 GB
Internal memory type: DDR4
Maximum RAM supported: 32 GB
Memory slots: 2
Memory form factor: SO-DIMM
Feature: ECC

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 2500 Mbit/s
Feature: Wake-on-LAN ready

Ports & interfaces

Feature: USB port
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Ethernet LAN (RJ-45) ports: 2

Design

Cooling type: Active
Product colour: Black
Number of fans: 1 fan(s)
Fan diameter: 9.2 cm
Feature: Drive bay locking
LED indicators: Yes

Performance

Type: NAS
Device class: Home & Home Office
Feature: Backup function
Backup features: Cloud, iSCSI LUN
Feature: Multilingual support
Number of users: 512 user(s)
Noise level: 17.9 dB
Feature: Snapshot
Feature: Web-based management
Feature: Access Control List (ACL)
Feature: On/off switch
Feature: System log

Power

Power supply location: External
Power supply unit (PSU) capacity: 65 W
Power consumption (typical): 20.41 W
Power consumption (HDD standby): 7.87 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Weight & dimensions

Width: 106 mm
Depth: 223 mm
Height: 166 mm
Weight: 1.51 kg

Packaging content

Feature: External power adapter
Cables included: AC, LAN (RJ-45)
Power cables quantity: 1

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 5 - 95%

Other features

Warranty period: 3 year(s)
Compliance certificates: RoHS
