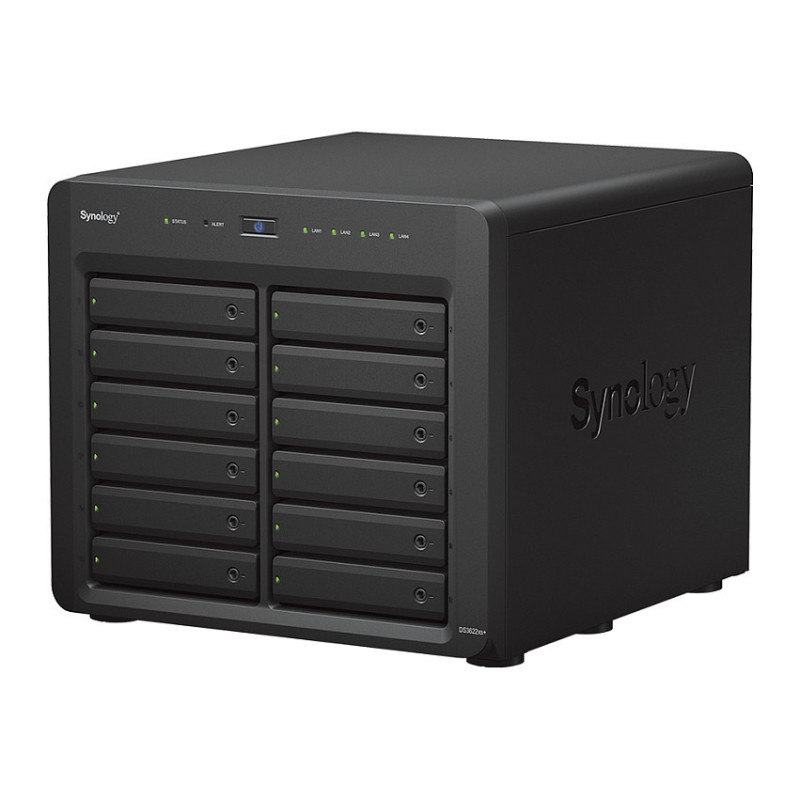

Synology DiskStation DS3622xs+

Synology DiskStation DS3622xs+. Type: NAS. Chassis type: Tower. Device class: Home & Home Office. Processor family: Intel® Xeon® D, Processor model: D-1531, Processor frequency: 2.2 GHz. Internal memory: 16 GB, Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: DiskStation Manager

High-performance mass storage
The 12-bay Synology DS3622xs+ is a powerhouse NAS perfect for the needs of small and medium business environments with intensive and multi-user workloads. Its high capacity, scalability, and processing power make it ideal for VM and container storage, fast file sharing, and as a network video recorder for large surveillance deployments. It comes with powerful storage management, file syncing, surveillance, and backup software, and is suitable for editing high-quality video.

Faster performance
Enjoy a smooth experience even with multiple users running demanding applications. See the numbers that make the DS3622xs+ more efficient.

Rise to the challenge
Prepare your DS3622xs+ for the heaviest workloads or upgrade when needed as your business continues to grow. Use add-in cards to add bandwidth, fast SSD cache, or both.

Out-of-the-box data protection
Protect your data with professional backup software for your Synology NAS, other devices, and applications.

Efficient collaboration and communication
Empower your workforce to collaborate, share files, and communicate from anywhere.

Certified virtual machine storage
Synology DiskStation Manager (DSM) streamlines provisioning for and management of virtual machines with full certification for VMware® vSphere™, Microsoft® Hyper-V®, Citrix® XenServer™, and OpenStack virtualization environments.

Synology Storage Console for VMware® or Windows platforms lets you manage storage directly from your hypervisor. VMware® VAAI integration and Windows ODX help offload storage operations and speed up data transfer, and a Kubernetes CSI driver lets you provision and manage volumes directly from the K8s CLI.

Centralized surveillance for your business
Transform the DS3622xs+ into a powerful network video recorder with Synology Surveillance Station.

Works best with Synology drives
Enjoy top quality performance for any intensive workload with drives specifically designed for Synology NAS.

Get more with DiskStation Manager
Take advantage of a whole host of native productivity, management, and security solutions available on the web-based Synology DSM operating system.

Storage

Storage drive capacity: 0 GB
Supported storage drive interfaces: Serial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported: 2.5,3.5"
Maximum supported storage capacity: 200 TB
Feature: RAID support
RAID levels: 0, 1, 5, 6, 10, JBOD
Feature: Hot-swap drive bays
Supported file systems: BTRFS, Fat, HFS+, NTFS, ext3, ext4
Total installed storage capacity: 0 TB
Number of storage drives supported: 12
Installed storage drive type: No
Supported storage drive types: HDD & SSD

Processor

Processor manufacturer: Intel
Processor family: Intel® Xeon® D
Processor model: D-1531
Processor frequency: 2.2 GHz
Processor boost frequency: 2.7 GHz
Processor cores: 6
CPU configuration (max): 1
Number of processors supported: 1
Feature: Conflict-Free processor

Memory

Internal memory: 16 GB
Internal memory type: DDR4
Maximum RAM supported: 48 GB
Memory slots: 4
Memory form factor: SO-DIMM

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 1000,10000 Mbit/s
Feature: Wake-on-LAN ready
Supported network protocols: SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Feature: Link aggregation

Ports & interfaces

Feature: USB port
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 4
PCI Express x8 (Gen 3.x) slots: 1

Design

Chassis type: Tower
Cooling type: Active
Product colour: Black
Number of fans: 2 fan(s)
Fan diameter: 12 cm
Fan diameter 2: 12 cm

Performance

Type: NAS
Device class: Home & Home Office
Feature: Backup function
Feature: Multilingual support
Noise level: 25 dB
Feature: Web-based management
Feature: Access Control List (ACL)
Browser supported: Safari, Google Chrome, Firefox, Microsoft Edge

Software

Operating system installed: DiskStation Manager
Server operating systems supported: Windows Server 2016, Windows Server 2019

Power

Power supply location: Built-in
Power supply unit (PSU) capacity: 550 W
Number of power supply units: 1
Power consumption (typical): 94.42 W
Power consumption (HDD standby): 54.33 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Weight & dimensions

Width: 300 mm
Depth: 340 mm
Height: 270 mm
Weight: 9.8 kg

Packaging content

Cables included: AC, LAN (RJ-45)

Processor special features

Feature: Enhanced Intel SpeedStep Technology
Feature: Execute Disable Bit
Feature: Idle States
Feature: Intel 64
Feature: Intel Enhanced Halt State
Intel Secure Key Technology version: 1.00
Feature: Intel Trusted Execution Technology
Feature: Intel TSX-NI
Intel TSX-NI version: 1.00
Feature: Intel Virtualization Technology (VT-x)
Feature: Intel Virtualization Technology for Directed I/O (VT-d)
Feature: Intel VT-x with Extended Page Tables (EPT)

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -20 - 60 °C

Logistics data

Harmonized System (HS) code: 84714100

Other features

Certification: FCCCEBSMIVCCIRCMUKCAEACKCUL
