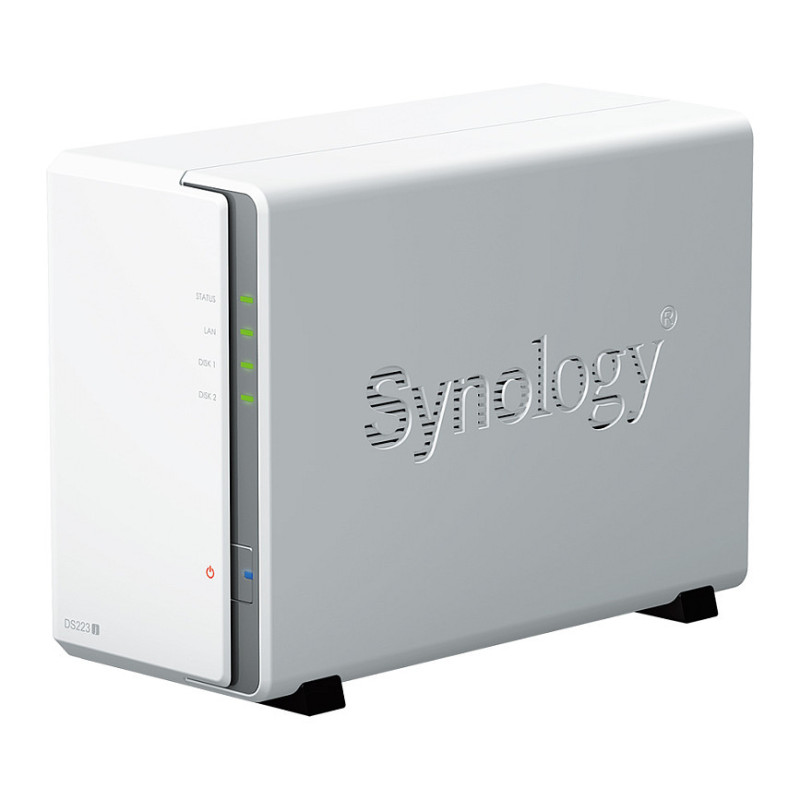

Synology DiskStation DS223J NAS / storage server

Synology DiskStation DS223J. Type: NAS. Chassis type: Desktop. Device class: Home & Home Office. Processor family: Realtek, Processor model: RTD1619B, Processor frequency: 1.7 GHz. Internal memory: 1 GB, Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: DiskStation Manager

Built for sharing
DS223j is designed for small teams to share, sync, and collaborate more efficiently.

Multi-platform file access
Manage your files and media from anywhere with Synology Drive. Available on PC, Mac, Linux, Chromebook, Android, iOS, or any device equipped with a browser.

Real-time collaboration
Stay productive while working in a team or with your clients. Work together across different platforms using Synology Office.

Sync across sites
Keeping data synced between different sites has never been easier. Synology Drive ShareSync keeps files and folders synchronized across Synology systems.

Seamless synchronization to clouds
Sync files between your private cloud and public cloud storage platforms, including Google Drive, Dropbox, Microsoft OneDrive, and more with Synology Cloud Sync. Retain local copies of your cloud data to centralize management and achieve data ownership.

Your data in safe hands with Btrfs
The advanced Btrfs file system helps safeguard data against corruption through file self-healing and allows for the reversal of unintentional or malicious changes through fast snapshot technology.

Store, share, and protect
Configure your DS223j to manage all your documents, photos, and other files, or protect your physical assets with professional video surveillance.

Manage your photo collection
Organize your photos and videos with smart and intuitive features. Browse automatically generated albums using facial recognition, geolocation, tags, and more.

Sharing made safer and easier
Securely share media with colleagues or clients while leveraging privacy-focused options for your peace of mind. Collaborate with selected users on a folder-based media library by creating a Shared Space.

Automated media backup
Automatically upload photos and videos taken on your mobile device to your private cloud with Synology Photos or Synology Drive.

Protection against cyberattacks
Leverage Synology Drive to protect data from ransomware attacks or accidental deletion with real-time or scheduled backup of your PC folders.

Wide compatibility
Choose from over 8,300 IP cameras or ONVIF devices compatible with Synology Surveillance Station to keep your premises secure.

Universal access
Watch live camera streams through web browsers, desktop clients, or mobile apps. Get notified of events and take immediate action.

Storage

Storage drive capacity: 0 GB
Storage drive interface: Serial ATA
Storage drive size: 2.5/3.5"
Storage drive sizes supported: 2.5,3.5"
Feature: RAID support
RAID levels: 0, 1, JBOD
Supported file systems: BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
Total installed storage capacity: 0 TB
Number of storage drives supported: 2
Installed storage drive type: No
Supported storage drive types: HDD & SSD

Processor

Processor manufacturer: Realtek
Processor family: Realtek
Processor model: RTD1619B
Processor frequency: 1.7 GHz
Processor cores: 4
Number of processors supported: 1

Memory

Internal memory: 1 GB
Internal memory type: DDR4

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 1000 Mbit/s
Feature: Wake-on-LAN ready
Supported network protocols: SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN)

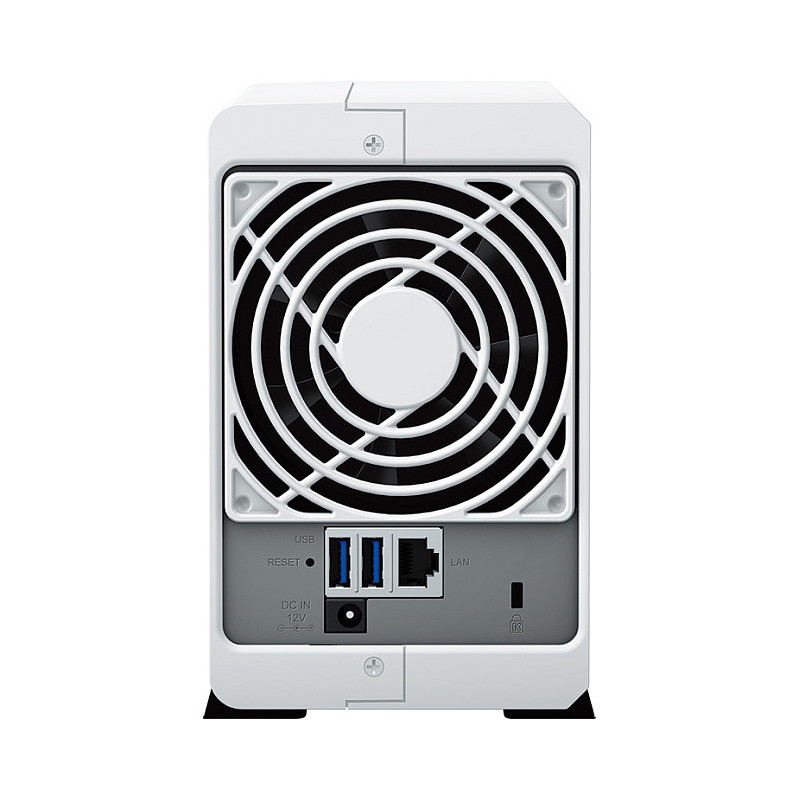

Ports & interfaces

Feature: USB port
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1

Design

Chassis type: Desktop
Cooling type: Active
Product colour: White
Number of fans: 1 fan(s)
Fan diameter: 9.2 cm
Feature: Cable lock slot
Cable lock slot type: Kensington

Performance

Type: NAS
Device class: Home & Home Office
Feature: Backup function
Feature: Multilingual support
Number of users: 1024 user(s)
Noise level: 18.2 dB
Feature: Snapshot
Feature: Web-based management
Feature: Access Control List (ACL)
Feature: Reset button
Feature: On/off switch
Browser supported: Google Chrome, Firefox, Microsoft Edge, Safari

Software

Operating system installed: DiskStation Manager

Power

Power supply location: External
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz

Weight & dimensions

Width: 100 mm
Depth: 225.2 mm
Height: 65 mm
Weight: 880 g

Packaging content

Feature: External power adapter
Cables included: AC
Power cables quantity: 1

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 8 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 5000 m

Other features

Compliance certificates: RoHS
