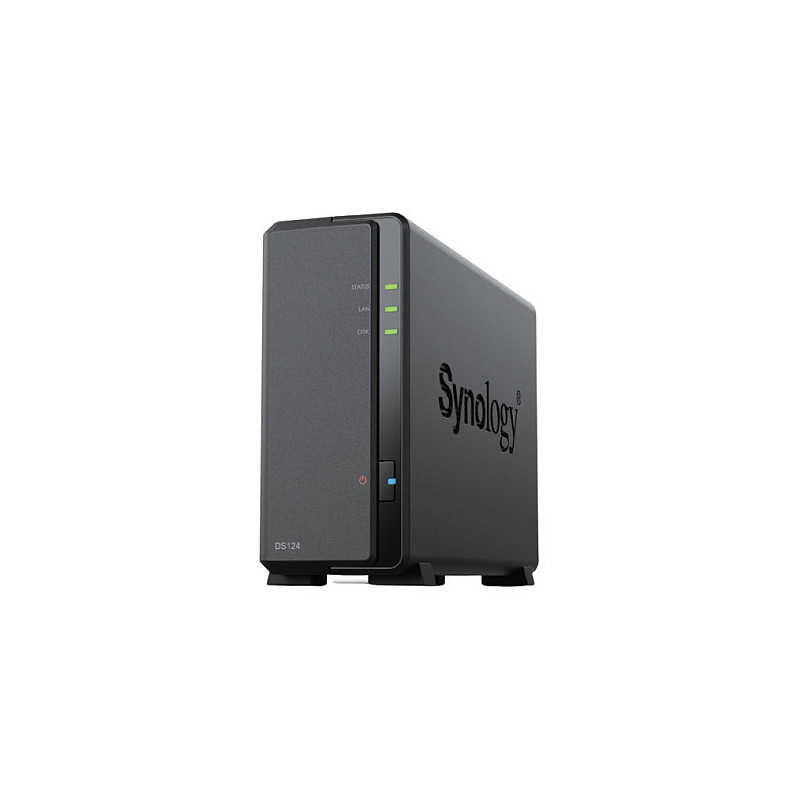

Synology DiskStation DS124 NAS / storage server

Synology DiskStation DS124. Type: NAS. Chassis type: Desktop. Device class: Small & Medium Business. Processor family: Realtek, Processor model: RTD1619B, Processor frequency: 1.7 GHz. Internal memory: 1 GB, Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: DiskStation Manager

Bring scattered data under control with
the DS124, a super compact data hub that
empowers effortless data centralization,
organization, and sharing. License-free
solutions in Synology DiskStation Manager
(DSM) allow you to establish a secure private
cloud, conveniently access files from any
device, and collaborate seamlessly with
partners or clients.

Centralized Data Hub with Anytime Access
Securely and conveniently store any type of data with the aid of our
comprehensive and intuitive access and management tools.
• Access your storage securely from anywhere without configuring complex
port forwarding rules by enabling Synology QuickConnect
• Browse and manage your files from any browser or through Windows File
Explorer, Finder on Mac, and more
• Keep photos organized using Synology Photos' smart sorting functions
• Easily incorporate into existing network infrastructure as edge storage
thanks to Windows AD and LDAP support

Streamlined Sharing, Collaboration, and
Synchronization
Boost team productivity and client engagements by effortlessly sharing and
syncing files, photos, and documents using Synology's integrated solutions.
• Build a private data cloud for easy file management and sharing across all
desktop and mobile devices, and keep data on your Synology systems in
sync with Synology Drive
• Take advantage of the strengths of both public and private clouds by
keeping them in sync with Synology Cloud Sync
• Share visual assets with stakeholders through the privacy-focused sharing
options in Synology Photos

Versatile Backup and Data Protection Options
Synology DSM offers a range of comprehensive and user-friendly backup and
data protection solutions that are included at no additional cost.
• Leverage real-time and scheduled backups of your PC folders with Synology
Drive to protect data against ransomware attacks or accidental deletion
• Safeguard photos and videos taken on mobile devices with automatic
backups to DS124 using Synology Drive or Synology Photos
• Efficiently back up your entire Synology NAS or select folders to a wide
range of destinations, including public clouds such as C2 Storage1, using
Hyper Backup2
• Create point-in-time copies of shared folders that can be replicated to other
Synology systems and rapidly restored with Snapshot Replication

Private Video Surveillance
Synology Surveillance Station transforms any Synology system into a powerful
network video recorder (NVR).
• 8,300+ supported camera models
• ONVIF support for a broader selection of cameras
• Private, subscription-free storage of recordings
• Access through web browsers, desktop clients, and mobile apps
• Event-based rules to trigger specific actions
• Email, SMS, and push notification options
• Simultaneous recording to the cloud with C2 Surveillance for an extra layer of
data protection, online access, and more convenient sharing

Storage

Storage drive interface: Serial ATA
Storage drive size: 2.5/3.5"
Maximum supported storage capacity: 108 TB
Supported file systems: BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
Total installed storage capacity: 0 TB
Number of storage drives supported: 1
Installed storage drive type: No
Supported storage drive types: HDD & SSD

Processor

Processor manufacturer: Realtek
Processor family: Realtek
Processor model: RTD1619B
Processor frequency: 1.7 GHz

Memory

Internal memory: 1 GB
Internal memory type: DDR4

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 1000 Mbit/s
Feature: iSCSI support
Feature: Wake-on-LAN ready
Supported network protocols: SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN™, L2TP)

Ports & interfaces

Feature: USB port
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1

Design

Chassis type: Desktop
Cooling type: Active
Product colour: Black
Number of fans: 1 fan(s)
Fan diameter: 6 cm
LED indicators: Yes

Performance

Type: NAS
Device class: Small & Medium Business
Feature: Backup function
Backup features: iSCSI LUN
Feature: Multilingual support
Feature: Web-based management
Feature: Access Control List (ACL)
Feature: Reset button
Feature: On/off switch
Browser supported: Google Chrome, Firefox, Microsoft Edge, Safari 14 and later, and Safari (iOS 14.0 and later) on iPad, Chrome

Software

Operating system installed: DiskStation Manager

Power

Power supply location: External
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Weight & dimensions

Width: 71 mm
Depth: 224 mm
Height: 166 mm
Weight: 700 g

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 9 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 5000 m
