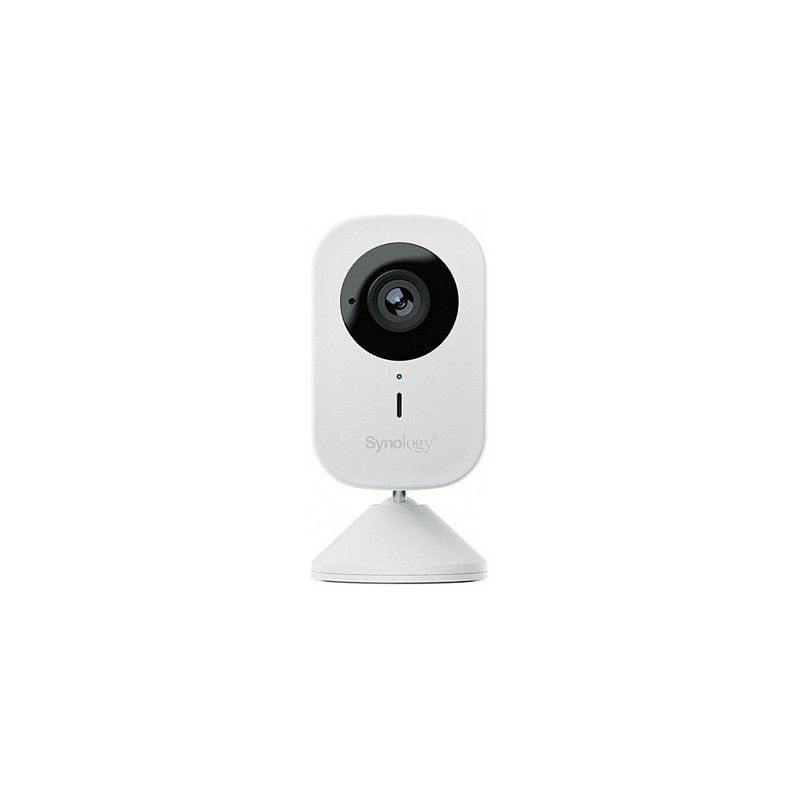

Synology CC400W security camera

Synology CC400W. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wireless. Mounting type: Ceiling/Wall/Desk, Product colour: White, Form factor: Cube. Lens viewing angle, horizontal: 125°, Lens viewing angle, vertical: 72°, Lens viewing angle, diagonal: 145°. Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 45 m, Observe distance: 18 m, Recognize distance: 9 m

Flexible monitoring for any space
Compact, wide-angle, WiFi-connected camera for protecting any space.

Crystal clear footage, in all lighting conditions
High Dynamic Range (HDR) provides clear, detailed footage in high-contrast lighting, even with dark shadows.

High quality video, increased storage efficiency
Smart Bitrate Control provides high-quality video while reducing storage and network requirements by up to 70%.

Supercharging security with powerful AI tools
Camera-based AI capabilities help you efficiently monitor and analyze your surveillance.

Robust security withy AI capabilities

People & Vehicle Detection
People and Vehicle Detection distinguishes people and vehicles from other moving objects with high accuracy.

Intrusion Detection
Intrusion Detection identifies people and vehicles, and issues alerts when a virtual border is crossed from a designated direction.

Instant Search
Instant Search facilitates faster investigation, enabling users to look up occurrences of people, vehicles, and motion within a specific area.

Auto Tracking
Auto Tracking seamlessly locks onto and trails the moving target, ensuring continuous centering on the screen.

People & Vehicle Counting
Gauge occupancy levels with aggregated counting of people and vehicles entering and leaving your premises, with automatic alerts when capacity is reached.

Maximizing AI capabilities with Synology DVA
Pair with Synology DVA models for more intelligent analytics, such as Face Recognition and License Plate Recognition.

Streamlining management with intuitive integrations
Integrations with Surveillance Station help to streamline deployment and maintenance.

Effortless mobile connection
Easily add and manage cameras on your network using the DS Cam mobile app.

Seamless setup and auto updates
Easy setup, auto updates, and seamless monitoring on Surveillance Station or DS cam.

License-free Surveillance Station
No Surveillance Device License purchase or activation required.

Maximizing security without sacrificing privacy
From recording to archiving, protect your footage with our integrated safeguards.

Uninterrupted recording
In unstable or poor network conditions, these cameras automatically record to a microSD card, guaranteeing access to clear, uncorrupted footage regardless of network conditions.

Sensitive data masking
Privacy masks can be permanently embedded into recorded footage or applied to live view to cover sensitive areas.

HTTPS and SRTP support
HTTPS and SRTP support enables encrypted network and video transfers, authentication, and integrity protection.

NDAA compliance
The CC400W camera meets US government procurement regulations.

Stay in the know with DS cam
DS cam is the powerful mobile companion app for Surveillance Station, available for free on iOS and Android.

Receive immediate, smart alerts
Receive notifications on your phone the moment events are triggered. Quickly review the day's alerts with a few taps.

See the action live
Watch up to 6 live feeds at the same time. If an event catches your eye, take a snapshot for a closer look.

Define detection zones
Select specific areas you want to monitor for accurate and relevant alerts.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wireless
Feature: Auto-tracking
Feature: Infrared (IR) cut-off filter

Design

Form factor: Cube
Mounting type: Ceiling/Wall/Desk
Product colour: White
International Protection (IP) code: IP65

Camera

Lens viewing angle, horizontal: 125°
Lens viewing angle, vertical: 72°
Lens viewing angle, diagonal: 145°
Camera shutter speed: 1/30 - 1/16000 s

Image sensor

Optical sensor size: 25.4 / 3 mm (1 / 3")

Lens system

Number of lenses: 1
Detect distance: 45 m
Observe distance: 18 m
Recognize distance: 9 m
Feature: Fixed focus
Maximum aperture number: 2
Identify distance: 4.5 m
Fixed focal length: 2.12 mm

Night vision

Feature: Night vision
Night vision distance: 10 m
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2560 x 1440 pixels
Total megapixels: 4 MP
Frame rate: 30 fps
Feature: Noise reduction
Noise reduction technology: 2D noise reduction, 3D noise reduction

Audio

Audio system: 2-way
Feature: Built-in microphone
Feature: Audio detection

Network

Feature: Wi-Fi

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 256 GB

Security

Feature: Video motion detection
Feature: Privacy protection
Intelligent Video Surveillance (IVS) system features: Face detection, Human detection, Intrusion, Vehicle detection

Management features

Feature: Reset button

Power

Power source type: DC
DC output voltage: 5

Operational conditions

Operating temperature (T-T): -20 - 40 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Height: 110 mm
Diameter: 5.4 cm
Weight: 200 g

Packaging content

Number of cameras: 1
Feature: Screws included
Feature: Manual
