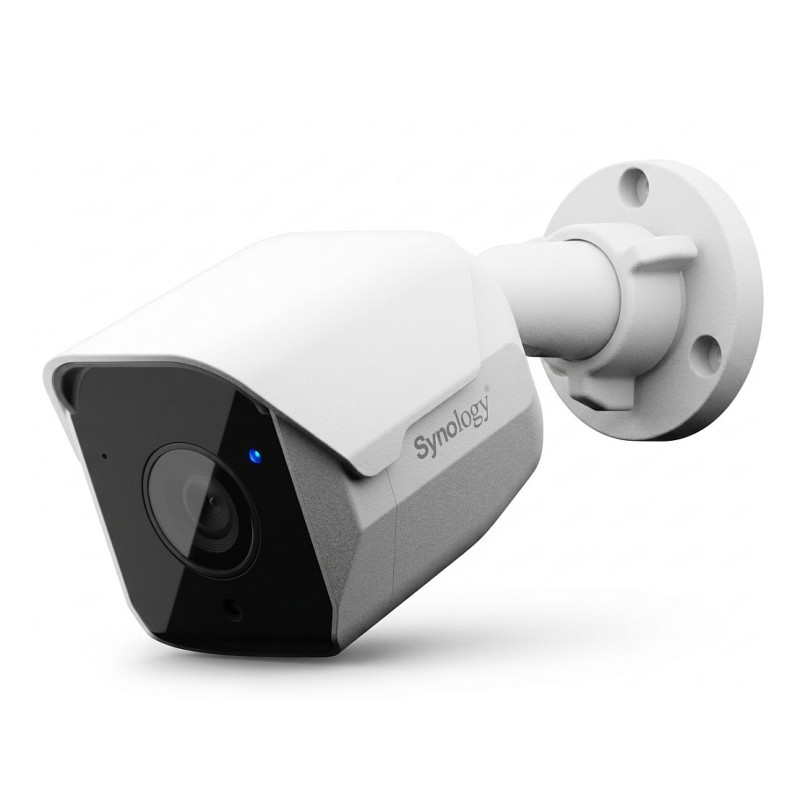

Synology BC510 security camera

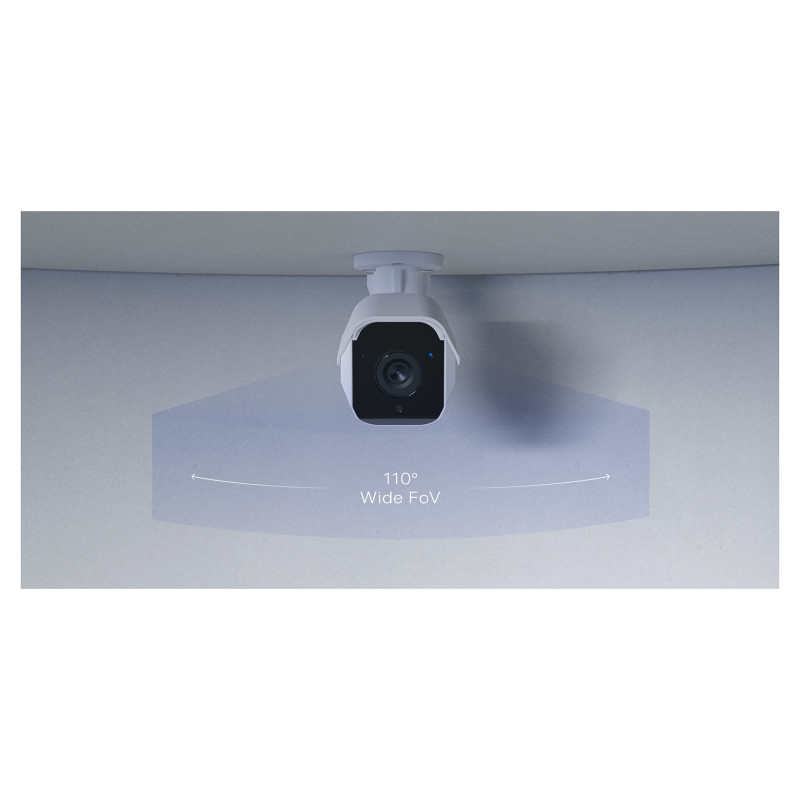

Synology BC510 AI-powered bullet camera. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.001 lx, Lens viewing angle, horizontal: 110°, Lens viewing angle, vertical: 56°. Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 60 m, Observe distance: 24 m, Recognize distance: 12 m

Consistently clear footage, 24/7

Around the clock surveillance

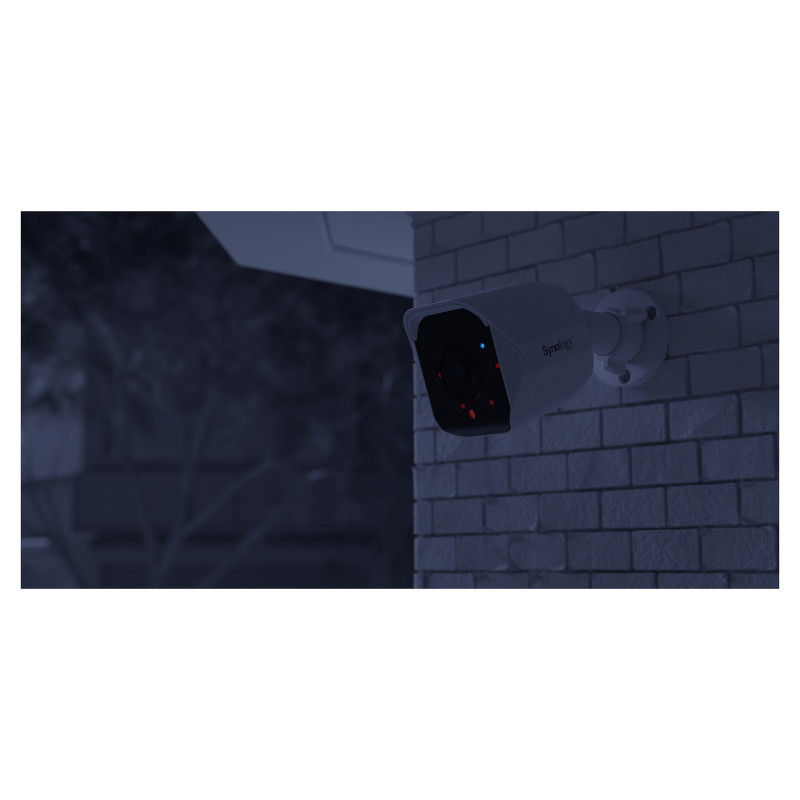

See clearly at night with four high-power IR LEDs that provide 30 meters of night vision range.

Detailed video recordings in all lighting conditions
Ensure security despite high contrast light conditions with High Dynamic Range (HDR), which provides detailed images in both shadows and bright spots.

High quality video, increased storage efficiency
Smart Bitrate Control provides high-quality video while reducing storage and network requirements by up to 70%.

Effortless setup and access from anywhere
Hassle-free setup and on-the-go access. Perfectly scalable for any business size.

Surveillance Station
Host video locally on Surveillance Station for full data control.

Seamless setup and auto updates
Easy setup, auto updates, seamless monitoring on Surveillance Station or DS cam.

Full-fledge centralized management
Manage up to 3,000 locations and view 30,000 camera feeds from a single interface.

Built for reliable deployment
Synology's hardware-software integration empowers robust storage and backup, delivering a reliable surveillance environment.

Enhance your surveillance with camera-based AI
Be proactive with surveillance. AI features empower security staff to watch over multiple locations more efficiently.

Robust security withy AI capabilities

People and Vehicle Detection
Protect against loitering and boost security with cameras that leverage AI to distinguish people and vehicles from other moving objects with high accuracy.

Intrusion Detection
Identify trespassers without maintaining dedicated staff on site. Draw virtual borders to automatically receive alerts when people or vehicles cross.

Instant Search
Investigate incidents quickly after they happen. Instant Search lets operators search for activities of interest within a certain area.

Auto Tracking
Auto Tracking seamlessly locks onto and trails the moving target, ensuring continuous centering on the screen.

People & Vehicle Counting
Gauge occupancy levels with aggregated counting of people and vehicles entering and leaving your premises, with automatic alerts when capacity is reached.

Maximizing AI capabilities with Synology DVA
Pair with Synology DVA models for more intelligent analytics, such as Face Recognition and License Plate Recognition.

Enhancing security without sacrificing privacy
From recording to archiving, protect your footage with our integrated safeguards.

Edge storage to increase system reliability
In case of network failure, these cameras can failover to a MicroSD card, increasing system reliability and ensuring continuous recording.

Privacy masking and watermarks
Conceal sensitive areas from being recorded and directly watermark live feeds to deter and track unauthorized recordings.

HTTPS and SRTP support
Encrypt your video streams to ensure the security and privacy of your transfers.

NDAA compliance
The CC400W camera meets US government procurement regulations.

Stay in the know with DS cam
DS cam is the powerful companion mobile app for Surveillance Station, available for free on iOS and Android.

Easily stay on top of security
Receive notifications sent to your phone the moment events are triggered. Quickly review the events of the day with a few taps.

See the action live
Watch up to 6 live feeds at the same time. If an event catches your eye, take a snapshot for a closer look.

Define detection zones
Select specific areas to monitor for accurate and relevant alerts.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: Auto-tracking
Feature: Day/night mode
Languages support: Multi
Certification: JATE

Design

Form factor: Bullet
Mounting type: Ceiling/wall
Product colour: White
LED indicators: Status

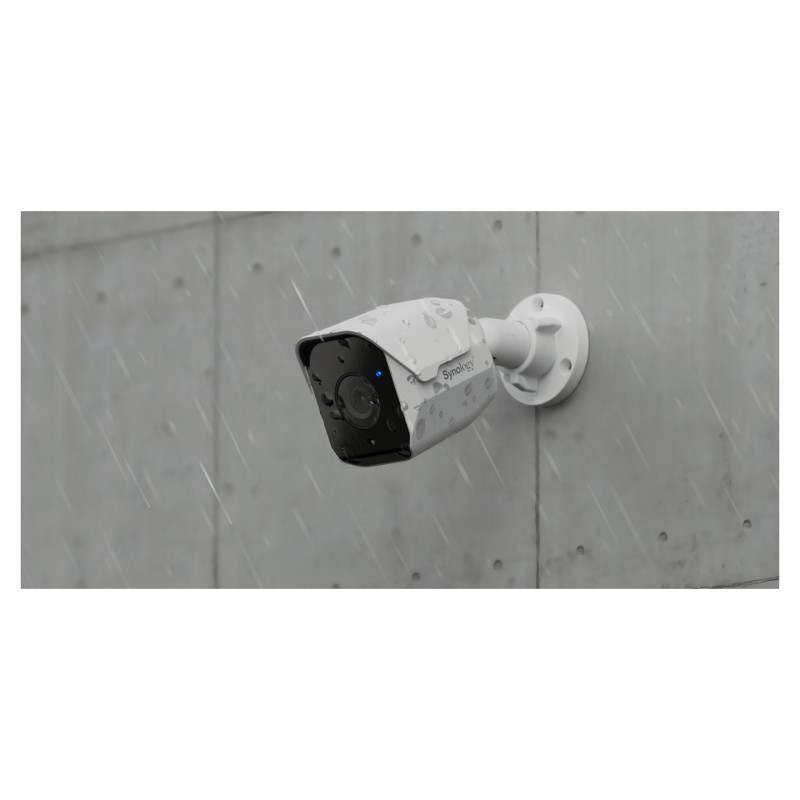

Protection features: Waterproof, Dustproof
International Protection (IP) code: IP66, IP67
Country of origin: Taiwan

Camera

Minimum illumination: 0.001 lx
Lens viewing angle, horizontal: 110°
Lens viewing angle, vertical: 56°
Lens viewing angle, diagonal: 132°
Camera shutter speed: 1/16000 - 1/30 s
Number of Privacy masking areas: 5

Image sensor

Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")

Lens system

Number of lenses: 1
Detect distance: 60 m
Observe distance: 24 m
Recognize distance: 12 m
Feature: Fixed focus
Maximum aperture number: 1.8
Identify distance: 6 m
Fixed focal length: 2.8 mm

Night vision

Feature: Night vision
Night vision distance: 30 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2880 x 1620 pixels
Total megapixels: 5 MP
Video formats supported: H.264, H.265
Supported graphics resolutions: 2880 x 1620
Supported video modes: 1620p
Frame rate: 30 fps
Feature: Noise reduction
Noise reduction technology: 2D noise reduction, 3D noise reduction
Feature: Flip & mirror
Bit rate: 8192 kbps

Audio

Feature: Built-in microphone
Voice codecs: G.711

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3af
Supported network protocols: HTTP, HTTPS, TLS v1.2, TCP/IP, UDP, IPv4, UPnP, RTSP, NTP, DHCP, SSL, RTP, SRTP

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Feature: Video motion detection
Feature: Privacy protection
Intelligent Video Surveillance (IVS) system features: Human detection, Vehicle detection, Intrusion, People counting

Management features

Feature: Reset button

Power

Power source type: DC, PoE
Power consumption (typical): 4.8 W
DC output voltage: 12
DC output current: 1 A

Certificates

Feature: Waste Electrical and Electronic Equipment (WEEE) compliance

Operational conditions

Operating temperature (T-T): -30 - 50 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Diameter: 11 cm
Length: 161 mm
Weight: 353 g

Packaging content

Number of cameras: 1
Feature: Screws included
Memory card included: No
Feature: Quick installation guide
Packaging content: RJ45 cap cover

Other features

Browser supported: Google Chrome
Doesn't contain: Lead, Mercury, Cadmium
Warranty period: 3 year(s)
