Switch - Zyxel GS2220-28HP, Black
Product reference:
14-4718937607488
The Zyxel GS2220-28HP network switch offers 56 Gbit/s switching capacity and supports up to 16,000 MAC addresses, featuring 24 Gigabit RJ-45 ports with a 375 W PoE budget.
Switch - Zyxel GS2220-28HP, Black
Product reference:
14-4718937607488
The Zyxel GS2220-28HP network switch offers 56 Gbit/s switching capacity and supports up to 16,000 MAC addresses, featuring 24 Gigabit RJ-45 ports with a 375 W PoE budget.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

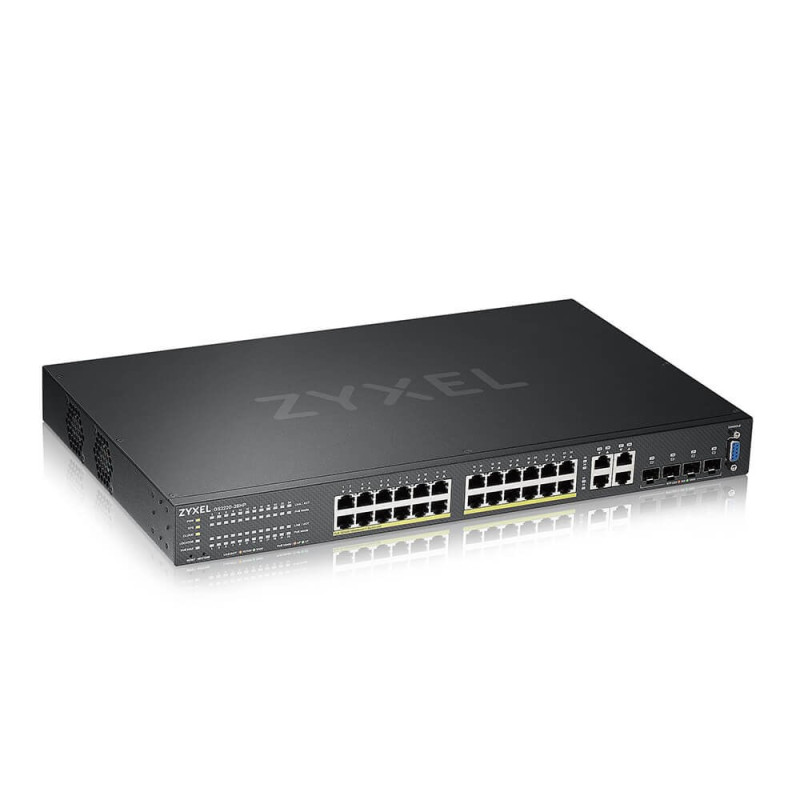

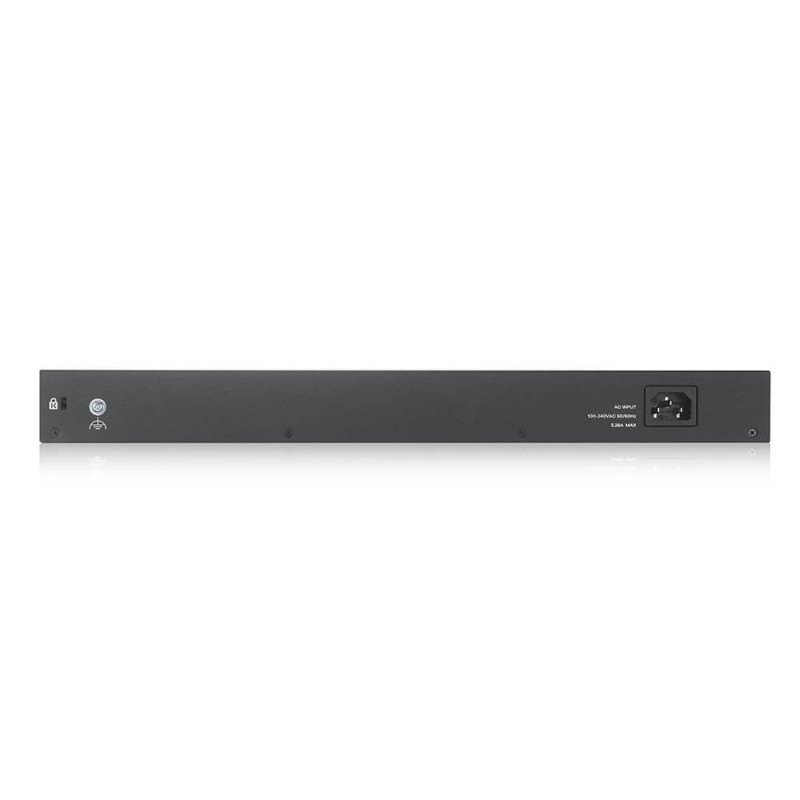

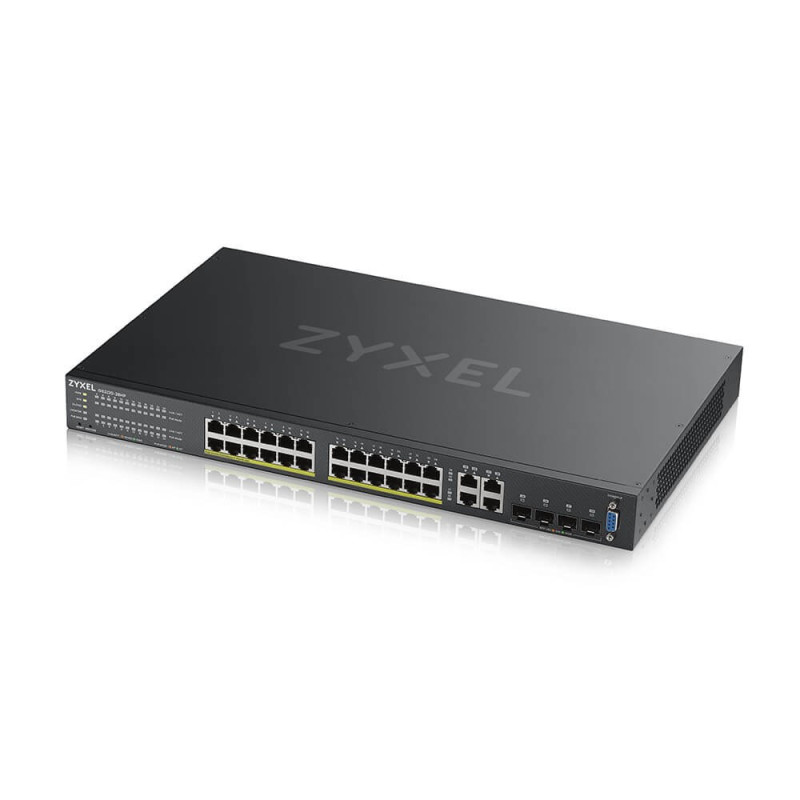

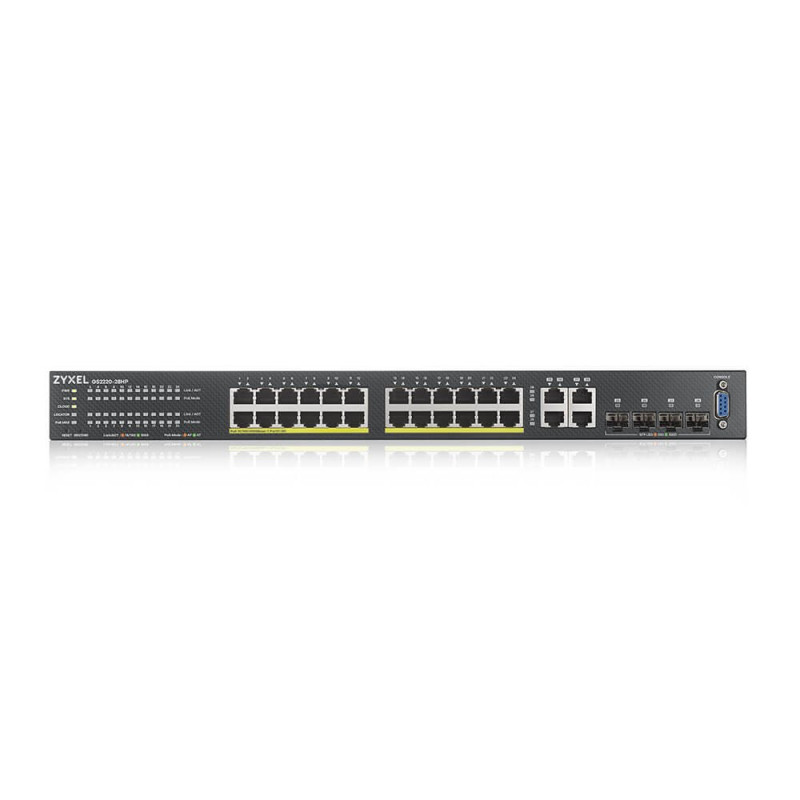

Zyxel GS2220-28HP, Black
ZyXEL GS2220-28HP is a high-performance switch designed for businesses and organizations. It has 24 Gigabit RJ-45 Ethernet ports (10/100/1000) and 4 combo SFP ports. The switch supports advanced protocols such as Spanning Tree Protocol, Virtual LAN, and Link Aggregation.
Main features
- 32 MB flash memory and 256 MB internal memory for smooth operation
- Mean Time Between Failures (MTBF) of 693245 hours, ensuring high reliability
- Upgradable software for future-proofing
- Total Power over Ethernet (PoE) budget: 375 W, supports up to 24 PoE ports
Design | |
|---|---|
| Rack mounting | Yes |
| Product color | Black |
Power | |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240V |
| Maximum energy consumption | 463.5W |
Security | |
| DHCP functions | DHCP client, DHCP relay, DHCPv6 relay, DHCPv6 client, DHCP snooping |
| Access Control List (ACL) | Yes |
| Authentication type | IEEE 802.1x, RADIUS |
| Authentication | Guest VLAN, MAC based authentication |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Security algorithms | SNMPv2, SNMP, SSL/TLS, SSH-2, SNMPv3 |
Operating conditions | |
| Heat release | 1580.535 BTU/h |
| Storage relative humidity (HH) | 10 - 95% |
| Storage temperature (TT) | -40 - 70 °C |
| Operating temperature (OT) | 0 - 50 °C |
| Operating relative humidity (HH) | 10 - 95% |
Control functions | |
| System event log | Yes |
| Switch type | Managed |
| Switch layer | L2 |
| Configuring Local Settings (CLI) | Yes |
| Internet management | Yes |
| Quality of Service (QoS) support | Yes |
Weight and dimensions | |
| Depth | 270mm |
| Height | 44 mm |
| Weight | 3.8 kg |
| Width | 441 mm |
Network | |
| Speed limit | Yes |
| Spanning tree protocol | Yes |
| Virtual LAN features | Private VLAN, Protocol-based VLAN, Port-based VLAN, Voice VLAN |
| Copper Ethernet cable technologies | 10BASE-TX, 1000BASE-T |
| Link aggregation | Yes |
| VLAN support | Yes |
| Broadcast storm control | Yes |
| Data flow control support | Yes |
| 10G support | No |
| Network standards | IEEE 802.3ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3at, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1ab, IEEE 802.1w, IEEE 802.1D, IEEE 802.3z, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u |
Performance | |
| Flash memory | 32MB |
| Mean Time Between Failures (MTBF) | 693245 hours |
| Internal memory | 256MB |
| Upgradable software | Yes |
| Noise level | 49.8 dB |
Packaging details | |
| Package height | 107 mm |
| Package weight | 4.97 kg |
| Cables included | AC |
| Package width | 616 mm |
| Package depth | 355mm |
Ports and interfaces | |
| Number of combined SFP ports | 4 |
| Number of main RJ-45 Ethernet ports | 24 |
| Type of main RJ-45 Ethernet ports | Gigabit Ethernet (10/100/1000) |
Data transfer | |
| MAC address table | 16000 entries |
| Connection capacity | 56 Gbps |
| Transmission speed | 42 Mpps |
| Packet buffer memory | 1.5MB |
Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 375W |
| Number of Power over Ethernet (PoE) ports | 24 |
| Power over Ethernet (PoE) | Yes |
Multicast functions | |
| Multicast support | Yes |
| Height | 615mm |
| Length | 360 mm |
| Weight | 4955 grams |
| Width | 110 mm |
