Guarantee
24 month
Delivery from Europe in
8 - 9
business days

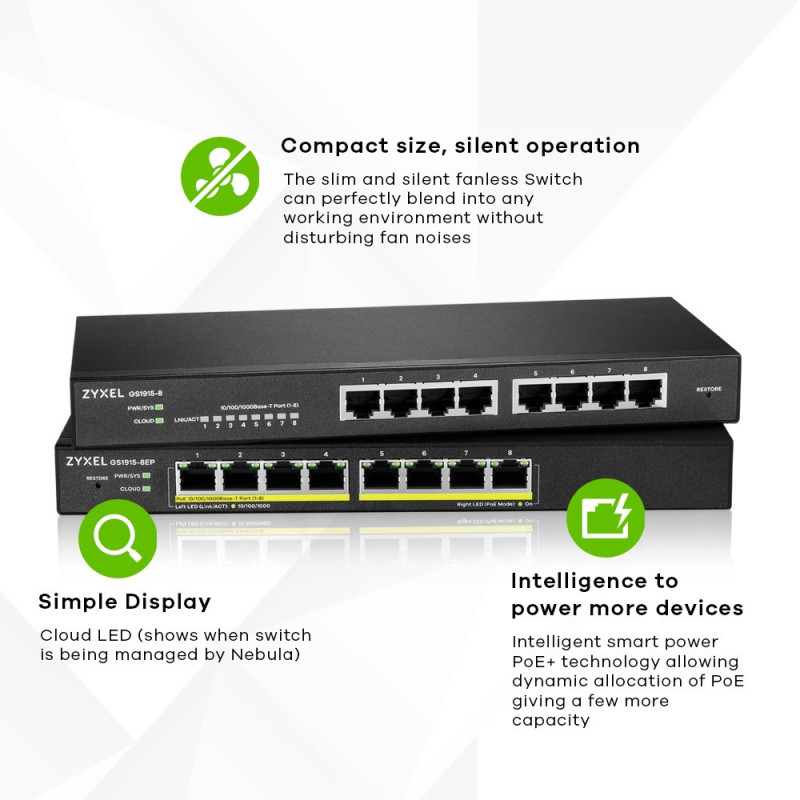

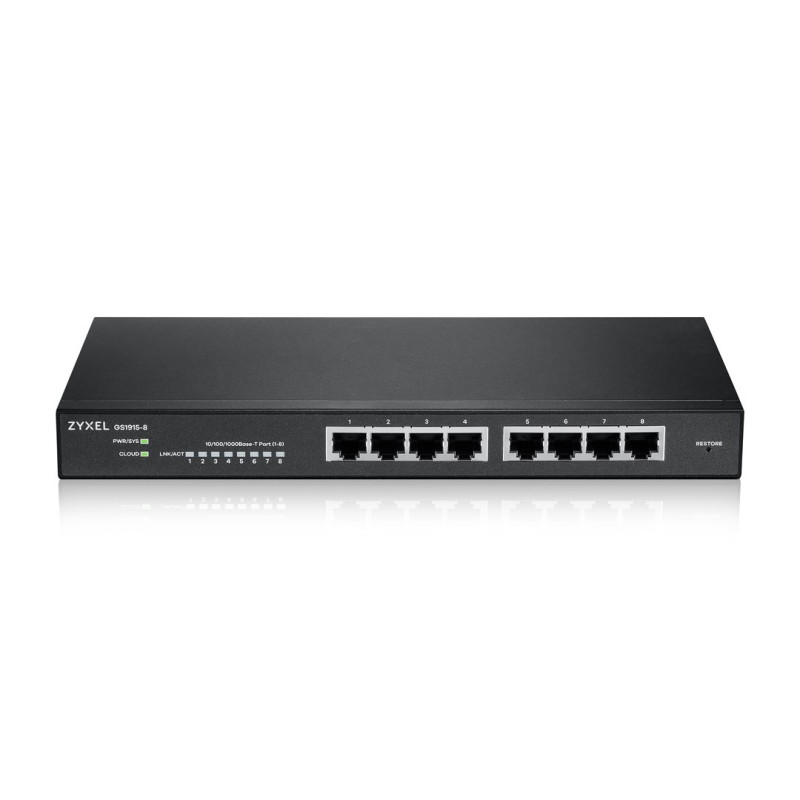

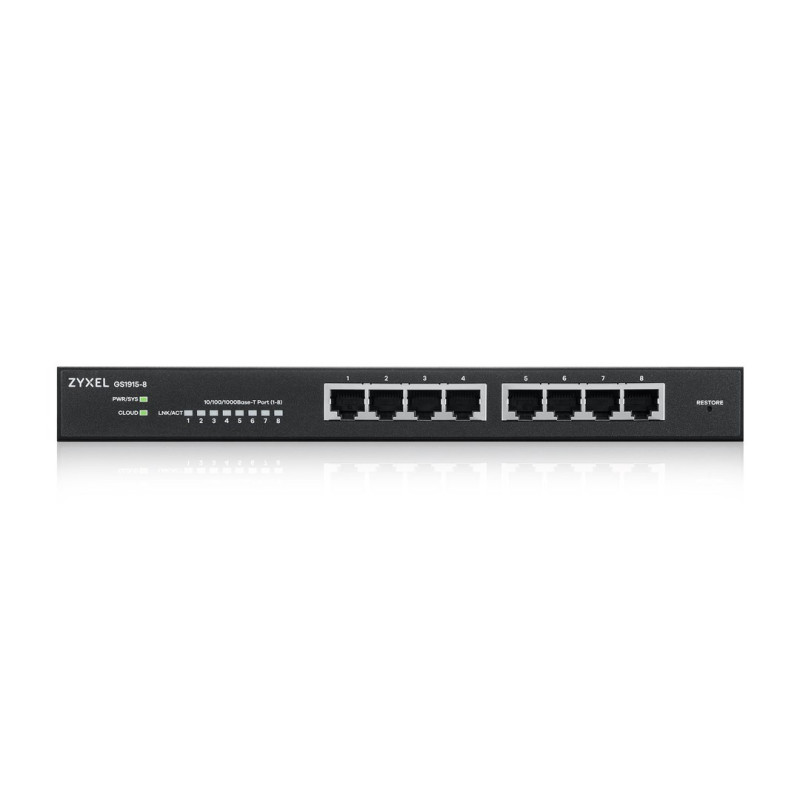

Managed L2 Gigabit Ethernet switch with 8 ports, supporting VLAN and QoS. Operates with 4.7 W power consumption and has features such as SSH/SSL support and web management interface.
Design | |
|---|---|
| Product color | Black |
| LED indicators | Yes |
| Electromagnetic compatibility | LVD EN60950-1, BSMI CNS14336-1 |
Power | |
| Power | AC |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 220 - 240V |
Operating conditions | |
| Operating temperature (OT) | 0 - 40 °C |
| Operating relative humidity (HH) | 10 - 95% |
| Storage temperature (TT) | -40 - 70 °C |
| Storage relative humidity (HH) | 10 - 95% |
| Heat release | 16.03 BTU/h |
Control functions | |
| MIB support | RFC 1213 MIB II, RFC 2819, RFC 1215, RFC 1493 |
| System event log | Yes |
Weight and dimensions | |
| Height | 27 mm |
| Depth | 104 mm |
| Weight | 620g |
| Width | 250mm |
Network | |
| Copper Ethernet cable technology | 1000BASE-T, 10BASE-T, 100BASE-TX |
| Network standards | IEEE 802.3at, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3az, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3u |
| Speed limit | Yes |
| Broadcast storm control | Yes |
| Data flow control support | Yes |
Operation | |
| Mean Time Between Failures (MTBF) | 1144461 hours |
Data transfer | |
| Jumbo frame support | Yes |
| Switching capacity | 16 Gbps |
| Transmission speed | 11.9 Mpps |
| MAC address table | 8000 entries |
| Packet buffer memory | 0.525 MB |
Ports and interfaces | |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Power connector | AC-in connector |
| Main types of switching Ethernet ports | Gigabit Ethernet (10/100/1000) |
| Main switch RJ-45 Ethernet port count | 8 |
| Height | 65 mm |
| Length | 150mm |
| Weight | 730g |
| Width | 300mm |
