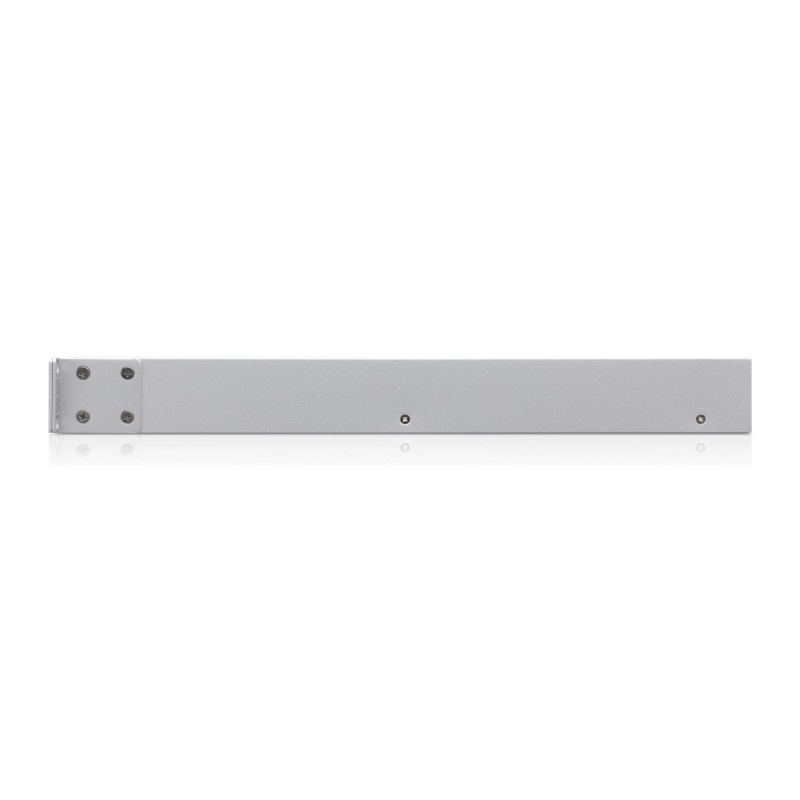

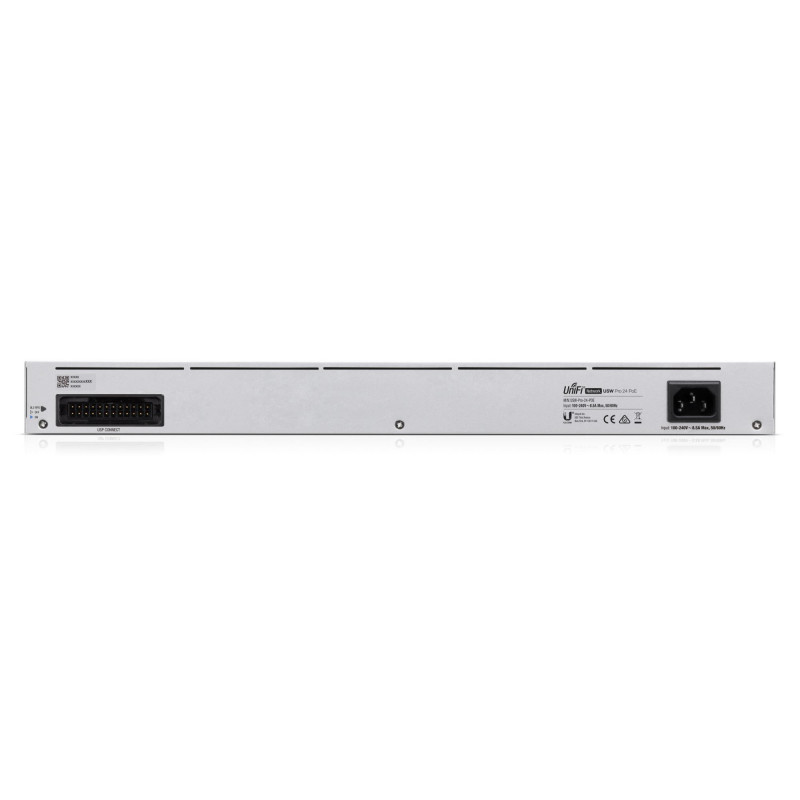

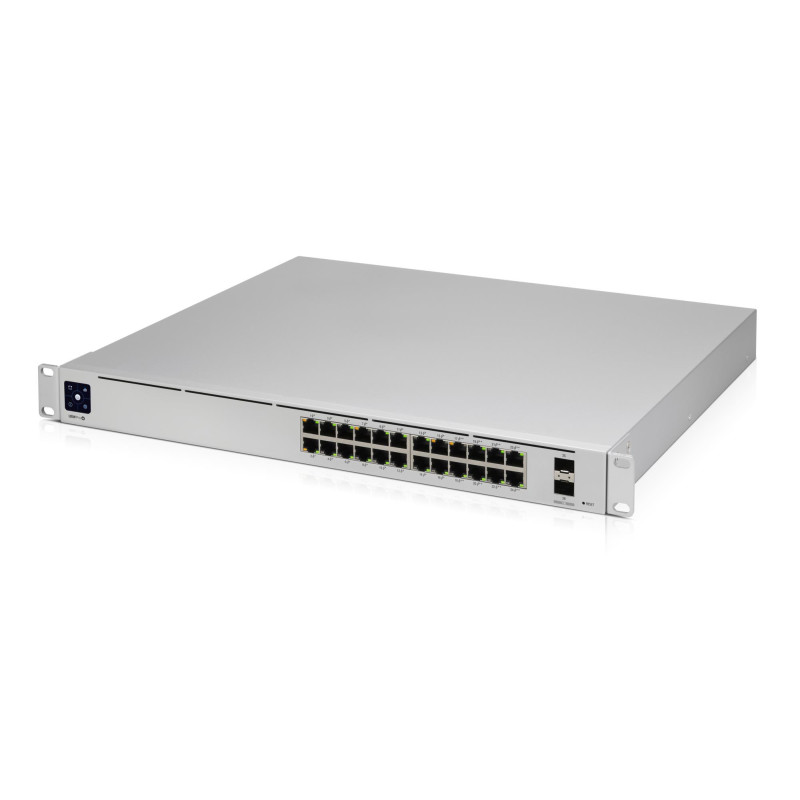

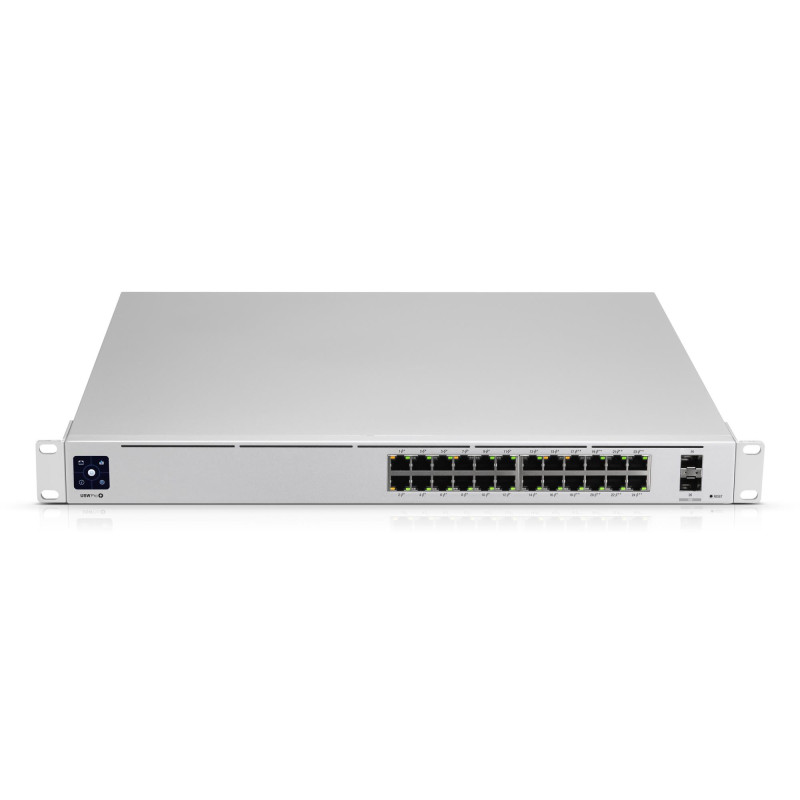

Switch, UBIQUITI, USW-Pro-24-PoE, Type L3, Desktop / pedestal, Rack, 24x10Base-T / 100Base-TX / 1000Base-T, 2xSFP+, PoE
Product reference:
2-817882027649
Switch, UBIQUITI, USW-Pro-24-PoE, Type L3, Desktop / pedestal, Rack, 24x10Base-T / 100Base-TX / 1000Base-T, 2xSFP+, PoE
Product reference:
2-817882027649
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
3 - 5
business days
Second-Generation UniFi Switching
We've redesigned our UniFi Switches from the ground up.
Near Silent Cooling
Our new airflow design reduces the need for fan usage.
Powerful Hardware and Software
UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities.
Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.
Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.
UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.
| 10G support | Yes |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Authentication type | IEEE 802.1x,RADIUS |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Yes |
| Certification | CE, FCC, IC |
| Depth | 285.4 mm |
| DHCP features | DHCP relay/DHCP server/DHCP snooping |
| Display type | LCM |
| Flow control support | Yes |
| Form factor | 1U |
| Forwarding rate | 65.472 Mpps |
| Full duplex | Yes |
| Harmonized System (HS) code | 85176990 |
| Height | 43.7 mm |
| IGMP snooping | Yes |
| IPv4 routes | 64 |
| Jumbo frames support | Yes |
| LED indicators | Activity/Link/PoE/Speed/System |
| Link aggregation | Yes |
| MAC address table | 16000 entries |
| Model name | USW-Pro-24-PoE |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| Number of power supply units | 1 |
| Number of VLANs | 1000 |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -5 - 40 °C |
| Packet buffer memory | 2 MB |
| Port mirroring | Yes |
| Power connector | AC-in jack |
| Power consumption (max) | 450 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 64 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power source | AC |
| Power supply included | Yes |
| Product colour | Silver |
| Quality of Service (QoS) support | Yes |
| Rack mounting | Yes |
| Rate limiting | Yes |
| Redundant power supply (RPS) support | Yes |
| Reset button | Yes |
| SFP+ module slots quantity | 2 |
| Static route | Yes |
| Summary | Ubiquiti UniFi Pro 24-Port PoE. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 88 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Switching capacity | 88 Gbit/s |
| System event log | Yes |
| Throughput | 44000 Mpps |
| Total Power over Ethernet (PoE) budget | 400 W |
| Unit Box Height | 0.38 |
| Unit Box Length | 0.51 |
| Unit Box Width | 0.125 |
| Unit Calculated Volume | 0.03005 cubm |
| Unit Calculated Weight | 6.5 kg |
| Units per Shipping Box | 2 |
| Vendor Homepage | https://switch.ui.com/gen2/ |
| VLAN support | Yes |
| Web-based management | Yes |
| Weight | 4300 g |
| Width | 442.4 mm |
