Switch, UBIQUITI, USW-48-POE, Type L2, Rack, 48x10Base-T / 100Base-TX / 1000Base-T, 4xSFP, PoE ports 32, 195 Watts, USW-
Product reference:
2-810010072146
Switch, UBIQUITI, USW-48-POE, Type L2, Rack, 48x10Base-T / 100Base-TX / 1000Base-T, 4xSFP, PoE ports 32, 195 Watts, USW-
Product reference:
2-810010072146
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
3 - 5
business days

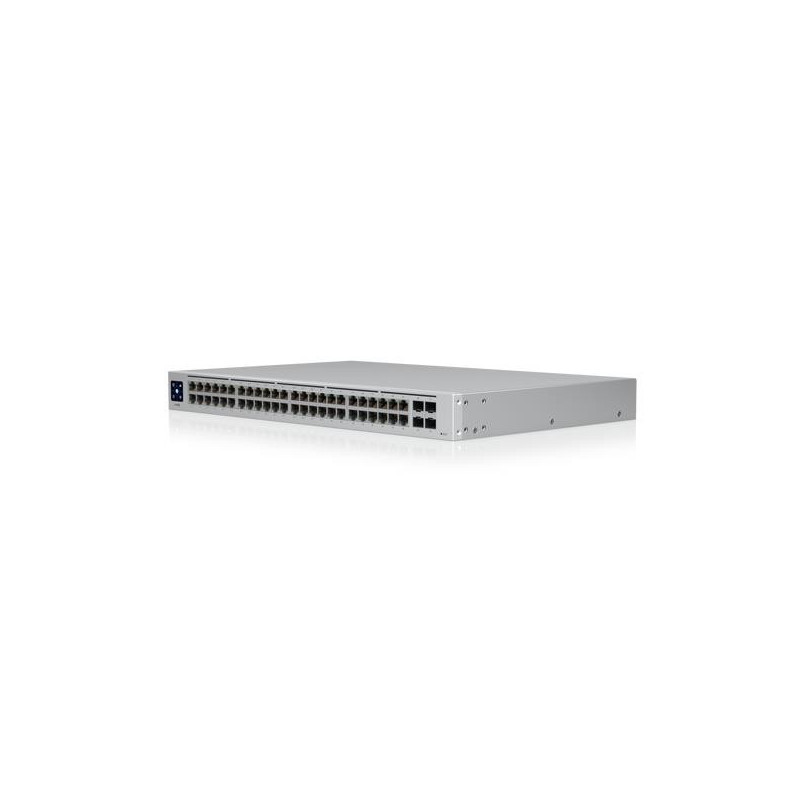

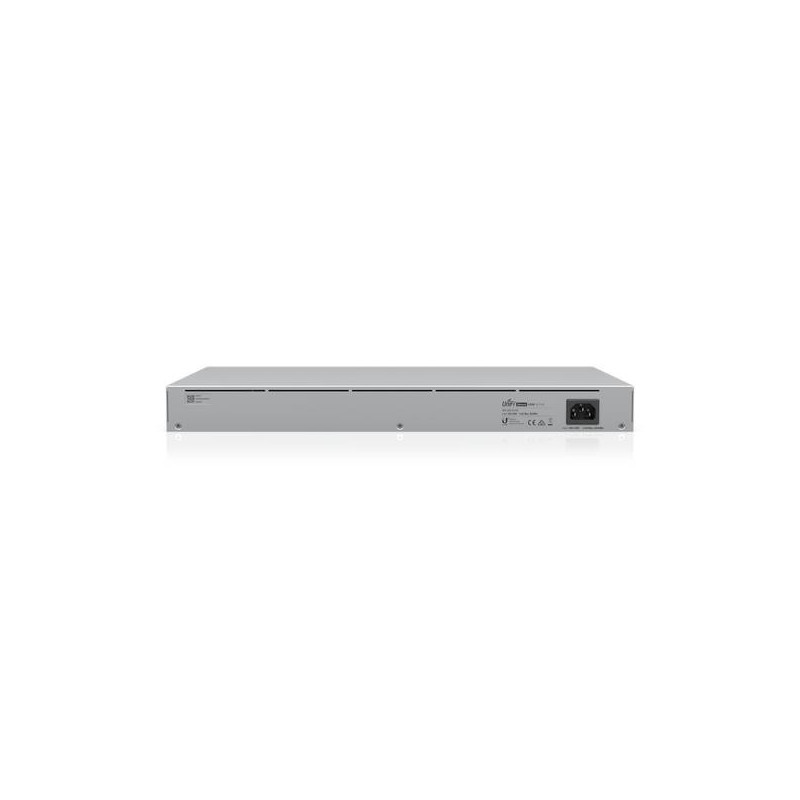

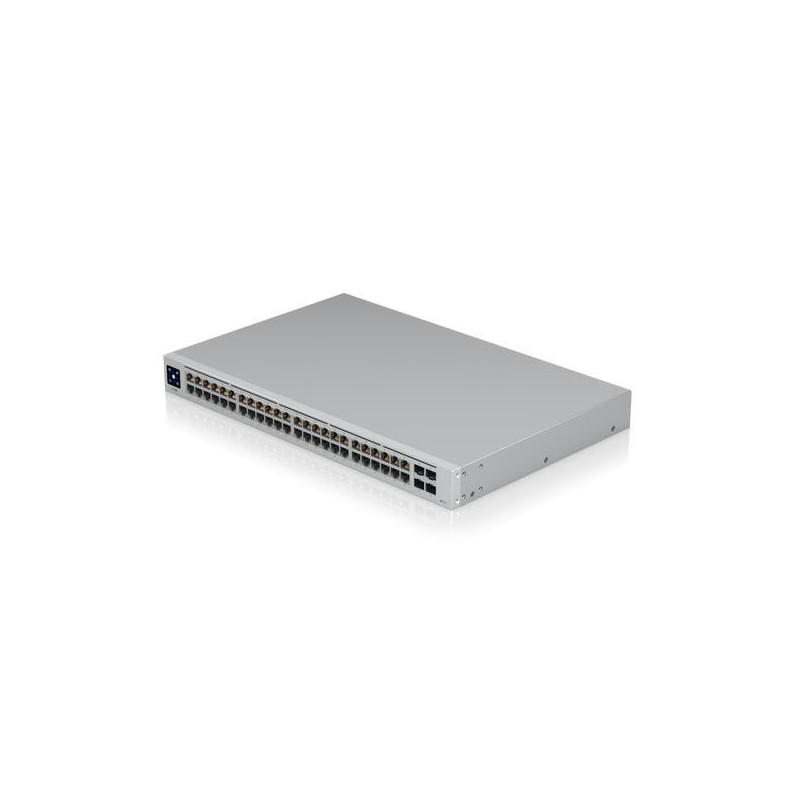

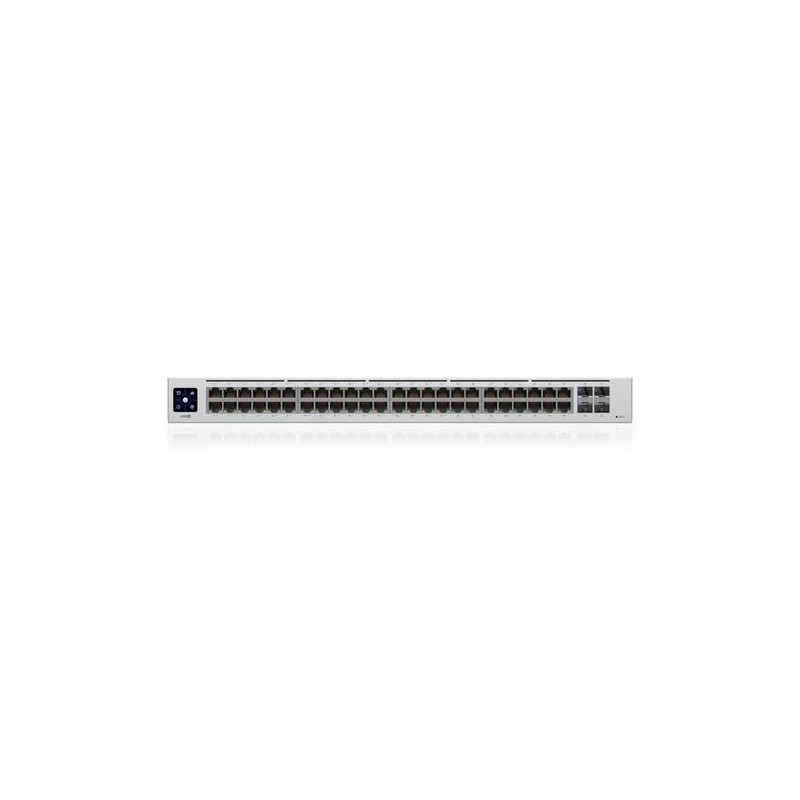

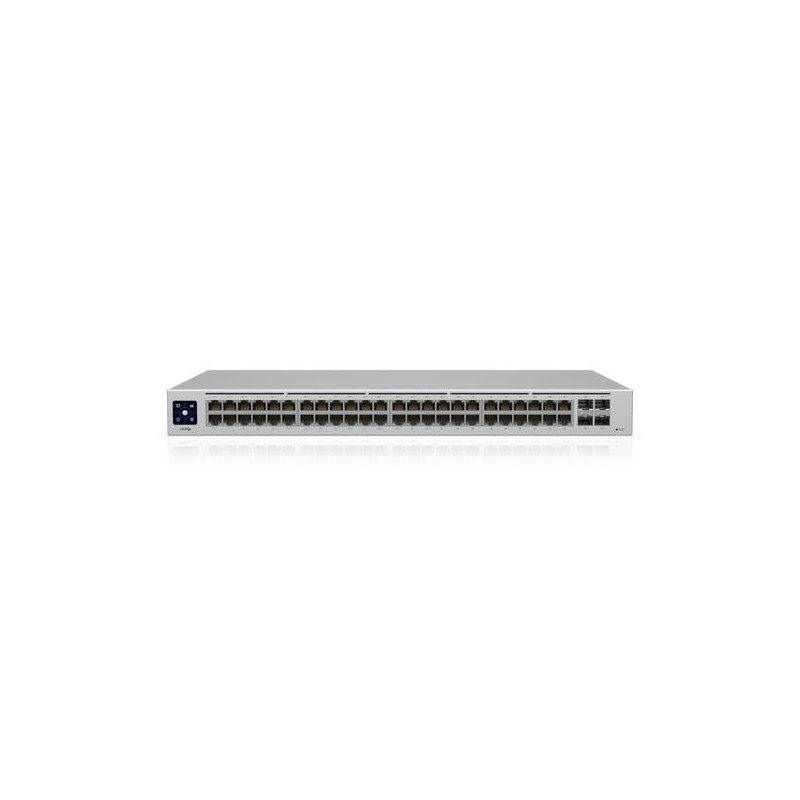

A 48-port, Layer 2 PoE switch with a silent, fanless cooling system.
- (32) GbE, PoE+ RJ45 ports
- (16) GbE RJ45 ports
- (4) 1G SFP ports
- 195W total PoE availability
- 1.3" LCM color touchscreen with AR switch management
| 10G support | No |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Authentication type | RADIUS |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Certification | CE, FCC, IC |
| Depth | 285 mm |
| Fanless | Yes |
| Flow control support | Yes |
| Form factor | 1U |
| Forwarding rate | 77.38 Mpps |
| Height | 43.7 mm |
| Jumbo frames support | Yes |
| LED indicators | Activity/Link/Speed |
| Link aggregation | Yes |
| Manual | Yes |
| Model name | USW-48-POE |
| Networking standards | IEEE 802.1x/IEEE 802.3af/IEEE 802.3at |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -5 - 40 °C |
| Port mirroring | Yes |
| Power consumption (max) | 45 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 32 W |
| Power over Ethernet plus (PoE+) ports quantity | 32 |
| Power source | AC/DC |
| Power supply included | Yes |
| Product colour | Stainless steel |
| Product Net Weight | 4.61 kg |
| Rack mounting | Yes |
| SFP module slots quantity | 4 |
| Shipping Box Depth | 54 cm |
| Shipping Box Height | 43 cm |
| Shipping Box Weight | 12.55 kg |
| Shipping Box Width | 26 cm |
| Spanning tree protocol | Yes |
| Summary | Ubiquiti UniFi USW-48-POE. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Rack mounting, Form factor: 1U |
| Switch layer | L2 |
| Switch type | Managed |
| Switching capacity | 104 Gbit/s |
| Throughput | 52 Gbit/s |
| Total Power over Ethernet (PoE) budget | 195 W |
| Unit Box Height | 0.43 |
| Unit Box Length | 0.54 |
| Unit Box Width | 0.13 |
| Unit Calculated Volume | 0.03019 cubm |
| Unit Calculated Weight | 6.28 kg |
| Units per Shipping Box | 2 |
| Vendor Homepage | https://store.ui.com/collections/unifi-network-switching/products/usw-48-poe |
| VLAN support | Yes |
| Weight | 4520 g |
| Width | 442.4 mm |
