Switch, UBIQUITI, Pro Max 16, Type L3, USW-PRO-MAX-16
Product reference:
2-810084694565
Switch, UBIQUITI, Pro Max 16, Type L3, USW-PRO-MAX-16
Product reference:
2-810084694565
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
3 - 5
business days

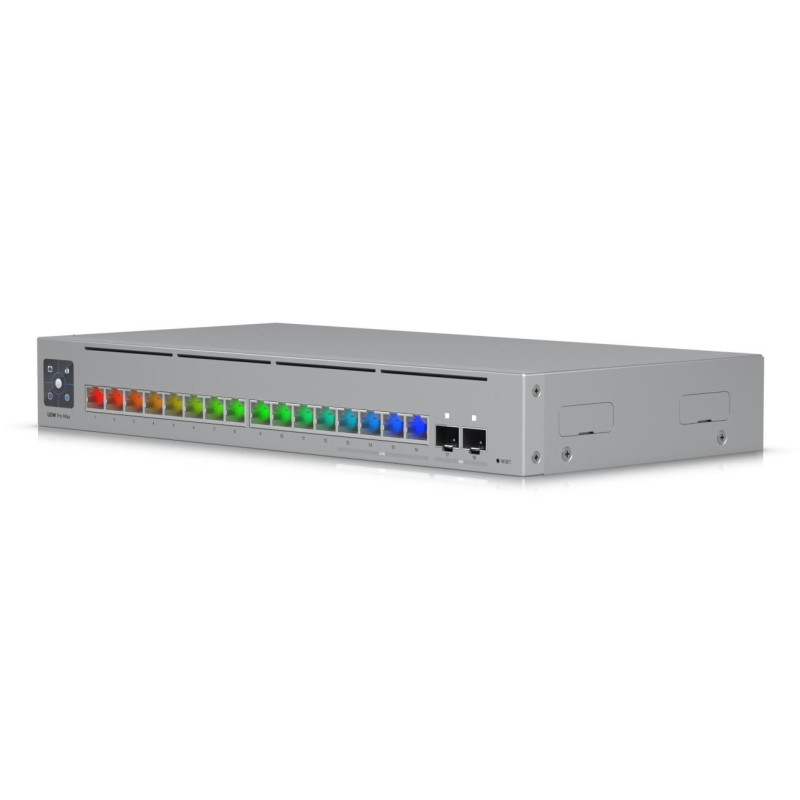

A 16-port, Layer 3 Etherlighting™ switch 2.5 GbE and versatile mounting options.
- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
- (4) 2.5 GbE RJ45 ports
- (12) GbE RJ45 ports
- (2) 10G SFP+ ports
- Versatile desktop, wall, and rack** mounting
- Silent, fanless cooling system
| 10G support | Yes |
| 2.5G Ethernet (copper) ports quantity | 4 |
| Access Control List (ACL) | Yes |
| Authentication type | IEEE 802.1x |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Broadcast storm control | Yes |
| Cables included | Power |
| Compliance certificates | CE/Federal Communications Commission (FCC)/Industry Canada (IC)/National Defense Authorization Act (NDAA) |
| Depth | 160 mm |
| DHCP features | DHCP guarding/DHCP relay/DHCP server/DHCP snooping |
| Display type | LCM |
| Fanless | Yes |
| Flow control support | Yes |
| Form factor | 1U |
| Forwarding rate | 62 Mpps |
| Gigabit Ethernet (copper) ports quantity | 12 |
| Heat dissipation | 85.3 BTU/h |
| Height | 43.7 mm |
| Housing material | SGCC |
| IGMP snooping | Yes |
| Input current | 5 A |
| Input voltage | 4.8 - 5.2 V |
| IPv4 routes | 512 |
| Jumbo frames support | Yes |
| LED indicators | Link/Network/Speed/Status |
| Link aggregation | Yes |
| Loop protection | Yes |
| MAC address table | 16000 entries |
| Model | USW-Pro-Max-16 |
| Model name | Pro Max 16 |
| Networking standards | IEEE 802.1x |
| Number of VLANs | 1000 |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -5 - 40 °C |
| Packet buffer memory | 1.5 MB |
| Port mirroring | Yes |
| Power connector | AC/DC |
| Power consumption (max) | 25 W |
| Power over Ethernet (PoE) | No |
| Power supply included | Yes |
| Product colour | Grey |
| Product Net Weight | 1.95 kg |
| Quality of Service (QoS) support | Yes |
| Rack mount kit | Yes |
| Rack mounting | Yes |
| Rate limiting | Yes |
| Redundant power supply (RPS) support | Yes |
| Reset button | Yes |
| SFP+ module slots quantity | 2 |
| Shipping Box Depth | 52.5 cm |
| Shipping Box Height | 25 cm |
| Shipping Box Weight | 13.85 kg |
| Shipping Box Width | 51 cm |
| Stackable | Yes |
| Static route | Yes |
| Summary | Ubiquiti Pro Max 16. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 16000 entries, Switching capacity: 84 Gbit/s. Networking standards: IEEE 802.1x. Power connector: AC/DC. Rack mounting, Form factor: 1U |
| Switch layer | L3 |
| Switching capacity | 84 Gbit/s |
| Throughput | 42 Gbit/s |
| Unit Box Height | 0.245 |
| Unit Box Length | 0.51 |
| Unit Box Width | 0.11 |
| Unit Calculated Volume | 0.0167344 cubm |
| Unit Calculated Weight | 3.4625 kg |
| Units per Shipping Box | 4 |
| Vendor Homepage | https://eu.store.ui.com/eu/en/pro/products/usw-pro-max-16 |
| Virtual LAN features | Voice VLAN |
| VLAN support | Yes |
| Weight | 1950 g |
| Width | 325.1 mm |
