Switch, UBIQUITI, 180 Watts, USW-PRO-MAX-16-POE
Product reference:
2-810084694572
Switch, UBIQUITI, 180 Watts, USW-PRO-MAX-16-POE
Product reference:
2-810084694572
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
3 - 5
business days

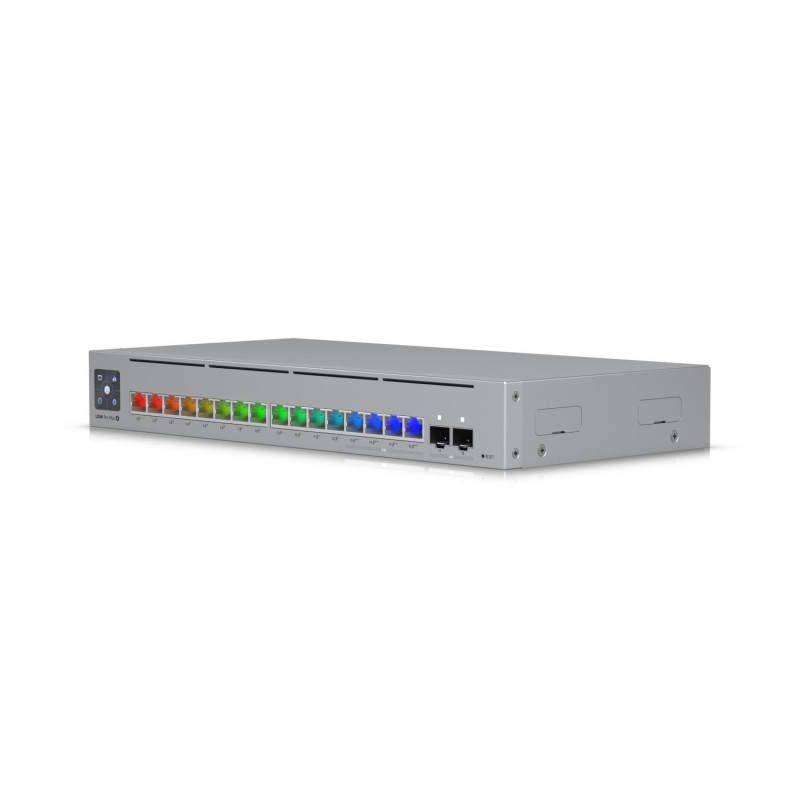

A 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE, PoE++ output, and versatile mounting options.
- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network
- (4) 2.5 GbE PoE++ ports
- (12) GbE PoE+ ports
- (2) 10G SFP+ ports
- 180W total PoE availability
- Versatile desktop, wall, and rack mounting
- Silent, fanless cooling system
| 10G support | Yes |
| 2.5G Ethernet (copper) ports quantity | 4 |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Yes |

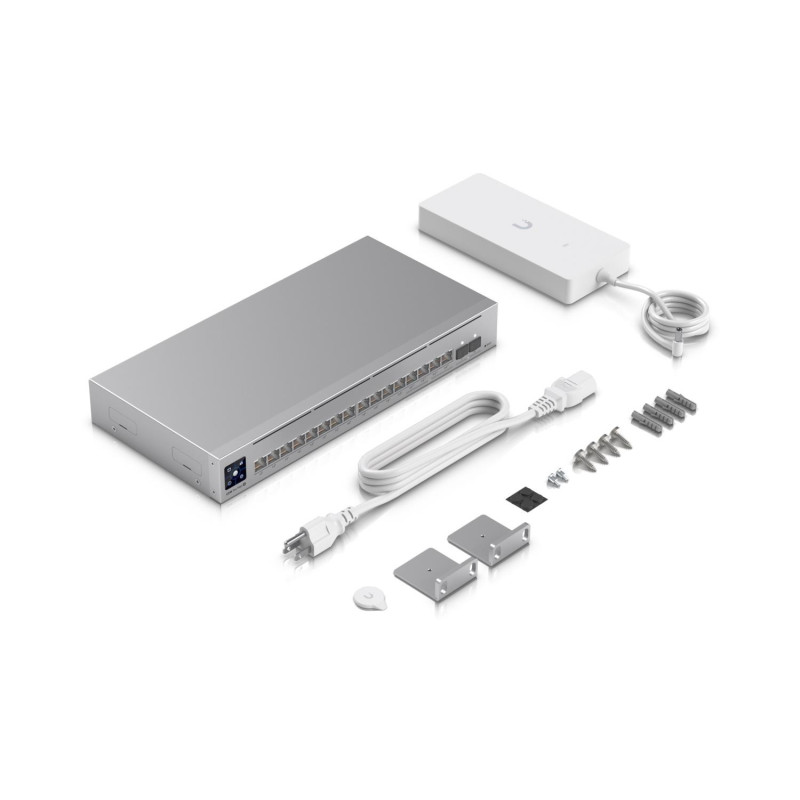

| Cables included | Power |
| Compliance certificates | CE/Federal Communications Commission (FCC)/Industry Canada (IC) |
| DC input voltage | 44 - 57 V |
| Depth | 160 mm |
| DHCP features | DHCP snooping/DHCPv6 relay |
| Display type | LCM |
| Flow control support | Yes |
| Forwarding rate | 62.496 Mpps |
| Gigabit Ethernet (copper) ports quantity | 12 |
| Height | 43.7 mm |
| Housing material | Steel |
| IGMP snooping | Yes |
| Jumbo frames support | Yes |
| LED indicators | System |
| Loop protection | Yes |
| Manual | Yes |
| Model | USW-PRO-MAX-16-POE |
| Model name | Pro Max 16 PoE |
| Mounting brackets included | Yes |
| Multicast support | Yes |
| Networking standards | IEEE 802.1x |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -5 - 40 °C |
| Port mirroring | Yes |
| Power connector | DC-in jack |
| Power consumption (max) | 30 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 15 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 4 |
| Power over Ethernet plus (PoE+) ports quantity | 12 |
| Power source | AC/DC |
| Power supply included | Yes |
| Product colour | Grey |
| Product Net Weight | 2.1 kg |
| Rack mounting | Yes |
| Rate limiting | Yes |
| Redundant power supply (RPS) support | Yes |
| Reset button | Yes |
| SFP+ module slots quantity | 2 |
| Shipping Box Depth | 53 cm |
| Shipping Box Height | 25.5 cm |
| Shipping Box Weight | 16.3 kg |
| Shipping Box Width | 51 cm |
| Summary | Ubiquiti Pro Max 16 PoE. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Switching capacity: 84 Gbit/s. Networking standards: IEEE 802.1x. DC input voltage: 44 - 57 V. Power connector: DC-in jack. Power over Ethernet (PoE). Rack mounting |
| Switch layer | L3 |
| Switch type | Managed |
| Switching capacity | 84 Gbit/s |
| Throughput | 42 Gbit/s |
| Total Power over Ethernet (PoE) budget | 180 W |
| Unit Box Height | 0.11 |
| Unit Box Length | 0.515 |
| Unit Box Width | 0.25 |
| Unit Calculated Volume | 0.01723 cubm |
| Unit Calculated Weight | 4.08 kg |
| Units per Shipping Box | 4 |
| Vendor Homepage | https://eu.store.ui.com/eu/en/pro/category/switching-professional-max/products/usw-pro-max-16-poe |
| Virtual LAN features | Voice VLAN |
| VLAN support | Yes |
| Weight | 2100 g |
| Width | 325.1 mm |
