Switch, TP-LINK, TL-SG1218MP, Desktop / pedestal, Rack, 16x10Base-T / 100Base-TX / 1000Base-T, PoE+ ports 16, 250 Watts,
Product reference: 2-6935364072155

Switch, TP-LINK, TL-SG1218MP, Desktop / pedestal, Rack, 16x10Base-T / 100Base-TX / 1000Base-T, PoE+ ports 16, 250 Watts,

Product reference: 2-6935364072155
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
177,51
Last product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

Professional High Power 18-Port Gigabit Rackmount Switch with 16-Port PoE+
Plug and Play, Multi-Purpose PoE Switch with Powerful Performance

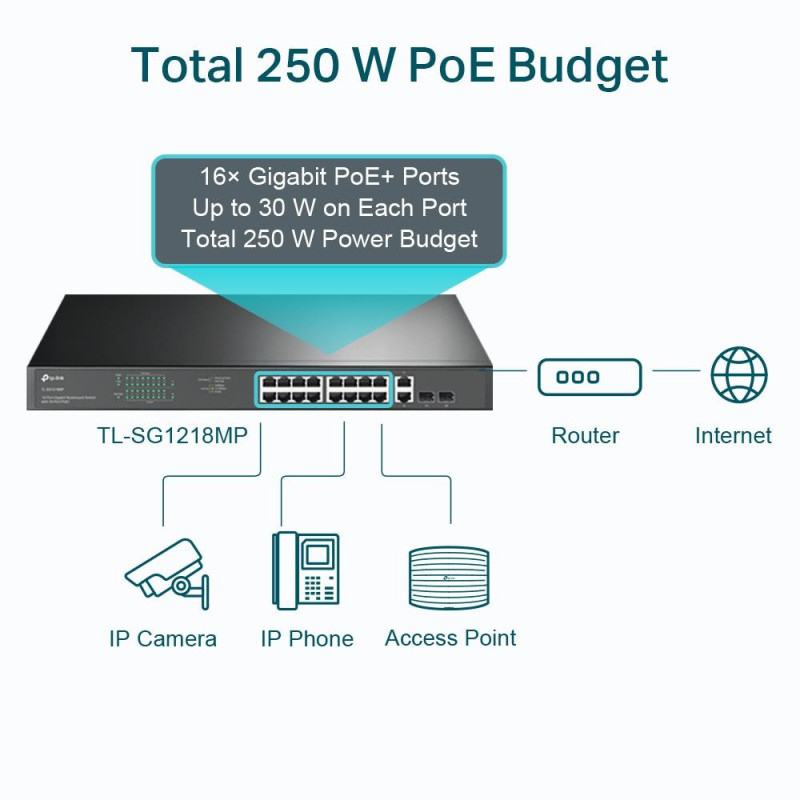

Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× gigabit PoE+ ports makes it suitable for a wide range of applications, from surveillance to networking in offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video, by designating the priority of traffic based on Quality of Service (QoS).

Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports' power to ensure high-priority ports' power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

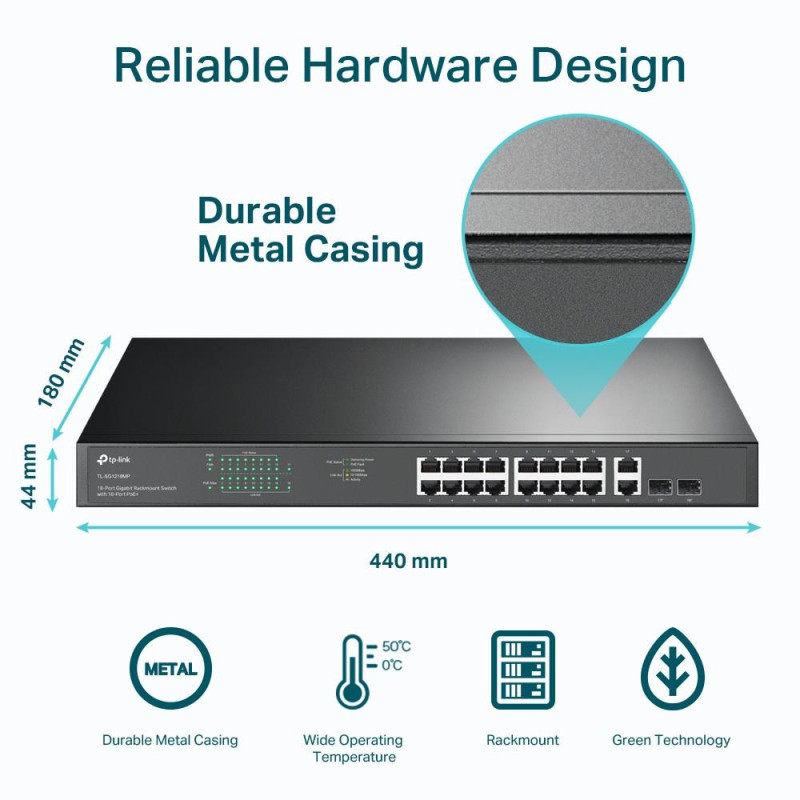

Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0-50 ) with reliability.

Multiple Application Scenarios
The TL-SG1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

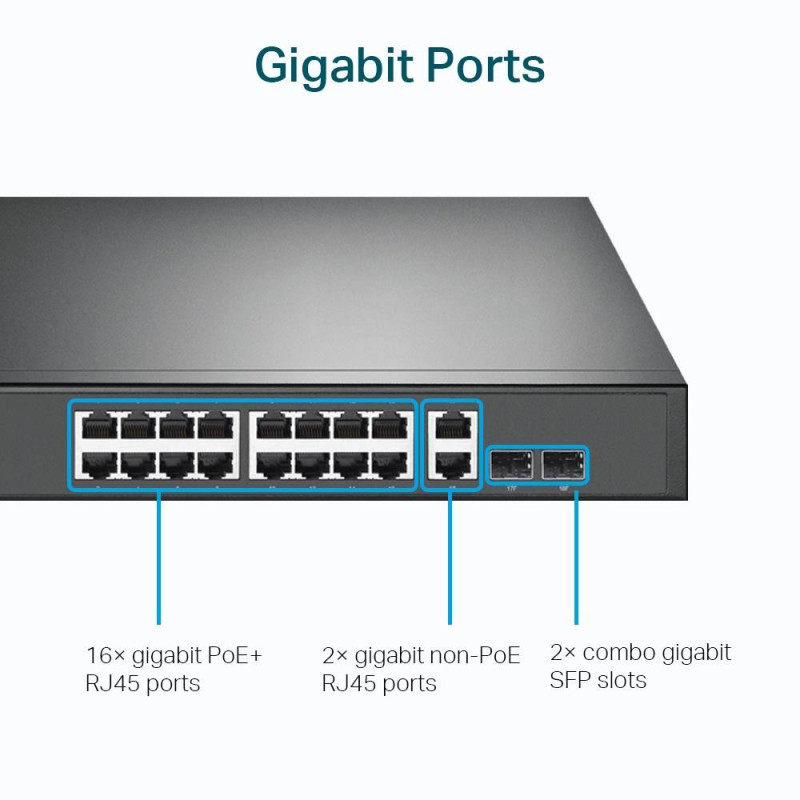

  • 16× gigabit PoE+ RJ45 ports, 2× gigabit non-PoE RJ45 ports, and 2× combo gigabit SFP slots
  • High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
  • Working with IEEE 802.3af/at compliant PDs

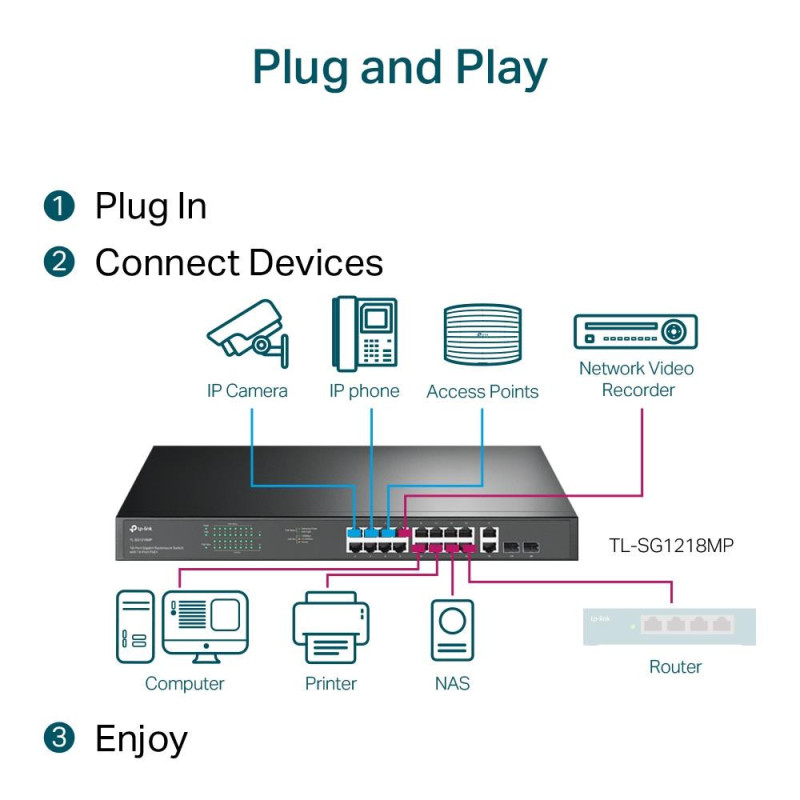

  • Plug and play, with no configuration and installation needed
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0-50 )

10G support No
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Basic switching RJ-45 Ethernet ports quantity 18
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Cable types supported Cat3/Cat4/Cat5/Cat5e/Cat6
Cables included AC
Certification CE, FCC, RoHS
Combo SFP ports quantity 2
Depth 180 mm
Ethernet LAN data rates 10,100,1000 Mbit/s
Flow control support Yes
Form factor 1U
Forwarding rate 26.78 Mpps
Full duplex Yes
Gigabit Ethernet (copper) ports quantity 18
Half duplex Yes
Harmonized System (HS) code 85176990
Heat dissipation 977.44 BTU/h
Height 44 mm
Housing material Metal
Jumbo frames 10000
Jumbo frames support Yes
LED indicators Yes
MAC address auto-aging supported Yes
MAC address auto-learning supported Yes
MAC address table 8000 entries
Model name 18-Port Gigabit Rackmount Switch with 16 PoE+
Networking standards IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x
Number of fans 2 fan(s)
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 50 °C
Package depth 528 mm
Package height 80 mm
Package weight 3050 g
Package width 250 mm
Packet buffer memory 4.1 MB
Power consumption (max) 286.64 W
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) power per port 30 W
Power over Ethernet plus (PoE+) ports quantity 16
Power source AC
Power supply included Yes
Product colour Black
Product Net Weight 2.4 kg
Quality of Service (QoS) support Yes
Quick start guide Yes
Rack mounting Yes
Shipping Box Depth 53 cm
Shipping Box Height 25 cm
Shipping Box Weight 3.03 kg
Shipping Box Width 8 cm
Storage relative humidity (H-H) 5 - 90 %
Storage temperature (T-T) -40 - 70 °C
Summary TP-Link 18-Port Gigabit Rackmount Switch with 16 PoE+. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 18. Full duplex. MAC address table: 8000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Switch type Unmanaged
Switching capacity 36 Gbit/s
Total Power over Ethernet (PoE) budget 250 W
Traffic classification Yes
Unit Box Height 0.25
Unit Box Length 0.53
Unit Box Width 0.08
Unit Calculated Volume 0.0106 cubm
Unit Calculated Weight 3.03 kg
Units per Shipping Box 1
Vendor Homepage https://www.tp-link.com/uk/business-networking/poe-switch/tl-sg1218mp/
Width 440 mm
