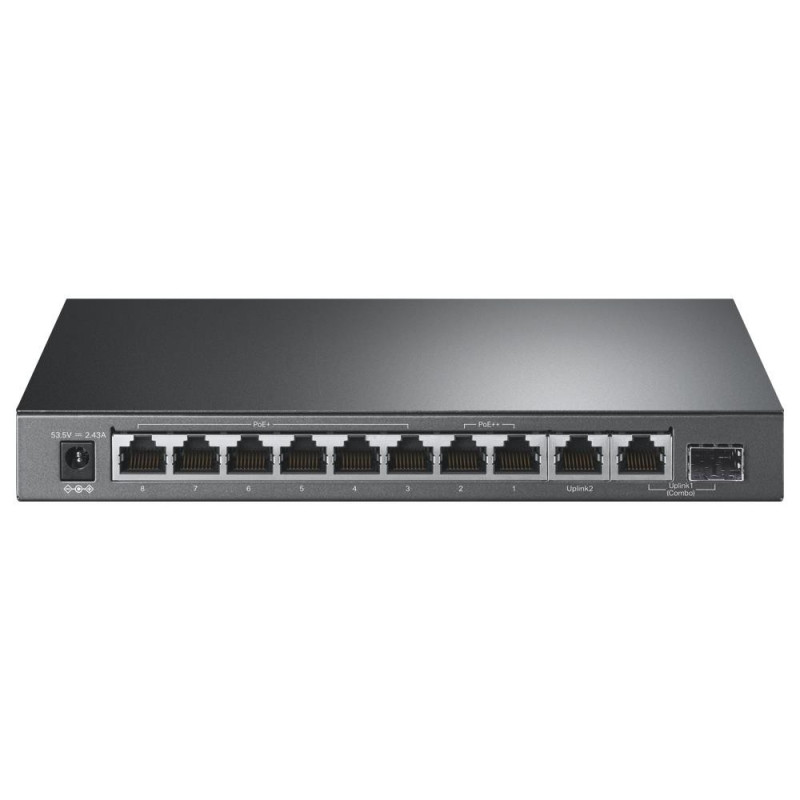

Switch, TP-LINK, TL-SG1210PP, 9x10Base-T / 100Base-TX / 1000Base-T, 1x10 / 100 / 1000BASE-T / SFP combo, PoE+ ports 6, T
Product reference: 2-4895252500349

Switch, TP-LINK, TL-SG1210PP, 9x10Base-T / 100Base-TX / 1000Base-T, 1x10 / 100 / 1000BASE-T / SFP combo, PoE+ ports 6, T

Product reference: 2-4895252500349
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
129,36 €
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

Overview
TL-SG1210PP is an unmanaged switch with 10 Gigabit ports that requires no configuration and provides 8 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at/bt compliant Powered Devices (PDs) at port 1-2 and IEEE 802.3af/at compliant Powered Devices (PDs) at port 3-8. In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Power Over Ethernet
8 RJ45 ports (port 1 to port 8) of the switch support Power over Ethernet (PoE) function. They can automatically detect and supply power with those IEEE 802.3af/at/bt compliant Powered Devices (PDs) at port 1-2 and IEEE 802.3af/at compliant Powered Devices (PDs) at port 3-8.

Overload Arrangement
TL-SG1210PP has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is ≥ 123 W*, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

Intelligent Power Management
Priority (port 1 > port 2 > port 8): This function will help protect the system when the system power is overloaded. For example, port 3, 4, 5 and 6 is using 25 W respectively (maximum power per port is 30 W); the system power is 100 W in total. If there is an additional PD inserted to port 1 with 35 W, and then the system will cut off the power of port 6 because of the overloaded power, this means port 3, 4 and 5 will use 25 W respectively and port 1 will use 35 W, no power will be supplied to port 6.

Highlight Performance
• Up to 250 m PoE power supply and data transmission under Extend Mode** for port 1-4.
• Priority Mode ensures high priority of ports 1-2 to guarantee the quality of the sensitive applications
• Isolation Mode allows one-click client traffic separation for higher security and performance
• With PoE Auto Recovery, the switch will constantly detect the data transmission with PoE-powered devices (PD) for port 1-8. When the switch finds that a PD stops sending data packets to the switch for a long period, the switch will reboot it automatically.

TL-SG1210PP is easy to install and use. It requires no configuration and installation. With desktop and wall mountable design, outstanding performance and quality, the TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+ and 2-Port PoE++ TL-SG1210PP is a great selection for expanding your network.

  • 9× 10/100/1000Mbps RJ45 Ports, 1× 1000Mbps Combo SFP/RJ45 Port
  • With 2× PoE++ ports and 6× PoE+ ports, transfers data and power on one single cable
  • Works with IEEE 802.3af/at/bt compliant PDs
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Supports PoE Power up to 30 W for each PoE+ port and 60 W for PoE++ port
  • Supports PoE Power up to 123 W for all PoE ports*
  • Plug and Play, no configuration and installation required
  • Up to 250m data and power transmitting range under Extend Mode**
  • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
  • Isolation Mode allows one-click client traffic separation for higher security and performance
  • Priority Mode guarantees the quality of sensitive applications like video monitoring in critical business areas by prioritizing the data of ports 1-2

10G parama Ne
AC įėjimo dažnis 50 Hz
AC įėjimo įtampa 90 - 220 V
Adreso lentelės dydis 4000 įrašai
Aukštis 26 mm
Auto MDI/MDI-X Taip
Automatinis suderinimas (Auto-negotiation) Taip
Be ventiliatoriaus Taip
Bendrosios galios per Eternetą (PoE) charakteriskos 123 W
Bruto svoris 1.63 kg
Darbo santykinės drėgmės diapazonas 10 - 90 %
Darbo temperatūros diapazonas (TT) 0 - 40 °C
Darniosios sistemos (DS) kodas 85176990
Galios suvartojimas (maks.) 144.1 W
Gigabit Ethernet (varinis) portų kiekis 10
IGMP tinklinio judėjimo sekimas Taip
Ilgis 126 mm
Jungtinių SFP prievadų skaičius 1
Korpuso medžiaga Plienas
LED indikatoriai Taip
Maitinimas per Eternetą (PoE) Taip
Maitinimo eternetu 4PPoE (PoE++) jungčių skaičius 6
Maitinimo per Eternetą plius (PoE+) prievadų skaičius 2
Maitinimo šaltinis DC/PoE
Maitinimo šaltinių skaičius 1
Model name TL-SG1210PP
Naudojimo žinynas Taip
Neto svoris 1.2 kg
Pagrindinių perjungimo RJ-45 eterneto prievadų skaičius 10
Pagrindinių perjungimo RJ-45 eterneto prievadų tipas Gigabit Ethernet (10/100/1000)
Pakuotės tipas "Box"
Palaikoma MAC adresų funkcija "Auto-learning" Taip
Palaikoma MAC funkcija "Auto-aging" Taip
Palaikomi laido tipai Cat3/Cat4/Cat5/Cat5e
Paslaugos kokybės (QoS) palaikymas Taip
Perjungimo pajėgumas 20 Gbit/s
Perjungimo tipas Ne-valdomas
Persiuntimo dažnis 14.88 Mpps
Plotis 209 mm
Pridėtas maitinimo šaltinis Taip
Pridėti kabeliai AC
Produkto spalva Juoda
Sandėliavimo santykinis drėgmės diapazonas 5 - 90 %
Sandėliavimo temperatūros norma (T-T) -40 - 70 °C
Sertifikavimas FCC, CE, RoHS
Shipping Box Depth 32 cm
Shipping Box Height 24 cm
Shipping Box Weight 1.63 kg
Shipping Box Width 7 cm
Srauto kontrolės palaikymas Taip
Stovo montavimas Ne
Summary TP-Link 10-Port Gigabit Desktop Switch with 6-Port PoE+ and 2-Port PoE++. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power over Ethernet (PoE)
Tinklo standartai IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Unit Box Height 0.24
Unit Box Length 0.32
Unit Box Width 0.07
Unit Brutto Volume 0.005376 cubm
Varinių eterneto kabelių technologija 100BASE-TX/10BASE-T
Vendor Homepage https://www.tp-link.com/uk/business-networking/poe-switch/tl-sg1210pp/
Vieneto aukštis 24 cm
Vieneto gylis 32 cm
Vieneto plotis 7 cm
Vienetų skaičius vienoje siuntimo dėžėje 1
Įvesties srovė 2.43 A
Įėjimo įtampa 53.5 V
Šilumos sklaida 482.17 BTU/h
"Store-and-forward" funkcija Taip
