Switch, TP-LINK, PoE ports 4, TL-SG108PE
Product reference:
2-6935364094744
Switch, TP-LINK, PoE ports 4, TL-SG108PE
Product reference:
2-6935364094744
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
PoE Switches for Your Ultra Convenience

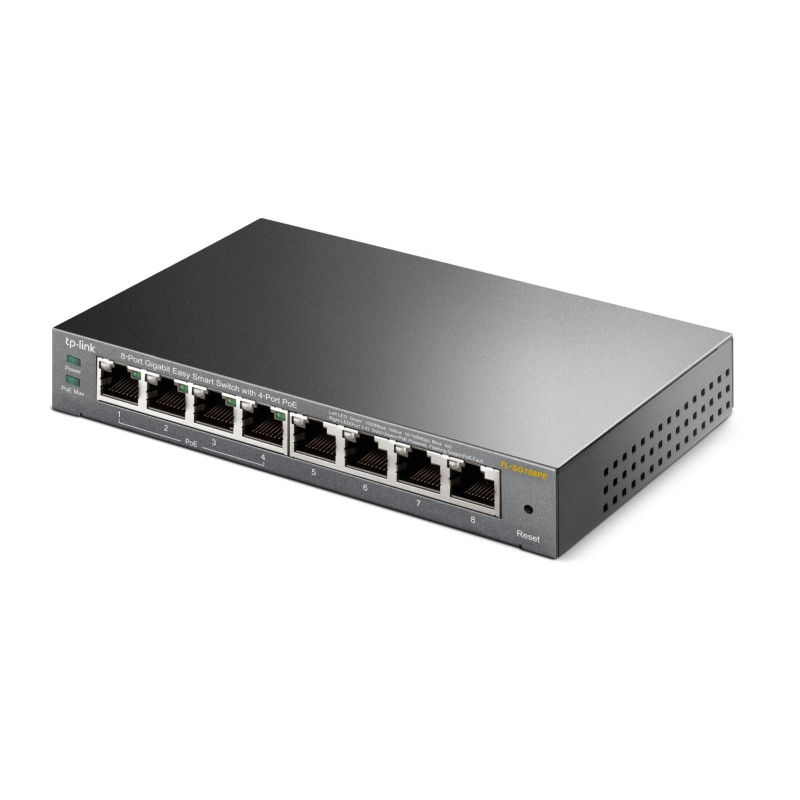

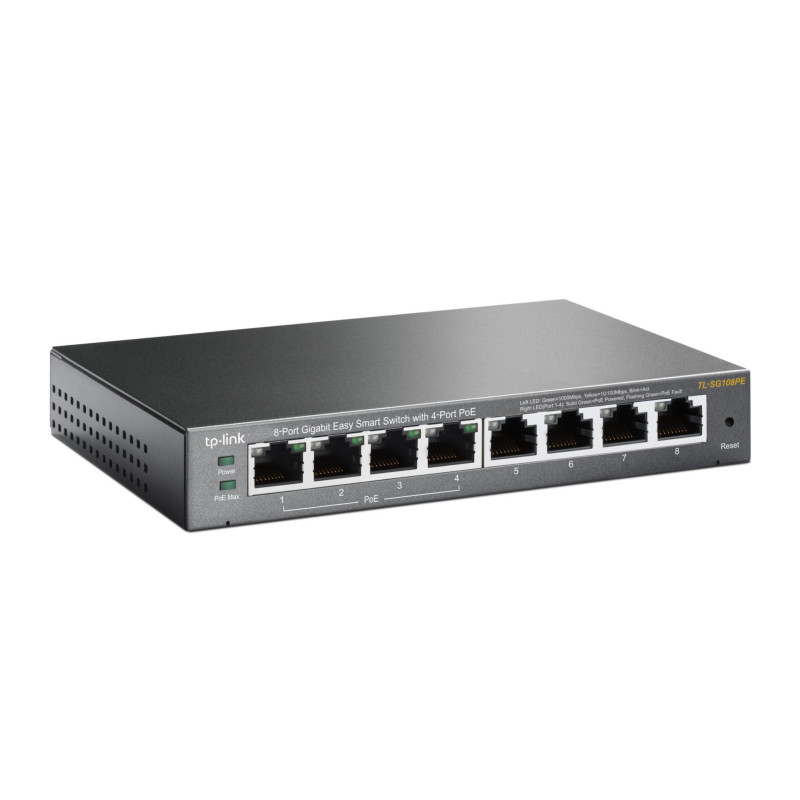

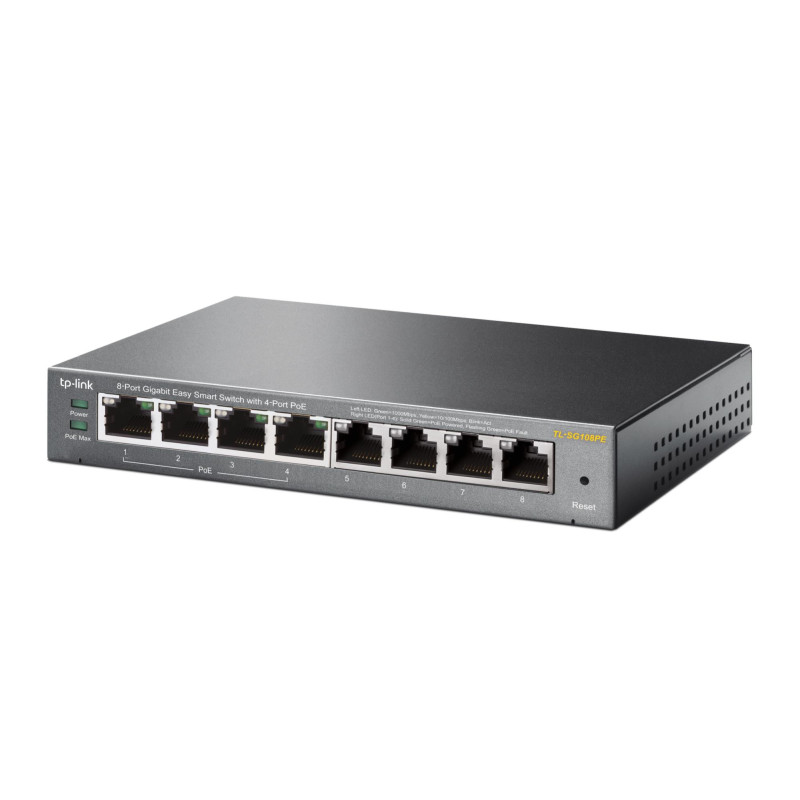

8-Port Gigabit Easy Smart Switch with 4-Port PoE
Surveillance
Work with IP Cameras
Conference Call
Work with IP Phones
Wi-Fi Coverage
Work with Omada EAPs
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 55W, the intelligent power management will cut the lower priority port power off to ensure the high priority port's power supply and protect the device from power overload operation.
Management Made Easy
TL-SG108PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
- 8 10/100/1000Mbps RJ45 ports
- Equipped with 4 802.3af PoE ports with up to 15.4W for each port, data and power can be transferred on one single cable
- Supports PoE power up to 55W for all PoE ports
- Provides network monitoring, traffic prioritization and VLAN features
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
| 10G support | No |
| AC input frequency | 50 Hz |
| AC input voltage | 220 V |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Yes |
| Cable types supported | Cat3/Cat4/Cat5/Cat5e/Cat6 |
| Cables included | AC |
| Certification | FCC, CE, RoHS |
| Depth | 101 mm |
| Forwarding rate | 11.9 Mpps |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Harmonized System (HS) code | 85176990 |
| Heat dissipation | 256.19 BTU/h |
| Height | 25 mm |
| IGMP snooping | Yes |
| Input current | 1.25 A |
| Input voltage | 48 V |
| Jumbo frames | 15000 |
| Jumbo frames support | Yes |
| LED indicators | Activity/Link/PoE/Power/Speed/Status |
| Link aggregation | Yes |
| Loop protection | Yes |
| MAC address table | 4000 entries |
| Model | TL-SG108PE |
| Model name | 8-Port Gigabit Easy Smart Switch with 4-Port PoE |
| Networking standards | IEEE 802.1p/IEEE 802.1Q/IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x |
| Number of VLANs | 32 |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Package depth | 196 mm |
| Package height | 121 mm |
| Package type | Box |
| Package weight | 860 g |
| Package width | 131 mm |
| Packet buffer memory | 1.5 MB |
| Packet forwarding rate (1 Gbps) | 11900000 pps |
| Port mirroring | Yes |
| Power consumption (max) | 65.2 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power source | DC |
| Power supply included | Yes |
| Product colour | Black |
| Product Net Weight | 0.4 kg |
| Quality of Service (QoS) support | Yes |
| Rate limiting | Yes |
| Shipping Box Depth | 41.5 cm |
| Shipping Box Height | 39 cm |
| Shipping Box Weight | 11.6999998092651 kg |
| Shipping Box Width | 28.5 cm |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Store-and-forward | Yes |
| Summary | TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE) |
| Switch layer | L2 |
| Switch type | Managed |
| Switching capacity | 16 Gbit/s |
| Total Power over Ethernet (PoE) budget | 64 W |
| Unit Box Height | 0.13 |
| Unit Box Length | 0.195 |
| Unit Box Width | 0.125 |
| Unit Calculated Volume | 0.003844 cubm |
| Unit Calculated Weight | 0.975 kg |
| Units per Shipping Box | 12 |
| User guide | Yes |
| Vendor Homepage | https://www.tp-link.com/uk/business-networking/easy-smart-switch/tl-sg108pe/ |
| Virtual LAN features | Port-based VLAN |
| VLAN support | Yes |
| Web-based management | Yes |
| Width | 158 mm |
