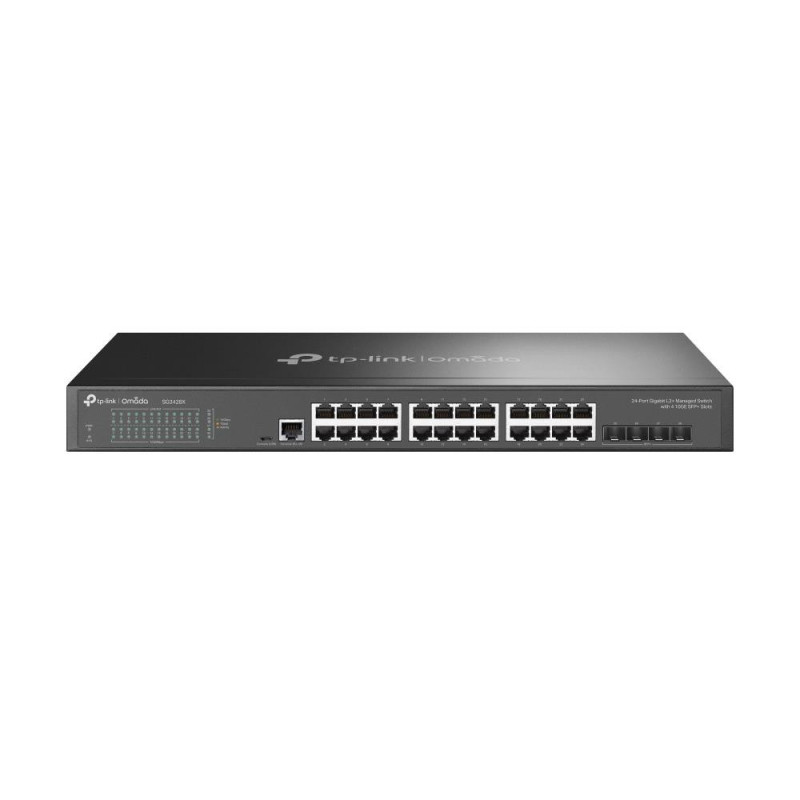

Switch, TP-LINK, Omada, TL-SG3428X, Type L2+, Rack, 4xSFP+, 1xConsole, TL-SG3428X
Product reference: 2-6935364010522

Switch, TP-LINK, Omada, TL-SG3428X, Type L2+, Rack, 4xSFP+, 1xConsole, TL-SG3428X

Product reference: 2-6935364010522
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
259,27
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

  • 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity
  • 24× Gigabit RJ45 ports
  • 128 Gbps switching capacity
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
  • ERPS supports rapid protection and recovery in a ring topology
  • Fanless design for silent operation
  • Durable metal casing and rackmountable design

10G support Yes
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Access Control List (ACL) Yes
Active link detection Yes
ARP inspection Yes
Authentication Guest VLAN,MAC-based authentication,Port-based authentication
Authentication type AAA,RADIUS,TACACS+
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
BPDU filtering/protection Yes
Broadcast storm control Yes
Cables included LAN (RJ-45)
Cloud-managed Yes
Configuring Location Settings (CLI) Yes
Console port RJ-45/Micro-USB
Depth 180 mm
DHCP features DHCP client/DHCP relay/DHCP server/DHCP snooping/DHCPv6 client/DHCPv6 snooping
Ethernet LAN data rates 10,100,1000 Mbit/s
Fanless Yes
Flow control support Yes
Form factor 1U
Forwarding rate 95.23 Mpps
GARP VLAN Registration Protocol (GVRP) Yes
Gigabit Ethernet (copper) ports quantity 24
Head-of-line (HOL) blocking Yes
Heat dissipation 80.52 BTU/h
Height 44 mm
IGMP snooping Yes
IP-MAC-Port binding Yes
IPv4 & IPv6 features IPv4/IPv6 access-control list (ACL)/IPv6 ping/IPv6 Telnet/IPv6 tracert
IPv4 routes 48
IPv6 routes 48
Jumbo frames 9000
Jumbo frames support Yes
LED indicators Yes
Link aggregation Yes
Loop protection Yes
MAC address table 16000 entries
Management protocols SNMPv1/v2c/v3, SNTP
MIB support Yes
Model name TL-SG3428X
Multicast Listener Discovery (MLD) snooping Y
Multicast support Yes
Networking standards IEEE 802.3ab/IEEE 802.3ae/IEEE 802.3i/IEEE 802.3u/IEEE 802.3z
Number of static routes 48
Number of VLANs 4000
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 45 °C
Packet buffer memory 12 MB
Policy-based routing Yes
Port mirroring Yes
Power connector AC-in jack
Power consumption (max) 23.6 W
Power over Ethernet (PoE) No
Power source AC
Power supply included Yes
Product colour Black
Product Net Weight 2.5 kg
Quality of Service (QoS) support Yes
Quick start guide Yes
Rack mounting Yes
Rate limiting Yes
Series Omada
SFP+ module slots quantity 4
Shipping Box Depth 55 cm
Shipping Box Height 26.5 cm
Shipping Box Weight 18.2 kg
Shipping Box Width 52 cm
Spanning tree protocol Yes
SSH/SSL support Yes
Static route Yes
Storage relative humidity (H-H) 5 - 90 %
Storage temperature (T-T) -40 - 70 °C
Store-and-forward Yes
Summary TP-Link Omada 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots. Switch type: Managed, Switch layer: L2+/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/micro-USB. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z. Power connector: AC-in jack. Rack mounting, Form factor: 1U
Switch layer L2+/L3
Switch type Managed
Switching capacity 128 Gbit/s
System event log Yes
Unit Box Height 0.25
Unit Box Length 0.53
Unit Box Width 0.08
Unit Calculated Volume 0.01263 cubm
Unit Calculated Weight 3.03 kg
Unit Depth 53 cm
Unit Height 25 cm
Unit Width 8 cm
Units per Shipping Box 6
Vendor Homepage https://www.tp-link.com/en/business-networking/omada-switch-l3-l2-managed/sg3428x/#overview
Virtual LAN features Private VLAN/Protocol-based VLAN/Tagged VLAN/Voice VLAN
VLAN support Yes
Web-based management Yes
Width 440 mm
