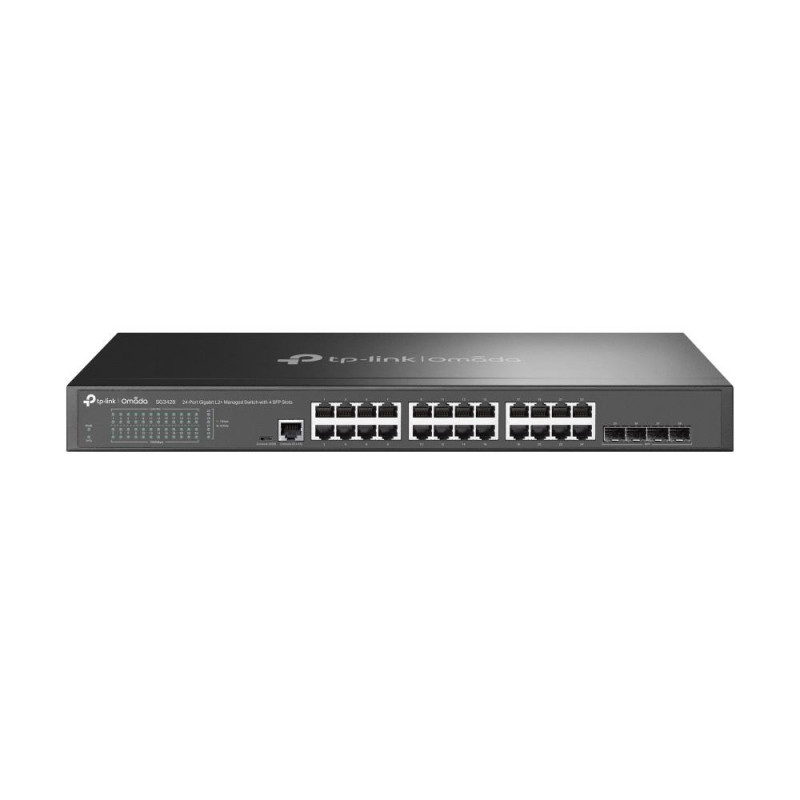

Switch, TP-LINK, Omada, TL-SG3428, Type L2, Rack, 4xSFP, 1xConsole, 1, TL-SG3428
Product reference:
2-6935364010713
Switch, TP-LINK, Omada, TL-SG3428, Type L2, Rack, 4xSFP, 1xConsole, 1, TL-SG3428
Product reference:
2-6935364010713
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.
- 24× Gigabit RJ45 ports and 4× Gigabit SFP slots
- 56 Gbps switching capacity
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Fanless design for silent operation
- Durable metal casing and rack-mountable design
| 10G support | No |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Access Control List (ACL) | Yes |
| ARP inspection | Yes |
| Authentication | MAC-based authentication,Port-based authentication |
| Authentication type | AAA,RADIUS,TACACS+ |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| BPDU filtering/protection | Yes |
| Broadcast storm control | Yes |
| Cables included | LAN (RJ-45) |
| Cloud-managed | Yes |
| Configuring Location Settings (CLI) | Yes |
| Console port | RJ-45/Micro-USB |
| Depth | 180 mm |
| DHCP features | DHCP client/DHCP relay/DHCP server/DHCP snooping/DHCPv6 client/DHCPv6 snooping |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Form factor | 1U |
| Forwarding rate | 41.66 Mpps |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Head-of-line (HOL) blocking | Yes |
| Heat dissipation | 70.3 BTU/h |
| Height | 44 mm |
| IGMP snooping | Yes |
| IP routing | Yes |
| IP-MAC-Port binding | Yes |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL)/IPv6 ping/IPv6 Telnet/IPv6 tracert |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| LED indicators | Yes |
| Link aggregation | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| MAC address table | 16000 entries |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| MIB support | Yes |
| Model name | Omada 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots |
| Multicast Listener Discovery (MLD) snooping | Y |
| Multicast support | Yes |
| Networking standards | IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3z |
| Number of static routes | 48 |
| Number of VLANs | 4000 |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 45 °C |
| Packet buffer memory | 12 MB |
| Policy-based routing | Yes |
| Port mirroring | Yes |
| Power consumption (max) | 20.6 W |
| Power over Ethernet (PoE) | No |
| Power source | AC |
| Power supply included | No |
| Product colour | Black |
| Product Net Weight | 2.5 kg |
| Quality of Service (QoS) support | Yes |
| Quick start guide | Yes |
| Rack mounting | Yes |
| Rate limiting | Yes |
| Series | Omada |
| SFP module slots quantity | 4 |
| Shipping Box Depth | 53 cm |
| Shipping Box Height | 8 cm |
| Shipping Box Weight | 2.85 kg |
| Shipping Box Width | 25.5 cm |
| Spanning tree protocol | Yes |
| SSH/SSL support | Yes |
| Static port security | Yes |
| Static route | Yes |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Store-and-forward | Yes |
| Summary | TP-Link Omada 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/Micro-USB. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z. Rack mounting, Form factor: 1U |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Switching capacity | 56 Gbit/s |
| System event log | Yes |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.53 |
| Unit Box Width | 0.255 |
| Unit Calculated Volume | 0.01081 cubm |
| Unit Calculated Weight | 2.85 kg |
| Unit Depth | 53 cm |
| Unit Height | 8 cm |
| Unit Width | 25.5 cm |
| Units per Shipping Box | 1 |
| Vendor Homepage | https://www.tp-link.com/en/business-networking/omada-switch-l3-l2-managed/sg3428/#overview |
| Virtual LAN features | Private VLAN/Protocol-based VLAN/Tagged VLAN/Voice VLAN |
| VLAN support | Yes |
| Web-based management | Yes |
| Width | 440 mm |
