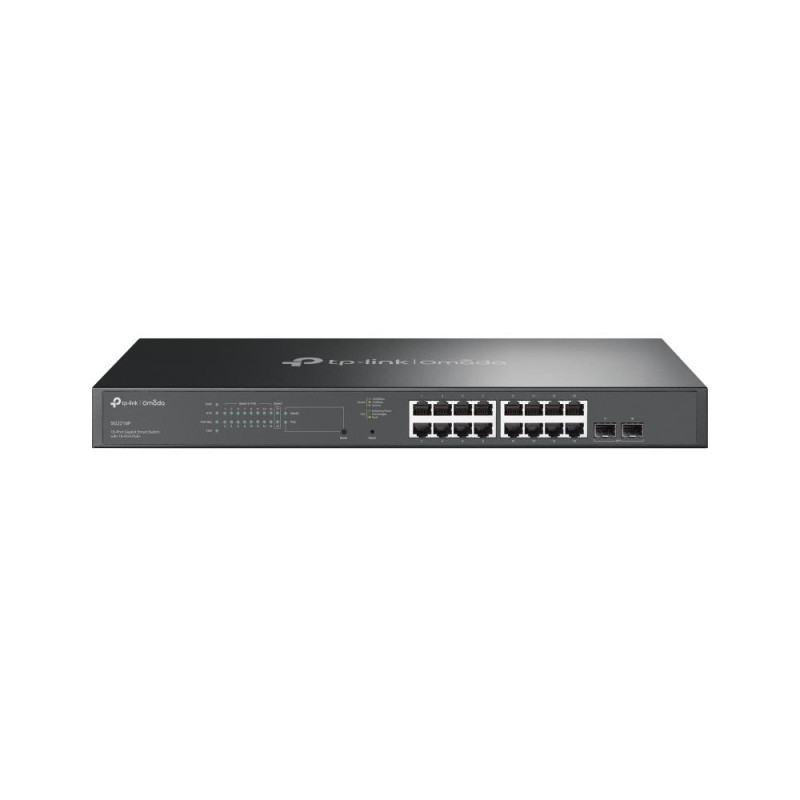

Switch, TP-LINK, Omada, SG2218P, Desktop / pedestal, 16x10Base-T / 100Base-TX / 1000Base-T, 2xSFP, PoE+ ports 16, 150 Wa
Product reference:
2-4897098689509
Switch, TP-LINK, Omada, SG2218P, Desktop / pedestal, 16x10Base-T / 100Base-TX / 1000Base-T, 2xSFP, PoE+ ports 16, 150 Wa
Product reference:
2-4897098689509
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
TP-Link's brand new Omada smart switches provide huge upgrade comparing with previous versions. The
switches can be managed by Omada SDN Controller, which provides professional and reliable one-step
solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing
provide cost-effective networking solutions for small and medium-sized businesses without sacrificing
enhanced usability and strong performance.
- 16× Gigabit 802.3af/at PoE+ ports and 2× Gigabit SFP Slots
- 150 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- Durable metal casing and rackmountable design
| 10G support | No |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Access Control List (ACL) | Yes |
| ARP inspection | Yes |
| Authentication | MAC-based authentication,Port-based authentication |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| BPDU filtering/protection | Yes |
| Broadcast storm control | Yes |
| Cables included | LAN (RJ-45) |
| Certification | CE, FCC, RoHS |
| Cloud-managed | Yes |
| Configuring Location Settings (CLI) | Yes |
| Depth | 180 mm |
| DHCP features | DHCP client/DHCP relay/DHCP snooping |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Form factor | 1U |
| Forwarding rate | 26.78 Mpps |
| Heat dissipation | 619.06 BTU/h |
| Height | 44 mm |
| IP routing | Yes |
| Jumbo frames | 9 |
| Jumbo frames support | Yes |
| LED indicators | Yes |
| Link aggregation | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| MAC address table | 8000 entries |
| MIB support | MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIBs, RMON MIB(RFC1757, rmon 1,2,3,9) |
| Model name | SG2218P |
| Multicast features | Multicast forwarding |
| Multicast support | Yes |
| Networking standards | IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Package type | Box |
| Packet buffer memory | 4.1 MB |
| Policy-based routing | Yes |
| Power consumption (max) | 181.4 W |
| Power over Ethernet (PoE) | Yes |
| Power source | DC/PoE |
| Power supply included | Yes |
| Product colour | Black |
| Product Net Weight | 2.1 kg |
| Quality of Service (QoS) support | Yes |
| Rack mounting | Yes |
| Rate limiting | Yes |
| Series | Omada |
| SFP module slots quantity | 2 |
| Shipping Box Depth | 55 cm |
| Shipping Box Height | 27 cm |
| Shipping Box Weight | 20.5 kg |
| Shipping Box Width | 52 cm |
| Spanning tree protocol | Yes |
| SSH/SSL support | Yes |
| Static port security | Yes |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Summary | TP-Link Omada 18-Port Gigabit Smart Switch with 16-Port PoE+. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 26.78 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U |
| Switch layer | L2/L2+ |
| Switch type | Managed |
| Switching capacity | 26.78 Gbit/s |
| System event log | Yes |
| Total Power over Ethernet (PoE) budget | 150 W |
| Unit Box Height | 0.27 |
| Unit Box Length | 0.55 |
| Unit Box Width | 0.0867 |
| Unit Calculated Volume | 0.01287 cubm |
| Unit Calculated Weight | 3.42 kg |
| Unit Depth | 55 cm |
| Unit Height | 27 cm |
| Unit Width | 8.67 cm |
| Units per Shipping Box | 6 |
| User guide | Yes |
| Vendor Homepage | https://www.tp-link.com/en/business-networking/omada-switch-poe/sg2218p/ |
| VLAN support | Yes |
| Web-based management | Yes |
| Width | 440 mm |
