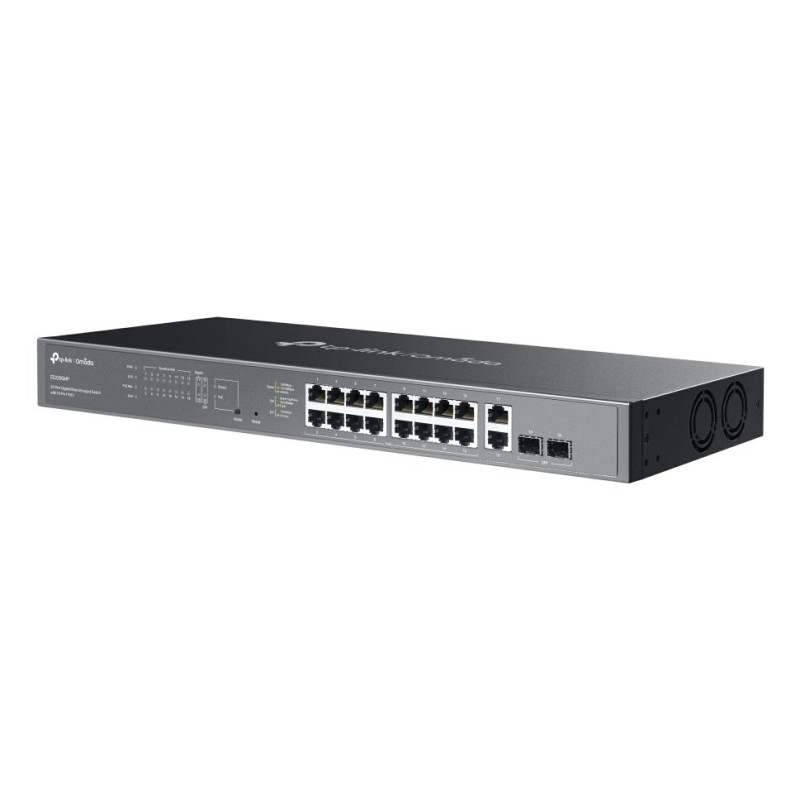

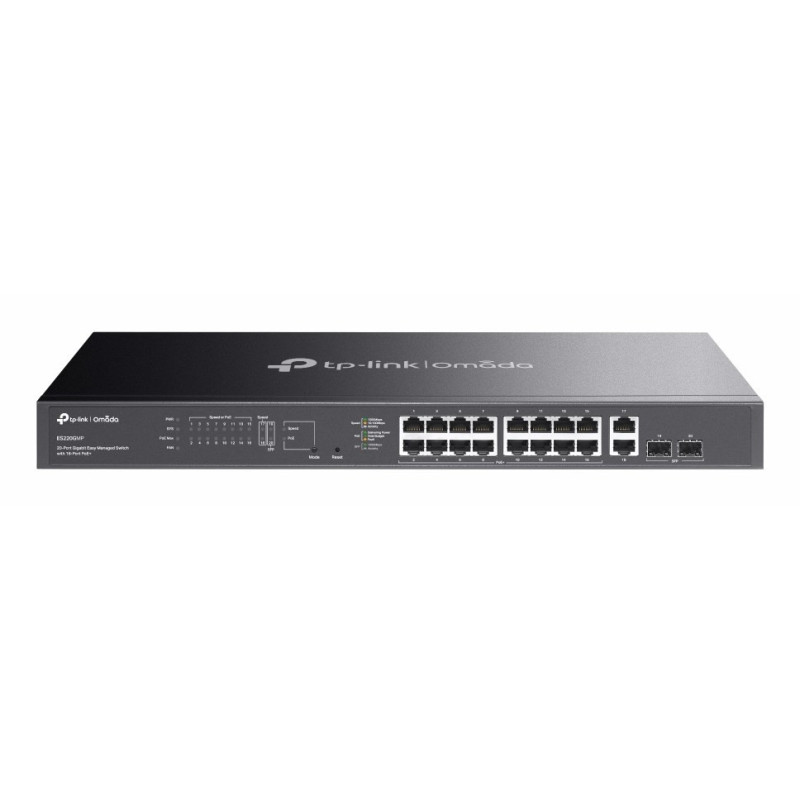

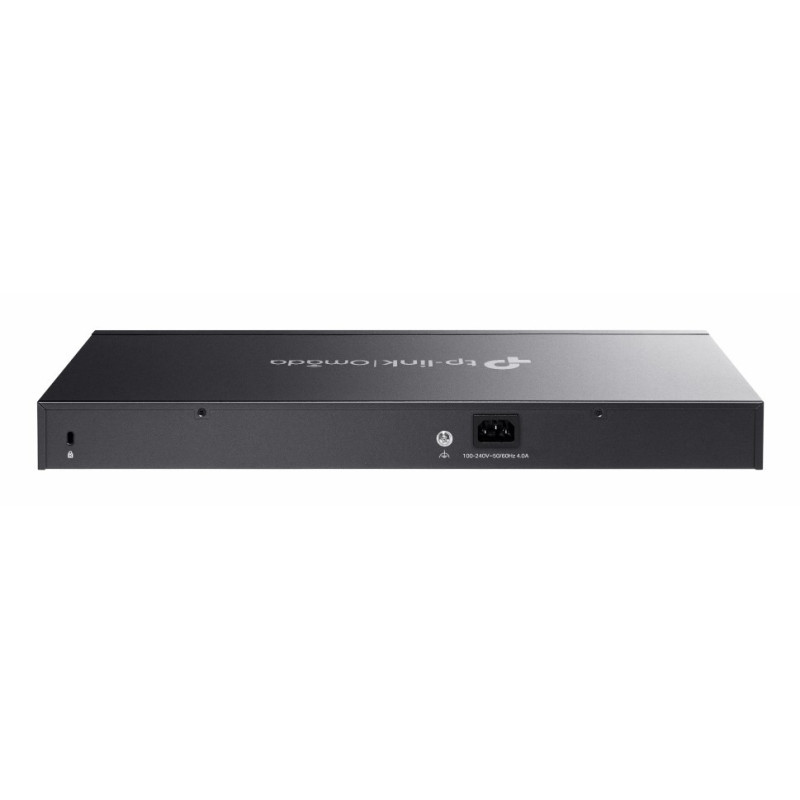

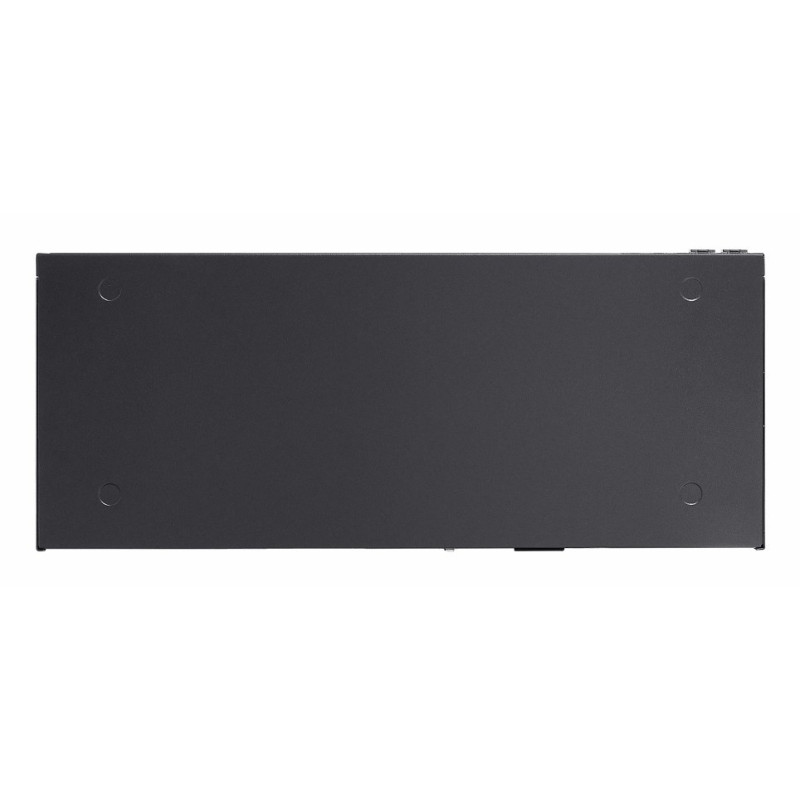

Switch - TP-Link Omada ES220GMP Managed L2 Gigabit 18 PoE Ports 250W Black
Product reference:
14-8885020625943
Managed L2 Gigabit Ethernet switch with 18 Gigabit Ethernet ports and 2 SFP module slots. Supports Power over Ethernet (PoE+) with a total power of 250 W, also offers web-based management and VLAN support.
Switch - TP-Link Omada ES220GMP Managed L2 Gigabit 18 PoE Ports 250W Black
Product reference:
14-8885020625943
Managed L2 Gigabit Ethernet switch with 18 Gigabit Ethernet ports and 2 SFP module slots. Supports Power over Ethernet (PoE+) with a total power of 250 W, also offers web-based management and VLAN support.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
TP-Link Omada ES220GMP Black
Managed L2 Gigabit Ethernet switch with 18 Gigabit Ethernet ports and 2 SFP module slots. Supports Power over Ethernet (PoE+) with a total power of 250 W and has features such as web-based management system and VLAN support.
- Managed switch with 18 Gigabit Ethernet ports and 2 SFP slots for versatile connectivity.
- Supports Power over Ethernet (PoE+) with a total power of 250 W, delivering power directly through the network cable.
- Online management system and cloud management capabilities for easy configuration and monitoring.
- Robust security features, including IGMP snooping and loopback protection, ensure network integrity.
Design | |
|---|---|
| LED indicators | Yes |
| Product color | Black |
| Number of fans | 2 pcs. |
| Rack mounting | Yes |
| Possibility to bet | No |
Power | |
| Maximum energy consumption | 289.7 W |
| Energy source | AC |
| AC input frequency | 50/60Hz |
| AC input voltage | 100 - 240V |
| Overload protection | Yes |
| Overload protection voltage | 6 kV |
| Power supply included | Yes |
Security | |
| DHCP functions | DHCP client |
| Task scheduling algorithms | Weighted Round Robin (WRR) |
Operating conditions | |
| Storage relative humidity (HH) | 5 - 90% |
| Operating relative humidity (HH) | 10 - 90% |
| Storage temperature (TT) | -40 - 70 °C |
| Operating temperature (OT) | -5 - 50 °C |
| Heat dissipation | 984.88 BTU/h |
Weight and dimensions | |
| Width | 440mm |
| Depth | 180mm |
| Height | 44 mm |
Network | |
| Zero-Tap Configuration (ZTP) | Yes |
| Network standards | IEEE 802.3i, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3u, IEEE 802.3z |
| Connection aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| Number of VLANs | 32 |
| Port mirroring | Yes |
| Auto-negotiation | Yes |
| Data flow control support | Yes |
| VLAN support | Yes |
| Quick exit | Yes |
Operation | |
| Software update | Yes |
| Noise level | 41.5 dB |
| Mean Time Between Failures (MTBF) | 310550.7 hours |
| Flash memory | 64MB |
Ports and interfaces | |
| Power connector | AC-in socket |
| Number of Gigabit Ethernet (copper) ports | 18 |
| Number of SFP module slots | 2 |
| Number of main RJ-45 Ethernet ports | 18 |
| Type of main RJ-45 Ethernet ports | Gigabit Ethernet (10/100/1000) |
Data transfer | |
| Packet buffer memory | 4MB |
| Transmission speed | 29.76 Mpps |
| Jumbo frame support | Yes |
| Jumbo frames | 15000 |
| MAC address table | 8000 entries |
| Switching power | 40 Gbps |
| Store-and-forward | Yes |
Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Number of Power over Ethernet plus (PoE+) ports | 16 |
| Supported Power over Ethernet (PoE) type | PoE+ |
| Total Power over Ethernet (PoE) power | 250W |
| Power over Ethernet (PoE) power per port | 30W |
| Height | 100mm |
| Length | 300mm |
| Weight | 2600g |
| Width | 500mm |
