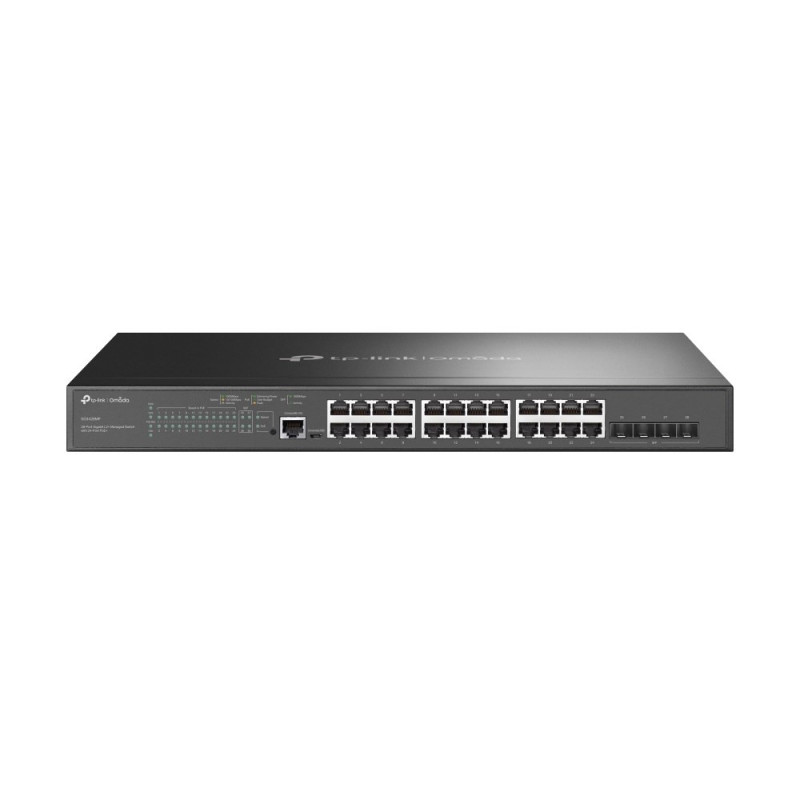

Switch - TP-Link Omada 28-Port Gigabit L2+ Managed PoE+ Black
Product reference: 14-6935364010737

28-port L2+ managed switch with PoE+ support. Offers advanced network management features for efficient operation.

  • −1%
Switch - TP-Link Omada 28-Port Gigabit L2+ Managed PoE+ Black

Switch - TP-Link Omada 28-Port Gigabit L2+ Managed PoE+ Black

Product reference: 14-6935364010737

28-port L2+ managed switch with PoE+ support. Offers advanced network management features for efficient operation.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
468,93 €
473,67 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
8 - 9
business days

Your message has been successfully sent!
Fill in the required fields*

TP-Link Omada

28-port L2+ managed switch with PoE+ support. Offers advanced network management features for efficient operation.


  • 28 Gigabit Ethernet ports with PoE+ support
  • Advanced security features including IP-MAC-Port connectivity and ACL
  • Cloud-managed, easy to configure and monitor
  • High switching capacity - 56 Gbit/s
  • Supports up to 384W total PoE budget

Design

Form 1U
Rack mounting Yes
Product color Black
LED indicators Yes
Number of fans 2 fans

Power supply

Power source AC
Power supply included Yes
AC input frequency 50/60Hz
Power consumption (max) 480.1 W
AC input voltage 100 - 240V

Security

IP-MAC-Port connection Yes
Authentication MAC based, port based
IGMP snooping Yes
Access Control List (ACL) Yes
SSH/SSL support Yes
Cycle protection Yes
BPDU filtering/protection Yes
DHCP functions DHCP monitoring, DHCP client, DHCP relay, DHCP server, DHCPv6 monitoring, DHCPv6 client
Static port protection Yes
Security algorithms SSL/TLS, SSH
MAC address filtering Yes

Operating conditions

Heat release 1637.14 BTU/h
Operating temperature (OT) 0 - 45 °C
Operating relative humidity (HH) 10 - 90%
Storage temperature (TT) -40 - 70 °C
Storage relative humidity (HH) 5 - 90%

Control functions

Configuring Local Settings (CLI) Yes
Switch layer L2+
ARP inspection Yes
Switch type Managed
Managed in the cloud Yes
System event log Yes
Quality of Service (QoS) support Yes
Internet management Yes

Weight and dimensions

Height 44 mm
Width 440mm
Depth 330 mm

Network

Virtual LAN features MAC address-based VLAN, port-based VLAN, tagged VLAN, private VLAN, voice VLAN
Front Line (HOL) Blocking Yes
Number of VLANs 4000
Data flow control support Yes
Port mirroring Yes
Active connection detection Yes
IP routing Yes
10G support No
Setting quick limits Yes
Connection aggregation Yes
Broadcast storm control Yes
Spanning tree protocol Yes
Network standards IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3z, IEEE 802.3at, IEEE 802.3u
Ethernet LAN data transfer rates 10, 100, 1000 Mbps
VLAN support Yes
Copper Ethernet cable technologies 10BASE-T, 1000BASE-T

Packaging details

User manual Yes
Quick Start Guide Yes

Protocols

GARP VLAN Registration Protocol (GVRP) Yes
Management protocols SNMPv1/v2c/v3, LLDP/LLDP-MED

Ports and interfaces

Power connector AC-in connector
Console port RJ-45/Micro-USB
Number of Gigabit Ethernet (copper) ports 24
Main types of switching RJ-45 Ethernet ports Gigabit Ethernet (10/100/1000)
Number of main switching RJ-45 Ethernet ports 24
Number of SFP module slots 4

Data transfer

Transmission speed 41.66 Mpps
MAC address table 16,000 entries
Packet buffer memory 12MB
Store-and-forward Yes
Jumbo frames 9000
Switching capacity 56 Gbps
Jumbo frame support Yes

Power over Ethernet (PoE)

Number of Power over Ethernet Plus (PoE+) ports 24
Total Power over Ethernet (PoE) budget 384 W
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) power per port 30W

Multicast functions

Multicast support Yes

Height440mm
Length110 mm
Weight6150 grams
Width530mm
