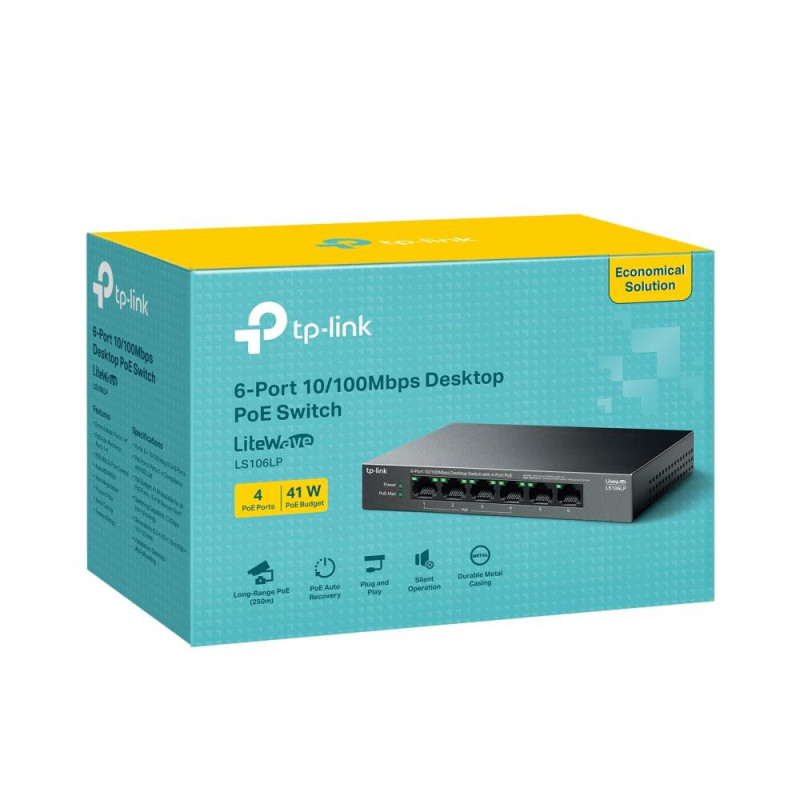

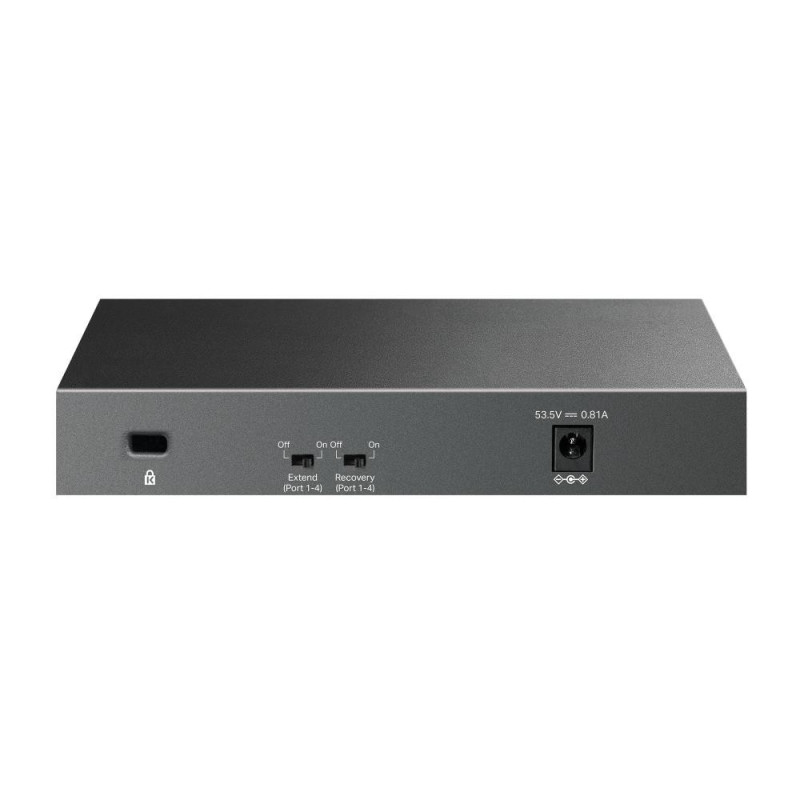

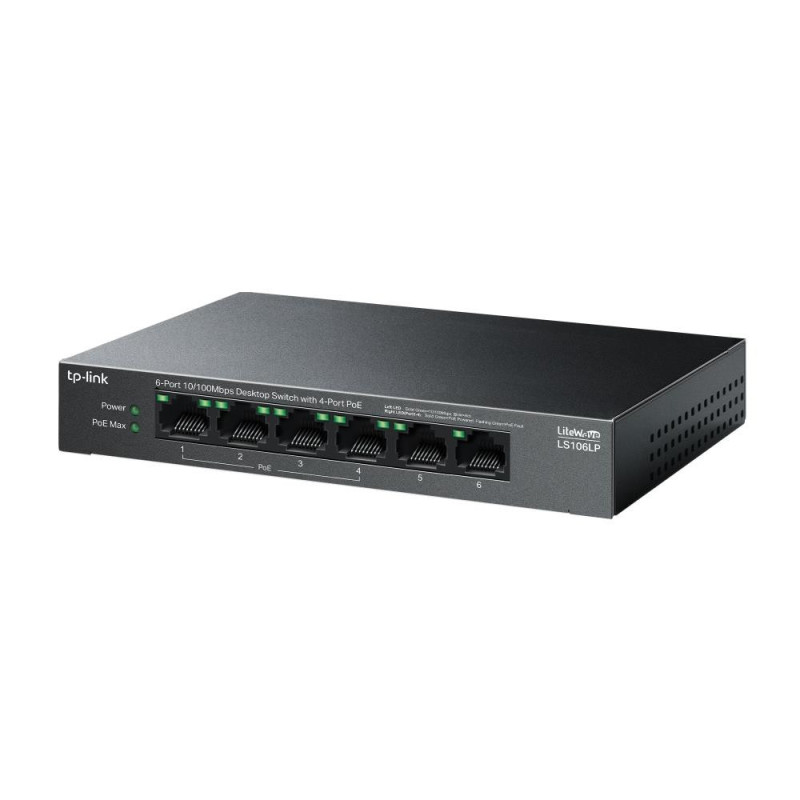

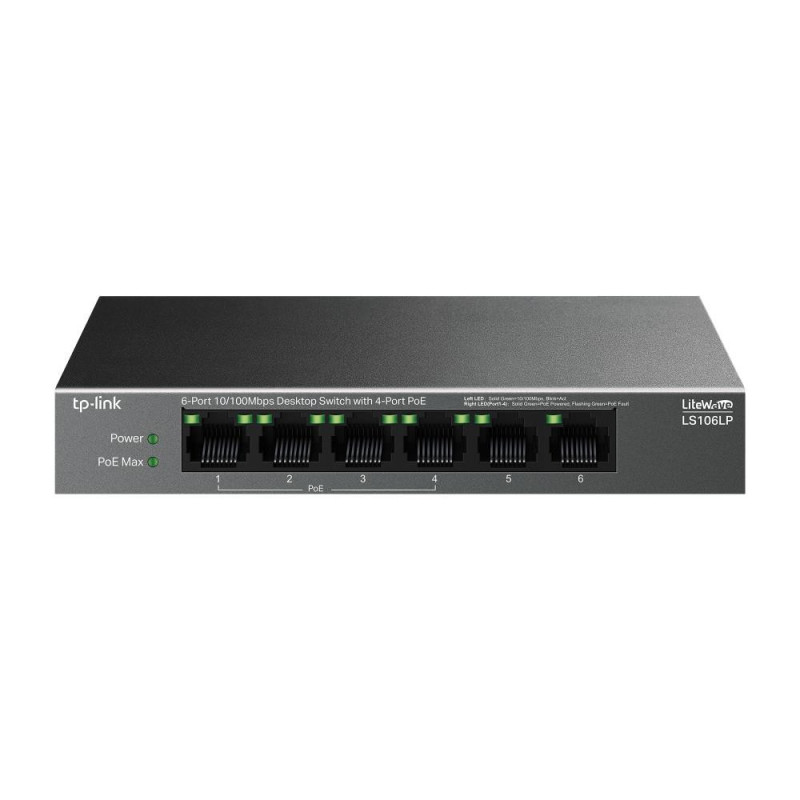

Switch, TP-LINK, LS106LP, PoE ports 4, LS106LP
Product reference:
2-4895252504606
Switch, TP-LINK, LS106LP, PoE ports 4, LS106LP
Product reference:
2-4895252504606
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
5 - 7
business days
Not available
- 41 W PoE Budget: Four 10/100 Mbps 802.3af-compliant PoE ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 15.4 W PoE output is supported by each PoE port.*
- Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
- Plug and Play: Simply plug and play for instant connectivity with no configuration required.
- Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
- Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
| Summary | TP-Link LiteWave LS106LP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 6. MAC address table: 2000 entries, Switching capacity: 1.2 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE). Wall mountable |
| Vendor Homepage | https://www.tp-link.com/za/business-networking/soho-switch-poe/ls106lp/#overview |
| Unit Box Height | 0.135 |
| Unit Box Length | 0.095 |
| Unit Box Width | 0.19 |
| Quality of Service (QoS) support | Yes |
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Cable types supported | Cat3/Cat4/Cat5/Cat5e |
| Copper ethernet cabling technology | 100BASE-TX/10BASE-T |
| Flow control support | Yes |
| Networking standards | IEEE 802.3af/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x |
| Forwarding rate | 0.8928 Mpps |
| Jumbo frames support | Yes |
| MAC address table | 2000 entries |
| Store-and-forward | Yes |
| Switching capacity | 1.2 Gbit/s |
| LED indicators | Yes |
| Product colour | Black |
| Wall mountable | Yes |
| Fanless | Yes |
| AC input frequency | 50 Hz |
| AC input voltage | 220 V |
| DC input voltage | 53.5 V |
| Input current | 0.81 A |
| Power consumption (max) | 47.76 W |
| Power source | DC/PoE |
| Power supply included | Yes |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Heat dissipation | 162.38 BTU/h |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Depth | 101 mm |
| Height | 25 mm |
| Width | 158 mm |
| User guide | Yes |
| Package type | Box |
| Certification | CE, FCC, RoHS |
| Model name | LS106LP |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.002437 cubm |
| Unit Calculated Weight | 0.6 kg |
