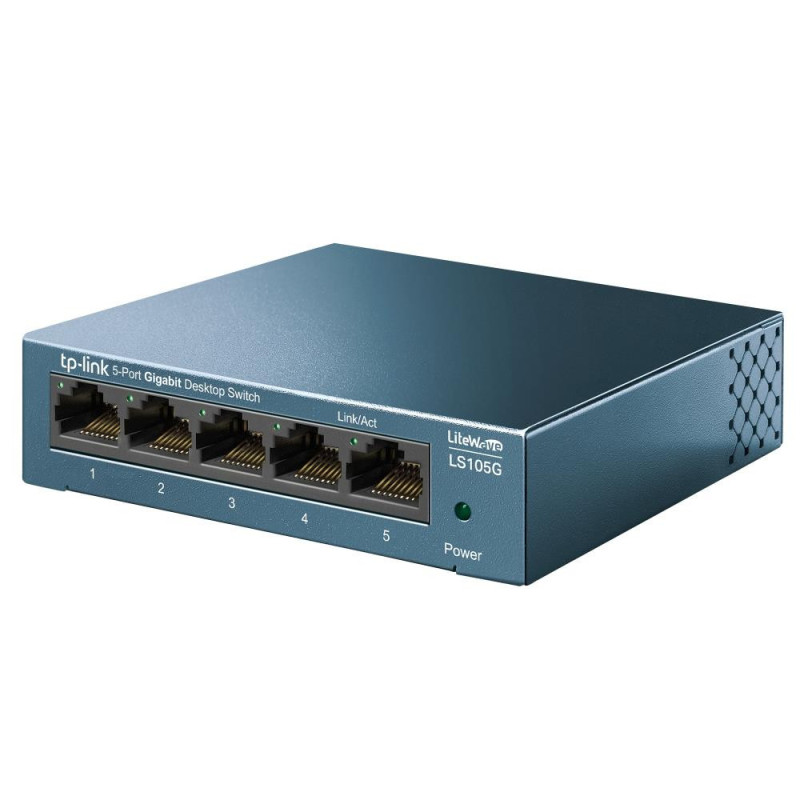

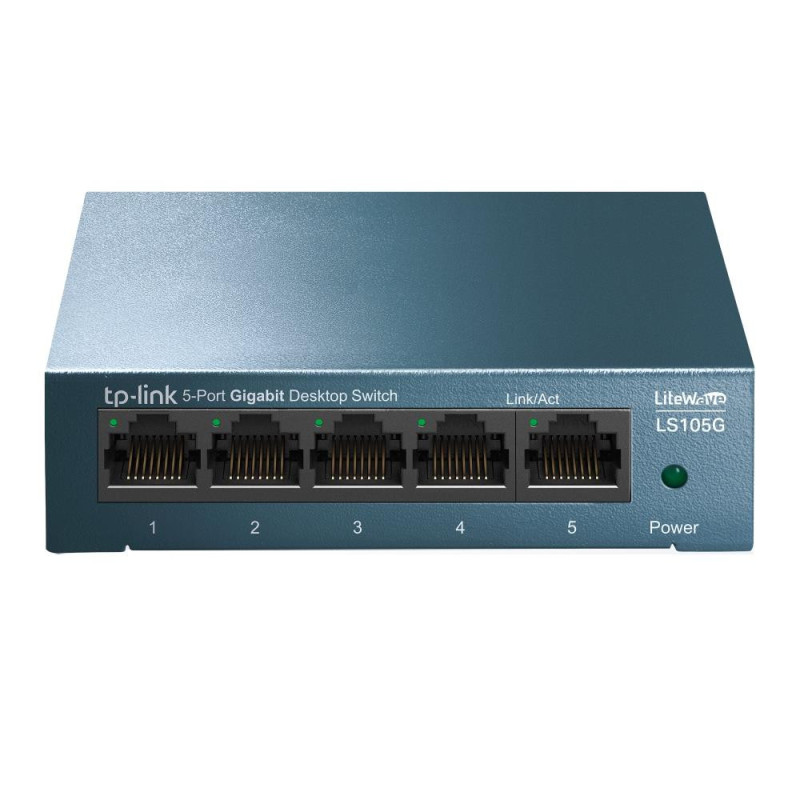

Switch, TP-LINK, LS105G, 5x10Base-T / 100Base-TX / 1000Base-T, LS105G
Product reference: 2-6935364085445

Switch, TP-LINK, LS105G, 5x10Base-T / 100Base-TX / 1000Base-T, LS105G

Product reference: 2-6935364085445
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
16,94 €
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

Increase Your Network Speed and Save Energy

Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there's no need to worry about the type of cable to use.

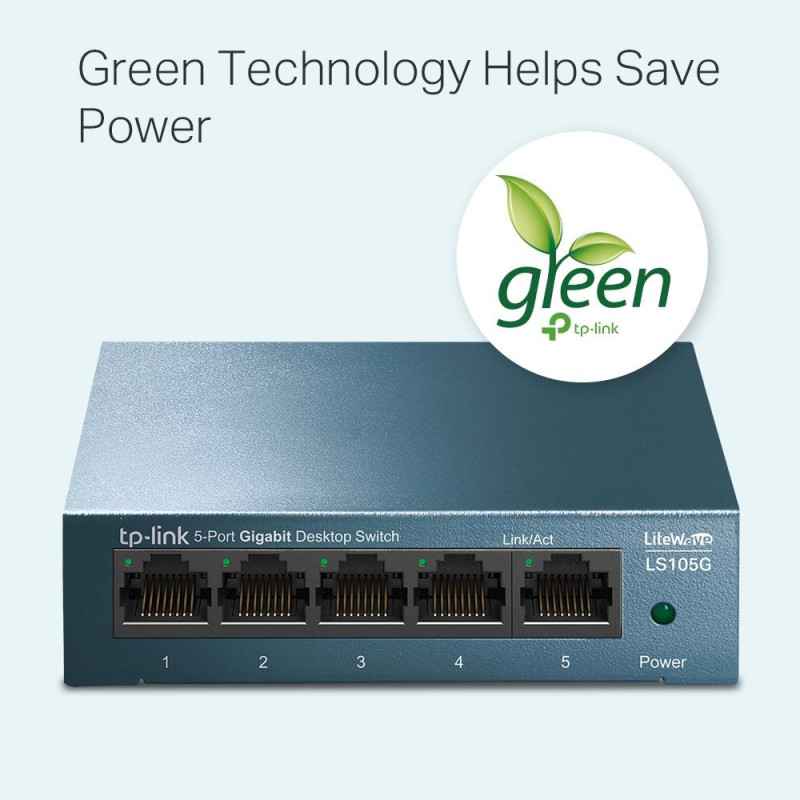

Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it's a win-win!

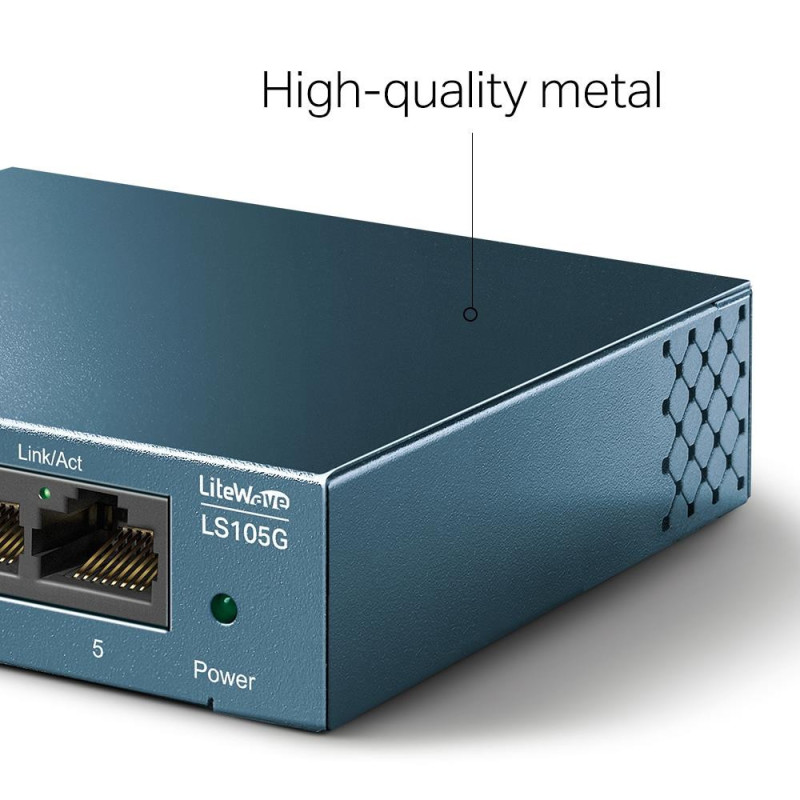

Durable Metal Casing
The interior components of LS105G are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, LS105G delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches.

Use Where You Need, However You Need

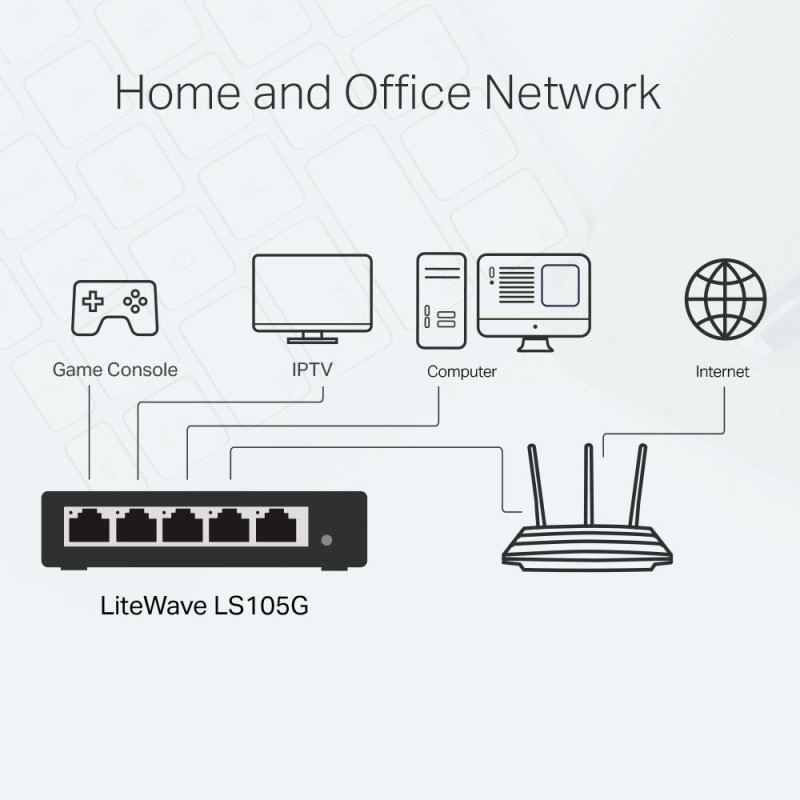

The LS105G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.

  • 10/100/1000Mbos Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
  • Green Ethernet technology saves power
  • IEEE 802.3X flow control provides reliable data transfer
  • Steel housing, desktop or wall-mounting design
  • Support 802.1p/DSCP QoS function
  • Plug and play, no configuration needed

10G support No
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Certification CE, FCC, RoHS
Depth 98 mm
Forwarding rate 7.4 Mpps
Gigabit Ethernet (copper) ports quantity 5
Harmonized System (HS) code 85176990
Heat dissipation 9.466 BTU/h
Height 25 mm
Housing material Metal
Input current 0.6 A
Input voltage 5 V
Jumbo frames 16000
Jumbo frames support Yes
LED indicators Activity/LAN/Power
MAC address table 2000 entries
Model LS105G
Model name 5-Port 10/100/1000Mbps Desktop Network Switch
Networking standards IEEE 802.1p/IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 40 °C
Package depth 128 mm
Package height 92 mm
Package weight 290 g
Package width 125 mm
Packet buffer memory 1 MB
Power connector DC-in jack
Power consumption (max) 2.776 W
Power over Ethernet (PoE) No
Power source DC
Power supply included Yes
Product colour Blue
Product Net Weight 0.1 kg
Quality of Service (QoS) support Yes
Quick start guide Yes
Rack mounting No
Shipping Box Depth 53.5999984741211 cm
Shipping Box Height 30 cm
Shipping Box Weight 13.3999996185303 kg
Shipping Box Width 40 cm
Storage relative humidity (H-H) 5 - 90 %
Storage temperature (T-T) -40 - 70 °C
Summary TP-Link 5-Port 10/100/1000Mbps Desktop Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Wall mountable
Switch type Unmanaged
Switching capacity 10 Gbit/s
Unit Box Height 0.093
Unit Box Length 0.13
Unit Box Width 0.125
Unit Calculated Volume 0.001787 cubm
Unit Calculated Weight 0.372 kg
Unit Depth 13 cm
Unit Height 9.3 cm
Unit Width 12.5 cm
Units per Shipping Box 36
Vendor Homepage https://www.tp-link.com/uk/business-networking/unmanaged-switch/ls105g/#overview
Wall mountable Yes
Width 99.8 mm
