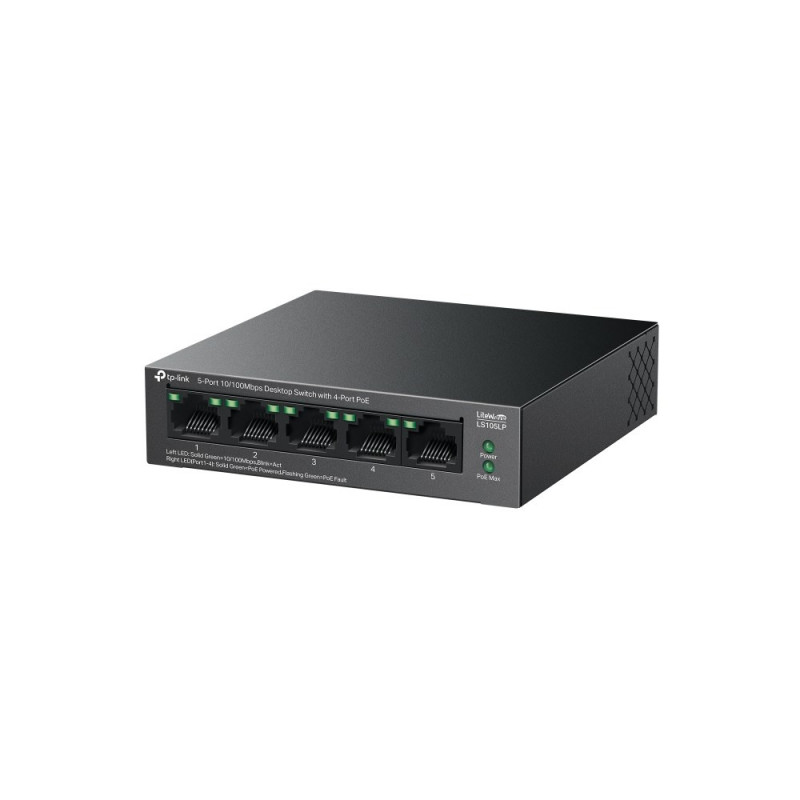

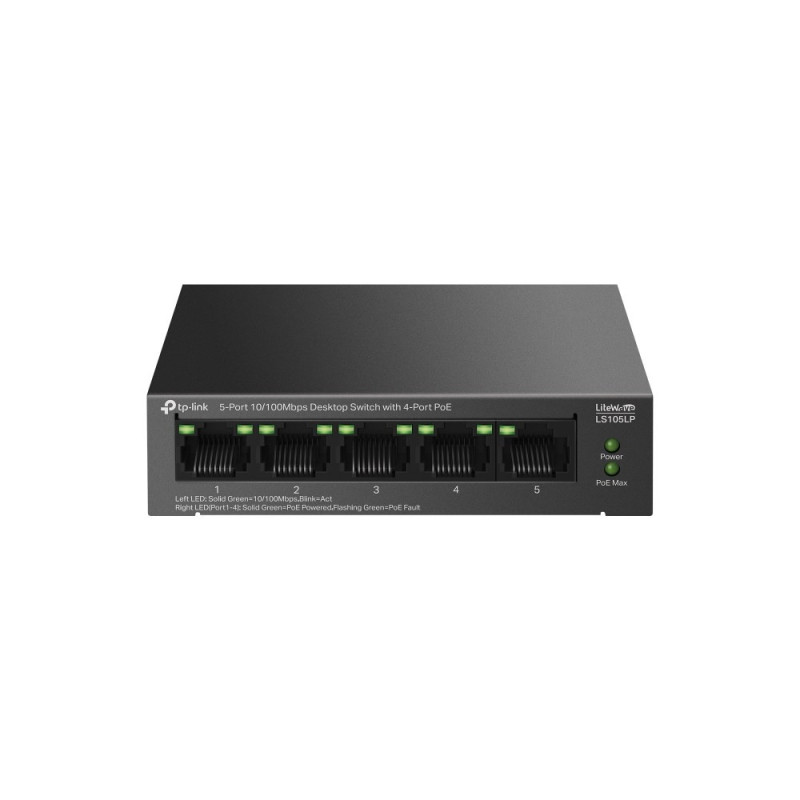

Switch - TP-Link LiteWave LS105P 5-Port PoE Black
Product reference:
14-4895252504583
TP-Link LiteWave LS105P has five Fast Ethernet ports, four of which support Power over Ethernet (PoE) with 15.4 W of power per port. The device operates in a temperature range of 0-40 °C and features a fanless design for quiet operation.
Switch - TP-Link LiteWave LS105P 5-Port PoE Black
Product reference:
14-4895252504583
TP-Link LiteWave LS105P has five Fast Ethernet ports, four of which support Power over Ethernet (PoE) with 15.4 W of power per port. The device operates in a temperature range of 0-40 °C and features a fanless design for quiet operation.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
TP-Link LiteWave LS105P 5-Port PoE Fast Ethernet Switch Black
TP-Link LiteWave LS105P has five Fast Ethernet ports, four of which support PoE (Power over Ethernet) with 15.4 W of power per port. It operates in a temperature range of 0 to 40 °C and has a fanless design for quiet operation.
- Unmanaged Fast Ethernet Switch with 5 RJ-45 ports (10/100 Mbps)
- PoE support with 4 PoE ports, delivering 15.4 W per port
- Operating temperature range: 0 - 40 °C and storage temperature range: -40 - 70 °C
- Quality of Service (QoS) support for efficient data transmission
- Compact design: Height 25 mm, Depth 98 mm, Width 100 mm, wall mountable
Design | |
|---|---|
| Product color | Black |
| LED indicators | Yes |
| Wall mounted | Yes |
| Number of fans | 0 pcs. |
Power | |
| AC voltage | 220V |
| AC frequency | 50Hz |
| Input current | 0.81 A |
| Maximum power consumption | 46.45 W |
| Power source | DC/PoE |

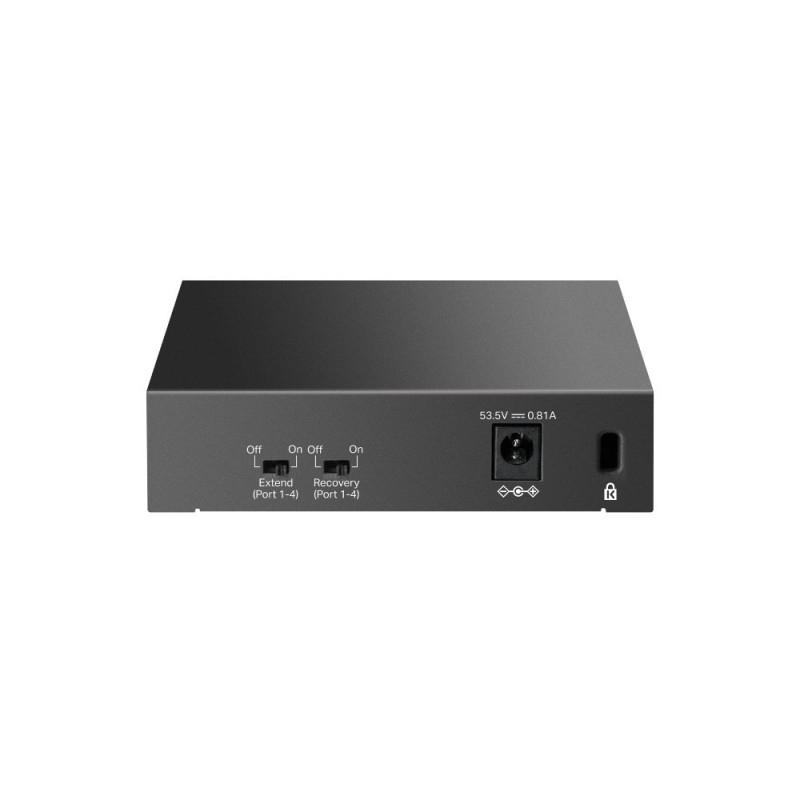

| DC voltage | 53.5V |
| Power supply included | Yes |
Operating conditions | |
| Storage temperature (TT) | -40 - 70 °C |
| Operating temperature (OT) | 0 - 40 °C |
| Operating relative humidity (HH) | 10 - 90% |
| Storage relative humidity (HH) | 5 - 90% |
| Heat release | 157.93 BTU/h |
Control functions | |
| Quality of Service (QoS) support | Yes |
| Switch type | Uncontrollable |
Weight and dimensions | |
| Height | 25 mm |
| Depth | 98 mm |
| Width | 100mm |
Network | |
| Network standards | IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3i |
| Auto MDI/MDI-X | Yes |
| Impedance Ethernet Cable Technology | 10BASE-T, 100BASE-TX |
| Data flow control support | Yes |
| Supported cable types | Cat3, Cat4, Cat5, Cat5e |
| 10G support | No |
| Auto-negotiation | Yes |
Operation | |
| Fanless | Yes |
Packaging details | |
| Packaging type | Box |
| User manual | Yes |
Ports and interfaces | |
| Number of main RJ-45 Ethernet ports | 5 |
| Type of main RJ-45 Ethernet ports | Fast Ethernet (10/100) |
Data transfer | |
| MAC address table | 2000 entries |
| Transmission speed | 0.744 Mpps |
| Jumbo frame support | Yes |
| Switch capacity | 1 Gbit/s |
| Store-and-forward | Yes |
Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Number of Power over Ethernet (PoE) ports | 4 |
| Power over Ethernet (PoE) power for each port | 15.4W |
Security warning | |
| Warnings | The product is not suitable for disposal in the normal waste container. Please take your used electronic devices to a recycling center in accordance with local regulations. Do not open the housing or attempt to repair it yourself. |
Certificates | |
| Height | 160mm |
| Length | 140mm |
| Weight | 480g |
| Width | 90 mm |
