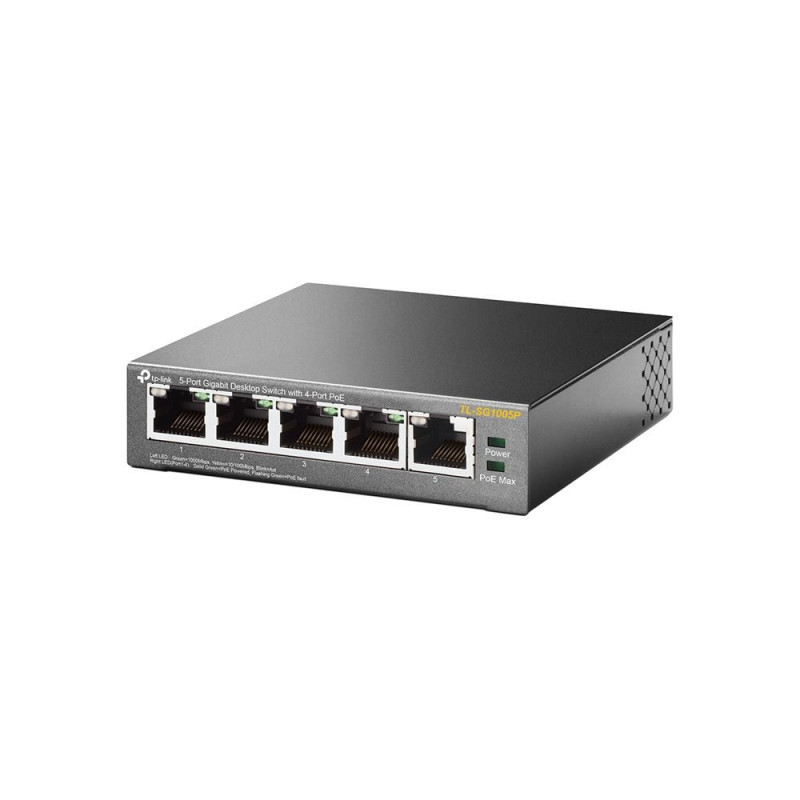

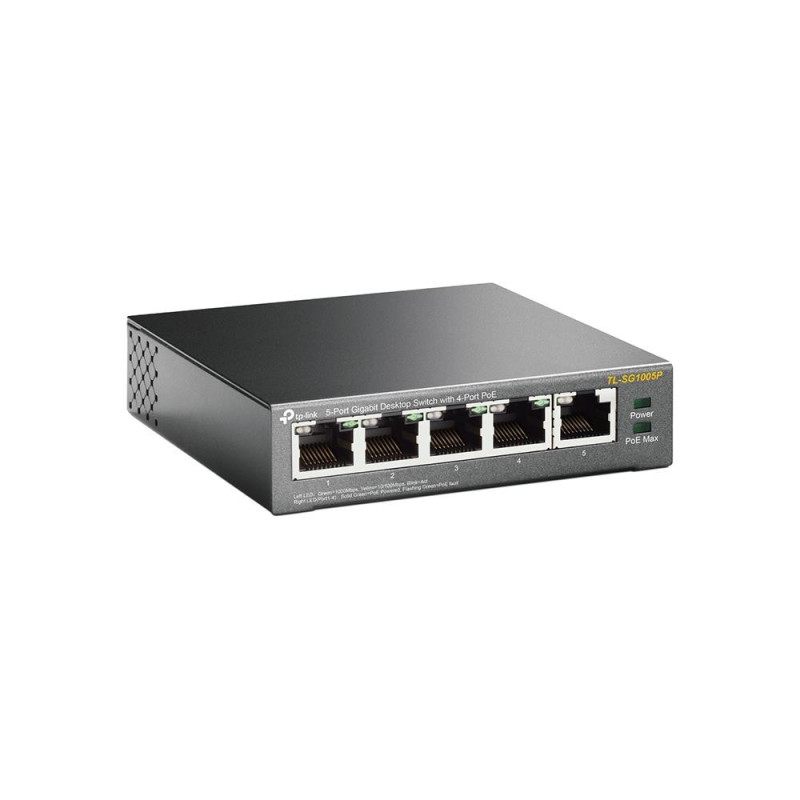

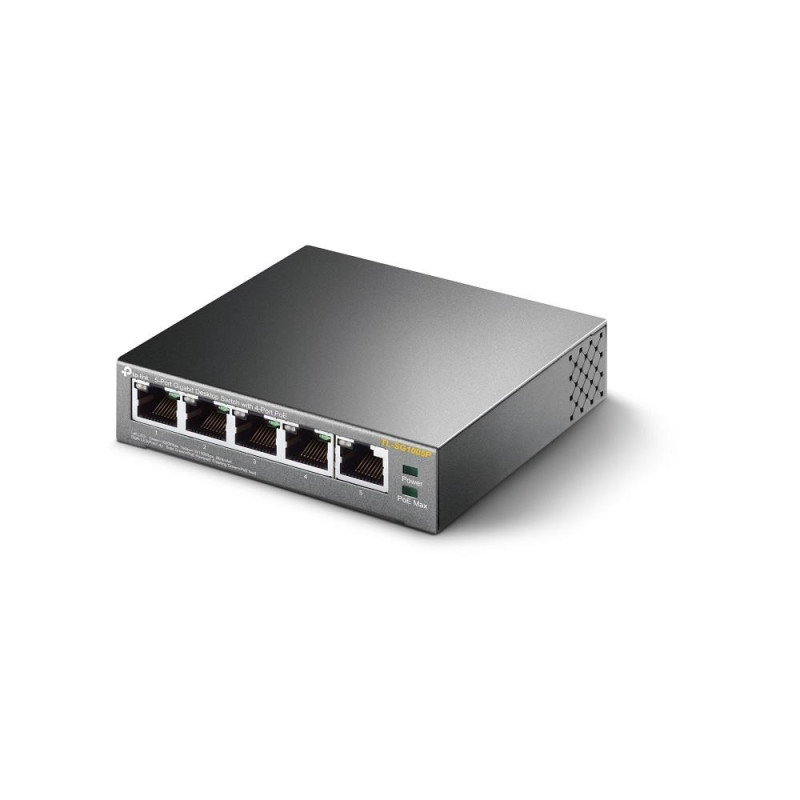

Switch, TP-LINK, Desktop / pedestal, 5x10Base-T / 100Base-TX / 1000Base-T, PoE ports 4, TL-SG1005P
Product reference:
2-6935364083212
Switch, TP-LINK, Desktop / pedestal, 5x10Base-T / 100Base-TX / 1000Base-T, PoE ports 4, TL-SG1005P
Product reference:
2-6935364083212
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
Not available
PoE Switches for Your Ultra Convenience
5-Port Gigabit Desktop Switch with 4-Port PoE
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 56W, the intelligent power management will cut the lower priority port power off to ensure the high priority port's power supply and protect the device from power overload operation.
Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
- 5 10/100/1000Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 15.4W for each PoE port
- Supports PoE Power up to 56W for all PoE ports
- Requires no configuration and installation
| 10G support | No |
| AC adapter included | Yes |
| AC input frequency | 50 Hz |
| AC input voltage | 100 - 220 V |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Cable types supported | Cat3/Cat4/Cat5/Cat5e/Cat6 |
| Cables included | AC |
| Certification | FCC, CE, RoHS |
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
| Copper ethernet cabling technology | 1000BASE-T/100BASE-TX/10BASE-T |
| DC input voltage | 48 V |
| Depth | 98 mm |
| Fanless | Yes |
| Flow control support | Yes |
| Forwarding rate | 7.44 Mpps |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Harmonized System (HS) code | 85176990 |
| Heat dissipation | 219.87 BTU/h |
| Height | 25 mm |
| IGMP snooping | Yes |
| Input current | 1.25 A |
| LED indicators | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| MAC address table | 2000 entries |
| Manual | Yes |
| Maximum cable length | 100 m |
| Model name | 5-Port Gigabit Desktop PoE Switch with 4-Port |
| Networking standards | IEEE 802.1p/IEEE 802.3/IEEE 802.3af/IEEE 802.3u/IEEE 802.3x |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Package depth | 196 mm |
| Package height | 121 mm |
| Package type | Box |
| Package weight | 761 g |
| Package width | 131 mm |
| Power consumption (max) | 64.44 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power source | DC/PoE |
| Power supply included | Yes |
| Product colour | Black |
| Product Net Weight | 0.249 kg |
| Quality of Service (QoS) support | Yes |
| Quick start guide | Yes |
| Rack mounting | No |
| Shipping Box Depth | 42 cm |
| Shipping Box Height | 39 cm |
| Shipping Box Weight | 10.1 kg |
| Shipping Box Width | 28.5 cm |
| Stackable | No |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Store-and-forward | Yes |
| Summary | TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x. DC input voltage: 48 V. Power over Ethernet (PoE) |
| Sustainability compliance | Yes |
| Switch type | Unmanaged |
| Switching capacity | 10 Gbit/s |
| Total Power over Ethernet (PoE) budget | 56 W |
| Unit Box Height | 0.12 |
| Unit Box Length | 0.195 |
| Unit Box Width | 0.13 |
| Unit Calculated Volume | 0.00389 cubm |
| Unit Calculated Weight | 0.842 kg |
| Units per Shipping Box | 12 |
| User guide | Yes |
| Vendor Homepage | https://www.tp-link.com/uk/business-networking/unmanaged-switch/tl-sg1005p/ |
| VLAN support | Yes |
| Width | 99.8 mm |
