Switch, TP-LINK, 5x10Base-T / 100Base-TX, TL-SF1005D
Product reference:
2-6935364020064
Switch, TP-LINK, 5x10Base-T / 100Base-TX, TL-SF1005D
Product reference:
2-6935364020064
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
Not available

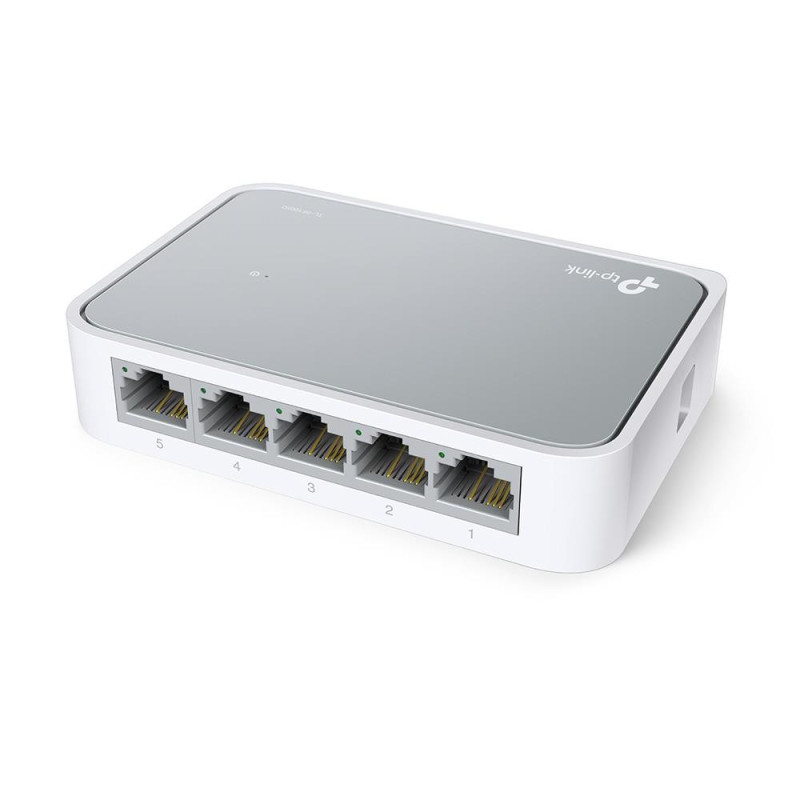

The TL-SF1005D 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save power consumption, making it an eco-friendly solution for your home or office network.
High Performance
TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports..Featuring non-blocking switching architecture,TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. With 2K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably.
| 10G support | No |
| AC adapter included | Yes |
| AC input frequency | 50 Hz |
| AC input voltage | 220 V |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Cables included | AC |
| Certification | FCC, RoHs |
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
| Copper ethernet cabling technology | 100BASE-T/10BASE-T |
| DC input voltage | 5 V |
| Depth | 70 mm |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Fanless | Yes |
| Fast Ethernet (copper) ports quantity | 5 |
| Flow control support | Yes |
| Full duplex | Yes |
| Heat dissipation | 6.38 BTU/h |
| Height | 22 mm |
| Input current | 0.6 A |
| LED indicators | Yes |
| MAC address table | 1000 entries |
| Model name | TL-SF1005D |
| Networking standards | IEEE 802.3u/IEEE 802.3x |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Package depth | 108 mm |
| Package height | 85 mm |
| Package type | Box |
| Package weight | 200 g |
| Package width | 91 mm |
| Power connector | DC-in jack |
| Power consumption (max) | 1.87 W |
| Power consumption (typical) | 1.87 W |
| Power over Ethernet (PoE) | No |
| Power source | DC |
| Power supply included | No |
| Product colour | White |
| Product Net Weight | 0.12 kg |
| Quality of Service (QoS) support | Yes |
| Rack mounting | No |
| Shipping Box Depth | 57.5 cm |
| Shipping Box Height | 45 cm |
| Shipping Box Weight | 18.6000003814697 kg |
| Shipping Box Width | 35 cm |
| Spanning tree protocol | Yes |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Store-and-forward | Yes |
| Summary | TP-Link TL-SF1005D. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 1000 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V. Power connector: DC-in jack |
| Supported network protocols | CSMA/CD, TCP/IP |
| Sustainability compliance | Yes |
| Switch type | Managed |
| Switching capacity | 1.6 Gbit/s |
| Unit Box Height | 0.085 |
| Unit Box Length | 0.11 |
| Unit Box Width | 0.095 |
| Unit Calculated Volume | 0.001006 cubm |
| Unit Calculated Weight | 0.207 kg |
| Units per Shipping Box | 90 |
| User guide | Yes |
| Vendor Homepage | https://www.tp-link.com/us/home-networking/5-port-switch/tl-sf1005d/#specifications |
| Web-based management | Yes |
| Width | 103.5 mm |
