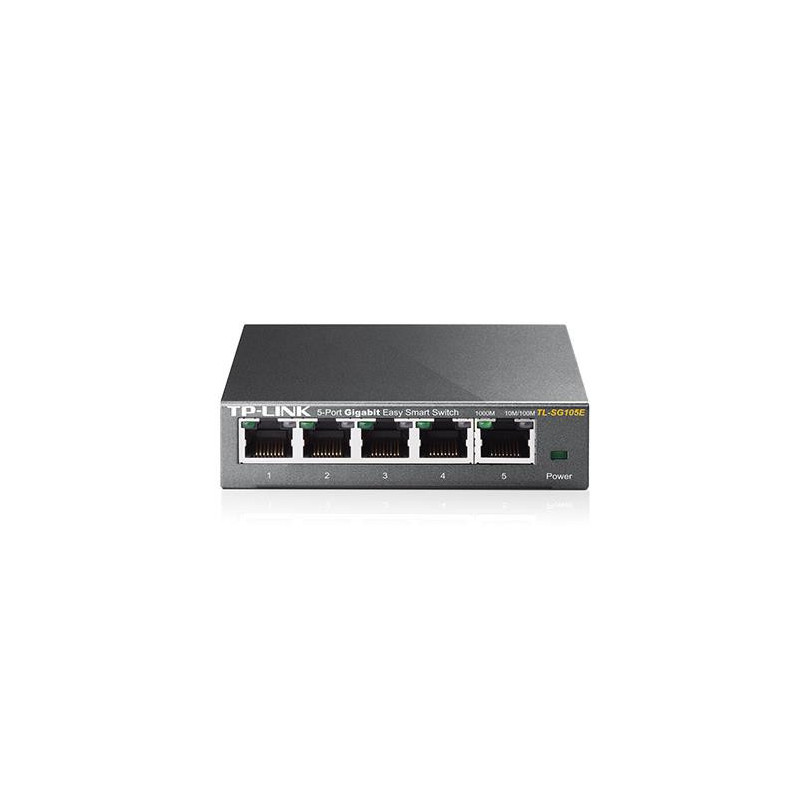

Switch, TP-LINK, 5x10Base-T / 100Base-TX / 1000Base-T, TL-SG105E
Product reference: 2-6935364022037

Switch, TP-LINK, 5x10Base-T / 100Base-TX / 1000Base-T, TL-SG105E

Product reference: 2-6935364022037
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
18,88
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

Easily Expand Your Gigabit Network and Save Energy

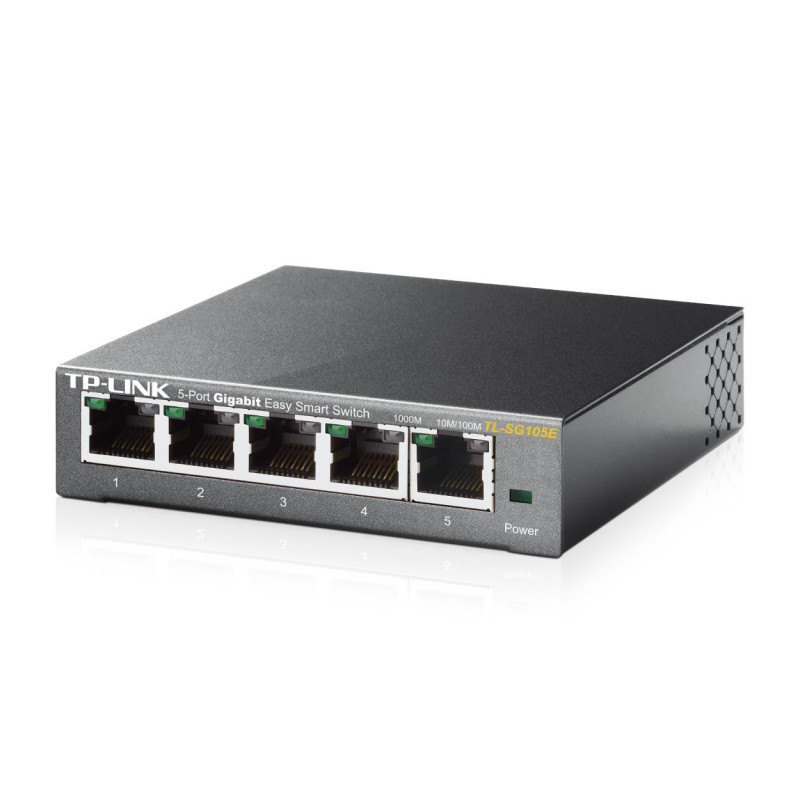

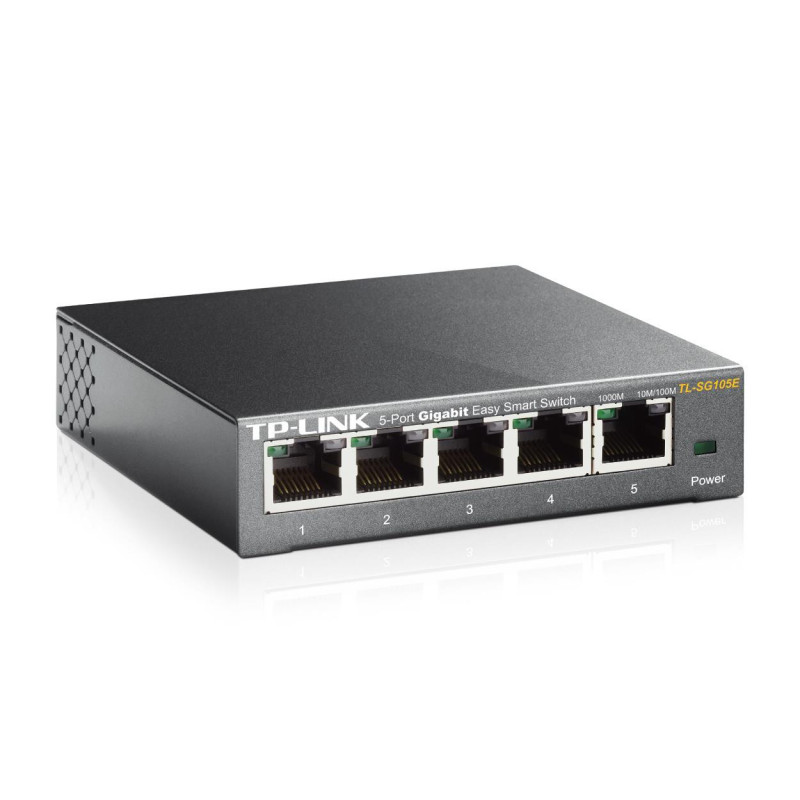

5-Port Gigabit Easy Smart Switch

Link Your Devices, Create Convenient Business
The 5-Port Gigabit Easy Smart Desktop Switch provides an easy way to expand your wired network. Deal with your business quickly and easily, whether you are at home or in the office.

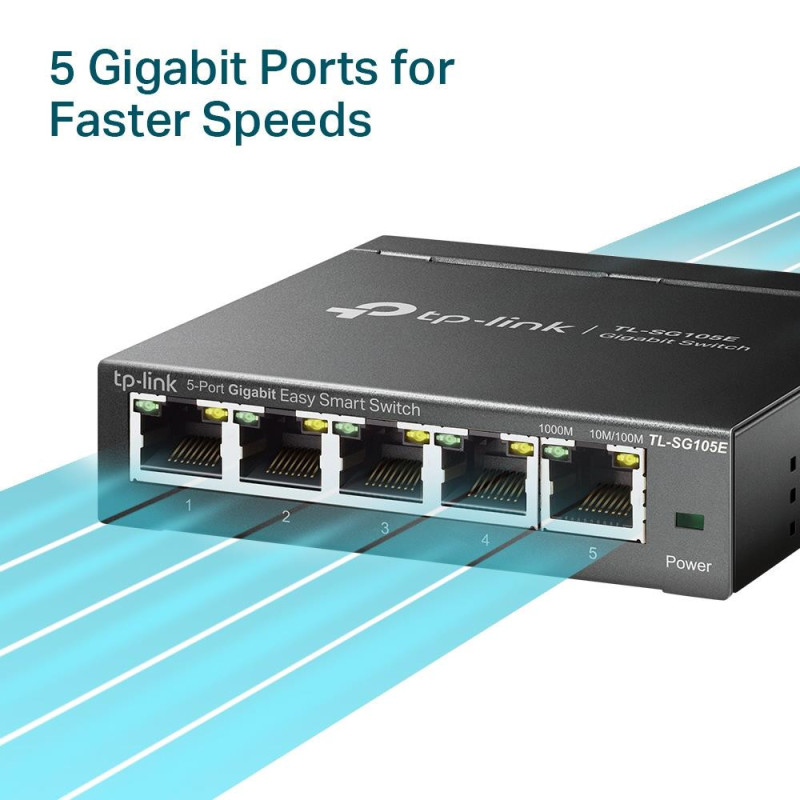

Gigabit Ports for Maximum Speed
5 non-blocking 10/100/1,000 Mbps ports make it possible to transfer large, bandwidth-intensive files with no interference.

More Features,More Choices

QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video

IGMP Snooping for Multicast Optimization
Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.

VLAN for Security
Helps to create network with higher security and better overall performance by dividing network into smaller groups

Management Made Easy
TL-SG105E offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG105E offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

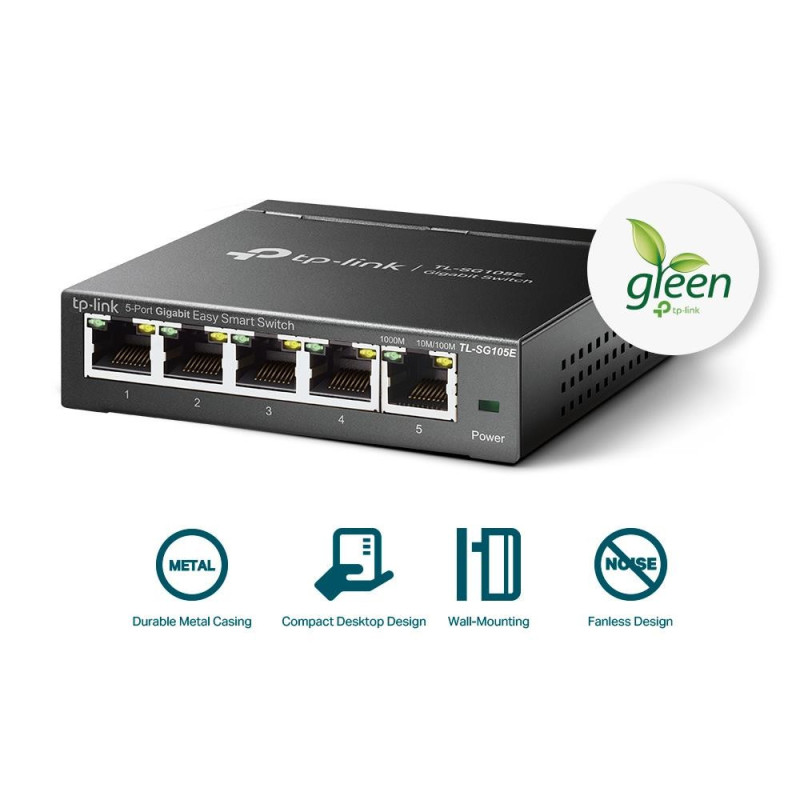

Durable Metal Casing
The interior components of TL-SG105E are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG105E delivers switching performance you can depend on.

Go Green with Your Ethernet
TP-Link's latest generation of Easy Smart Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it's a win-win!

  • 5 10/100/1000Mbps RJ45 ports
  • Plug and play, with no configuration required
  • Durable metal casing of superior quality and professional appearance
  • Intelligent management via a web user interface and downloadable utility
  • Green technology reduces power consumption

10G support No
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Cable types supported Cat3/Cat4/Cat5/Cat5e/Cat6
Cables included AC
Certification FCC, CE, RoHS
Compatible operating systems Microsoft Windows XP, Vista Windows 7, Windows 8, MAC OS, NetWare, UNIX / Linux
Copper ethernet cabling technology 1000BASE-T/100BASE-TX/10BASE-T
Depth 98 mm
Forwarding rate 7.44 Mpps
Gigabit Ethernet (copper) ports quantity 5
Heat dissipation 9.07 BTU/h
Height 25 mm
IGMP snooping Yes

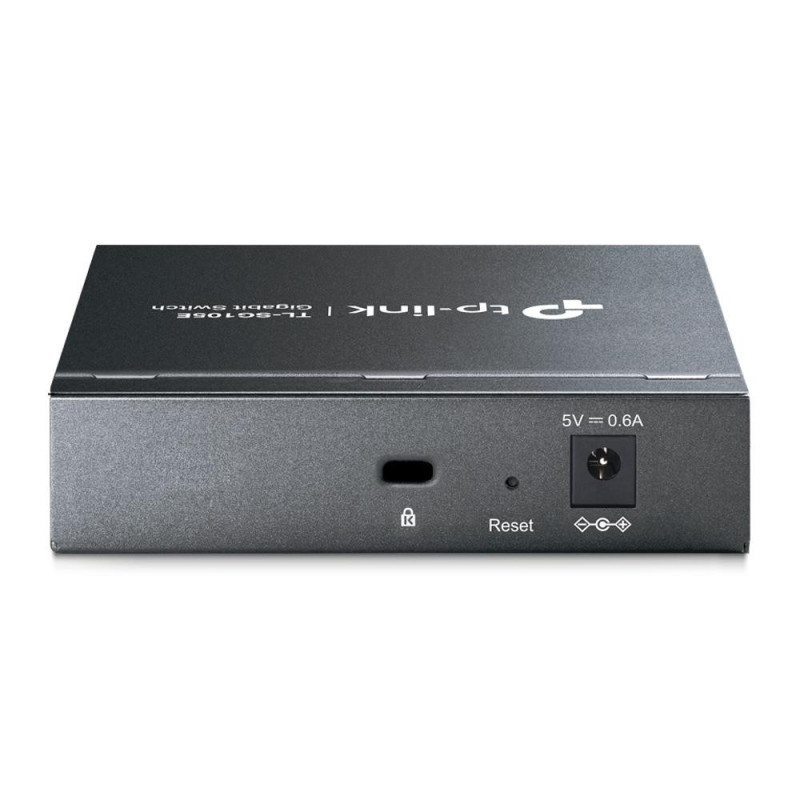

Input current 0.6 A
Input voltage 5 V
Jumbo frames 16000
Jumbo frames support Yes
LED indicators Yes
Link aggregation Yes
MAC address table 2000 entries
Model TL-SG105E
Model name 5-Port Gigabit Easy Smart Switch
Networking standards IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x
Number of VLANs 32
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 40 °C
Package depth 128 mm
Package height 92 mm
Package type Box
Package weight 449 g
Package width 125 mm
Packet buffer memory 1 MB
Port mirroring Yes
Power consumption (max) 2.82 W
Power over Ethernet (PoE) No
Power source DC
Power supply included Yes
Product colour Black
Quality of Service (QoS) support Yes
Quick start guide Yes
Rack mount kit Yes
Storage relative humidity (H-H) 5 - 90 %
Storage temperature (T-T) -40 - 70 °C
Store-and-forward Yes
Summary TP-Link 5-Port Gigabit Easy Smart Switch. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Switch layer L2
Switch type Managed
Switching capacity 10 Gbit/s
Unit Box Height 0.093
Unit Box Length 0.13
Unit Box Width 0.126
Unit Calculated Volume 0.00179 cubm
Unit Calculated Weight 0.489 kg
Units per Shipping Box 36
User guide Yes
Vendor Homepage https://www.tp-link.com/uk/business-networking/easy-smart-switch/tl-sg105e/
Virtual LAN features Port-based VLAN
VLAN support Yes
Web-based management Yes
Width 100 mm
