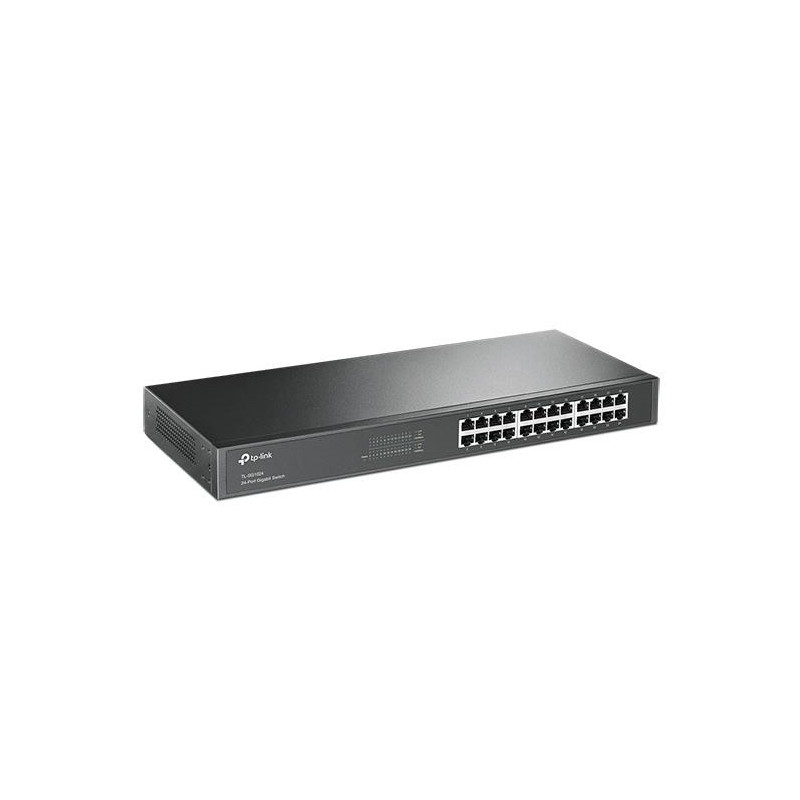

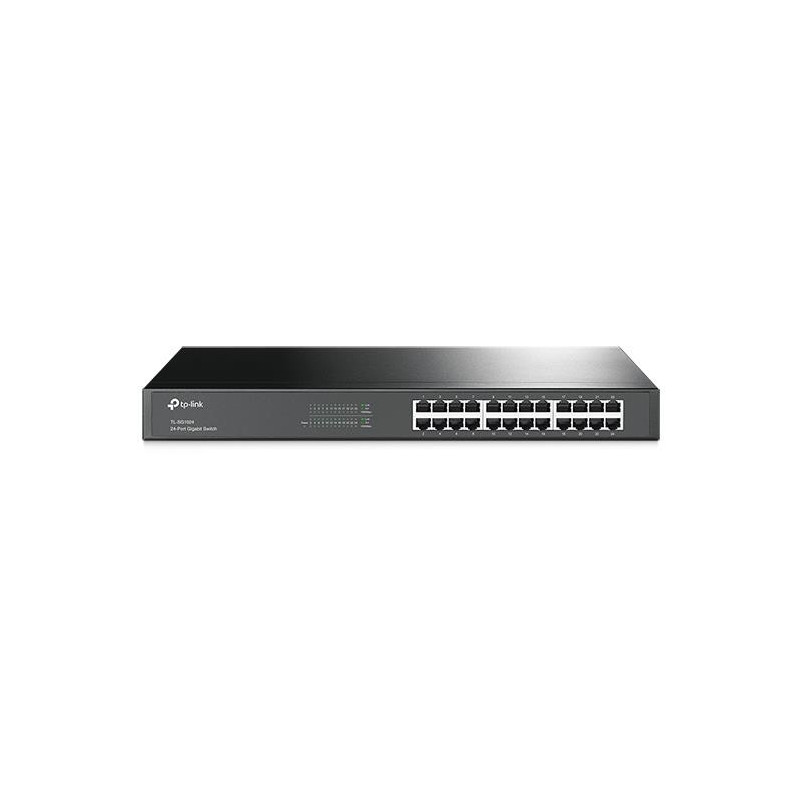

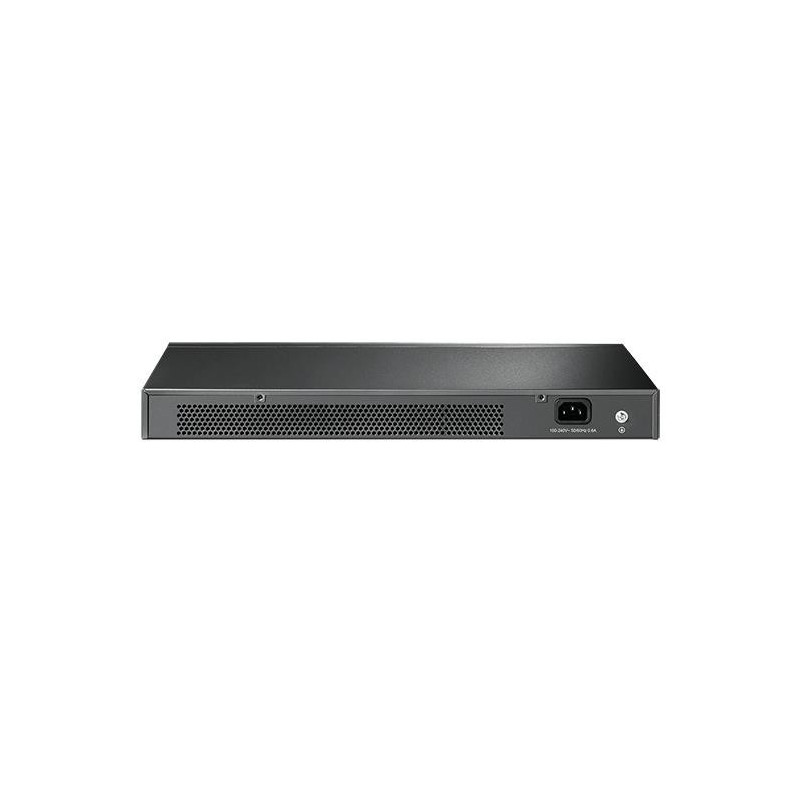

Switch, TP-LINK, 24xRJ45, TL-SG1024
Product reference:
2-6935364020101
Switch, TP-LINK, 24xRJ45, TL-SG1024
Product reference:
2-6935364020101
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
What This Product Does
The TL-SG1024 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024 can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
TP-LINK Green Technology
This new generation TL-SG1024 Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
High Performance
All 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1024 forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1024 work reliably. It's a perfect choice to update your network to Gigabit while protecting your previous investment properly.
Ease of Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance
- 24 10/100/1000Mbps RJ45 ports
- Innovative energy-efficient technology saves power consumption
- Supports MAC address self-learning and auto MDI/MDIX
- Standard 19-inch rack-mountable steel case
| 10G support | No |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Bandwidth | 48 Gbit/s |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Cables included | AC |
| Certification | FCC, CE, RoHS |
| Connectivity LEDs | Y |
| Connectivity technology | Wired |
| Copper ethernet cabling technology | 1000BASE-T/100BASE-TX/10BASE-T |
| Depth | 180 mm |
| Dimensions (W x D x H) (imperial) | 17.3 x 7.1 x 1.7 " |
| Flow control support | Yes |
| Form factor | 1U |
| Forwarding rate | 35.7 Mpps |
| Full duplex | Yes |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Half duplex | Yes |
| Heat dissipation | 46.44 BTU/h |
| Height | 44 mm |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| LED indicators | Yes |
| MAC address table | 8000 entries |
| Maximum data transfer rate | 1 Gbit/s |
| Networking standards | IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C, 32 - 104 °F |
| Package depth | 528 mm |
| Package height | 80 mm |
| Package weight | 2130 g |
| Package width | 250 mm |
| Power consumption (max) | 13.62 W |
| Power source | AC |
| Power supply included | Yes |
| Product colour | Black |
| Product Net Weight | 2.2 kg |
| Quality of Service (QoS) support | Yes |
| Rack mount kit | Yes |
| Rack mounting | Yes |
| Shipping Box Depth | 53 cm |
| Shipping Box Height | 25 cm |
| Shipping Box Weight | 2.52 kg |
| Shipping Box Width | 8 cm |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Store-and-forward | Yes |
| Summary | TP-Link 24-Port Gigabit Rackmount Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Rack mounting, Form factor: 1U |
| Supported data transfer rates | 10/100/1000 Mbps |
| Supported network protocols | CSMA/CD, TCP/IP |
| Switch type | Unmanaged |
| Switching capacity | 48 Gbit/s |
| Unit Box Height | 0.25 |
| Unit Box Length | 0.53 |
| Unit Box Width | 0.08 |
| Unit Calculated Volume | 0.0106 cubm |
| Unit Calculated Weight | 2.52 kg |
| Unit Depth | 53 cm |
| Unit Height | 25 cm |
| Unit Width | 8 cm |
| Units per Shipping Box | 1 |
| User guide | Yes |
| Vendor Homepage | https://www.tp-link.com/products/productDetails.asp?class=&content=spe&pmodel=TL-SG1024 |
| Width | 440 mm |
