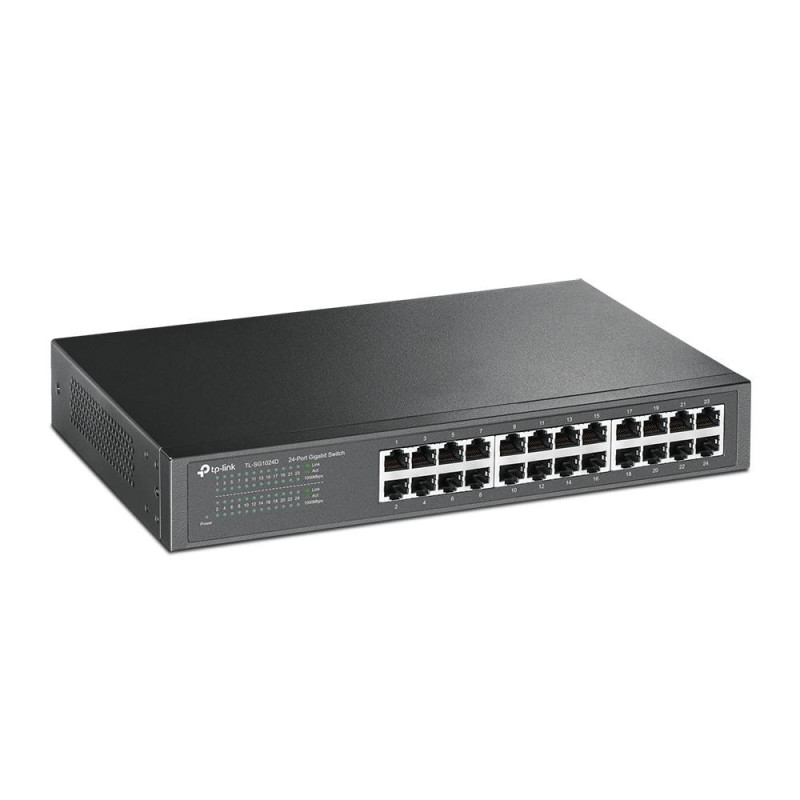

Switch, TP-LINK, 24x10Base-T / 100Base-TX / 1000Base-T, TL-SG1024D
Product reference: 2-6935364020620

Switch, TP-LINK, 24x10Base-T / 100Base-TX / 1000Base-T, TL-SG1024D

Product reference: 2-6935364020620
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
96,64 €
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

What This Product Does
The TL-SG1024D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024D can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-LINK Green Technology
This new generation TL-SG1024D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance
All 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1024D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1024D work reliably. It's a perfect choice to update your network to Gigabit while protecting your previous investment properly.

Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

  • 24 10/100/1000Mbps ports
  • Innovative energy-efficient technology saves power consumption
  • Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
  • Plug & play design

10G parama Ne
AC įėjimo dažnis 50 - 60 Hz
AC įėjimo įtampa 100 - 240 V
Adreso lentelės dydis 8000 įrašai
Aukštis 44 mm
Auto MDI/MDI-X Taip
Automatinis suderinimas (Auto-negotiation) Taip
Bruto svoris 2.25 kg
Darbo santykinės drėgmės diapazonas 10 - 90 %
Darbo temperatūros diapazonas (TT) 0 - 40 °C
Darniosios sistemos (DS) kodas 85176990
Didinimas Taip
Galios suvartojimas (maks.) 13.62 W
Gigabit Ethernet (varinis) portų kiekis 24
Ilgis 180 mm
Jumbo Frames palaikymas Taip
Konekcija LEDs Y
LED indikatoriai Taip
Maitinimas per Eternetą (PoE) Ne
Maitinimo jungtis DC lizdas
Maitinimo reikalavimai 100 - 240V, 50/60Hz
Maitinimo šaltinis AC
Maksimalaus duomenų perdavimo sparta 1 Gbit/s
Matmenys (WxDxH) 294 x 180 x 44 mm
Model name 24-Port Gigabit Desktop/Rackmount Network Switch
Naudojimo žinynas Taip
Neto svoris 1.67 kg
Pagrindinių perjungimo RJ-45 eterneto prievadų skaičius 24
Pagrindinių perjungimo RJ-45 eterneto prievadų tipas Gigabit Ethernet (10/100/1000)
Paketo svoris 1950 g
Pakuotės aukštis 80 mm
Pakuotės gylis 400 mm
Pakuotės plotis 250 mm
Pakuotės tipas "Box"
Palaikomi duomenų perdavimo greičiai 10/100/100 Mbps
Palaikomi laido tipai Cat3/Cat4/Cat5/Cat5e
Palaikomi tinklo protokolai CSMA/CD, TCP/IP
Paslaugos kokybės (QoS) palaikymas Taip
Perjungimo pajėgumas 48 Gbit/s
Perjungimo tipas Ne-valdomas
Persiuntimo dažnis 35.7 Mpps
Pilnai abipusis (duplex) Taip
Plotis 294 mm
Pralaidumas 48 Gbit/s
Pridėtas maitinimo šaltinis Taip
Pridėti kabeliai AC
Produkto spalva Pilka
Ryšio technologija Vielinis
Sandėliavimo santykinis drėgmės diapazonas 5 - 90 %
Sandėliavimo temperatūros norma (T-T) -40 - 70 °C
Sertifikavimas FCC, CE, RoHS
Shipping Box Depth 49 cm
Shipping Box Height 35.5 cm
Shipping Box Weight 18 kg
Shipping Box Width 36.5 cm
Srauto kontrolės palaikymas Taip
Stovo montavimas Taip
Stovo montavimo rinkinys Taip
Summary TP-Link 24-Port Gigabit Desktop/Rackmount Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Rack mounting
Tinklo standartai IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x
Tinklo ypatumai Gigabit Ethernet
Unit Box Height 0.25
Unit Box Length 0.405
Unit Box Width 0.08
Unit Brutto Volume 0.007936 cubm
Veikimo temperatūros norma (T-T) 32 - 104 °F
Vendor Homepage https://www.tp-link.com/uk/service-provider/unmanaged-switch/tl-sg1024d/
Vieneto aukštis 25 cm
Vieneto gylis 40.5 cm
Vieneto plotis 8 cm
Vienetų skaičius vienoje siuntimo dėžėje 8
Šilumos sklaida 46.44 BTU/h
"Jumbo" kadrai 10000
"Store-and-forward" funkcija Taip
