What This Product Does

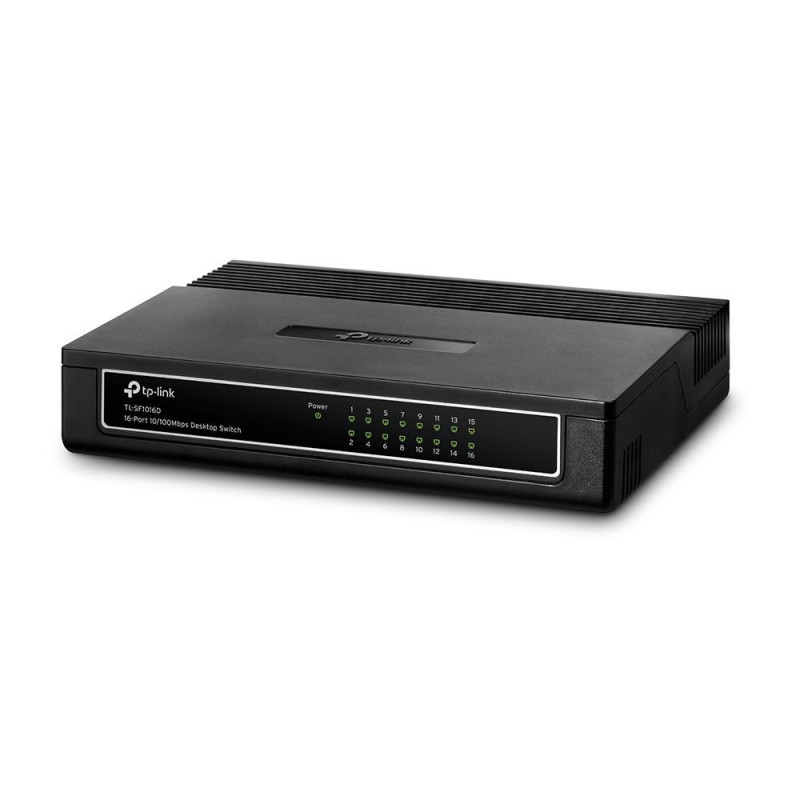

The TL-SF1016D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016D can save the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
High Performance
TL-SF1016D Fast Ethernet Switch provides 16 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1016D forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016D work reliably.
TP-LINK Green Technology
This new generation TL-SF1016D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.
Easy to Use
The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

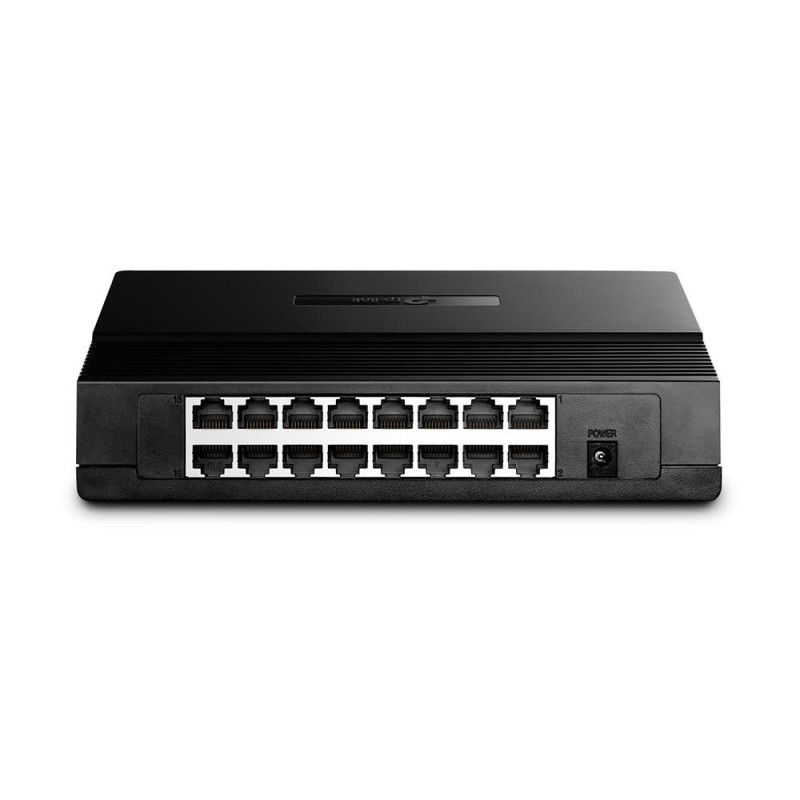

- 16 10/100Mbps Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3x flow control provides reliable data transfer
- Plastic case, desktop or wall-mounting design
- Plug and play, no configuration required
| Summary | TP-Link 16-Port 10/100Mbps Desktop Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 2000 entries, Switching capacity: 3.2 Gbit/s. Networking standards: IEEE 802.3u, IEEE 802.3x. DC input voltage: 9 V. Power connector: DC-in jack. Wall mountable, Rack mounting |
| Vendor Homepage | https://www.tp-link.com/uk/business-networking/unmanaged-switch/tl-sf1016d/ |
| Unit Box Height | 0.067 |
| Unit Box Length | 0.287 |
| Unit Box Width | 0.225 |
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 16 |
| Power connector | DC-in jack |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Copper ethernet cabling technology | 100BASE-TX/10BASE-T |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow control support | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| MAC address auto-learning supported | Yes |
| Networking standards | IEEE 802.3u/IEEE 802.3x |
| MAC address table | 2000 entries |
| Store-and-forward | Yes |
| Switching capacity | 3.2 Gbit/s |
| LED indicators | Yes |
| Product colour | Black |
| Rack mounting | Yes |
| Stackable | No |
| Wall mountable | Yes |
| Fanless | Yes |
| Minimum system requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7, MAC OS, NetWare, UNIX, Linux |
| DC input voltage | 9 V |
| Input current | 0.6 A |
| Power consumption (max) | 3.23 W |
| Power source | DC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
| Heat dissipation | 11.01 BTU/h |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Depth | 142 mm |
| Height | 40 mm |
| Width | 200 mm |
| User guide | Yes |
| AC adapter included | Yes |
| Package depth | 285 mm |
| Package height | 68 mm |
| Package type | Box |
| Package weight | 674 g |
| Package width | 223 mm |
| Sustainability compliance | Yes |
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
| Model name | 16-Port 10/100Mbps Desktop Switch |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.004327 cubm |
| Unit Calculated Weight | 0.6 kg |
