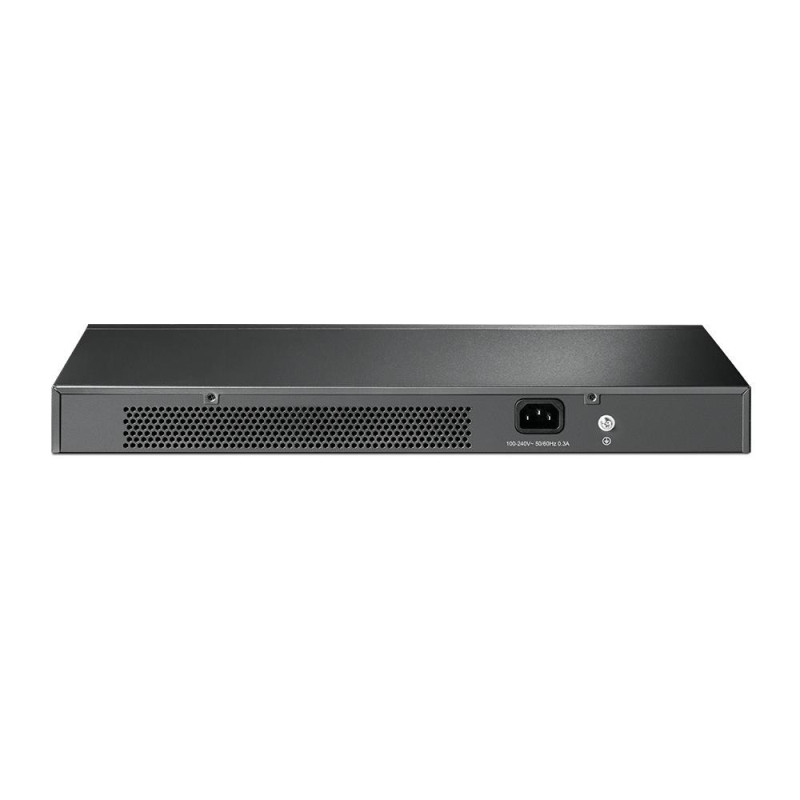

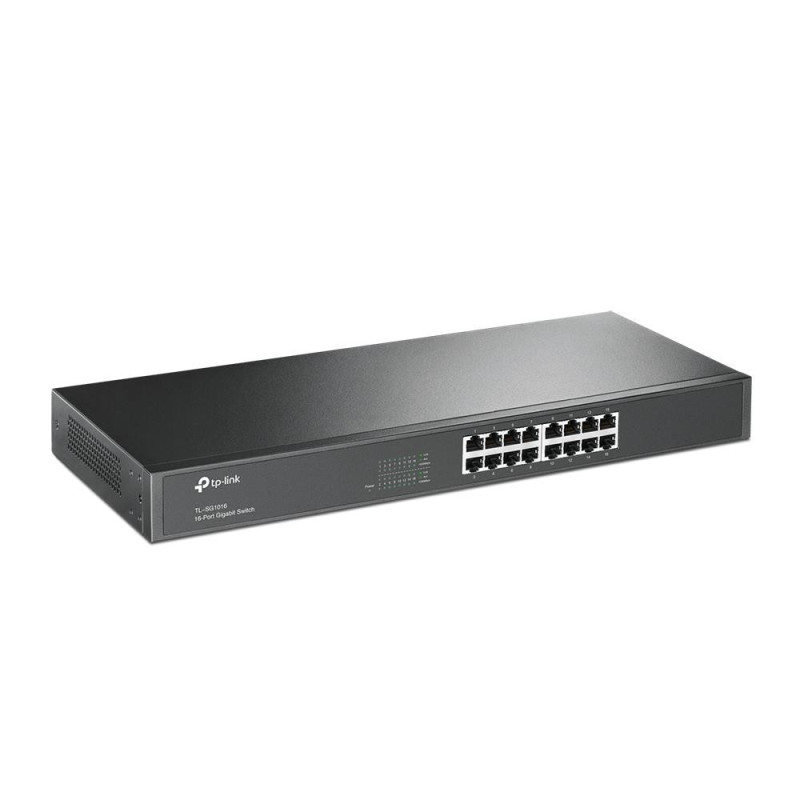

Switch, TP-LINK, 16x10Base-T / 100Base-TX / 1000Base-T, TL-SG1016
Product reference: 2-6935364020095

Switch, TP-LINK, 16x10Base-T / 100Base-TX / 1000Base-T, TL-SG1016

Product reference: 2-6935364020095
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
62,71
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

The TL-SG1016 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016 can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-Link Green Technology
This new generation TL-SG1016 Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance
All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016 forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1016 work reliably. It's a perfect choice to update your network to Gigabit while protecting your previous investment properly.

Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

  • 16 10/100/1000Mbps RJ45 ports
  • Innovative energy-efficient technology saves power consumption
  • Supports MAC address self-learning and auto MDI/MDIX
  • Standard 19-inch rack-mountable steel case

10G support No
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Cable types supported Cat3/Cat4/Cat5/Cat5e
Cables included AC
Compatible operating systems Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10
MacOS
NetWare
UNIX
Linux
Compliance certificates CE/Federal Communications Commission (FCC)/RoHS
Copper ethernet cabling technology 1000BASE-T/100BASE-TX/10BASE-T
Depth 180 mm
Fanless Yes
Flow control support Yes
Form factor 1U
Forwarding rate 23.8 Mpps
Full duplex Yes
Gigabit Ethernet (copper) ports quantity 16
Half duplex Yes
Harmonized System (HS) code 85176990
Heat dissipation 35.6 BTU/h
Height 44 mm
Housing material Metal
Jumbo frames 10000
Jumbo frames support Yes
LED indicators Yes
MAC address table 8000 entries
Maximum cable length 100 m
Model name 16-Port Gigabit Rackmount Network Switch
Networking standards IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 40 °C
Package depth 528 mm
Package height 80 mm
Package type Box
Package weight 2040 g
Package width 250 mm
Power connector AC-in jack
Power consumption (max) 10.44 W
Power over Ethernet (PoE) No
Power source AC
Power supply included Yes
Product colour Black
Product Net Weight 1.92 kg
Quality of Service (QoS) support Yes
Rack mount kit Yes
Rack mounting Yes
Shipping Box Depth 55.5 cm
Shipping Box Height 27 cm
Shipping Box Weight 14 kg
Shipping Box Width 47 cm
Storage relative humidity (H-H) 5 - 90 %
Storage temperature (T-T) -40 - 70 °C
Store-and-forward Yes
Summary TP-Link 16-Port Gigabit Rackmount Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power connector: AC-in jack. Rack mounting, Form factor: 1U
Sustainability compliance Yes
Switch type Unmanaged
Switching capacity 32 Gbit/s
Unit Box Height 0.08
Unit Box Length 0.53
Unit Box Width 0.22
Unit Calculated Volume 0.01174 cubm
Unit Calculated Weight 2.33 kg
Units per Shipping Box 6
User guide Yes
Vendor Homepage https://www.tp-link.com/hk/business-networking/unmanaged-switch/tl-sg1016/v12/#specifications
Width 440 mm
