Switch, TELTONIKA, TSW210000040, TSW210
Product reference:
2-4779051840243
Switch, TELTONIKA, TSW210000040, TSW210
Product reference:
2-4779051840243
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 5
business days

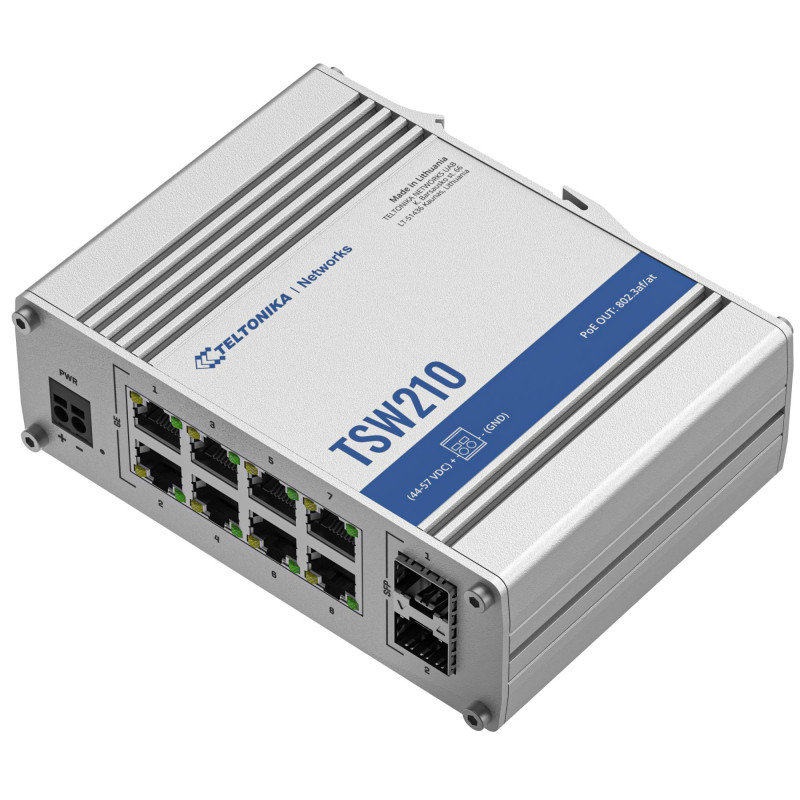

The TSW210 is an unmanaged industrial switch for centralizing your resources.

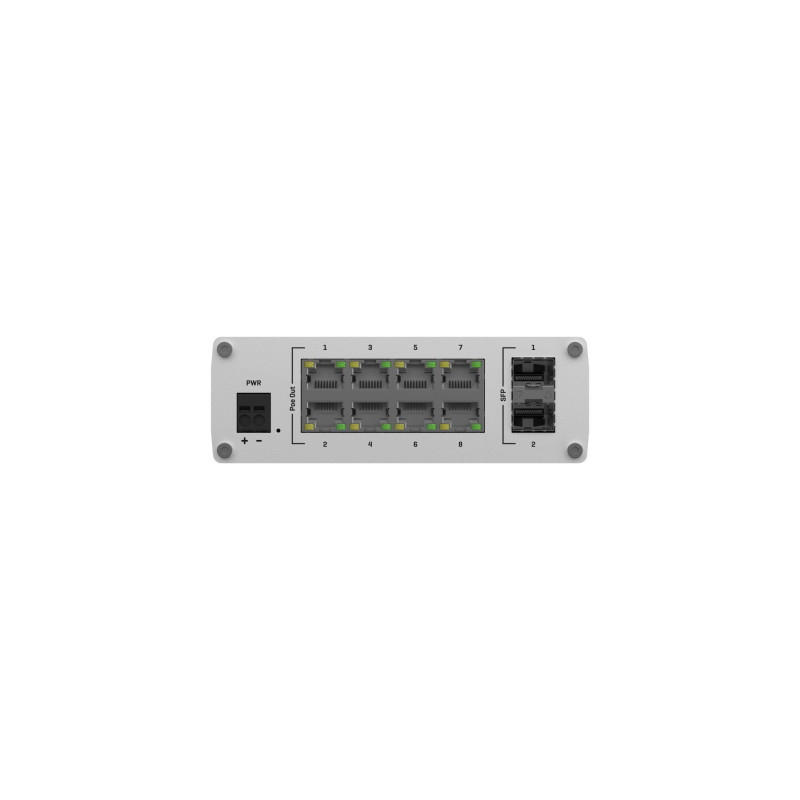

Equipped with 2 SFP ports for long-range fiberoptic communication and 8 Gigabit Ethernet ports with of up to 1000 Mbps download/upload speed.

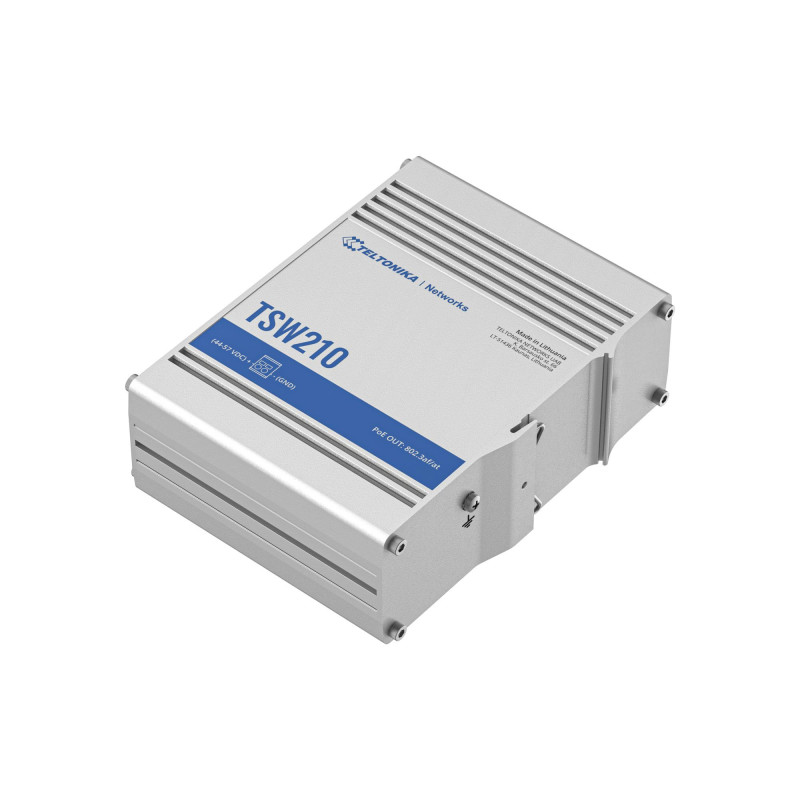

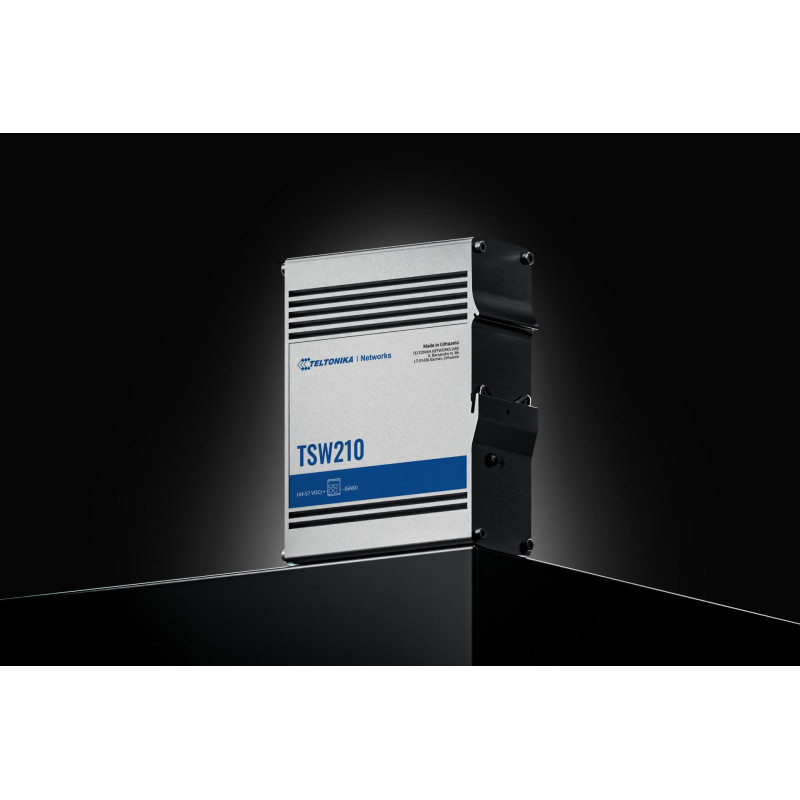

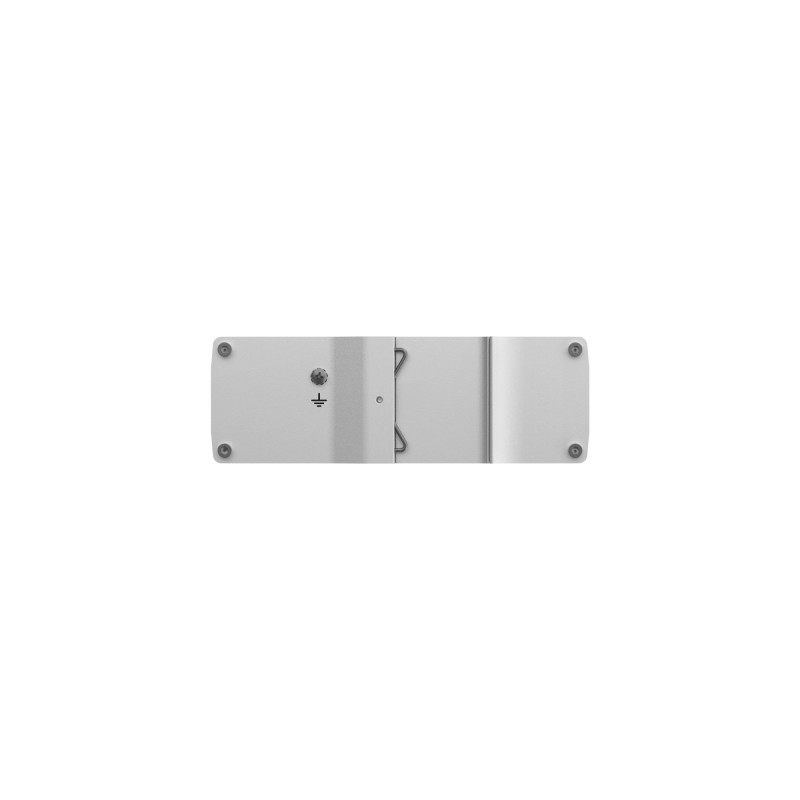

Durable, rugged aluminum housing with DIN rail and surface mounting options make the TSW210 perfect for industrial settings.
- SFP
- ETHERNET
- DURABILITY
- MOUNTING (DIN rail)
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| DC input voltage | 7 - 57 V |
| Depth | 95.1 mm |
| DIN rail mounting | Yes |
| Height | 44.2 mm |
| Housing material | Aluminium |
| Installed SFP modules quantity | 2 |
| International Protection (IP) code | IP30 |
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| LED indicators | LAN/Power/Status |
| MAC address table | 2048 entries |
| Model | TSW210 |
| Model name | TSW210000040 |
| Networking standards | IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -40 - 75 °C |
| Packet buffer memory | 128 MB |
| Power consumption (max) | 3.71 W |
| Power consumption (typical) | 1.03 W |
| Power over Ethernet (PoE) | No |
| Power source | DC |
| Power supply included | No |
| Product colour | Aluminium |
| Product Net Weight | 0.5 kg |
| Rack mounting | No |
| Shipping Box Depth | 17 cm |
| Shipping Box Height | 14.8 cm |
| Shipping Box Weight | 0.6 kg |
| Shipping Box Width | 7 cm |
| Stackable | No |
| Summary | Teltonika TSW210. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP modules quantity: 2. MAC address table: 2048 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 7 - 57 V. Wall mountable |
| Switch type | Unmanaged |
| Switching capacity | 20 Gbit/s |
| Unit Box Height | 0.148 |
| Unit Box Length | 0.17 |
| Unit Box Width | 0.07 |
| Unit Calculated Volume | 0.001761 cubm |
| Unit Calculated Weight | 0.6 kg |
| Units per Shipping Box | 1 |
| Vendor Homepage | https://teltonika-networks.com/product/tsw210/ |
| Wall mountable | Yes |
| Weight | 500 g |
| Width | 132 mm |
