Switch, TELTONIKA, TSW040000000, PoE+ ports 8, 240 Watts, TSW040
Product reference:
2-4779051841448
Switch, TELTONIKA, TSW040000000, PoE+ ports 8, 240 Watts, TSW040
Product reference:
2-4779051841448
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 5
business days

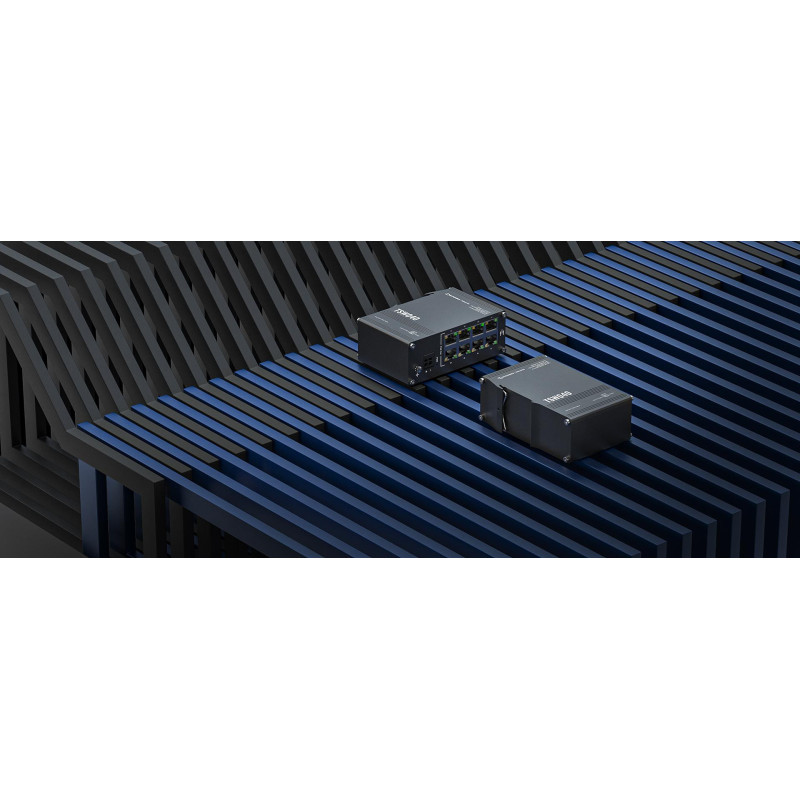

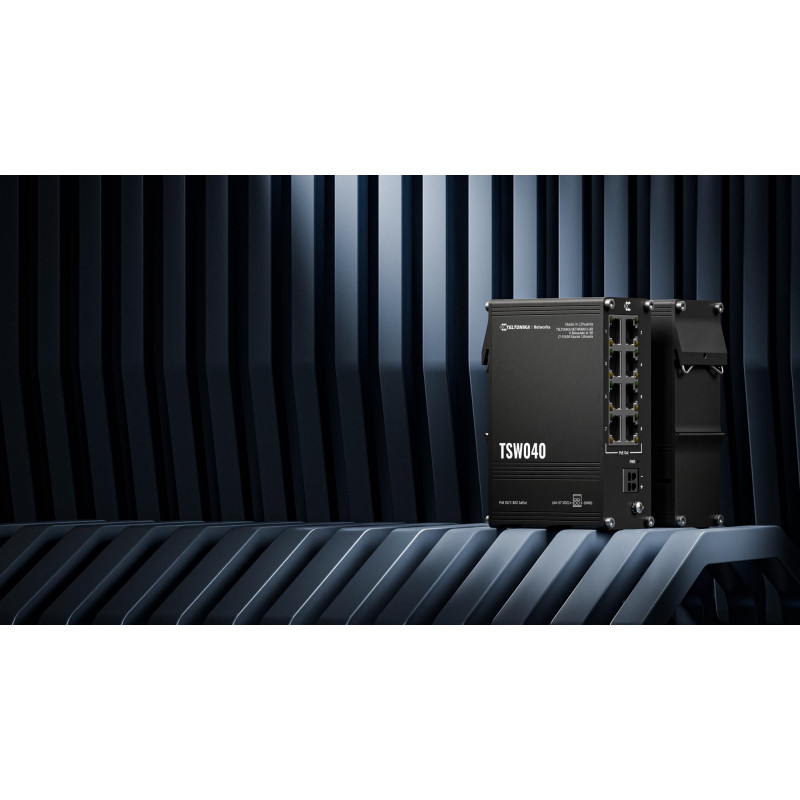

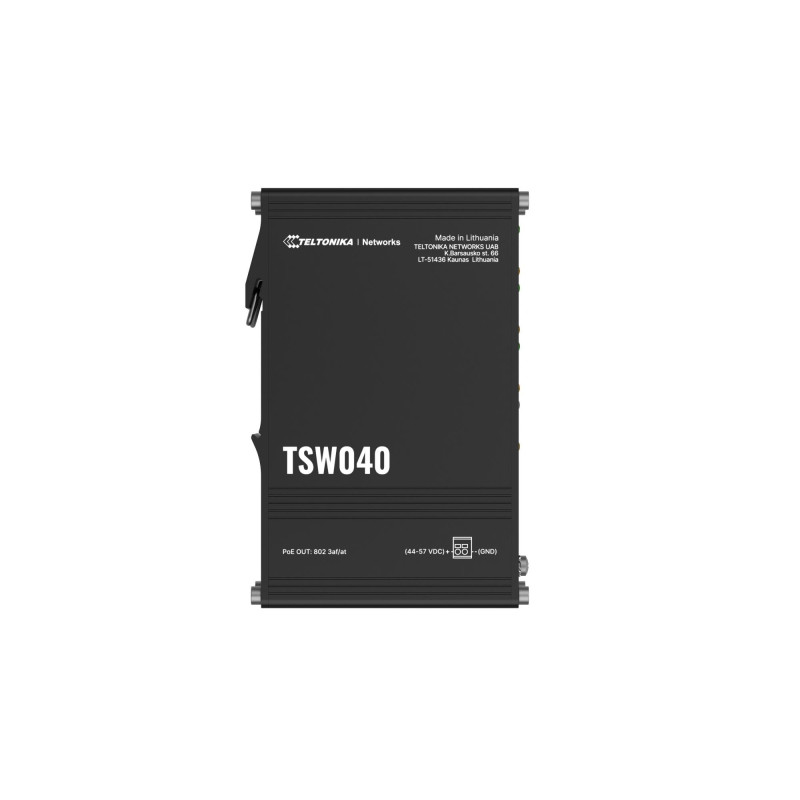

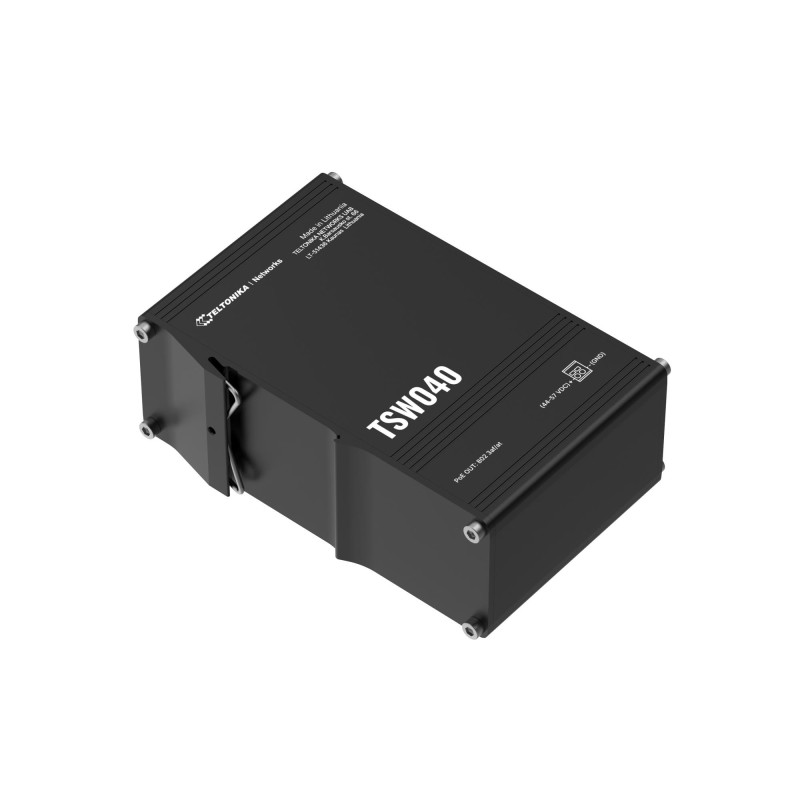

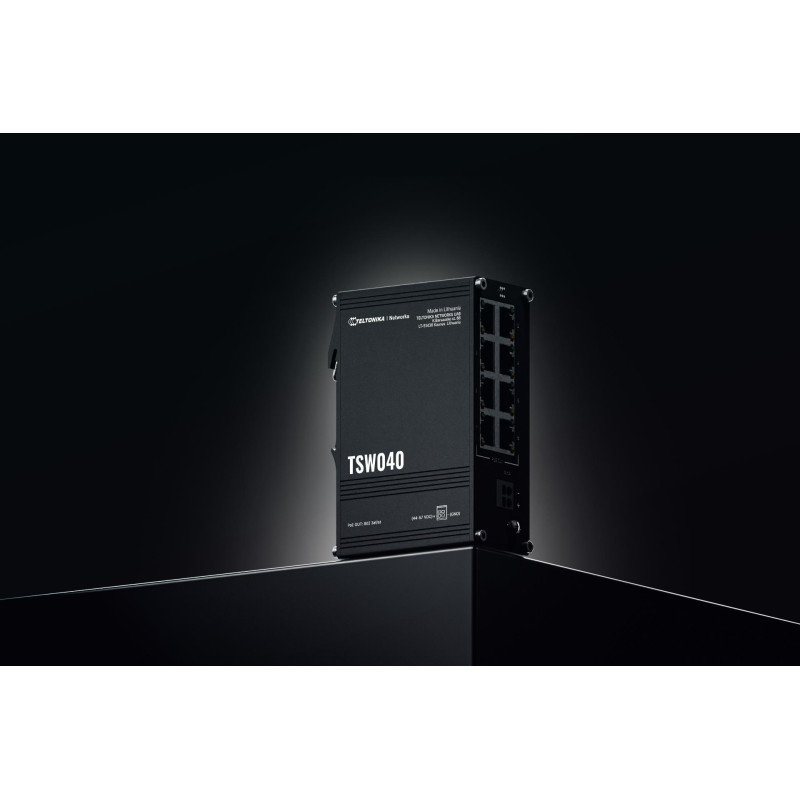

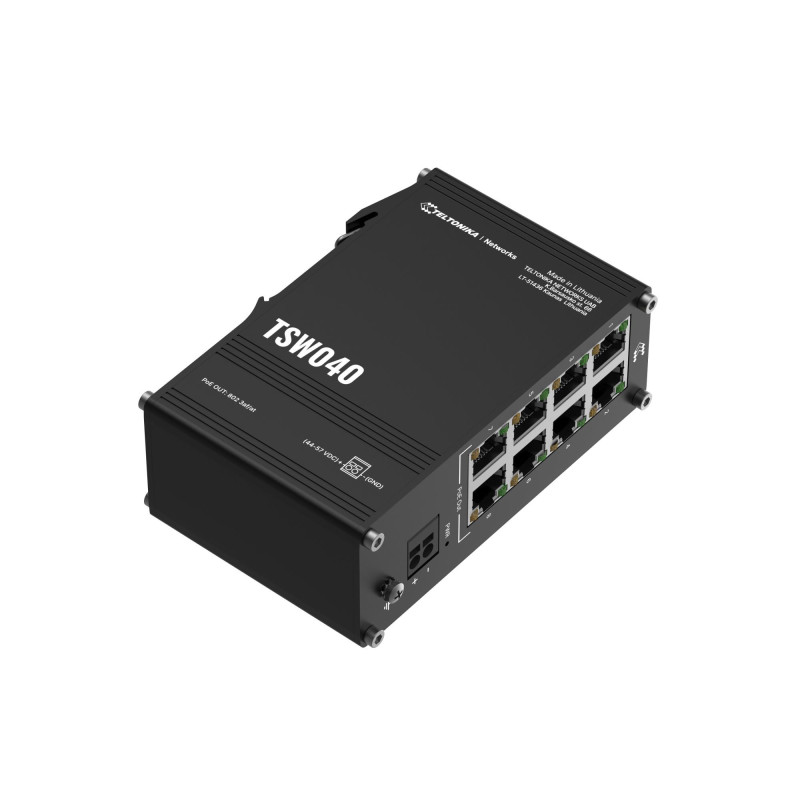

The TSW040 is an unmanaged 8-port PoE+ switch by Teltonika, featuring eight RJ45 ports with a total power budget of 240 W, or up to 30 W per port. This compact and rugged 8-port switch also features a 2-pin power input and an integrated DIN rail for easy mounting, making it ideal for industrial applications. The TSW040 has a wide voltage range of 7-57 VDC and a PoE-out voltage range of 44-57 VDC.

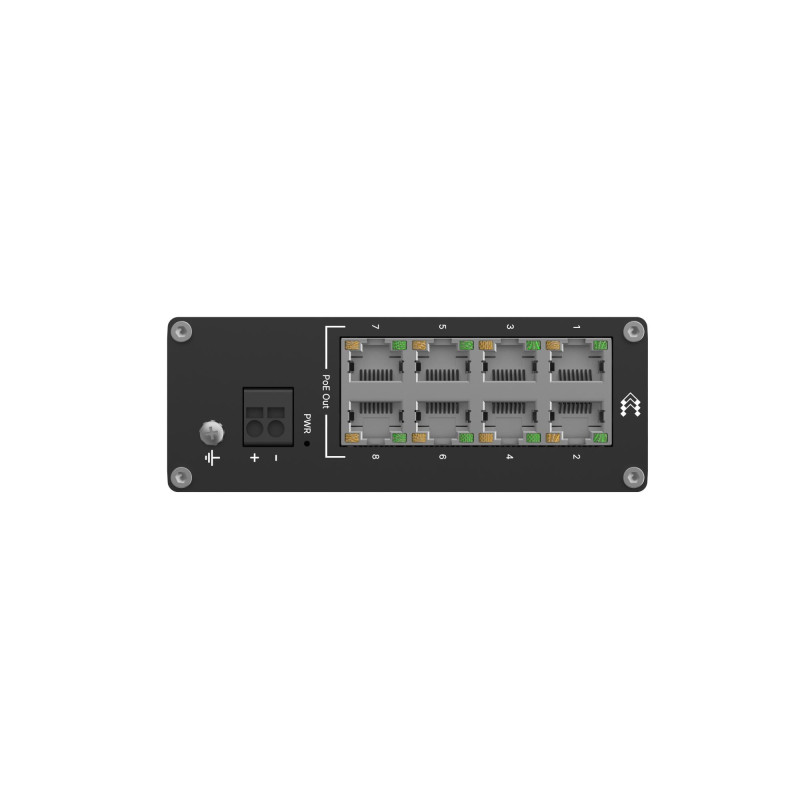

- 8 X POE-OUT RJ45
- Eight PoE-out Ethernet ports with a total power budget of 240 W
- 2-PIN POWER INPUT
- Simple and suitable for industrial applications

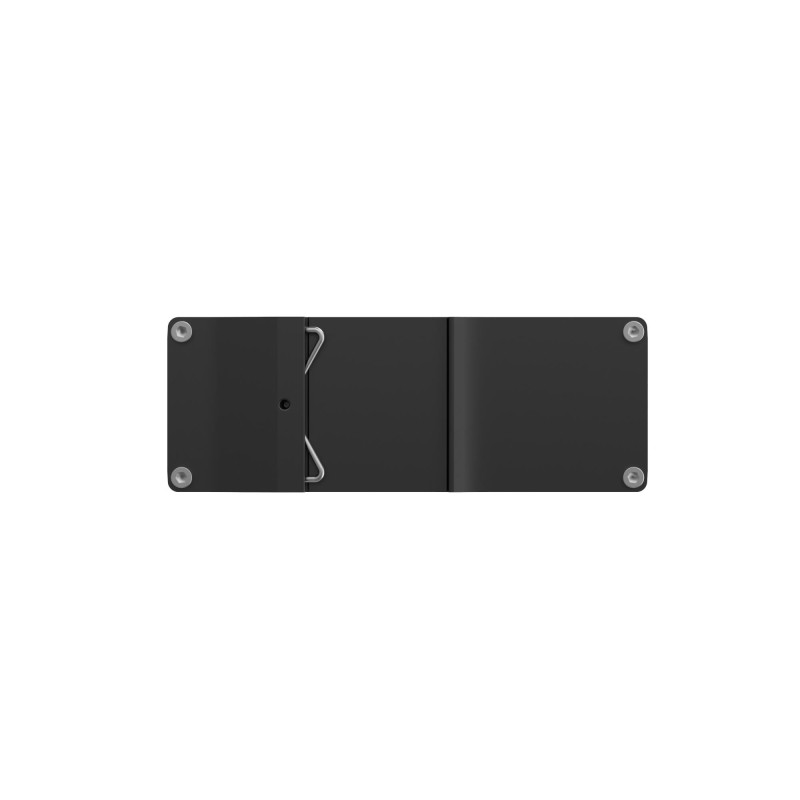

- INTEGRATED DIN RAIL
- Easy mounting for plug-and-play deployment
- WIDE VOLTAGE RANGE
- 7-57 VDC, or 44-57 VDC for PoE-out
| 10G support | No |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| DC input voltage | 7 - 57 V |
| Depth | 74.6 mm |
| Fast Ethernet (copper) ports quantity | 8 |
| Height | 41.2 mm |
| Housing material | Aluminium |
| LED indicators | Link/Power/Status |
| MAC address table | 2048 entries |
| Model | TSW040 |
| Model name | TSW040000000 |
| Networking standards | IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -40 - 75 °C |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) type supported | Active PoE |
| Power over Ethernet (PoE) voltage | 48 V |
| Power source | DC |
| Power supply included | No |
| Product colour | Black |
| Quick start guide | Yes |
| Rack mounting | No |
| Reset button | No |
| Stackable | No |
| Summary | Teltonika NETWORKS TSW040 8-Port PoE+ Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 2048 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 7 - 57 V. Power over Ethernet (PoE) |
| Switch type | Unmanaged |
| Switching capacity | 20 Gbit/s |
| Total Power over Ethernet (PoE) budget | 240 W |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.13 |
| Unit Box Width | 0.05 |
| Unit Calculated Volume | 0.00052 cubm |
| Unit Calculated Weight | 0.28 kg |
| Units per Shipping Box | 1 |
| Vendor Homepage | https://teltonika-networks.com/products/ethernet-switches/TSW040/ |
| Weight | 280 g |
| Width | 113.1 mm |
