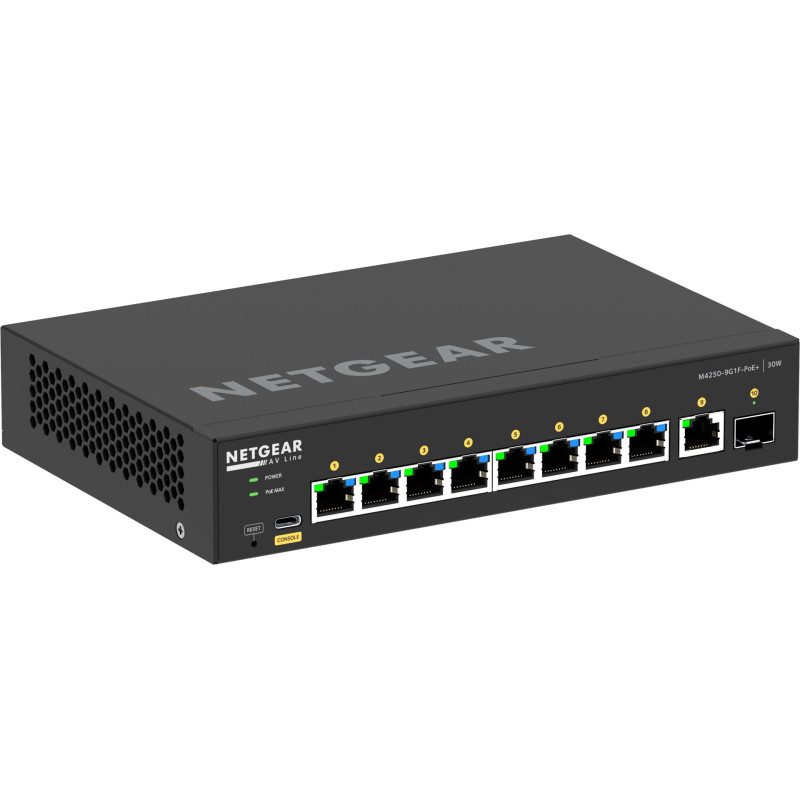

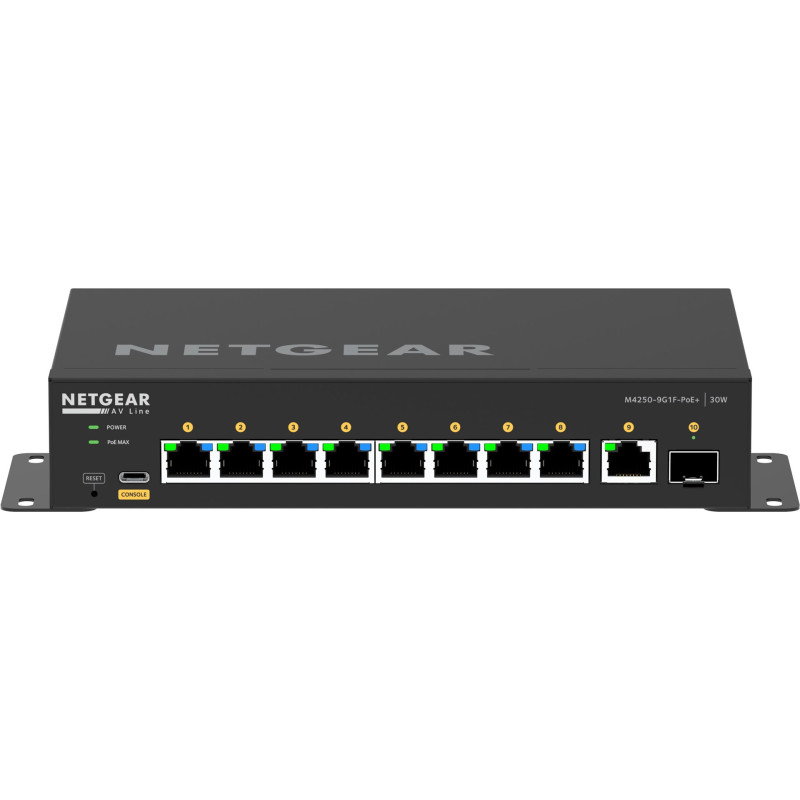

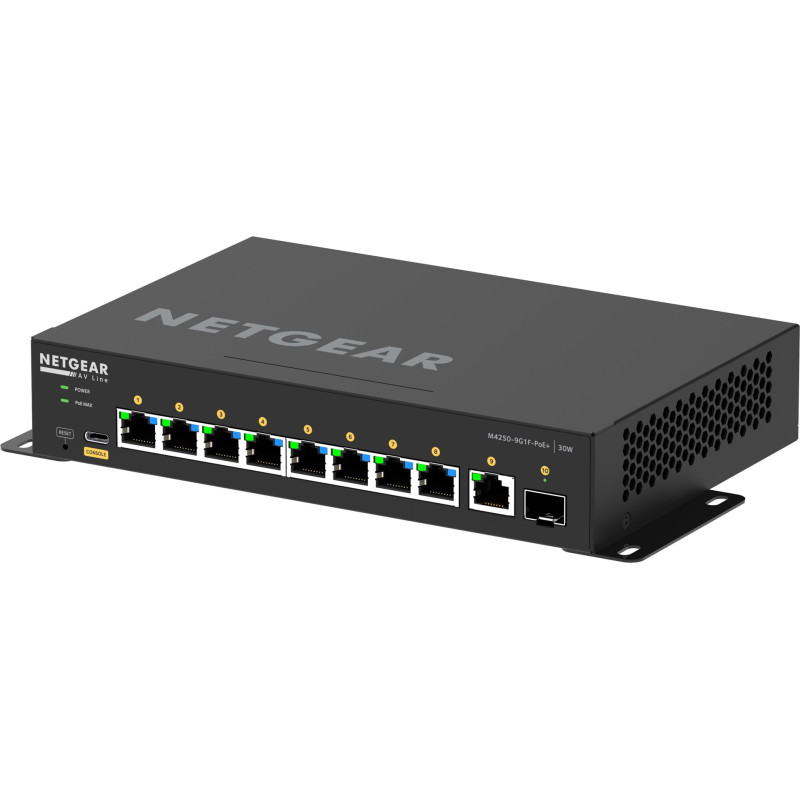

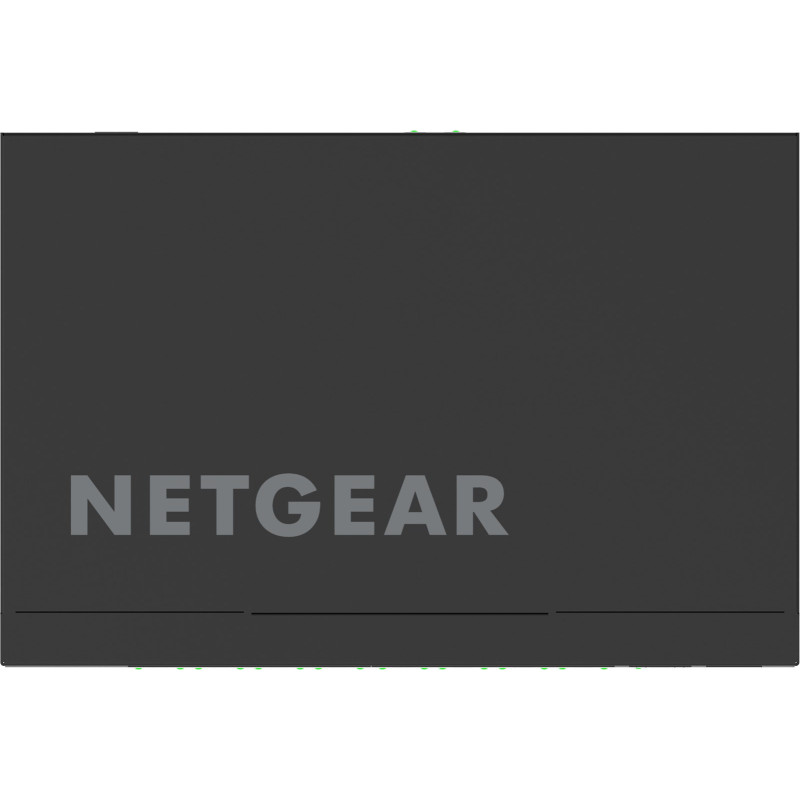

Switch - NETGEAR 8x1G PoE+ 110W 1x1G and 1xSFP Managed Switch
Product reference:
14-606449160192
The NETGEAR 8x1G PoE+ Managed Switch has 8 Gigabit Ethernet ports with a total PoE budget of 110W. It supports advanced features such as DHCP snooping, IGMP snooping, and has a switching capacity of 24 Gbit/s.
Switch - NETGEAR 8x1G PoE+ 110W 1x1G and 1xSFP Managed Switch
Product reference:
14-606449160192
The NETGEAR 8x1G PoE+ Managed Switch has 8 Gigabit Ethernet ports with a total PoE budget of 110W. It supports advanced features such as DHCP snooping, IGMP snooping, and has a switching capacity of 24 Gbit/s.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
NETGEAR 8x1G PoE+ 110W managed switch with 1xSFP
NETGEAR 8x1G PoE+ managed switch has 8 Gigabit Ethernet ports with a total PoE budget of 110W. It supports advanced features such as DHCP snooping, IGMP snooping, and has a switching capacity of 24 Gbit/s.
- 8 Gigabit Ethernet ports with PoE+ support (30W per port) and a total PoE budget of 110W.
- Managed switch with L2/L3 capabilities, supporting advanced security features such as DHCP snooping and MAC-based authentication.
- High performance with 24 Gbit/s switching capacity and 16,000 entries in the MAC address table.
- Reliable operating conditions: operating temperature range from 0 to 50 °C and storage temperature range from -20 to 70 °C.
- Compact design with dimensions of 210 mm (W) x 140 mm (D) x 40 mm (H) and weight of 967 g.
Design | |
|---|---|
| Rack mounting | Yes |
| Product color | Black |
| LED indicators | PoE, Power, Status |
Energy | |
| Energy source | AC/DC |
| AC input frequency | 50 - 60 Hz |
| Power supply included | Yes |
| AC input voltage | 220 - 240V |
Security | |
| DHCP functions | DHCP option 82, DHCP snooping, DHCPv6 relay, DHCP relay, DHCPv6 client, DHCPv6 snooping, DHCPv6 server, DHCP server |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Based on MAC, RADIUS |
| SSH/SSL support | Yes |
| Cycle protection | Yes |
Operating conditions | |
| Non-operating height | 0 - 3000 m |
| Storage relative humidity | 0 - 95% |
| Storage temperature | -20 - 70 °C |
| Operating temperature | 0 - 50 °C |
| Operating height | 0 - 3000 m |
| Heat dissipation | 559.555 BTU/h |
| Operating relative humidity | 0 - 90% |
Control functions | |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
Weight and dimensions | |
| Depth | 140mm |
| Weight | 967 grams |
| Height | 40mm |
| Width | 210 mm |
Network | |
| Network standards | IEEE 802.3at, IEEE 802.1x, IEEE 802.3bt, IEEE 802.1w, IEEE 802.3ad, IEEE 802.1s, IEEE 802.3af, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x 802.1ab |
| Fully duplex | Yes |
| Support for quick restrictions | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
Performance | |
| Processor frequency | 1250MHz |
| Processor model | ARM Cortex-A9 |
| Integrated processor | Yes |
| Internal memory | 2048MB |
| Noise level | 30.06 dB |
Packaging details | |
| User manual | Yes |
| User manual | Yes |
Ports and interfaces | |
| Main types of RJ-45 Ethernet ports | Gigabit Ethernet (10/100/1000) |
| Number of main RJ-45 Ethernet ports | 8 |
Data transfer | |
| MAC address table | 16000 entries |
| Switching capacity | 24 Gbps |
| Store-and-forward | Yes |
Power over Ethernet (PoE) | |
| Total PoE budget | 110W |
| Power over Ethernet (PoE) | Yes |
| PoE power per port | 30W |
| Number of PoE+ ports | 8 |
Multicast functions | |
| Multicast support | Yes |
| IPv4 multicast entries | 2000 |
| Height | 100mm |
| Length | 450mm |
| Weight | 1800g |
| Width | 350mm |
