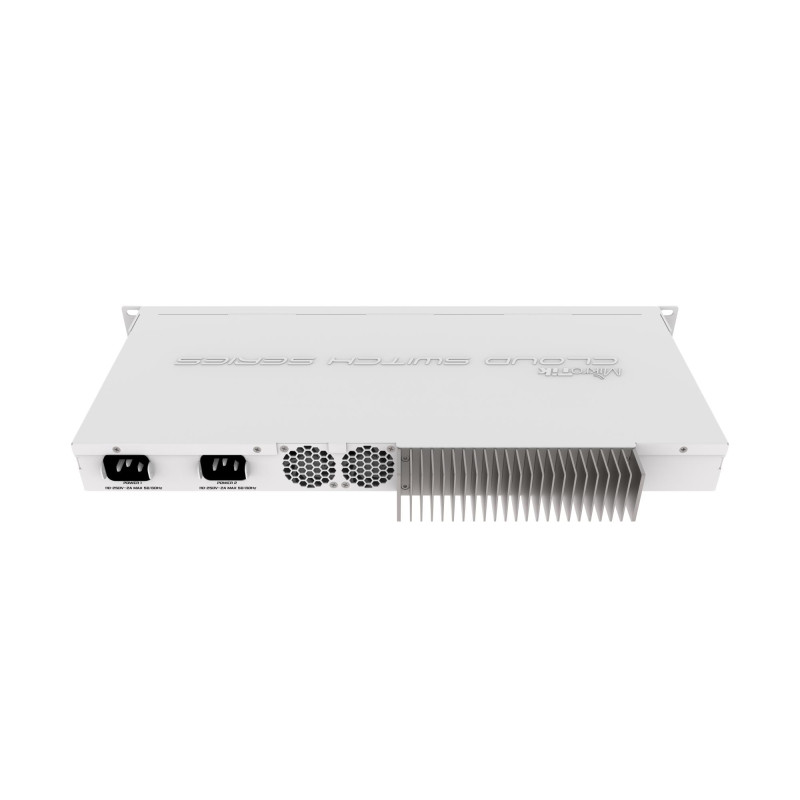

Switch, MIKROTIK, Type L3, CRS317-1G-16S+RM
Product reference:
2-4752224002167
Switch, MIKROTIK, Type L3, CRS317-1G-16S+RM
Product reference:
2-4752224002167
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
3 - 5
business days
The new Cloud Router Switch 317-1G-16S+RM is a rack-mountable manageable switch with Layer3 features, it has 16 SFP+ ports for high performance 10GbE connectivity and a 1GbE copper port for management.
CRS317-1G-16S+RM is powered by a next generation switching chip, giving you wire speed performance for all sixteen 10GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol and Link Aggregation (LACP) provide enhanced protection and true professional performance for your demanding network.
The unit has dual redundant power supplies and passive cooling case, so it's completely silent - for hot environments two redundant fans will automatically keep the system cool if needed.
| 10G support | Yes |
| AC input voltage | 110 - 240 V |
| Basic switching RJ-45 Ethernet ports type | No |
| Broadcast storm control | Yes |
| Built-in processor | Yes |

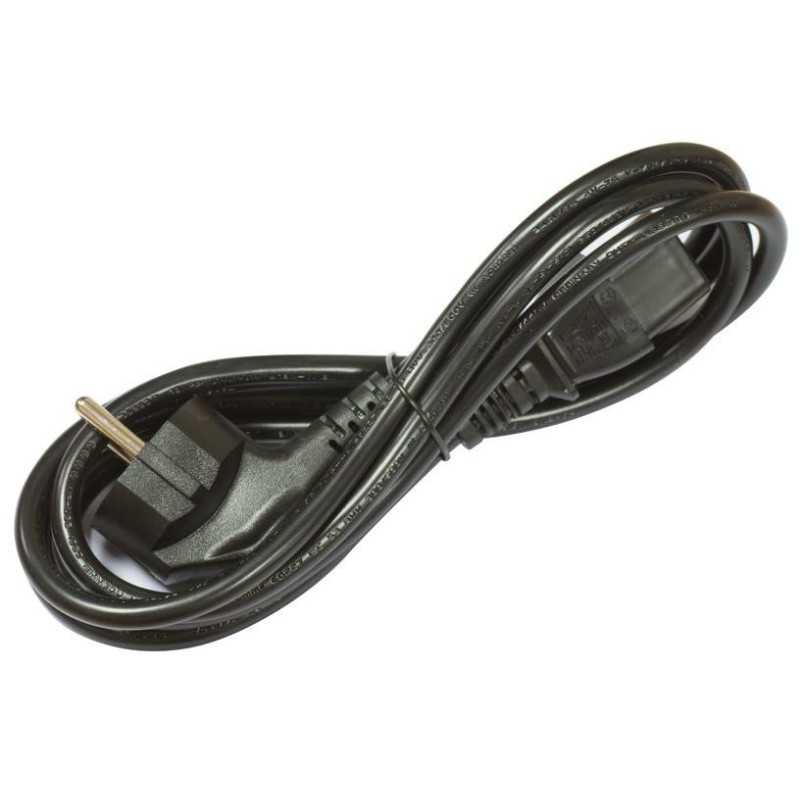

| Cables included | AC |
| Console port | RJ-45 |
| Depth | 224 mm |
| Flash memory | 1000 MB |
| Form factor | 1U |
| Gigabit Ethernet (copper) ports quantity | 1 |
| Harmonized System (HS) code | 85176990 |
| Height | 44 mm |
| Internal memory | 16 MB |
| LED indicators | Yes |
| Link aggregation | Yes |
| Memory type | Flash |

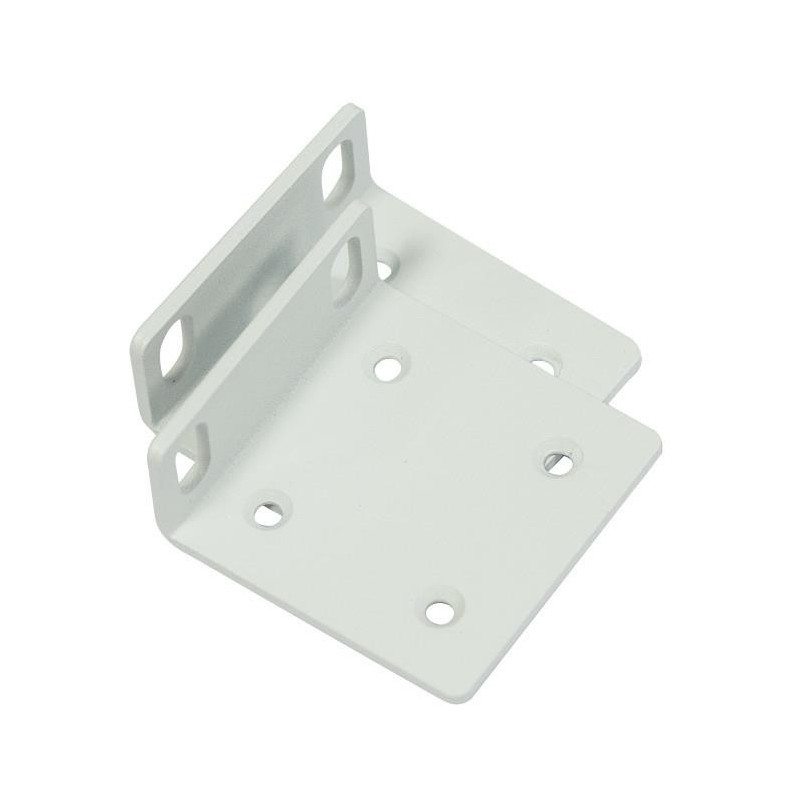

| Mounting brackets included | Yes |
| Networking standards | IEEE 802.1Q |
| Number of fans | 2 fan(s) |
| Number of power supply units | 2 |
| Number of VLANs | 4000 |
| Operating temperature (T-T) | -20 - 60 °C |
| Port mirroring | Yes |
| Power connector | DC-in jack |
| Power consumption (max) | 42 W |
| Power over Ethernet (PoE) | No |
| Processor frequency | 800 MHz |
| Product colour | Grey |
| Product Net Weight | 1.4 kg |
| Rack mounting | Yes |
| Reset button | Yes |
| Security algorithms | SNMPv2/SNMPv3 |
| SFP+ module slots quantity | 16 |
| Shipping Box Depth | 48 cm |
| Shipping Box Height | 29.5 cm |
| Shipping Box Weight | 2.43 kg |
| Shipping Box Width | 6 cm |
| Spanning tree protocol | Yes |
| Summary | Mikrotik CRS317-1G-16S+RM. Switch type: Managed, Switch layer: L3. Console port: RJ-45. Networking standards: IEEE 802.1Q. Power connector: DC-in jack. Rack mounting, Form factor: 1U |
| Switch layer | L3 |
| Switch type | Managed |
| Unit Box Height | 0.06 |
| Unit Box Length | 0.48 |
| Unit Box Width | 0.29 |
| Unit Calculated Volume | 0.008496 cubm |
| Unit Calculated Weight | 2.43 kg |
| Unit Depth | 48 cm |
| Unit Height | 6 cm |
| Unit Width | 29 cm |
| Units per Shipping Box | 1 |
| User guide | Yes |
| Vendor Homepage | https://mikrotik.com/product/crs317_1g_16s_rm |
| VLAN support | Yes |
| Web-based management | Yes |
| Width | 443 mm |
