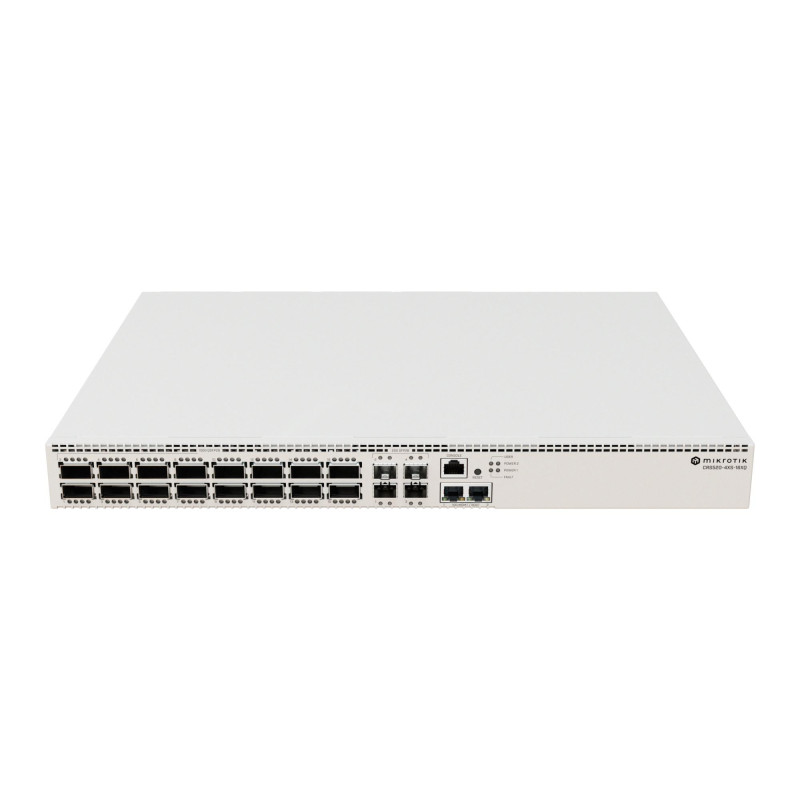

Switch, MIKROTIK, CRS520-4XS-16XQ-RM, Desktop / pedestal, 16xQSFP28, 4xSFP28, 1xConsole, CRS520-4XS-16XQ-RM
Product reference: 2-4752224009265

Switch, MIKROTIK, CRS520-4XS-16XQ-RM, Desktop / pedestal, 16xQSFP28, 4xSFP28, 1xConsole, CRS520-4XS-16XQ-RM

Product reference: 2-4752224009265
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
1 752,81
1 788,58 €
Product in warehouse

Guarantee
12 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

Welcome to the forefront of networking: the future-proof CRS520-4XS-16XQ-RM with extra processing power, 4 GB of DDR4 RAM, and the best price per 100 Gigabit port we've seen so far.

With 16x 100 Gigabit QSFP28 ports, 4x 25 Gigabit SFP28 ports, and an extra pair of 10 Gigabit Ethernet ports, this switch can bring a lot of value to complicated enterprise networks, data centers, multimedia studios, and other setups where you would typically use several devices. Now - a single CRS520 can do the trick!

Avid CCR users might recognize the powerful quad-core ARM CPU running at 2 GHz, and ask - why would a switch need all that power? Two reasons:

1) CRS520 is more than a switch. You can run OSPF/BGP, out-of-band/management VPNs, ACLs, Jumbo frames and even L3HW Offloaded routing;

2) Future-proofing: as our friends at Marvell keep expanding the capabilities of their spectacular switch-chips, our in-house software team is busy exploring ways to add even more Hardware Offloaded features. You can expect software updates that will take the CRS520 to the next level! And all that without any paywalls or subscriptions.

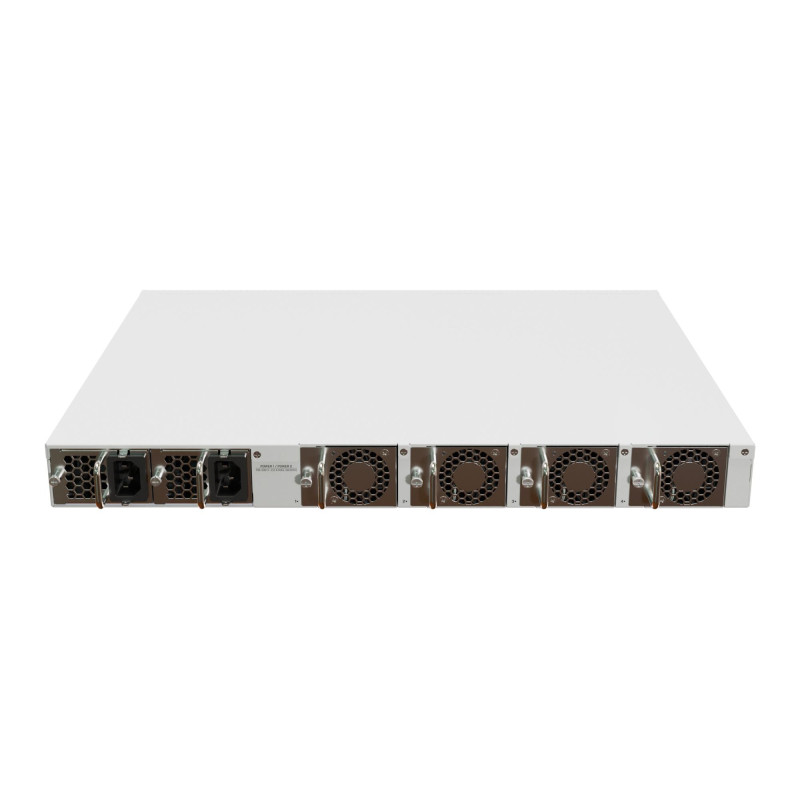

Two hot-swap power supplies and four hot-swap fans for cooling are included. This switch can also be powered by the PW48V-12V150W Hot Swap -48V DC telecom power supply, available separately.


10G Ethernet (copper) ports quantity 2
10G support Yes
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Built-in processor Yes
Compliance certificates CE/EAC/RoHS
Console port RJ-45
Depth 367 mm
Flash memory 128 MB
Height 44 mm
Internal memory 4000 MB
Mean time between failures (MTBF) 200000 h
Memory type Flash
Model name CRS520-4XS-16XQ-RM
Operating system installed RouterOS
Operating temperature (T-T) -20 - 50 °C
Power consumption (max) 150 W
Power over Ethernet (PoE) No
Power source AC
Power supply included Yes
Processor frequency 2000 MHz
Product Net Weight 6 kg
QSFP28 ports quantity 16
Rack mounting Yes
SFP28 ports quantity 4
Shipping Box Depth 63 cm
Shipping Box Height 10.5 cm
Shipping Box Weight 6.85 kg
Shipping Box Width 45 cm
Summary Mikrotik CRS520-4XS-16XQ-RM. Console port: RJ-45. Rack mounting
Unit Box Height 0.105
Unit Box Length 0.63
Unit Box Width 0.45
Unit Calculated Volume 0.02977 cubm
Unit Calculated Weight 6.85 kg
Units per Shipping Box 1
Vendor Homepage https://mikrotik.com/product/crs520_4xs_16xq_rm#fndtn-specifications
Width 443 mm
