Switch, MIKROTIK, CRS328-4C-20S-4S+RM, Type L2, Rack 1U, 4x10 / 100 / 1000BASE-T / SFP combo, 20xSFP, 4xSFP+, 1xRJ45, CR
Product reference:
2-4752224002242
Switch, MIKROTIK, CRS328-4C-20S-4S+RM, Type L2, Rack 1U, 4x10 / 100 / 1000BASE-T / SFP combo, 20xSFP, 4xSFP+, 1xRJ45, CR
Product reference:
2-4752224002242
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
3 - 5
business days
The CRS328-4C-20S-4S+RM is a 28 independent port switch with a combo group. This device has twenty SFP ports, four SFP+ ports for 10G modules and four combo ports, where you can choose to use SFP or RJ45 ports from the combo group. These ports can also be software selected, so if you have plugged in all eight cables, you can use scripting, to decide which four combo ports will be active.

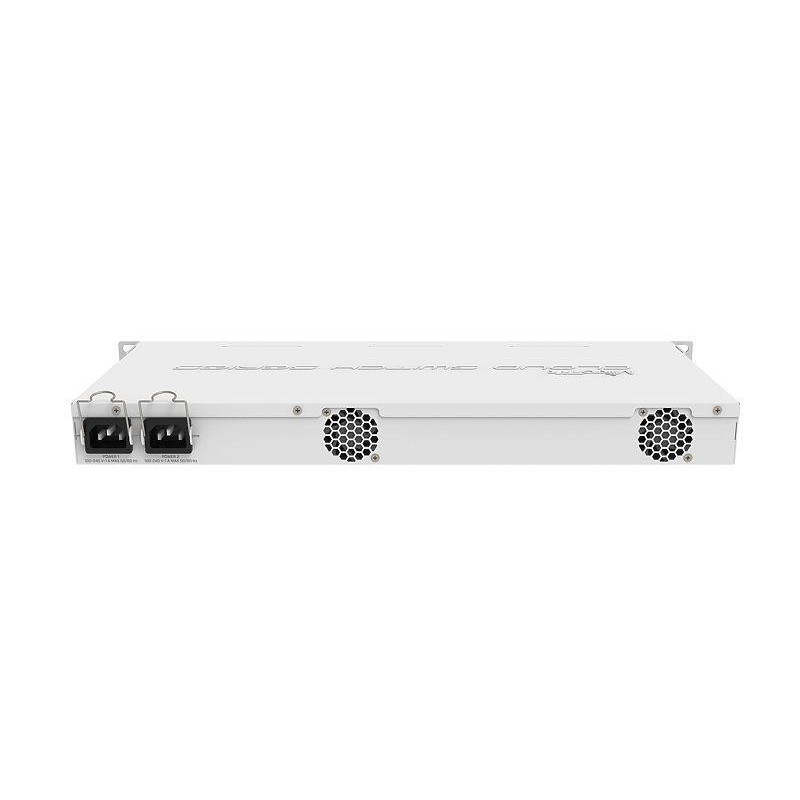

The device comes in a 1U rackmount case with two 100-240 V power supplies with failover functionality. A RJ45 console port is available for management and debugging, and a mode button can be customised to execute any RouterOS commands.
The device has a "Dual boot" feature that allows you to choose between two operating systems - RouterOS or SwOS.
| 10G support | Yes |
| AC input voltage | 100 - 240 V |
| Access Control List (ACL) | Yes |
| Broadcast storm control | Yes |
| Built-in processor | Yes |
| Cables included | AC |
| Combo SFP ports quantity | 4 |
| Console port | RJ-45 |
| Depth | 44 mm |
| Flash memory | 16 MB |
| Form factor | 1U |
| Forwarding rate | 95.2 Mpps |
| Height | 200 mm |
| IGMP snooping | Yes |
| Internal memory | 512 MB |
| Jumbo frames | 10218 |
| Jumbo frames support | Yes |
| LED indicators | Yes |
| Link aggregation | Yes |
| MAC address table | 16000 entries |
| Model name | CRS328-4C-20S-4S+RM |
| Networking standards | IEEE 802.1Q/IEEE 802.3ad |
| Number of power supply units | 1 |
| Operating temperature (T-T) | -20 - 60 °C |
| Port mirroring | Yes |
| Power consumption (max) | 43 W |
| Power over Ethernet (PoE) | No |
| Power supply included | Yes |
| Processor frequency | 800 MHz |
| Product colour | White |
| Product Net Weight | 1.7 kg |
| Rack mount kit | Yes |
| Rack mounting | Yes |
| SFP module slots quantity | 20 |
| SFP+ module slots quantity | 4 |
| Shipping Box Depth | 50.5 cm |
| Shipping Box Height | 34.5 cm |
| Shipping Box Weight | 15.1700000762939 kg |
| Shipping Box Width | 39 cm |
| Summary | Mikrotik CRS328-4C-20S-4S+RM. Switch type: Managed, Switch layer: L2/L3. Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.3ad. Rack mounting, Form factor: 1U |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Switching capacity | 128 Gbit/s |
| Unit Box Height | 0.31 |
| Unit Box Length | 0.495 |
| Unit Box Width | 0.06 |
| Unit Calculated Volume | 0.01132 cubm |
| Unit Calculated Weight | 2.53 kg |
| Units per Shipping Box | 6 |
| Vendor Homepage | https://mikrotik.com/ |
| VLAN support | Yes |
| Width | 443 mm |
