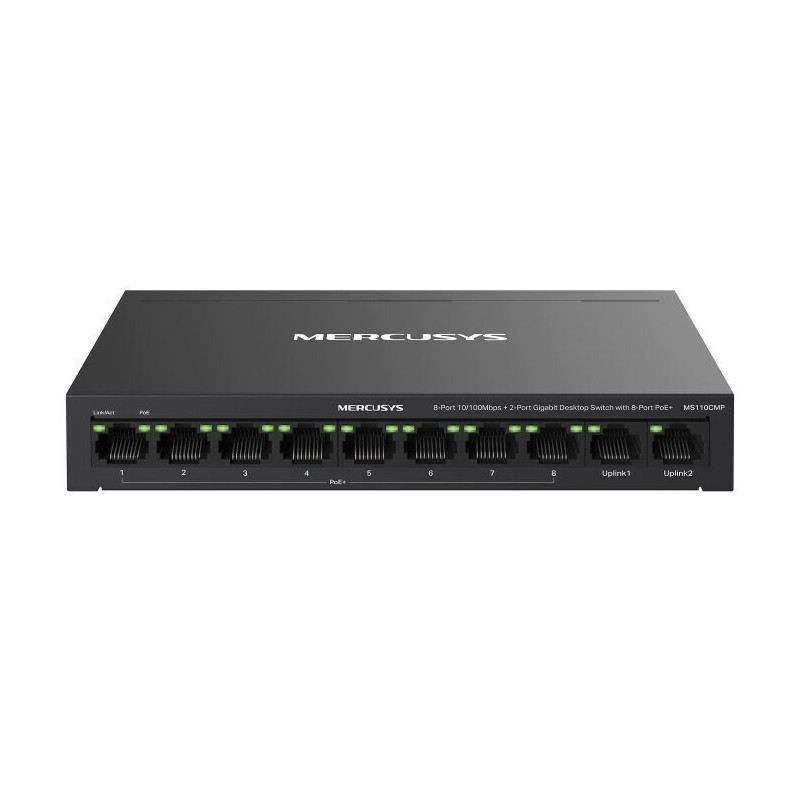

Switch - Mercusys MS110CMP 10-Port PoE 115W Mountable Black
Product reference:
14-6957939003678
The Mercusys MS110CMP network switch has 10 RJ-45 Ethernet ports and supports Power over Ethernet (PoE) with a total power of 115 W. It operates at Ethernet LAN data rates of 10, 100 and 1000 Mbit/s and can be wall-mounted.
Switch - Mercusys MS110CMP 10-Port PoE 115W Mountable Black
Product reference:
14-6957939003678
The Mercusys MS110CMP network switch has 10 RJ-45 Ethernet ports and supports Power over Ethernet (PoE) with a total power of 115 W. It operates at Ethernet LAN data rates of 10, 100 and 1000 Mbit/s and can be wall-mounted.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Mercusys MS110CMP Network Switch with PoE Support Black
The Mercusys MS110CMP network switch has 10 standard RJ-45 Ethernet ports and supports Power over Ethernet (PoE) with a total budget of 115 W. It operates at Ethernet LAN data rates of 10, 100 and 1000 Mbit/s and can be wall-mounted.
- Supports Power over Ethernet (PoE) with a total budget of 115 W for efficient device connection.
- Has 10 Gigabit Ethernet ports for fast networking and smooth data transfer.
- Compact design with wall mounting option, perfect for saving space.
- Operates over a wide range of temperatures (0 - 40 °C) and humidity levels (10 - 90%) for versatile use.
Design | |
|---|---|
| Can be mounted one on top of the other | No |
| Can be mounted on the wall | Yes |
| Can be mounted in a frame | No |
| Product color | Black |
Power | |
| DC input voltage | 53.5V |
| Input current | 1.31 A |
| AC input voltage | 220V |
| AC input frequency | 50Hz |
| Power source | AC |
| Power supply included | Yes |
Operating conditions | |
| Storage relative humidity (HH) | 5 - 95% |
| Operating temperature (OT) | 0 - 40 °C |
| Operating relative humidity (HH) | 10 - 90% |
| Storage temperature (TT) | -40 - 70 °C |
Weight and dimensions | |
| Height | 27 mm |
| Width | 171 mm |
| Depth | 98 mm |
Network | |
| Auto MDI/MDI-X | Yes |
| Network standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Auto-tuning | Yes |
| 10G support | No |
Ports and interfaces | |
| Number of Gigabit Ethernet (copper) ports | 2 |
| Number of standard RJ-45 Ethernet ports | 10 |
| Type of standard RJ-45 Ethernet ports | Gigabit Ethernet (10/100/1000) |
Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 115W |
Safety warning | |
| Warnings | Ensure that the device is properly ventilated during operation. The product is not suitable for disposal in the normal waste container. Take used electronic equipment to a recycling center in accordance with local regulations. Do not open the casing or attempt to repair it yourself. |
| Height | 100mm |
| Length | 200mm |
| Weight | 800g |
| Width | 250mm |
