More Efficient Transmission
8-Port 10/100/1000 Mbps Desktop Switch

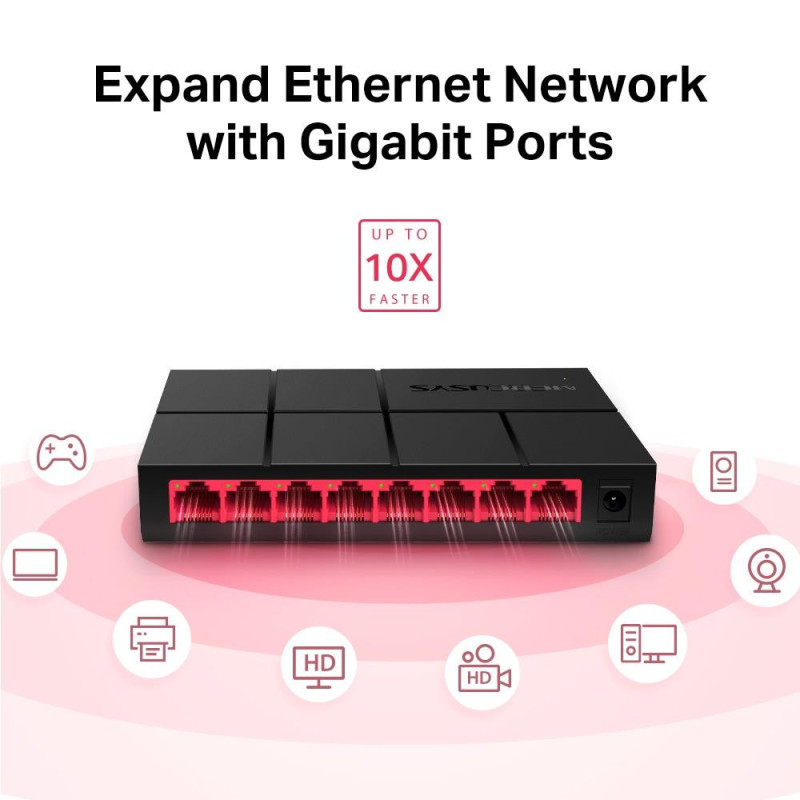

Expand Ethernet Network with Gigabit Ports
Quickly expand your wired network with eight 10/100/1000 Mbps Ethernet ports—10 times faster than regular 10/100 Mbps Ethernet ports. MS108G is flexible and fully compatible with 4K Ultra HD TVs, computers, printers, IP cameras, game consoles, and more. This makes it perfect for use in home, small office, and even dormitory environments.

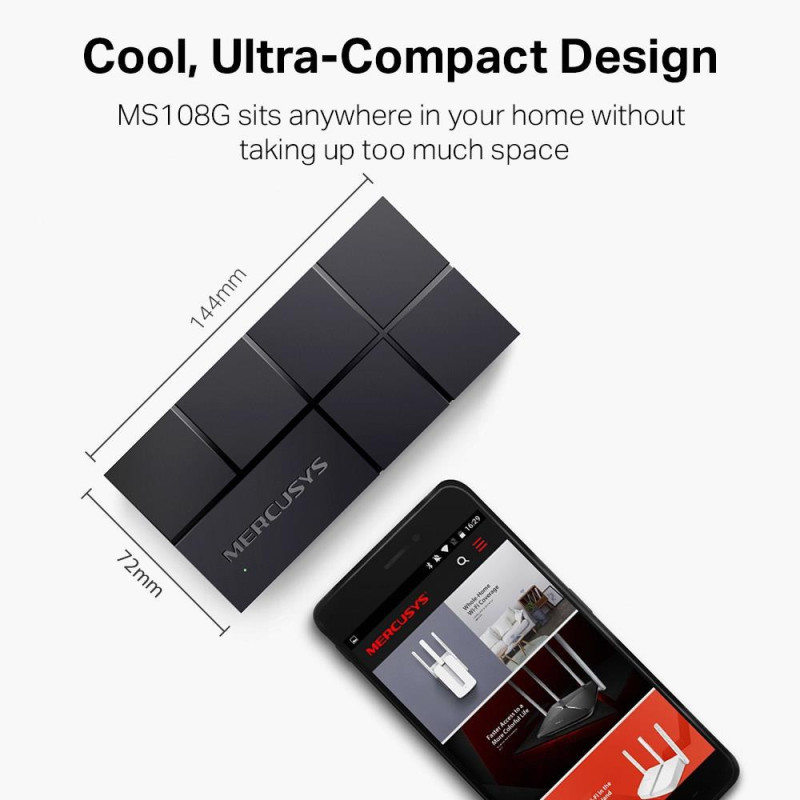

Cool, Ultra-Compact Design
A sleek, square build with a cool red and black color combination provides a high-tech look and feel. About the same size as a smartphone, MS108G sits anywhere in your home without taking up too much space.

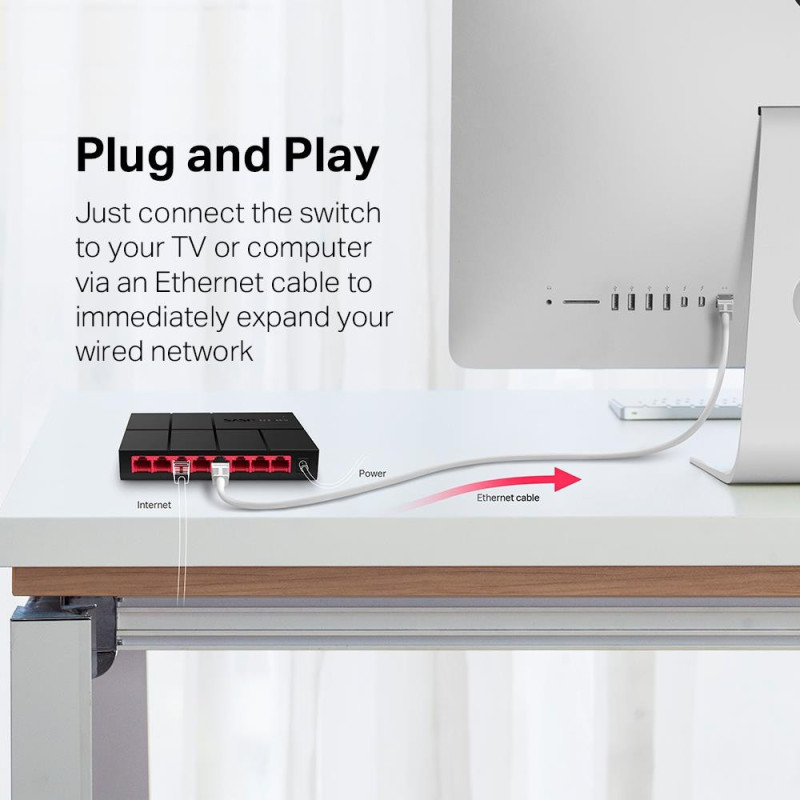

Plug and Play
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.
Reliable Performance
With Half/Full Duplex and MAC Address Learning Technology, every unit undergoes extensive testing prior to shipment to ensure it will provide reliable, uninterrupted connections for years to come.
Go Green with Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! MS108G features the latest innovative energy-efficient technologies to greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Depth | 72.3 mm |
| Full duplex | Yes |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Half duplex | Yes |
| Harmonized System (HS) code | 85176990 |
| Height | 25 mm |
| Input current | 0.6 A |
| Input voltage | 9 V |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| LED indicators | LAN/Power |
| Model name | 8-Port 10/100/1,000 Mbps Desktop Switch |
| Networking standards | IEEE 802.3/IEEE 802.3u/IEEE 802.3x |
| Package depth | 93 mm |
| Package height | 62 mm |
| Package weight | 250 g |
| Package width | 149 mm |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | No |
| Power source | DC |
| Power supply included | Yes |
| Product colour | Black |
| Product Net Weight | 0.1 kg |
| Rack mounting | No |
| Shipping Box Depth | 47 cm |
| Shipping Box Height | 34 cm |
| Shipping Box Weight | 15.4 kg |
| Shipping Box Width | 39 cm |
| Stackable | No |
| Store-and-forward | Yes |
| Summary | Mercusys 8-Port 10/100/1,000 Mbps Desktop Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex, Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack |
| Switch type | Unmanaged |
| Unit Box Height | 0.095 |
| Unit Box Length | 0.15 |
| Unit Box Width | 0.065 |
| Unit Calculated Volume | 0.001039 cubm |
| Unit Calculated Weight | 0.257 kg |
| Unit Depth | 15 cm |
| Unit Height | 9.5 cm |
| Unit Width | 6.5 cm |
| Units per Shipping Box | 60 |
| Vendor Homepage | https://www.mercusys.com/uk/product/details/ms108g |
| Width | 144.8 mm |
