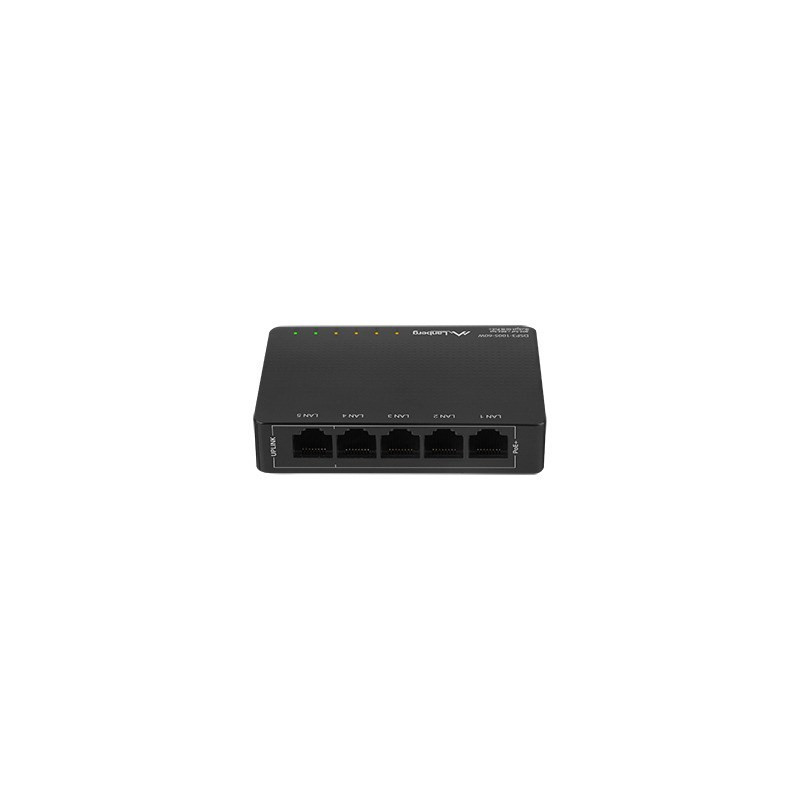

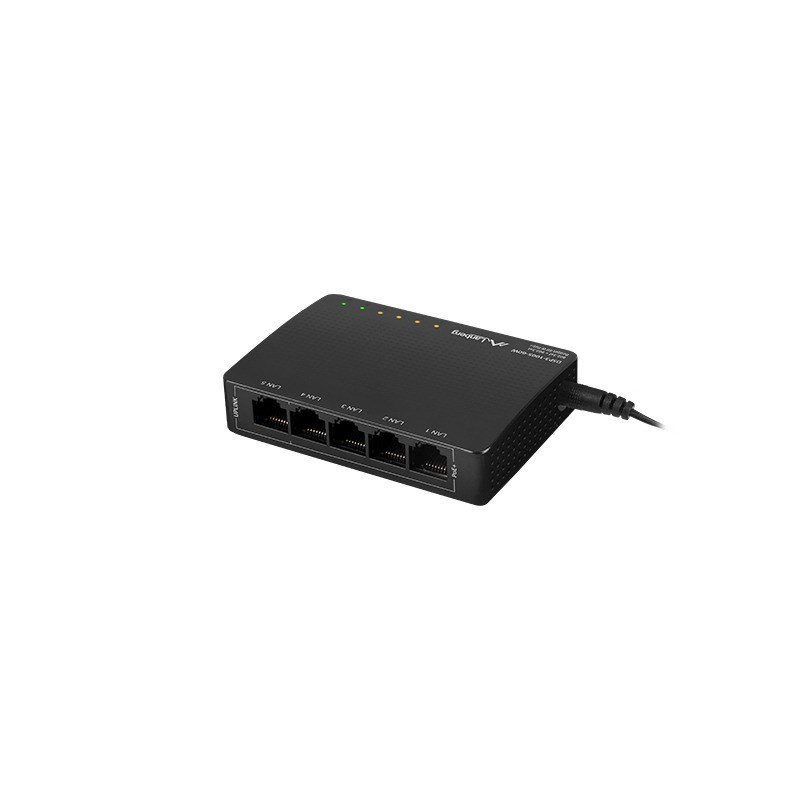

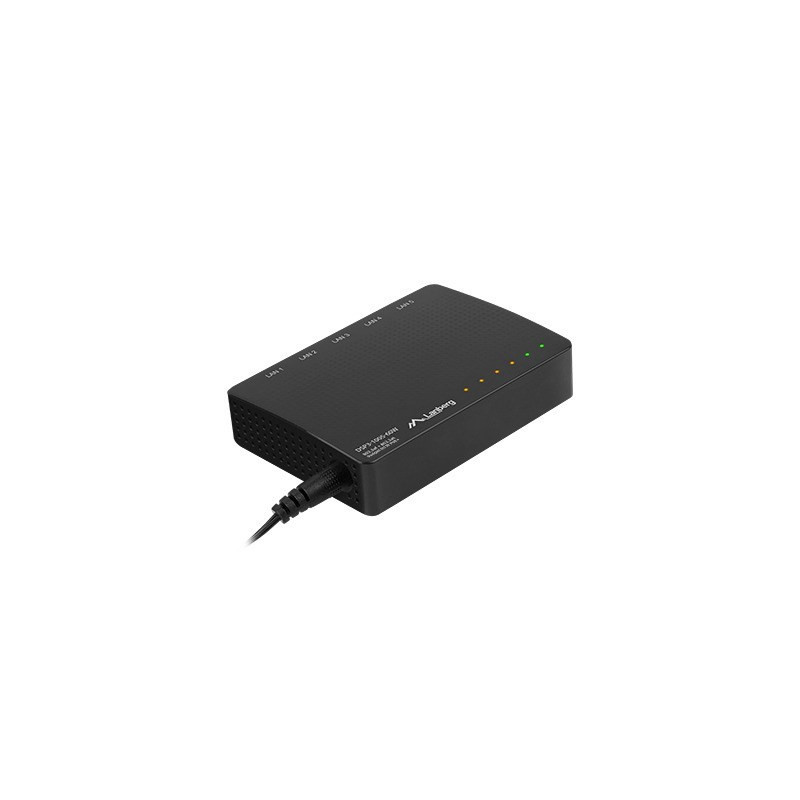

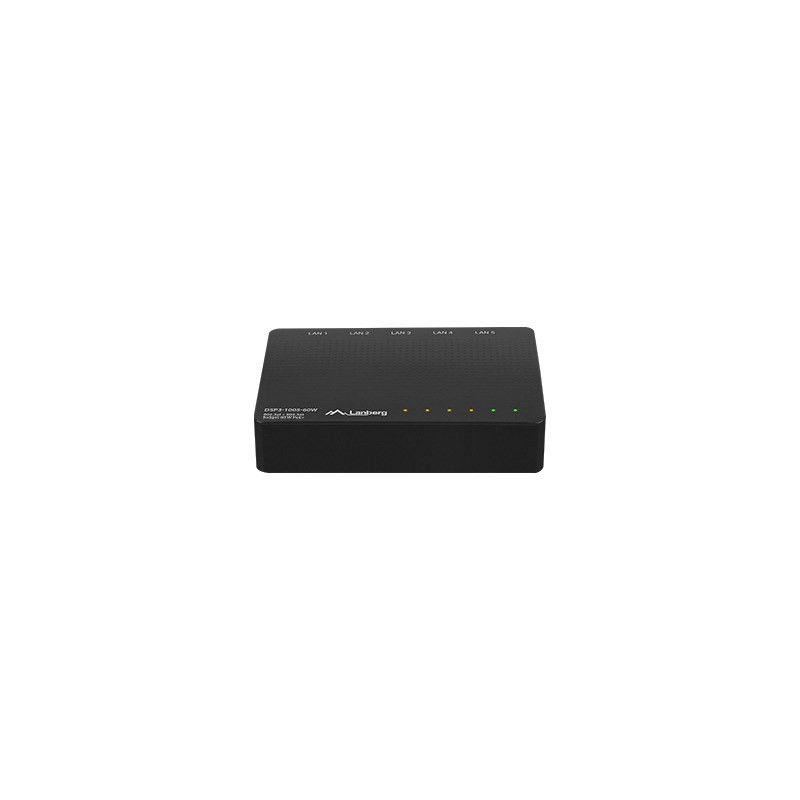

Switch - Lanberg PoE Switch DSP3-1005-60W (5 Ports, 1 Gb/s)
Product reference:
14-5901969427790
The Lanberg PoE switch DSP3-1005-60W with 5 Gigabit Ethernet ports and a 60 W PoE+ budget provides up to 30 W per port, allowing for efficient network traffic management.
Switch - Lanberg PoE Switch DSP3-1005-60W (5 Ports, 1 Gb/s)
Product reference:
14-5901969427790
The Lanberg PoE switch DSP3-1005-60W with 5 Gigabit Ethernet ports and a 60 W PoE+ budget provides up to 30 W per port, allowing for efficient network traffic management.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Ethernet Switch - Lanberg Switch, White
The Lanberg PoE switch DSP3-1005-60W is a compact, unmanaged device with five 1 Gb/s Ethernet ports and Power over Ethernet (PoE) support.
Main features
- 5 x Gigabit Ethernet ports
- Supports PoE+ with 60W budget and up to 30W power per port
- Multicast and full duplex support
Complies with network standards: IEEE 802.3af, IEEE 802.3u, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3z, IEEE 802.1Q and IEEE 802.3x.
Technical specifications: AC input frequency 50 / 60 Hz, maximum power consumption 65 W, operating temperature range from 0 to 40 °C.
Design | |
|---|---|
| LED indicators | Yes |
| Housing | Plastic |
| Product color | Black |
Power | |
| AC input frequency | 50 / 60 Hz |
| Power (max) | 65W |
| AC input voltage | 100 - 240V |
| Output current | 3 A |
Operating conditions | |
| Operating temperature (OT) | 0 - 40 °C |
Control functions | |
| Switch type | Uncontrollable |
Weight and dimensions | |
| Height | 22.3 mm |
| Width | 65.7 mm |
| Depth | 93 mm |
Network | |
| MAC address automatic aging is supported | Yes |
| Network standards | IEEE 802.3af, IEEE 802.3u, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3x |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Copper Ethernet cable technologies | 10BASE-T, 100BASE-TX, 1000BASE-T |
| MAC address auto-learning supported | Yes |
| Data flow control support | Yes |
Ports and interfaces | |
| Main types of RJ-45 Ethernet ports | Gigabit Ethernet (10/100/1000) |
| Number of main RJ-45 Ethernet ports | 5 |
Data transfer | |
| Connection capacity | 10 Gbps |
| MAC address table | 2048 entries |
Power over Ethernet (PoE) | |
| PoE type support | PoE+ |
| Number of PoE+ ports | 4 |
| PoE power per port | 30W |
| Total PoE budget | 60W |
| Power over Ethernet (PoE) | Yes |
| Height | 100mm |
| Length | 450mm |
| Weight | 1200g |
| Width | 350mm |
