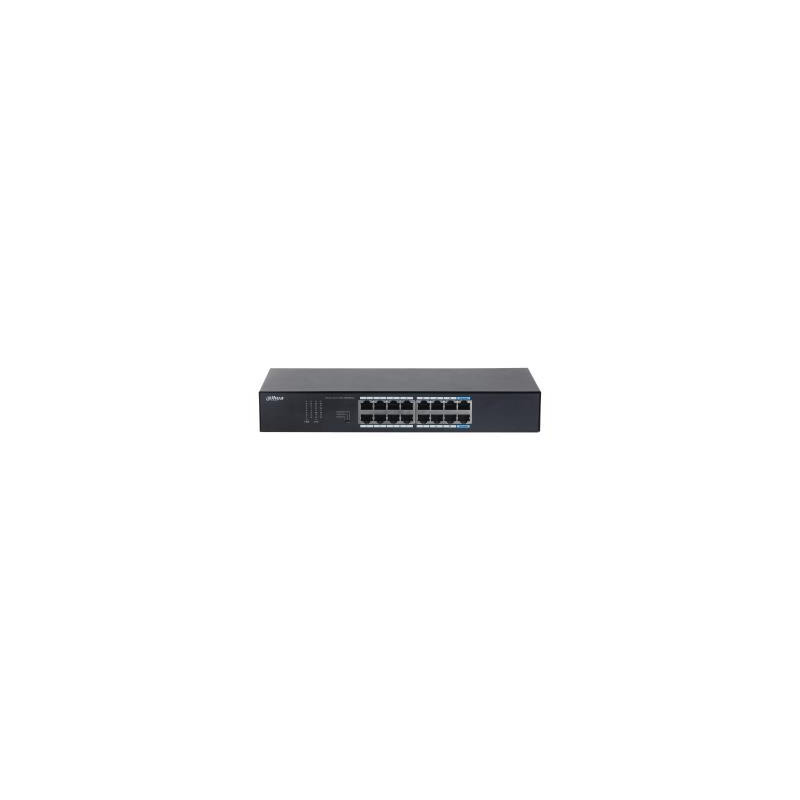

Switch, DAHUA, S3016-16GT, Switch type Unmanaged, 16xRJ-45 ports, S3016-16GT
Product reference:
2-6939554932632
Switch, DAHUA, S3016-16GT, Switch type Unmanaged, 16xRJ-45 ports, S3016-16GT
Product reference:
2-6939554932632
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
- > 16 × RJ-45 10/100/1000 ports.
- > The all-gigabit ports transmit data without lag.
- > Features aggregation mode which aggregates uplink ports.
- > Features isolation mode which isolates all the ports from each other.
- > With its solid full metal design, the device has great heat dissipation and no fan.
- > Supports rack mount, wall mount and desktop mount.
| 10G support | No |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology | 1000BASE-T/100BASE-TX/10BASE-T |
| Depth | 119 mm |
| Form factor | Desktop/Wall-Mounting |
| Forwarding rate | 23.8 Mpps |
| Height | 44 mm |
| Housing material | Metal |
| Input current | 0.4 A |
| Jumbo frames | 12000 |
| Jumbo frames support | Yes |
| LED indicators | Yes |
| MAC address table | 16000 entries |
| Model name | S3016-16GT |
| Networking standards | IEEE 802.3/IEEE 802.3ab/IEEE 802.3u |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Package depth | 215 mm |
| Package height | 75 mm |
| Package weight | 1297 g |
| Package width | 353 mm |
| Packet buffer memory | 8.4 MB |
| Power consumption (typical) | 7.8 W |
| Power over Ethernet (PoE) | No |
| Power source | DC |
| Power supply included | Yes |
| Product colour | Black |
| Rack mounting | Yes |
| Summary | Dahua Technology S3016-16GT. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 16000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Rack mounting, Form factor: Desktop/Wall-Mounting |
| Switch layer | L2 |
| Switch type | Unmanaged |
| Switching capacity | 32 Gbit/s |
| Unit Box Height | 0.075 |
| Unit Box Length | 0.355 |
| Unit Box Width | 0.215 |
| Unit Calculated Volume | 0.005724 cubm |
| Unit Calculated Weight | 1.4 kg |
| Units per Shipping Box | 1 |
| Vendor Homepage | https://transmission.dahuasecurity.com/fr/product-list/Business/Switches/AccessSwitch/S3016-16GT |
| Weight | 740 g |
| Width | 294 mm |
