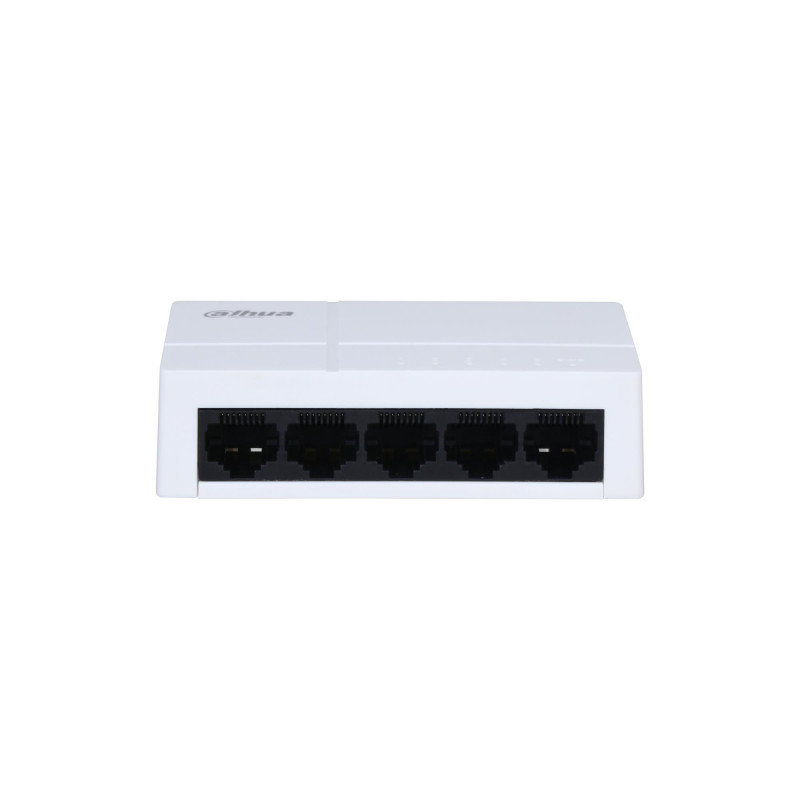

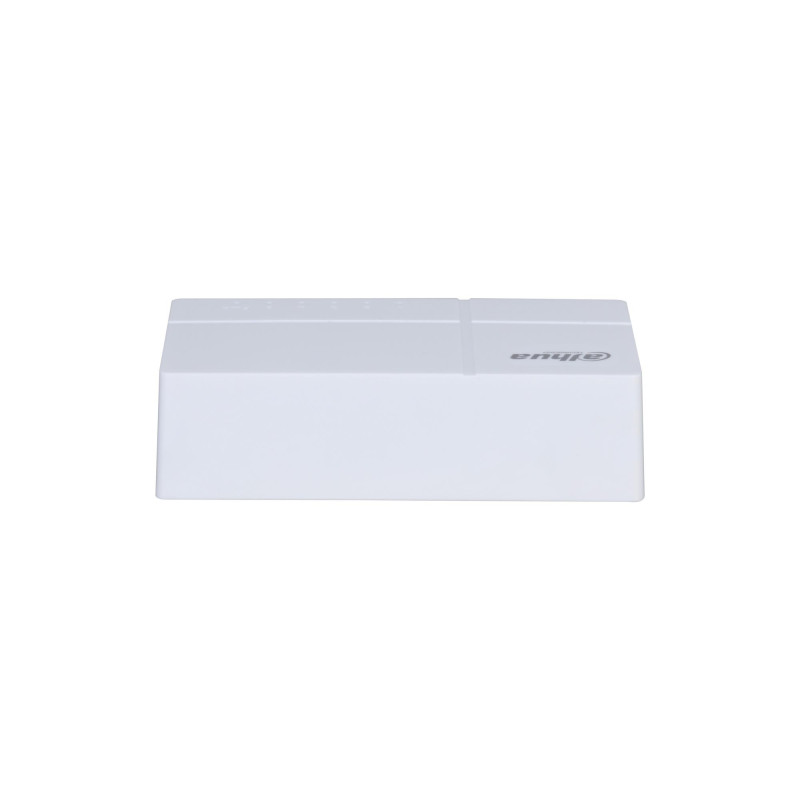

Switch, DAHUA, PFS3005-5GT-L-V2, Type L2, DH-PFS3005-5GT-L-V2
Product reference:
2-6923172582010
Switch, DAHUA, PFS3005-5GT-L-V2, Type L2, DH-PFS3005-5GT-L-V2
Product reference:
2-6923172582010
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Not available
TINKLAS:
5 ports 10/100/1000 Mbps
The Device is a layer-2 commercial switch. It has a high-performance
switching engine and a large buffer memory to ensure smooth video
stream transmission. With a plastic and fanless design, the device
provides a more cost-effective option for customers. The Device is an
unmanaged switch, so it does not need to be configured through web
interface, which simplifies installation
Robust Design
Built to last, the architecture of the switch makes it highly reliable, operating with high-efficiency non-stop.
Plug and Play
Hassle-free, it does not require any configuration. Simply use after it is powered on.
Optimized Performance
All ports can transmit streams at high speeds without delay.
Easy Installation
Both desktop and wall mount installation are supported, making it suitable for a wide variety of scenarios.
- Supports five 10/100/1000 Mbps adaptive ports
- Small and light, it is easy to carry and has multiple chips embedded in it
- Easy to operate
| 10G support | No |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Compliance certificates | CE/Federal Communications Commission (FCC) |
| Copper ethernet cabling technology | 1000BASE-T/100BASE-T/10BASE-T |
| DC input voltage | 5 V |
| Depth | 86.4 mm |
| Forwarding rate | 7.44 Mpps |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Height | 23 mm |
| Housing material | Plastic |
| Input current | 1 A |
| MAC address table | 2000 entries |
| Mean time between failures (MTBF) | 3184161.84 h |
| Model name | PFS3005-5GT-L-V2 |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 0 - 45 °C |
| Package depth | 94 mm |
| Package height | 67 mm |
| Package weight | 230 g |
| Package width | 111 mm |
| Packet buffer memory | 1 MB |
| Plug and Play | Yes |
| Power consumption (max) | 1.5 W |
| Power over Ethernet (PoE) | No |
| Power source | DC |
| Power supply included | Yes |
| Product colour | White |
| Rack mounting | No |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Summary | Dahua Technology PFS3005-5GT-L. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. DC input voltage: 5 V |
| Sustainability compliance | Yes |
| Switch layer | L2 |
| Switch type | Unmanaged |
| Switching capacity | 10 Gbit/s |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.115 |
| Unit Box Width | 0.1 |
| Unit Calculated Volume | 0.000864 cubm |
| Unit Calculated Weight | 0.18 kg |
| Units per Shipping Box | 30 |
| Vendor Homepage | https://www.dahuasecurity.com/products/All-Products/Transmission/IT-Channel-Products/SOHO-Switch/PFS3005-5GT-L |
| Weight | 120 g |
| Width | 52 mm |
