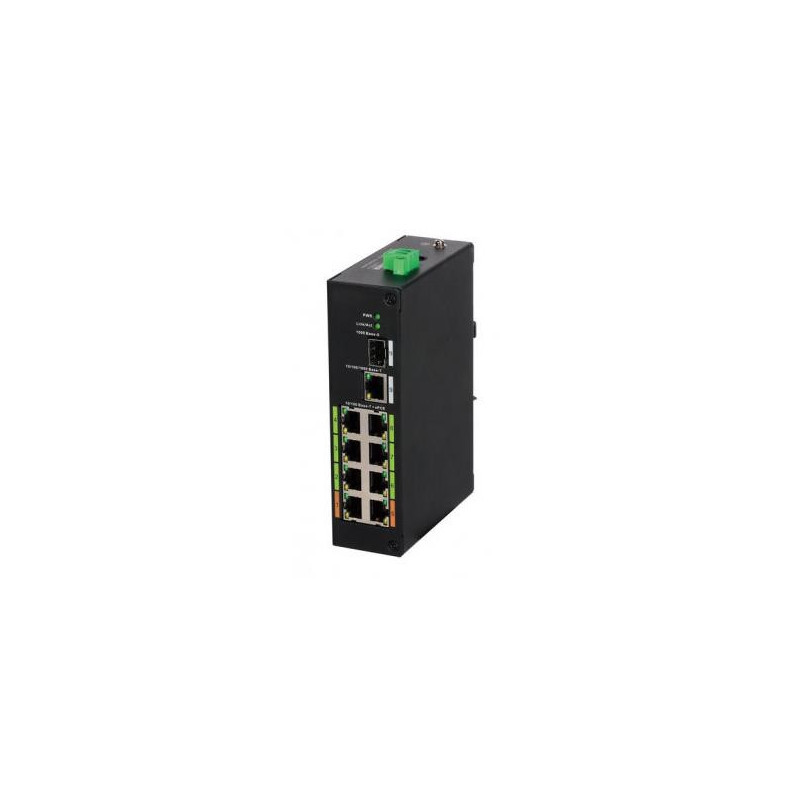

Switch, DAHUA, LR2110-8ET-120-V2, PoE ports 8, DH-LR2110-8ET-120-V2
Product reference: 2-6923172594099
Switch, DAHUA, LR2110-8ET-120-V2, PoE ports 8, DH-LR2110-8ET-120-V2

Switch, DAHUA, LR2110-8ET-120-V2, PoE ports 8, DH-LR2110-8ET-120-V2

Product reference: 2-6923172594099
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
193,40 €
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

DH-LR2110-8ET-120 is a 8-Port ePoE switch, which is able to realize PoE transmission over 800 meters Ethernet cable at the speed of 10Mbps, or 300 meters at the speed of 100Mbps. Besides, it supports PoE and PoC power supply technology, which has greatly simplified construction and wiring. Dahua ePoE technology offer a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.

  • Supports long distance PoE transmission up to 800m with ePoE technology of Dahua
  • Layer-two ePoE switch· MAC auto study and aging, MAC address list capacity is 8K
  • Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
  • Supports IEEE802.3af, IEEE802.3at, Hi-PoE standard
  • Industrial wide temperature design
  • Port indicator light is to display the status of current transmission mode for the port, which includes IEEE, E100 and E10

10G support No
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
DC input voltage 48 - 57 V
Depth 100 mm
Fast Ethernet (copper) ports quantity 8
Flow control support Yes
Forwarding rate 4.17 Mpps
Gigabit Ethernet (copper) ports quantity 1
Height 42 mm
LED indicators Yes
MAC address table 8000 entries
Model name LR2110-8ET-120-V2
Networking standards IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) -30 - 65 °C
Packet buffer memory 2.75 MB
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 8
Power supply included Yes
Product colour Black
SFP module slots quantity 1
Summary Dahua Technology DH-LR2110-8ET-120. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 8.8 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. DC input voltage: 48 - 57 V. Power over Ethernet (PoE)
Switch layer L2
Switching capacity 8.8 Gbit/s
Total Power over Ethernet (PoE) budget 120 W
Unit Box Height 0.076
Unit Box Length 0.267
Unit Box Width 0.24
Unit Calculated Volume 0.00487 cubm
Unit Calculated Weight 1.36 kg
Units per Shipping Box 1
Vendor Homepage https://www.dahuasecurity.com/search/products?keyword=LR2110-8ET-120-V2
Weight 590 g
Width 150 mm
