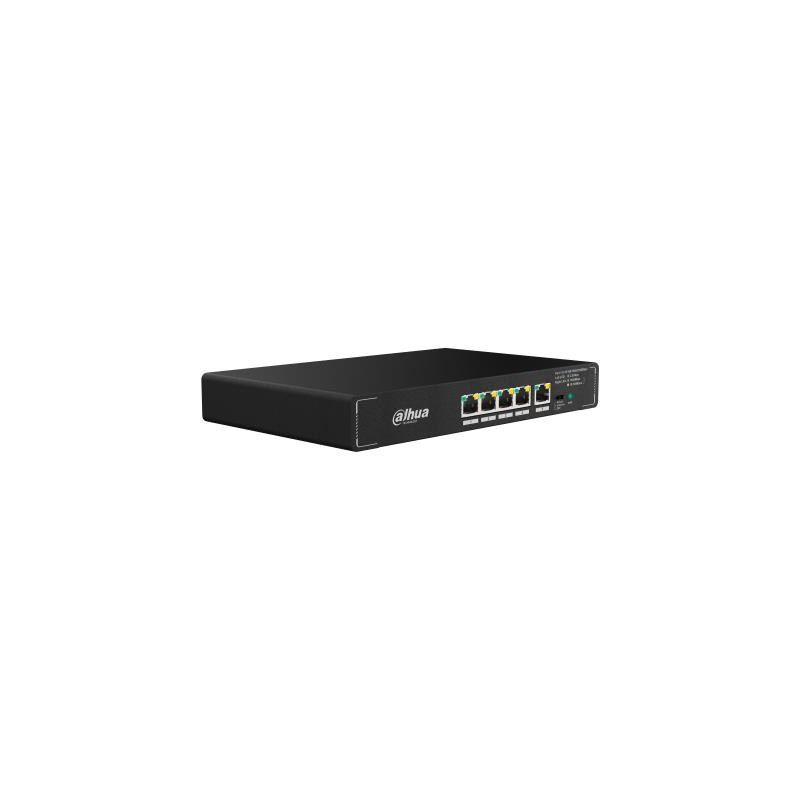

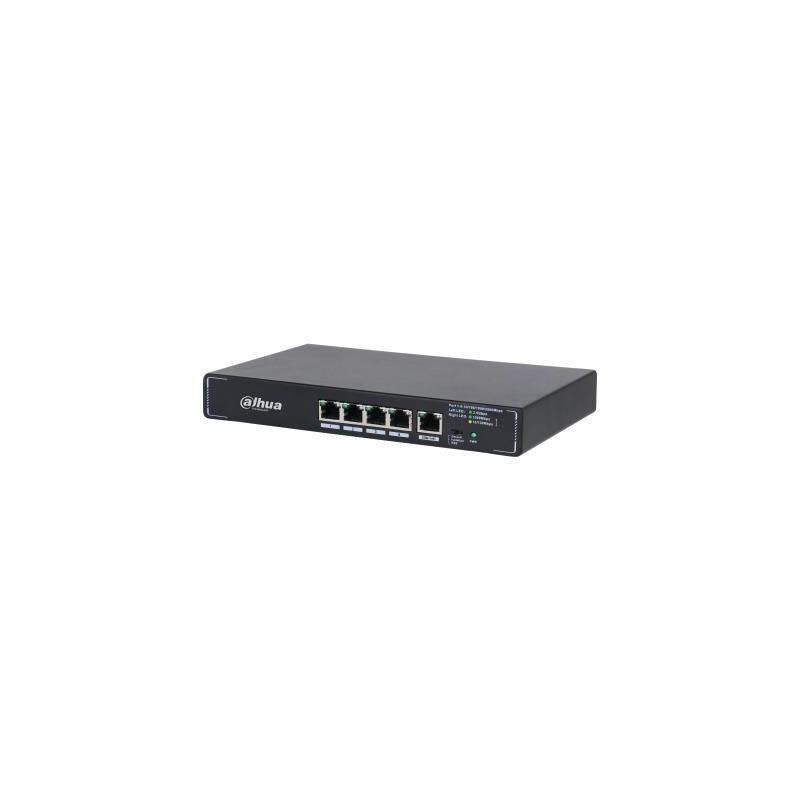

Switch, DAHUA, DH-SMG1005, Switch type Unmanaged, 5x2.5G Ethernet (copper) ports quantity, SMG1005
Product reference:
2-6923172508225
Switch, DAHUA, DH-SMG1005, Switch type Unmanaged, 5x2.5G Ethernet (copper) ports quantity, SMG1005
Product reference:
2-6923172508225
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
SMG1005
5-Port Unmanaged Desktop Switch with 5-Port 2.5G
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Compliance certificates | CE |
| DC input voltage | 12 V |
| Depth | 141 mm |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Height | 30 mm |
| Housing material | Metal |
| Input current | 1 A |
| Jumbo frames | 12 |
| Jumbo frames support | Yes |
| MAC address table | 4000 entries |
| Manual | Yes |
| Model name | SMG1005 |
| Networking standards | IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3ae/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -10 - 55 °C |
| Package depth | 163 mm |
| Package height | 71 mm |
| Package weight | 942 g |
| Package width | 297 mm |
| Packet buffer memory | 8 MB |
| Plug and Play | Yes |
| Power consumption (max) | 5.38 W |
| Power protection features | Over current/Over voltage/Static electricity |
| Power source | DC |
| Power supply included | Yes |
| Product colour | Black |
| Storage relative humidity (H-H) | 10 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Summary | Dahua Technology SMG1005. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 4000 entries, Switching capacity: 25 Gbit/s. Networking standards: IEEE 802.3az, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE.... DC input voltage: 12 V |
| Switch type | Unmanaged |
| Switching capacity | 25 Gbit/s |
| Throughput | 18.6 Mpps |
| Unit Box Height | 0.06 |
| Unit Box Length | 0.385 |
| Unit Box Width | 0.185 |
| Unit Calculated Volume | 0.004274 cubm |
| Unit Calculated Weight | 1.18 kg |
| Units per Shipping Box | 1 |
| Vendor Homepage | https://transmission.dahuasecurity.com/en/product-list/Home/SOHOSwitches/MetalSwitch/SMG1005 |
| Weight | 680 g |
| Width | 220 mm |
